GT-770 New release 2d small size e-payment box barcode scanner

  • 2-199 Pieces
    $50.00
  • 200-499 Pieces
    $40.00
  • >=500 Pieces
    $39.00
Model Number:
GT-770
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
12 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Contact Supplier
Samples - $50.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32-bit MCU
Interface Type:
USB, COM, PS/2
Optical Resolution:
5 mil
Scan Speed:
200 scans/second
Brand Name:
GTCODESTAR
Place of Origin:
Guangdong, China
Material:
ABS
System Supported:
Linux,Android,Windows XP,7,8,10,MAC
Sensor:
Planar CMOS sensor
Light source:
Red LED
Weight:
100±5g(Without the cable)

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X9X5 cm
Single gross weight:
0.5 kg
Package Type:
Bubble Bags and Kraft Paper Box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 12 To be negotiated
Video Description

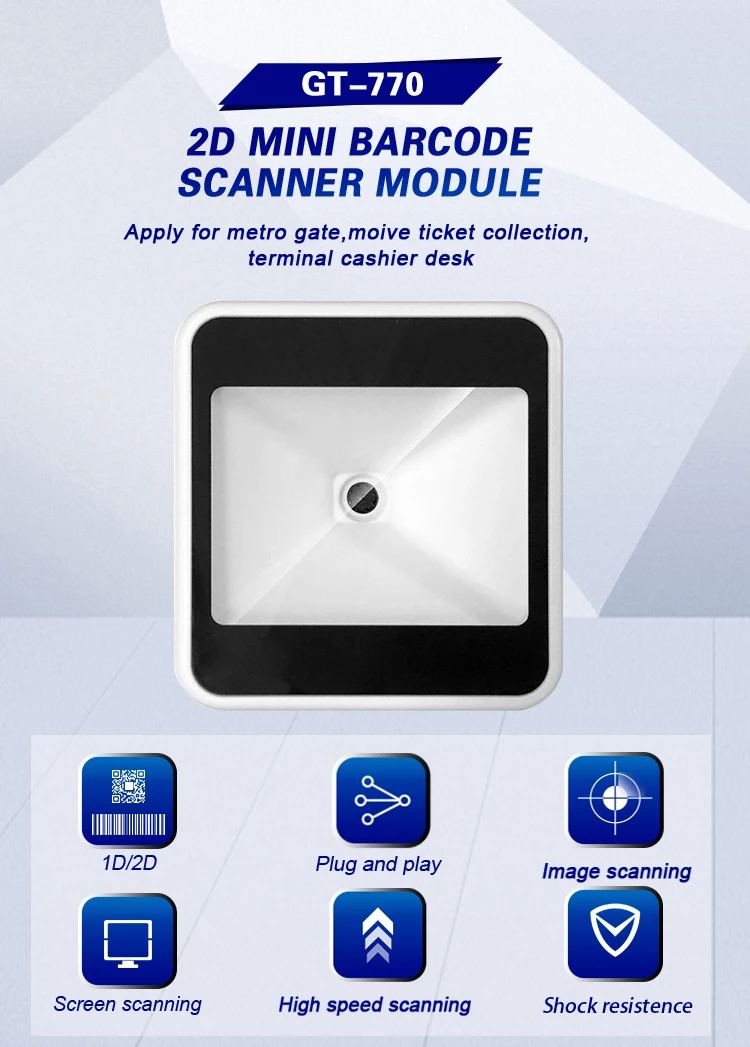

Mini 2D Barcode Scanner

Technical Parameters
ModelGT-770
ItemMini Wired 2D Desktop Barcode Scanner
MaterialABS
Power SupplyDC 5V ±5%
Power Consumption1.35W(working);1.12W(standby);1.85W(maximum)
Weight172.0g±5g(Without cable)

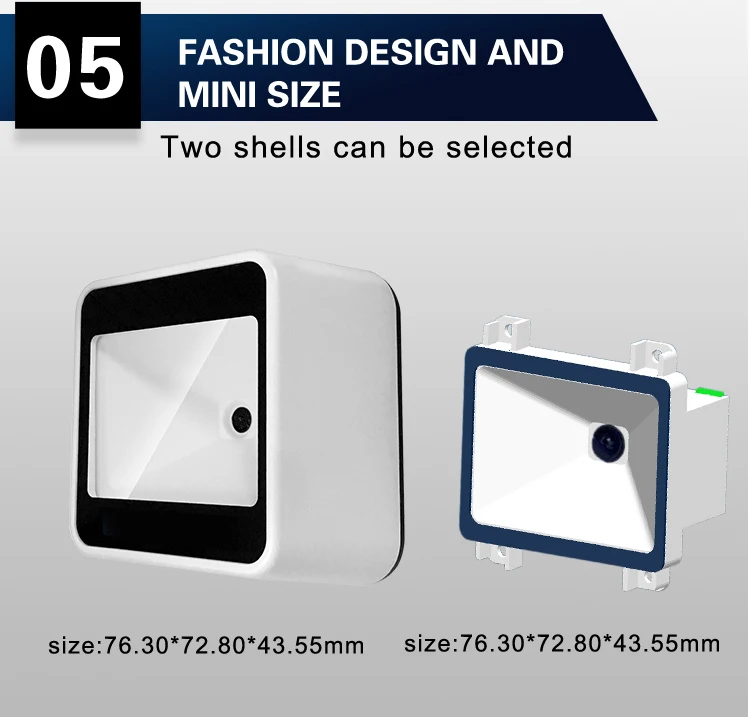

SizeL*W*H:76.3 * 72.8* 73.55(unit:mm)
ColorBlack;Grayish white
Professor32-bit ARM MCU + DSP
InterfaceUSB cable;(RS232 can be customized)
System SupportedLinux,Android,Windows XP,7,8,10,MAC
Language SupportedEnglish; French; German (Language can be customized)
Light SourceWhite LED
Resolution5mil
Bit Error Rate1/5000000
Motion Tolerancecode 128:15cm/sec  QR:25cm/sec
Reading ModeImage
Trigger ModeAuto-Sensing
Scanning Distance10mm-600mm
Prompt ModeBuzzer
Print Contrast≥25%
Decoding CapabilityRead all standard 1D&2D bar codes
Scanning AngleRoll360°, Pitch45°,Yew45°
Scanning Depth Code39 5mil:0 - 2 cm   QR code:0cm - 30cm
IP GradeIP52
Operating Temp.0 to 50℃ / 32 to 122℉
Storage Temp.0 to 50℃ / 32 to 122℉
Operating Humidity20% to 85%(No Condensation)
Storage Humidity20% to 85%(No Condensation)
ESD Protection15KV air discharge
Shock ResistanceBuzzer, Indicator Light(LED)
Shock Resistance1.5m free fall on concrete surface
