GXG-850 Simple Version Stainless Steel Coil Slitting Machine Production Line

  • 1 - 1 Sets
    $79,000.00
  • >=2 Sets
    $76,000.00
Model Number:
GXG-850
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Material Thickness(mm):
1 - 2.5
Cutting Width (mm):
20 - 300
Cutting Speed(m/min):
20 - 120
No. of Slitting Lines:
2 - 25
Coil Weight (T):
5
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Construction works , Advertising Company
Place of Origin:
Guangdong, China
Brand Name:
GXIUG
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas
Warranty:
1 Year
Condition:
New
Voltage:
220V/380V/440V
Rated Power:
90KW
Dimension(L*W*H):
15*5
Weight:
8T
Certification:
ISO9001:2008
Year:
2019
Key Selling Points:
High Productivity
Type:
Shearing Machines
Strip width:
150-820mm
Strip thickness:
0.3-2.0mm
Steel coil weight:
≤8T
production methods:
Self-employed
Export port:
Foshan/Guangzhou/Shenzhen/Customer designated port
Price mode:
Ex-factory price / FOB price / CIF price...
Color:
Blue / green / gray / customer selected
Production experience:
18 years
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
The key instruments are wrapped with a bubble film, wrapped in other conventional plastic films. According to the model size of the machine, choose a different number of 20 feet / 40 feet container for the entire cabinet transport.--Simple Version Stainless Steel Coil Slitting Machine Production Line
Port
Guangzhou / Shenzhen / Foshan / customer specified
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Overview

High End Precision Stainless Steel/Carbon Steel/Iron/Aluminum/Galvanized Etc Metal Sheet Steel Coil Cutting Slitting Machine Equipment
Industry's first two-year free warranty, quality assurance
Passed the IS09001:2000 international standard certificatio
Simple Version Stainless Steel Coil Slitting Machine Production Line

Slitting machine is a professional equipment which is to be a certain width of the steel strip asneeded, to cut into a number of narrow. The equipment has the characteristics of high degree of automation and high precision, slitting machine can cut stainless steel / carbon steel / iron / aluminum material of different points in the strip steel coil. According to the cutting process, slitting machine can be divided into high precision slitting machine, Conventional configuration slitting machine, simple slitting machine, each configuration can be customized according to customer demand, the slitting machine production and processing speed can be more than 100m/min, greatly improve work efficiency.

Production process
Product parameters
Simple Version Stainless Steel Coil Slitting Machine Production Line
Model
Strip width(mm)
Strip thickness(mm)
Number of branches
Production speed(m/min)
Total power(kw)
Steel coil weight(T)
GXG-850
150-820
0.3-2.0
3-15
150
90
≤8
GXG-650
150-620
0.25-2.0
3-15
150
80
≤6
GXG-450
100-420
0.25-1.5
3-10
120
50
≤3
Detailed description

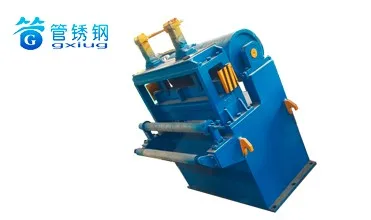

Uncoiling machine

Manual / hydraulic expansion mode
4 pieces of curved plate on the coil to shrink
Electric uncoiling
With brake device
Precision type with indenter
Prevent the steel strip from spreading out



Guiding, slitting, waste side collection machine

3 sets device of integrated design
The simple guide feed the coil into the mainframe of the slitting
Slitting mainframe to slit the steel strip
The waste side of the collector will be cut after the waste side curls are collected
Manually dismantle the collected scrap



Tension station

Separate the strips from the slitting
Press strip under the press plate
Make the steel strip have a certain tension
Rollers are used to stabilize the steel strip
Prevent steel strip from beating


Coiling machine

Recoiling the strip after slitting
With automatic indenter
Used to prevent the coil from spreading
While separating the rewound coil
Precision with automatic return device
The rolled coil is rolled out of the roll


Loading / unloading trolley

Feed the steel coils into the unwinder and out of the winder
4 column support design
The machine table is V type design
The surface is paved with gelatinous cushion
To prevent steel scratches
Hydraulic lifting
Electric walking


Movable bridge

Route the strip into the guide and tension station before running
Decrease position at run time
Cause the natural sagging to the buffer pit
Play a buffer role
