Galvanized Football Field Outdoor Stadium 30M High Mast Lighting Pole

FOB Reference Price:Get Latest Price
$2,000.00 - $8,000.00 / Sets | 10 Set/Sets (Min. Order)
Model Number:
GDG-025
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JIUZHAO
Material:
Q235 or SS400
Type:
Octagon, Dodecagon or Hexadecagon
Application:
City Square, Station, Airport, Wharf, Highway,Stadium, Flyover
Name:
30m high mast lighting pole
Pole Height:
18m-50m
Color:
Any RAL color
Certificate:
CE ISO9001
Warranty:
20 Years
IP Rating:
IP65
Lamp:
High Pressure Sodium Lamp, Metal Halide Lamp or LED lamp
illumination:
180 degree or 360 degree
Surface treatment:
Hot dip galvanized with passivation preservative treatment
Supply Ability
Supply Ability:
2000 Set/Sets per Week 30m high mast lighting pole
Packaging & Delivery
Packaging Details
30m high mast lighting pole packing:
Pole packed by bubble bag with blanket,The grass ropes tighten two sides,others are package as standard export carton
Port
Shanghai / Ningbo
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 20 To be negotiated

Galvanized Football Field Outdoor Stadium 30M High Mast Lighting Pole



Product Description

Specifications of 30m high mast lighting pole:

HeightFrom 18 m to 50m
Suitable for Airport ,seaport, plaza, stadium, square, highway station, street way ,etc
Shape Round, Multi-pyramidal, Column form, polygonal or conical
MaterialQ235B/A36,minimum yield strength>=235n/mm2
Torrance of dimension± 2%
Lighting Source400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m²
Angle of illumination180 or 360 degree.
Light plateVarious figure of selection ,material with hot dip galvanization steel frame.
Lifting system Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute equipped electromagnetism brake and break –proof device, manual operation applied under power cut.
Electric appliance control device Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode.
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles Insert mode, inner flange mode, face to face joint mode .
Design of poleAgainst earthquake of 8 grade
Wind Speed 80 Km/Hour
WeldingWe has past flaw testing. Internal and external double welding makes the welding in shape
Thickness 6 mm to 20 mm
Production Process Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flange welding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging
Packages Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required



Detailed Images

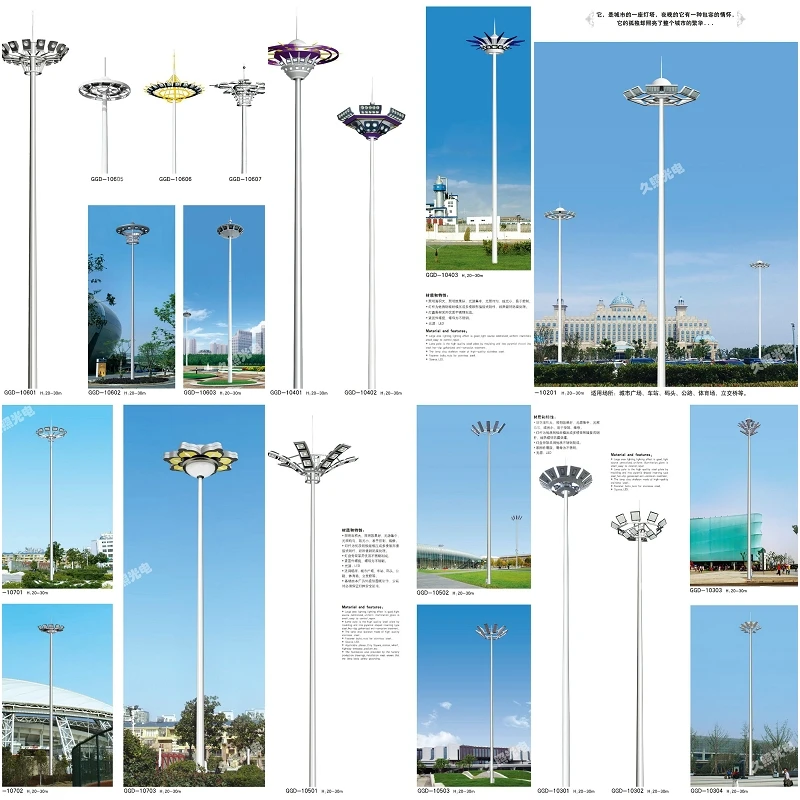

Lamp Panel Options:



JIUZHAO factory has a full range of high mast light designs for your choice. Contact us with your project, we will provide our professional configuration for you!
