Easy-to-use touch-screen panel.
Auto-set of intake temperatures, Auto-adjustment of Ignition Time and C.R. Digital Counter Reading, Auto-control of temperature system.
Professional Software provides friendly interface and simple operating procedure for ASTM RON and MON test methods. New operator requires less training to achieve proficiency.
Overview
Quick Details
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
SINPAR
- Model Number:
-
FTC-M
- Power:
-
Electronic
- Standard:
-
ASTM D2699 ASTM D2700
- Test method:
-
RON & MON
- Working Range:
-
40-120 octane number
- Compression Ratio:
-
4:1-18:1
- Intake Air Temperature:
-
52±1°C(adjustable)
- Mixture Temperature:
-
149±1°C(adjustable)
Supply Ability
- Supply Ability:
- 100 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- IPPC standard export wooden case with size: 250*120*200cm
- Port
- Shanghai
- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 5 >5 Est. Time(days) 75 To be negotiated
Product Description
Combination (Research & Motor Method) Octane Rating Unit SINPAR FTC-M
is a complete system for determining octane number of motor fuels, conforming to ASTM D2699 (ISO 5164) and ASTM D2700(ISO 5163) Standard Test Methods.
The Combination Octane Rating Unit FTC-M provides the capability to switch between Research Method(RON) and Motor Method(MON) quickly and conveniently. With either method, testing capabilities cover the 40 -120 octane number range.
FTC-M Octane Rating Engine applies to the user which has the requirements of wide source test samples, large test quantity, long continuous test time, performing to ASTM test procedures. With excellent test accuracy and stable performance it is widely accepted and used in octane laboratories.
Standard:
ASTM D2699 (Research Method), ASTM D2700 (Motor Method);
ISO 5164 (Research Method), ISO 5163 (Motor Method);
IP 237 (Research Method), IP 236 (Motor Method)
Combination Octane Rating Unit FTC-M produces test results under these operating conditions:
Research Method (ASTM D2699) | Motor Method (ASTM D2700) | |
Engine Speed: 600 RPM ±1% | Engine Speed: 900 RPM ±1% | |
Spark Timing: 13° BTDC | Spark Timing: Variable Based on Cylinder Height | |
Intake Air Temperature: 52°C±1°C (125°F ± 2°F) | Mixture Temperature: 149°C±1°C (300°F ± 2°F) | |
Jacket Temperature: 100°C ± 1.5°C (212°F ± 3°F) | ||
Oil Temperature: 57°C ± 8.5°C (135°F ± 15°F) | ||
Oil Pressure: 172 kPa - 207 kPa (25 - 30 PSI) | ||
Intake Humidity: 25 - 50 grains of moisture/lb. dry air | ||
Power Supply: 380V 50Hz/60Hz 10KW; 220V 50Hz/60Hz 2KW | ||
Products Show
Specifications
Technical Parameters
Basic Information | ||
Standard | ASTM D2699 RON ASTM D2700 MON | |
Working Range | 40-120 octane number | |
Operation Conditions | ||
Engine Speed (Motor) | 900±9 rpm | |
Engine Speed (Research) | 600±6 rpm | |
Ignition Timing (Motor) | Variable as Cylinder Height (C.R.) is Changed | |
Ignition Timing (Research) | 13° BTDC | |
Intake Air Temperature (Motor) | 38°C±1°C | |
Intake Air Temperature (Research) | 52±1°C at Std. Barometer, Depends on barometric pressure | |
Intake Mixture Temperature (Motor) | 149°C±1°C | |
Cylinder Jacket Coolant Temperature | 100°C±1.5°C | |
Crankcase Oil Temperature | 57°C±8.5°C | |
Engine Information | ||
Compression Ratio (C.R.) | 4:1-18:1 | |
Cylinder Bore (Diameter) | 82.55 mm (Standard) | |
Stroke | 114.30 mm | |
Carburetor Venturi | 9/16 in., 19/32 in., 3/4 in. | |
Intake/Exhaust Valve Clearance (Hot) | 0.20 mm±0.025 mm | |
Crankcase Oil Pressure | 172 kPa- 207 kPa | |
Function Information | ||
Compression Ratio Adjustment | Motor-Driven | |
Compression Ratio Display Device | Dial Indicator & Digital Counter | |
Engine Speed Conversion | Dual-Speed Motor | |
Carburetor | Four-Bowl (with cooling function), Falling Level (SXCP Model) | |
Ignition Timing Display | Digital (Auto-Set) | |
Air Humidity Control Apparatus | Yes | |
Unit Protection System | Yes | |
Function Features
SXCP Octane Engine Model
Combination Octane Rating Unit FTC-M2 With SXCP Panel Model
Combination Octane Rating Unit With SXCP Digital Control Panel is the latest model of octane rating engine with many easy-to-use features including automatic functions and enhanced documentation capabilities, conforming to ASTM D2699(Research Method) and ASTM D2700(Motor Method).
Octane SXCP Digital Control Panel delivers consistent and reliable test results, with standard features including on-screen operation, on-screen reports, falling level program, automated data recording, auto-set & auto-calculation system, integrated maintenance logs, and comprehensive safety system.
Easy To Use
Falling Level Program
is used with four-bowl variable-level carburetor, that allows determining maximum knock intensity without manual adjustment of fuel level.
The operator can efficiently and accurately run a falling level test by PROCEDURE B (Bracketing-Dynamic Fuel Level) in ASTM D2699/ D2700.
Electronic on-board Barometer
automatically adjusts C.R. Digital Counter for Barometric Pressure as per ASTM method specifications.
Cylinder Height is measured and auto-adjusted accurately. And the results are displayed in dual dimension values (compensated and uncompensated) .
Cylinder Height is measured and auto-adjusted accurately. And the results are displayed in dual dimension values (compensated and uncompensated) .
Digital Knock Meter
displays actual and accurate knock intensity value and real-time waveform, thus realizes more consistent and reliable test results.
This software eliminates the need to center on 50 KI or be constrained by 0 -100 KI. Meanwhile automatically recording data, calculating results, and generating reports are provided.
Safety System and Maintenance Log
More safety System protects octane engine with failure indication system and E-stop, that ensures long service life and carefree operation.
Reference Fuel Blender

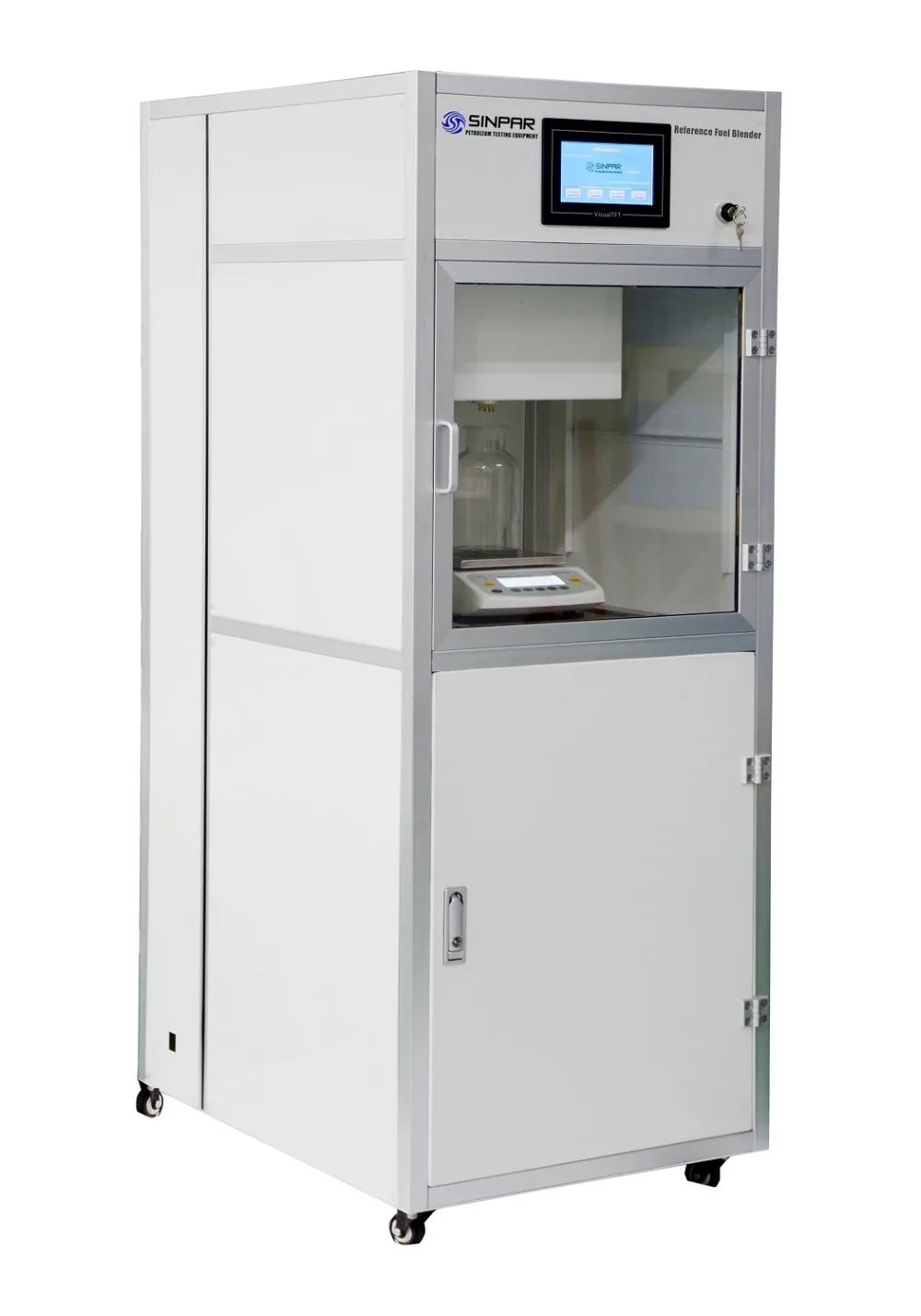

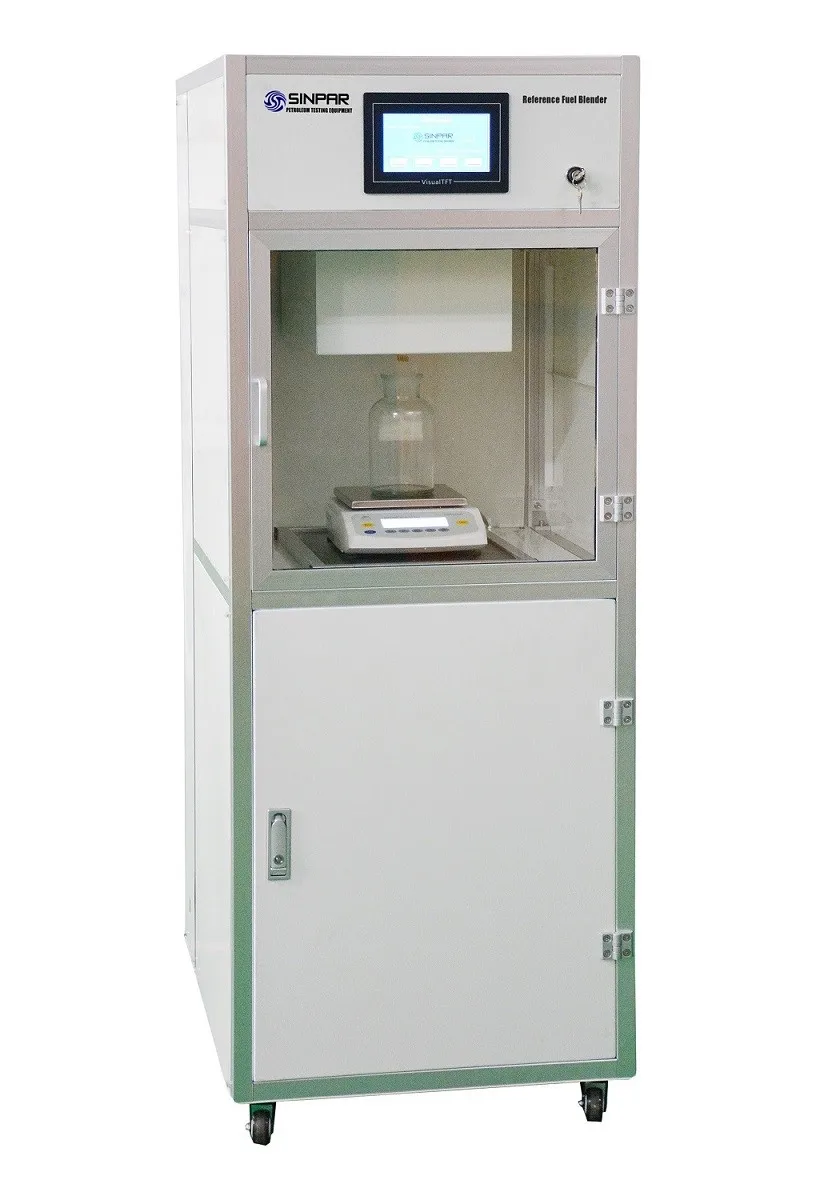

Automatic Reference Fuel Blending Unit
The automatic reference fuel blender equipped with 6 tanks, is used for the automated preparation of cetane and octane reference fuels and standardization fuels for Octane Engine and Cetane Engine according to ASTM D2699, ASTM D2700, ASTM D2885, and ASTM D613.
SINPAR Automatic Reference Fuel Blending Unit applies to the user which has the requirements of reference fuels in quick preparation for octane and cetane engines, performing to ASTM standards.
With excellent accuracy and efficiency, it is widely accepted and used in many laboratories.
Standard Applications
ASTM D2699, ASTM D2700, ASTM D2885, ASTM D613
It's suitable for long-time and error-free octane/cetane rating operation.
High Precision
A high precision balance is used for gravimetric measurement to improve accuracy of octane/cetane test results.
Simple Operation
Touch-screen panel with easy-to-use software simplifies blending operation process.
Accuracy and Efficiency
Automatic calculation program controls the whole blending process to eliminates human error and improve the efficiency of cetane/octane number test.

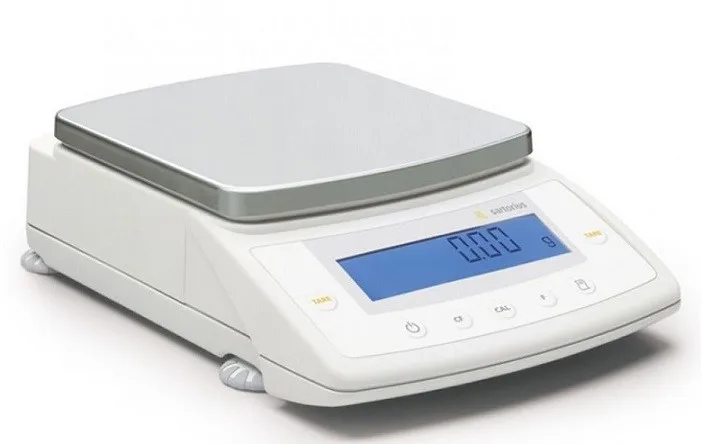

Automatic Blending By Weight
SINPAR Reference Fuel Blender prepares the reference fuel blends by weight (precision balance) based on the ASTM test methods.
With the automatic calculation and control program, a high precision balance delivers an accurate and reliable fuel blend value with the precision of 0.01g.

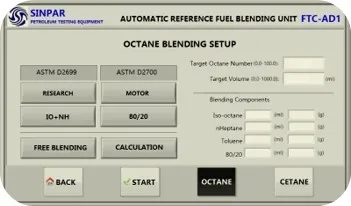

Fuel Blending Software
The professional software controls all blending process, and makes blending operation simple. The operator just needs to select the standard method, input the target octane/cetane number and sample volume, start blending. The fuel blend is delivered automatically.
Blend data is automatically saved in the computer.
Applicable Standard | ASTM D2699, ASTM D2700, ASTM D2885, ASTM D613 |
Application | For Cetane and Octane Determination |
Measurement Mode | Gravimetric Measurement by Precision Balance |
Fuel Blending Mode | Automatic Fuel Blending Unit with Software |
Operating Mode | Built-in Touch Screen Control Panel |
Tank Quantity | 6 Tanks of 10L each, for Iso-Octane, N-Heptane, Toluene, 80/20 Blend, N-Cetane, and HMN/AMN |
Accuracy | ±0.01 ON/CN |
Speed | 2 min/500 ml |
Monitoring System | Real-Time Monitoring for Fuel Temperature and Liquid Level in Tank |
Calibration Function | Precision Electrical Balance and Dosing Pumps |
Blend Data | Auto-Saved Data including Blending Date, Serial Number, Test Method, Blending Components, Blend Parameters |
Power Supply | 100-120VAC or 200-240VAC 50Hz/60Hz 2KW |
Safety System | Electrical Protection System & Temperature Monitoring |
Ventilation System | Connect to Aspirator or Ventilation Duct |
Weight | 165kg (with empty tanks) |
Dimension | 85x65x168cm |
SINPAR Service
Professional, Efficiency, Prompt
SINPAR products are under one-year warranty and lifetime service.
Professional Service Team
A professional Service Team provides the ON-SITE Service of Octane Unit installation, commissioning, maintenance, overhauls and training.

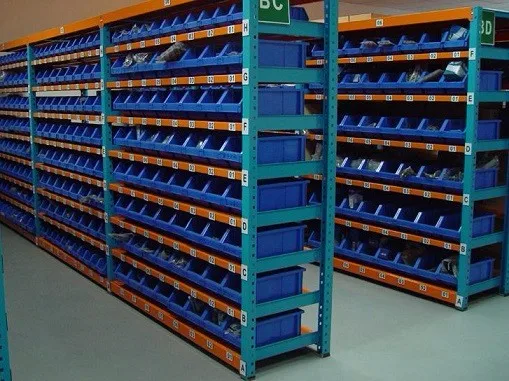

Timely Supply Spare Parts
Spare Parts Storehouses and Timely Supply System can supply spare parts timely and offer On-Site Service of Repairing and Replacement Parts.
Training Center
SINPAR Training Center provides the FREE technical training courses for Octane Engine. Training Center opens to all customers from all over the world.

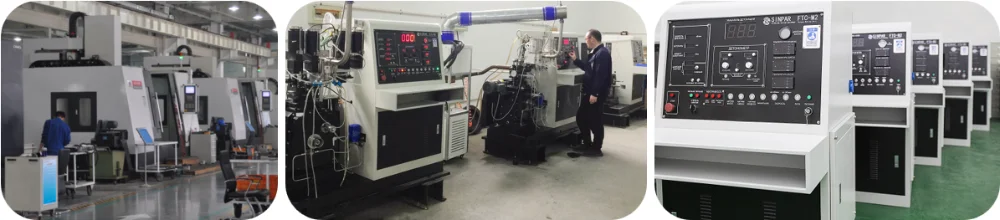

Global SINPAR
SINPAR
Professional Manufacturer of Combination Octane Rating Unit
Locates in Shanghai, China, is a high-tech company integrated with researching, manufacturing, sales and service for Combination (Research and Motor method) Octane Rating Unit (ASTM D2699 RON & ASTM D2700 MON).
Since SINPAR was established, it has been devoted to R&D of the high quality Octane Rating Engines in China and committed to offer the perfect solutions to customer.
Professional production base and strict manufacturing process ensure product's quality and excellent performance.
SINPAR FTC Octane Rating Unit which owning independent intellectual property rights in China, is in full compliance with ASTM D2699(ISO 5164) and ASTM D2700(ISO 5163) standard methods. In the years since it was first introduced to market, FTC Octane Rating Engine has been updated regularly with features that enhance test accuracy and accurate fuel octane ratings.
SINPAR FTC Octane engines are widely accepted and used in many countries and regions with its stable performance.
FAQ
Q: How long is the Delivery Time?
A: 60-75 days. Early delivery is available. Before delivery, inspection of equipment at factory is accepted.
Q: How about the After-sales Service?
A: We provide ON-SITE Installation, Commissioning, Maintenance, Training Service.
In addition, FREE Training is offered at SINPAR Training Center.
Q: What is the Quality Guarantee?
A: The quality guarantee period of complete unit is one year. The warranty is allowed to be extended.
