General Pipe Cleaning Machines RX-1700 for Residential Plumbing Systems

  • >=7 Pieces
    $1,485.00
Industry Used:
Other Electronic Industry
Feature:
Critical Cleaning / Residue Free
Model Number:
RX-1700
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Ricun
Power(W):
84
Dimension(L*W*H):
38*28*23CM
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
RX-1700
Color:
Silver
Material:
Aluminum alloy, SS 304#, All Types of Pipes
Shape:
Air case design
The Control Circuit:
CACS
Operate Method:
Key/ Remote control
Leak Detection Accuracy:
0.02KG/CM2
Leak Detection Mode:
Manual
Feature:
Leak detection system
Application:
Cleaning pipes
Condition:
New
Fuel:
Electric
Certification:
ce, ISO-9001:2015
Machine Type:
Other
Use:
Clean Residential Water Pipes
Cleaning Process:
Citric Acid Solution and Water
Cleaning Type:
Manual and Automatic
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box and foam
Port
Xiamen, Ningbo, Shenzhen, Shanghai, Guangzhou
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Company Introduction

Xiamen Ricun Enviro-Tech Co.,Ltd

Established in June, 2010, Xiamen Ricun Enviro-Tech Co., Ltd is a fast-growing innovative technology company which specialized in the R&D of water pipe cleaning machines with 32 national patents, CE and ISO9001 Quality System certification so far.

Water Manager is a subsidiary water pipe cleaning and service platform of Xiamen Ricun environmental protection and technology limited corporation.

In the millions of services, we have gradually improved the Water Manager's patent technology, service capacity and management system.

Years of accumulation of experiences on the market and the strong development of branding has made us the leading figure on the water pipe cleaning industry.

Competitive Advantages

1. Over 8 years of OEM/ODM experiences
2. Complete industry chain: Design-Manufacture-Test-Deliver-Service
3. Low defective rate: Controlling defective products within 3%
4. Fast delivery: 25 days for larger order
5. Long warranty: 12 -24months

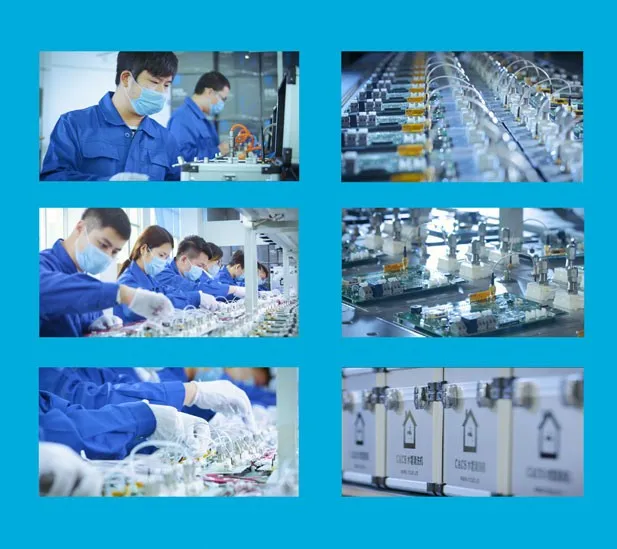

Our Factory

Xiamen HND Technology Co.,Ltd was founded in 2010 as the filiale of Xiamen Ricun Enviro-Tech. Our factory is located in Hi-Tech Zone,Xiang'an District,Xiamen,China. The total area of HND Tech factory is approximately 23,600 square meters.

Product Description

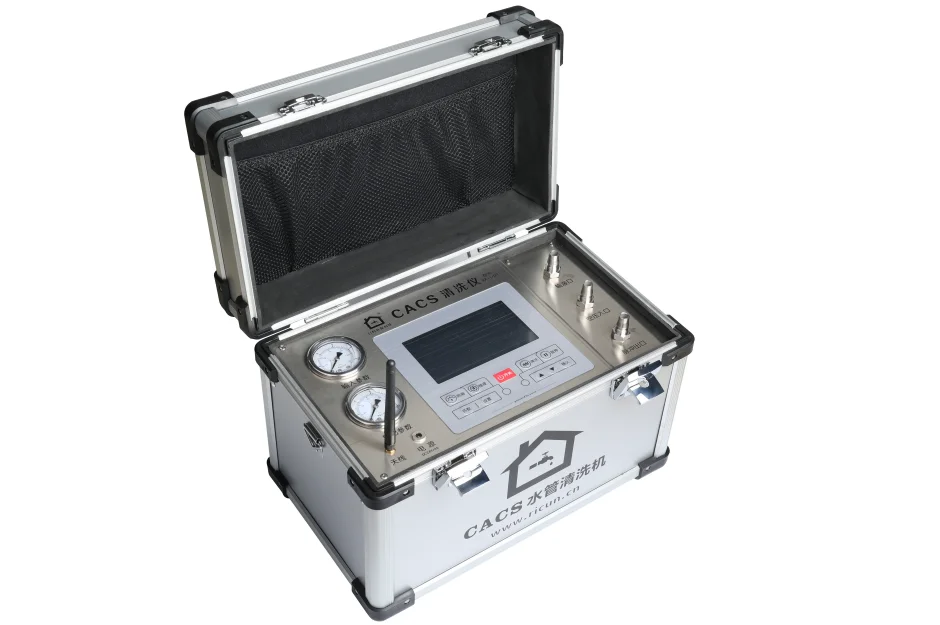

Product Name

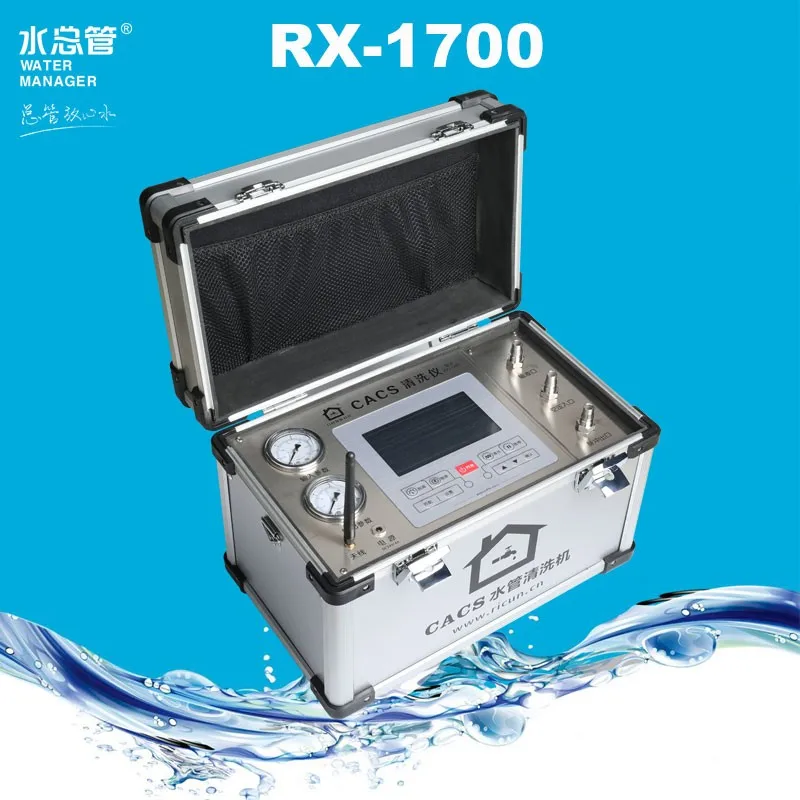

Basic Version RX-1700
Color:
Silver
Dimension:
380*280*230MM
N.W.:
8KG
Voltage/Power:
DC24V 3.5A/ 84W

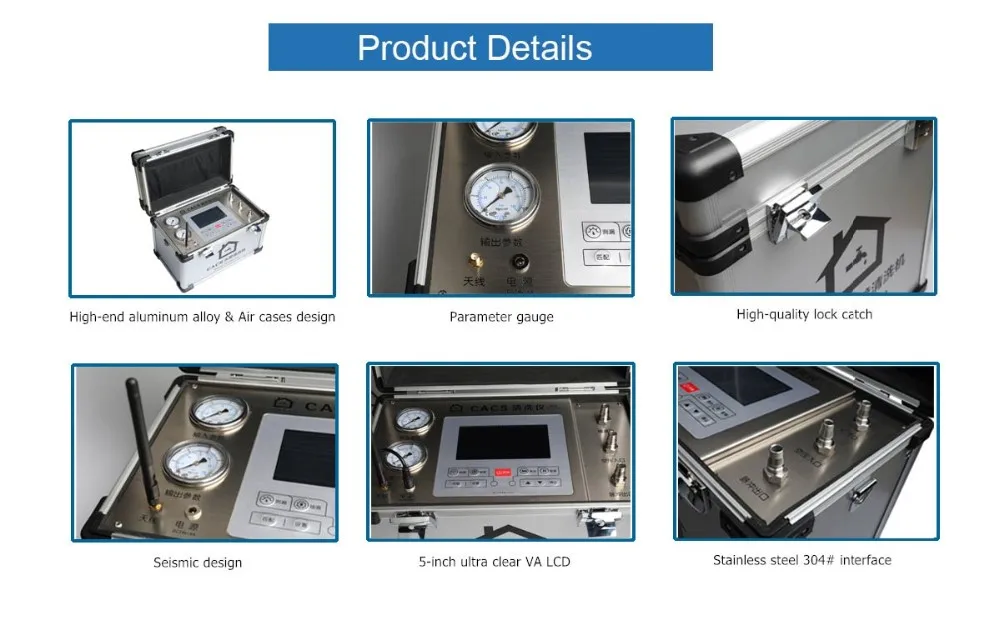

Material:
Aluminum Alloy, SS 304#
Shape:
Air case design
The Control Circuit:
CACS impulse generator
Operate Method:
Key/ remote control
Leak Detection Accuracy:
0.2KG/CM2
Application:
Domestic (1-3 Floor) water pipes, floor heating pipe, heating radiator, electric water heater, solar water heater.

Features

1. Leak Detection system;
2. Remote controlling;
3. High frequency impulse cleaning.

Application

Domestic (1-3 Floor) water pipes, floor heating pipe, heating radiator, electric water heater, solar water heater.

Methodology

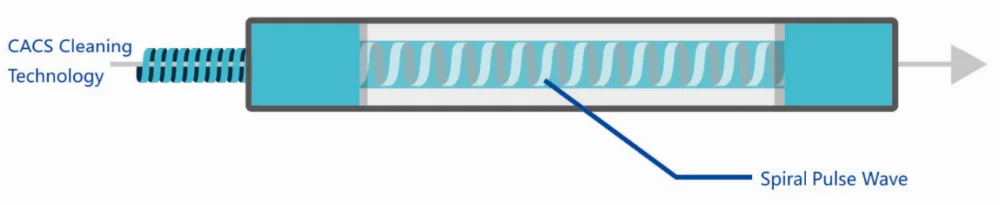

By using FOOD-GRADE citric acid to soften the internal dirt firstly, then combined with spiral pulse cleaning technology and high-frequency pulse cleaning technology, the machine forms a water-vapor-mixed spiral pulse to 360 degrees flush the pipeline. The whole process is safe, efficient and environmentally friendly.

It is suitable for cleaning water supply pipelines of various materials ( PVC pipe, PPR pipe, Copper pipe, galvanized pipe, etc.).

Feature: No chemical additives; Safe and pollution-free; Quick and efficient with low cost.

1. The citric acid is food grade, healthy and non-toxic, harmless for the water of life and human.
2. The cleaning pressure is around 0. 2-0.3Mpa. almost same regular water, so you will never come across the water pipe bursting situation.

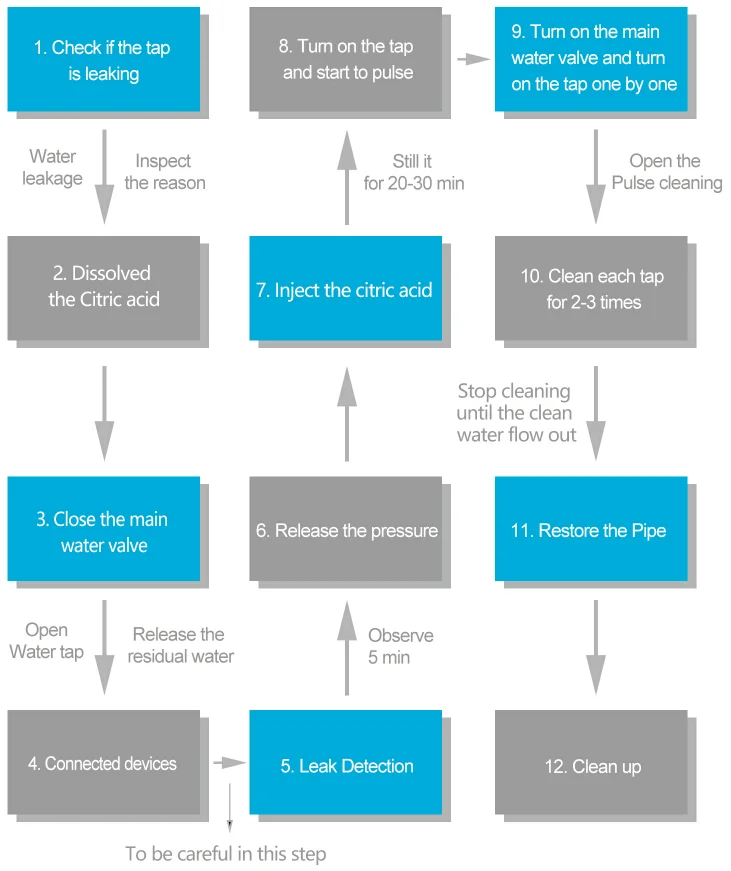

Title goes here.

1. Check piping layout

Check the water outlet position, total water valve switch, the position and Qty of home appliances, check the situation of triangular valve and tap

2. Dissolve the citric acid

Prepare the warm water round 50-60℃ to dissolve the citric acid, the proportion will be 1kg citric acid for 10-15L water, regularly apartment need about 15L warm water.

3. Shut down the water supply

Close the total water valve, turn off all of the household facilities which have the function of water inflow and disconnect the water inlet. For example: washing machine, water purifier, water heater, toilet. Also, you need to take off the tap filter net and shower head.

4. Connect the equipment

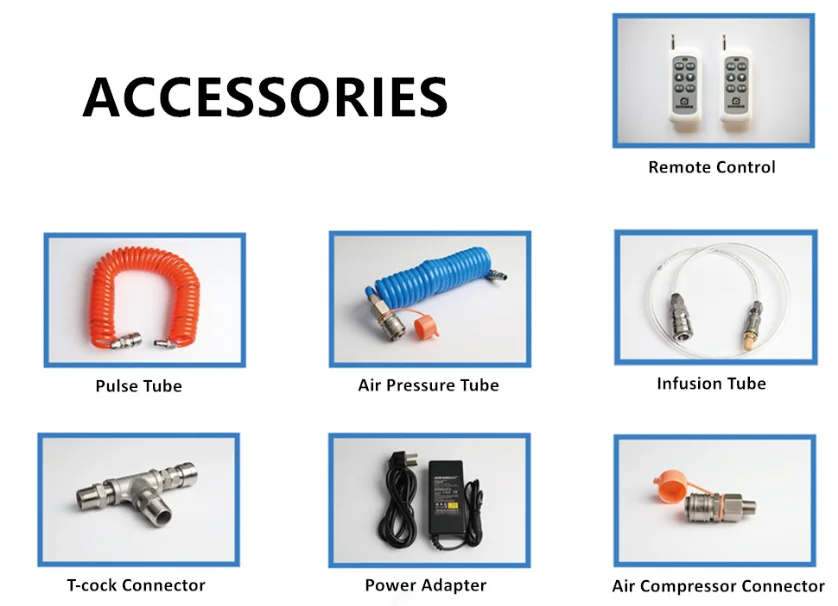

Connect the equipment to the pipe, normally we use the cold/hot triangular valve to connect the T-cork and equipment

5. Leak Detection

Set the pressure, adjust the input pressure, turn off all of the taps and check if there is leaking for the pipes by the leakage checking function. Simply press the " Leak Detection"key, there will be" didi"sound out in 5 min and the "Leak Detection" character will twinkle and twinkle and automatically pause.

Fill the pipe with air pressure and keep 5 min, observe if the output pressure parameter keep falling( the reference data will be 4.5-5KGF/CM2, if the data is too low then you need to repress the leakage checking key) If the output pressure data is stable then we will know there is no leaking situation; if the data keep falling then it tells us there us leaking,you need to fix the leaking situation before cleaning.

6. Release the Pressure

After the leakage checking, slowly turn on the farthest tap to the equipment, release the pressure inside the pipe.

7. Inject the Citric Acid

Open the farthest tap to the equipment connect position, press the fluid in key to inject the citric acid to the tube, until there is citric acid flowing out from the tap; Turn off the tap and pause the equipment, then inject the citric acid to the rest tap one by one until the full house pipe fulfilled with the citric acid. ( Note.: keep the citric acid still in the pipe for 20-30 min)

8. Citric Acid Cleaning

Turn on the farthest tap to the equipment, start the pulse cleaning function, pump out the citric acid and dirt, turn on each tap and repeat this step.(Note.: firstly turn on the tap and then start the pulse function, remember pause the equipment firstly and then turn off the taps)

9. Citric Acid Cleaning

Turn on the farthest tap to the equipment, start the pulse cleaning function, pump out the citric acid and dirt, turn on each tap and repeat this step.(Note.: firstly turn on the tap and then start the pulse function, remember pause the equipment firstly and then turn off the taps)

10. Repeat Step 9

Repeat the steps above 2-3 times until all of the pipes in your house is clean

11. Restore the Pipe

Restore all of the pipe connector. Test all of the taps to ensure it works well ( Note.: turn on all of the taps one by one, eliminate the air inside the pipe, if there is air inside the pipes for a certain time, there might be slight yellow water flowing out from the tap.

Cleaning Effect.

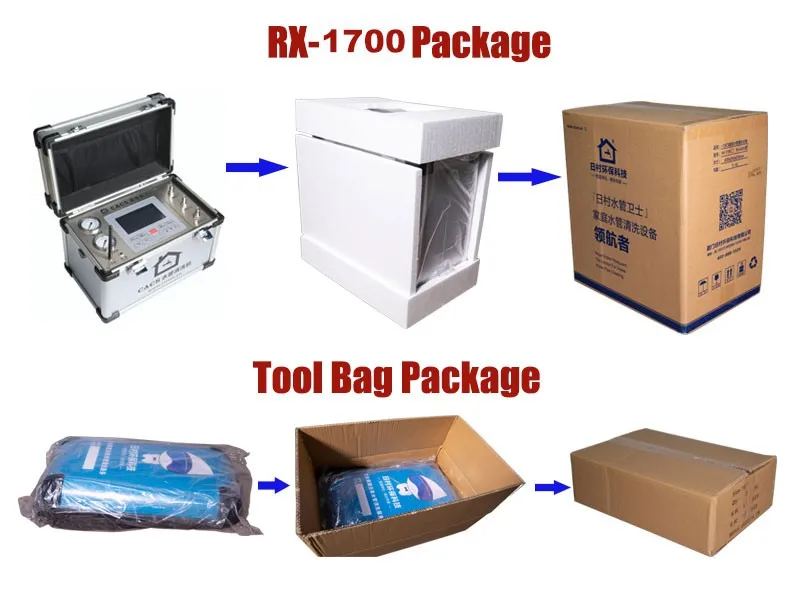

Package 1700
Name
Pipe Cleaning Machine RX-1700
Dimension
38*28*23cm
N.W.
8kg
Package
43*29*47cm
G.W.
11.5kg
Package
carton box and foam

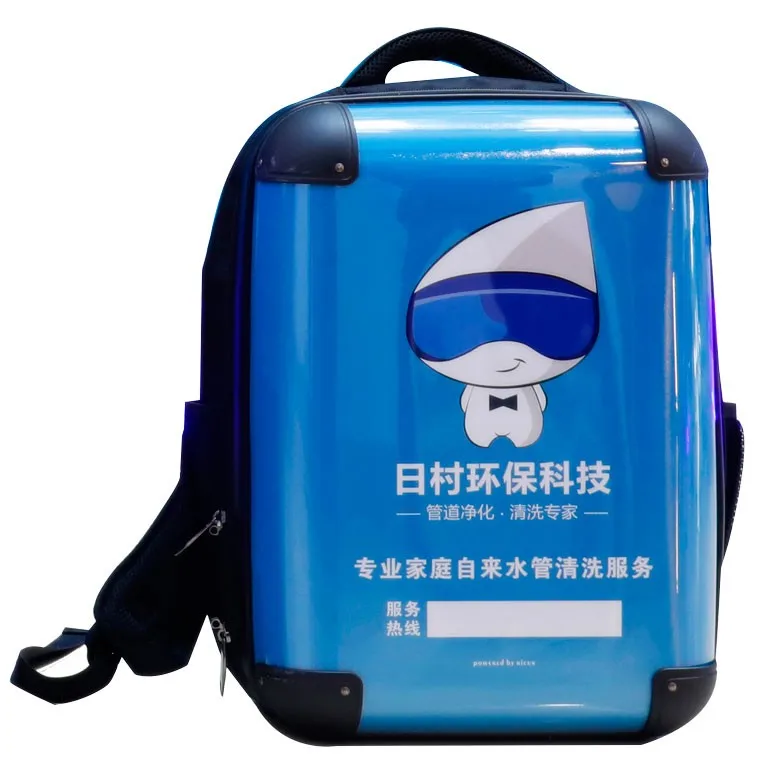

Name
Tool Bag
Color
White, Blue (Optional)
Dimension
49*33*15cm
N.W.
1.6kg
G.W.
2kg
Pacckage Material
carton box
FAQ

Q1: Is it necessary to clean water pipes?

Answer: Absolutely necessary! As we all know, the pollution problem is getting worse now. The quality of tap water is not very good. And if the pipes are not cleaned for a long time, they can easily breed microcystosis, bacterial virus, Escherichia coli, enterovirus, and so on. Meanwhile lead, arsenic, cadmium, mercury and other toxic heavy metal would contaminate the water and endanger our health.It can also cause lower water flow, even block the water pipe!

Q2: Do we still need to clean the water pipelines after storing the water purification devices?
Answer: Currently, most families use water purification device in purifying drinking water. But 97% of everyday domestic water usage for brushing teeth, showering and cooking is neglected. Storing water filtration devices can only filter the large particle, but it can't filter bacteria, heavy metals and other toxic matter. Cleaning pipes not only can remove harmful substances on the pipe wall, but also can prolong the service life of the filter cartridge.

Q3: Will it cause the pipe burst?
Answer: According to the national construction laws, residential water pipe must endure the pressure at least 15kg/cm2,while the output pressure of the CACS cleaning machine is about only 2.5kg/cm2, the max pressure is 5kg/cm2. so there is no need to worry about that.
