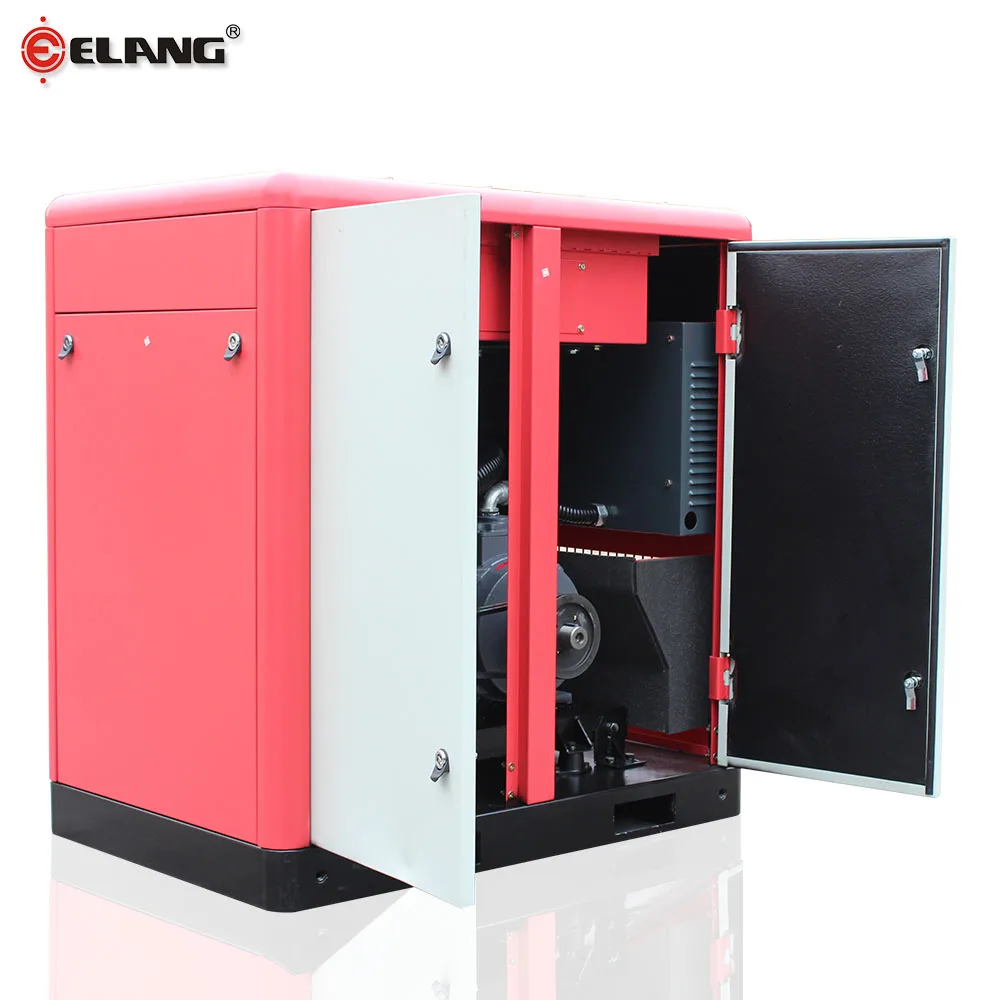

German Standard 10HP 7.5KW Belt Driven Screw Air Compressor Machine

  • 1-2 Sets
    $2,090.00
  • >=3 Sets
    $1,950.00
Model Number:
ERC-10SA
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
General Industry
Condition:
New
Type:
SCREW
Configuration:
Stationary
Power Source:
AC POWER
Lubrication Style:
Lubricated
Mute:
Yes
Place of Origin:
Shanghai, China
Brand Name:
ELANG
Voltage:
220V / 380V / 440V / Customize
Dimension(L*W*H):
850*640*880mm
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Product name:
German Standard 10HP 7.5KW Belt Driven Screw Air Compressor Machine
Driven Method:
Belt Driven
Working pressure:
7.5-13bar
Cooling Method:
Air Cooling
custom made:
Available
Exhaust gas temperature:
≤ 180 ℃
driven method:
Direct driven
Motor cooling:
IC44
Protection grade:
IP54/IP55
Product Certification Verified
CE Certified.
Valid from 2015-06-30 until 2049-12-31

Packaging & Delivery

Selling Units:
Single item
Single package size:
85X64X88 cm
Single gross weight:
350.0 kg
Package Type:
Standard exporting packing for German Standard 10HP 7.5KW Belt Driven Screw Air Compressor Machine.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 3 4 - 6 >6
Est. Time(days) 15 25 40 To be negotiated
7.5KW 10HP Belt Driven Screw Air Compressor Machines
Product Name:
7.5KW 10HP Belt Driven Screw Air Compressor Machines
Working Pressure: 7 - 13bar (100 - 181psi)
Air Delivery: 0.7 - 1.1m3/min
Motor Power: 7.5kw/10hp
Type of Driving: Belt Driven
Type of Cooling: Air Cooling
Dimension: 850*640*880mm
Weight: 350kg
Output pipe Diameter: 3/4"

There are more parameters below.

Advantages

  1. Control Panel: Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions.Remote control realizes unattended operation.
  2. Oil filter: Rotary filters are applied to completely remove the impurities in the lubricating oil,easy to replace and free of oil impregnate.
  3. Cooler: It is designed for low temperature difference to increase heat exchang area,and ideal to be applied to high-temperature and high-humidity operating environment.
  4. Motor: First-class motors are adopted,with the level of protection being lp54 and insulation level being F.
  5. Acoustic enclosure: It is designed into fully-closed mute box,in which soundabsorbing sponge are attached for effective absorption of noise,thereby making the noise 3-5dB(A)lower than that made by the compressors of the same kind. It is reasonably structured overall and very easy to maintain and repair.

ModelWorking PressureAir DeliveryMotor PowerType of DrivingType of CoolingDimension(mm)Weight(kg)Output pipe Diameter
psigbarcfmm3/minkw/hpLWH
ERC-10SA100738.81.17.5/10Direct drivenAir Cooling
/
Water Cooling
8506408803503/4"
116835.31
1451030.00.85
18112.524.70.7
ERC-15SA100763.61.811/15115075011804501"
116858.31.65
1451053.01.5
18112.545.91.3
ERC-20SA100784.72.415/20115075011804601"
116877.72.2
1451074.22.1
18112.563.61.8
ERC-25SA1007109.53.118.5/25120088014506201"
1168102.42.9
1451095.32.7
18112.581.22.3
ERC-30SA1007134.23.822/30120088014506401"
1168127.13.6
14510113.03.2
18112.588.32.5
ERC-40SA1007187.15.330/4012501000136090011/4"
1168176.65
14510151.84.3
18112.5127.13.6
ERC-50SA1007233.06.637/50135010001640106011/4"
1168218.96.2
14510201.35.7
18112.5162.44.6
ERC-60SA1007282.5845/60130010001470115011/2"
1168271.97.7
14510243.66.9
18112.5211.96
ERC-75SA1007370.810.555/7519501320157017502"
1168346.09.8
14510307.28.7
18112.5257.87.3
ERC-100SA1007480.213.675/10019501320157018402"
1168459.013
14510399.011.3
18112.5356.610.1
ERC-120SA1007572.016.290/12021001320170020302"
1168543.815.4
14510466.113.2
18112.5395.511.2
Motor Efficiency Class:   Ultraefficient/IE3/IE2 as per your required
Motor Protection Class:   IP23/IP54/IP55 or as per your required
Certification:  CE/ISO9001/TUV/UL/SGS/ASME
Voltage:  380V/3PH/50HZ/60HZ,   220V/3PH/50HZ/60HZ,   400V/3PH/50HZ/60HZ,   440V/3PH/50HZ/60HZ,   415V/3PH/50HZ/60HZ,   230V/3PH/50HZ/60HZ,  dual voltage is also ok

Q1:  Why customer choose us?

A:  ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and 10years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.

Q2:  Are you a manufacturer or trading company?

A:  We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.

Q3:  What's your delivery time?

A:  Generally 3 to 7 days, if urgently order, pls contact our sales in advance.

Q4:  How long is your air compressor warranty?

A:  One year for the whole machine and two years for screw air end, except consumble spare parts.

Q5:  How long could your air compressor be used?

A:  Generally, more than 10 years.

Q6:  What's payment term?

A:  T/T, L/C,  D/P,  Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.

Q7:  How about your customer service?

A:  24 hours on-line service available. 48hours problem sovled promise.

Q8:  How about your after-sales service?

A:  1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
