German technology plant to produce lightweight concrete AAC blocks and Panels manufacturing process

FOB Reference Price:Get Latest Price
$500,000.00 - $1,500,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
600-1000 kw
Model Number:
AAC equipment
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 80 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Place of Origin:
Shandong, China
Brand Name:
Dongyue
Dimension(L*W*H):
Depends
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Energy saving
Labor required:
15 person
Water consumption:
300l/m3
Oversea offces:
India/Indonesia/Vietnam
Main market::
India/Iran/Buma/Bulgaria/Indonesia/Mongolia
type:
plant to produce AAC Panels
Condition:
New
Brick Raw Material:
CONCRETE
Processing:
Brick Cutting Machine
Method:
Autoclaved Aerated Concrete
Automatic:
Yes
Type:
sand, fly-ash, cemnet, gypsum
Max. Capacity:
.5 lac to 3 lac cubic meters per year
Voltage:
380/415v
Certification:
CE/SGS/ISO9001
Supply Ability
Supply Ability:
50 Set/Sets per Year plant to produce AAC Panels
Packaging & Delivery
Packaging Details
German technology plant to produce lightweight concrete AAC blocks and Panels manufacturing process ,suitable for shipping
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 80 To be negotiated
Product Video

German technology plant to produce lightweight concrete AAC blocks and Panels manufacturing process

Product Introduction

German technology plant to produce lightweight concrete AAC blocks and Panels manufacturing process


Main raw materials of AAC are siliceous material (sand, fly ash and Silicon tailings) and Calcium materials (lime and cement) mixed with foaming agent (aluminum powder). It is the product of light porous silicate through the following processes: batching, mixing, pouring, hardening, cutting, autoclaving and curing etc. Because of large amount of well-distributed tiny pores after foaming, it is named autoclaved aerated concrete.

AAC Classification : In general, it can be classified according to the types of raw materials, manufacture process and functions. Based on the shape of AAC products, it can be divided into: AAC blocks and AAC panels. It is a revolutionary material offering an unique combination of high durability and strength, low weight, excellent heat insulation, fire resistant, noise absorption, unprecedented build ability and superior ecological green features. In China, AAC is one of the light wall materials which was popularized and applied at the earliest and the most widely.

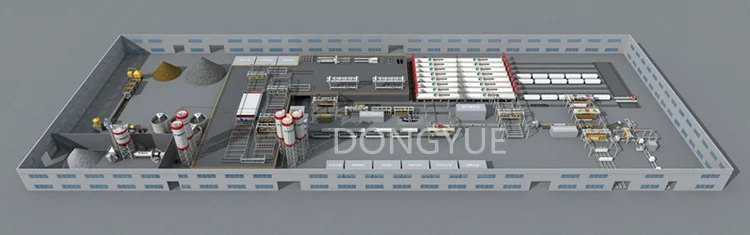

Product details

Material dealing process

Put the fly ash or sand into the ball mill to mill via the conveyor belt, after milling, put the slurry into the slurry storage tank by slurry pump.

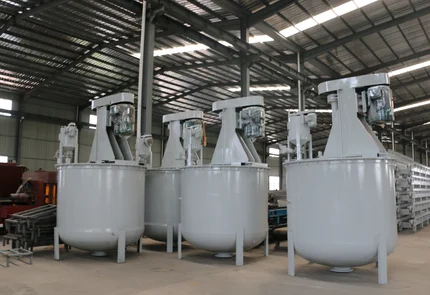

Batching, mixing and pouring process

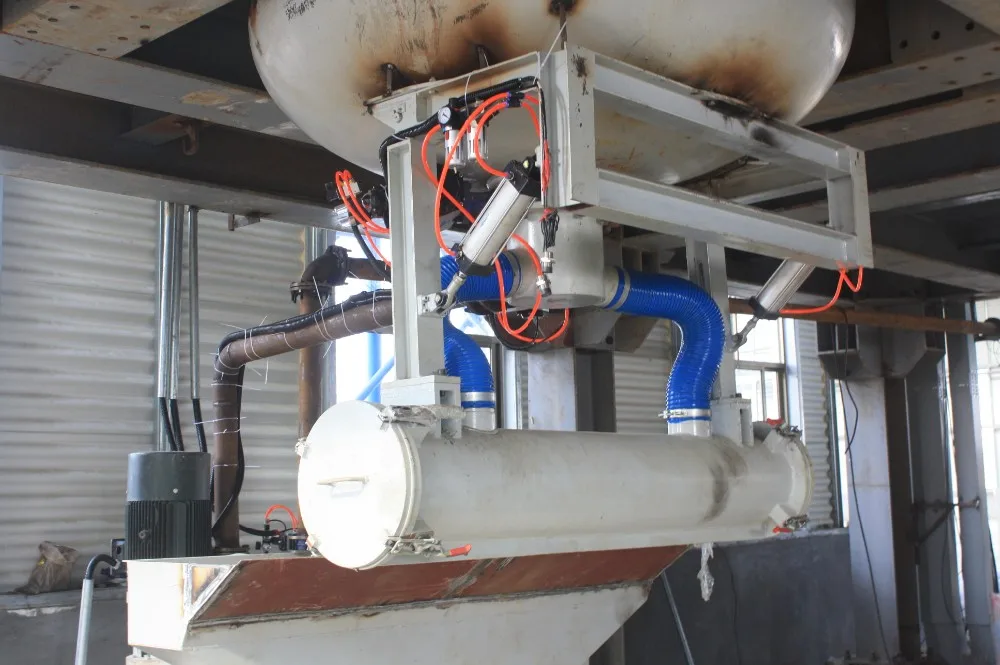

The lime, cement will convey by conveyor to the dry powder measure scale to scale separately. The slurry convey by slurry pump then to the automatic scale;the power and slurry put into the mixer,pouring into the mould.

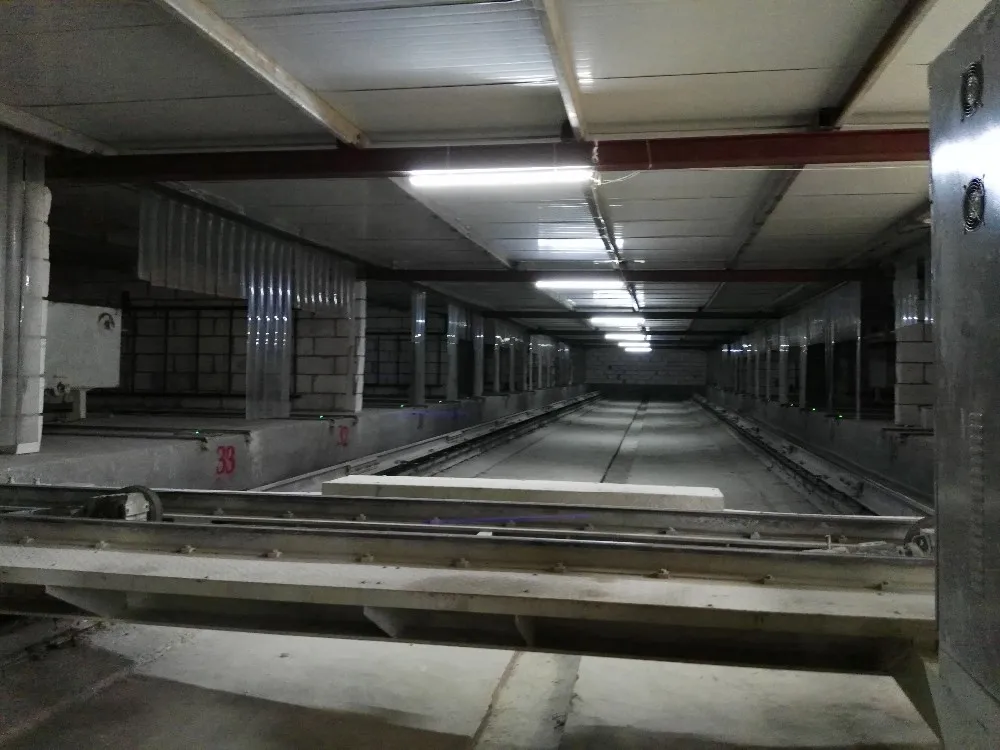

Curing process

After slurry pouring into the mould, put the mould box into the curing room with 50~70℃. After 2-3 hours curing,the blocks become solid

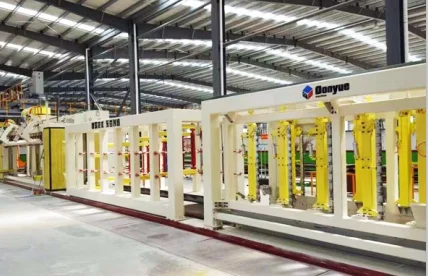

Cutting process

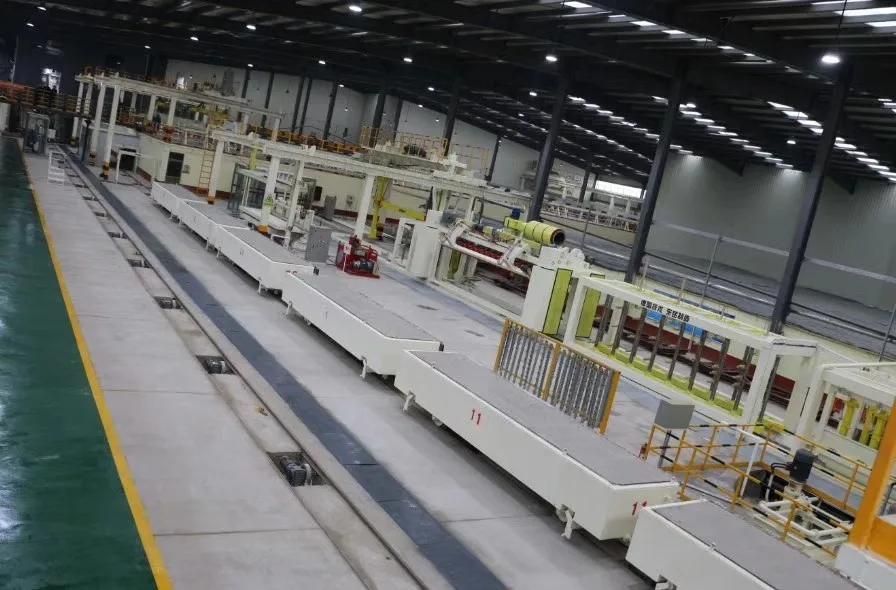

Using reversal crane carry the mould and block to demould on cutting cart. The cutting cart will take the block to level cutting machine,vertical cutting ,two sides cutting,and remove the top waste material.

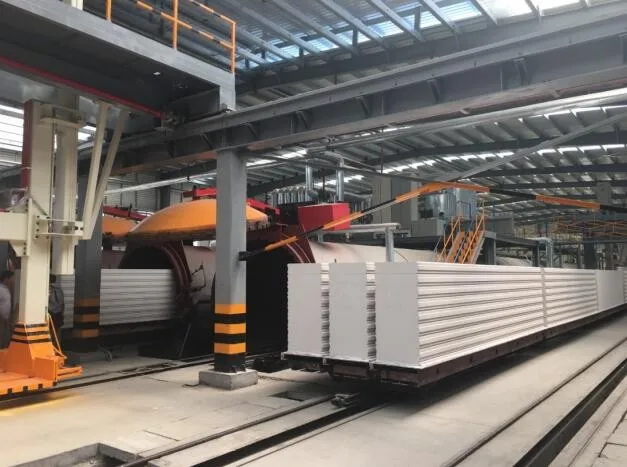

Autoclaved

Finished cutting using semi-product crane carry to the front of autoclave grouped,hoisting machine or dragger will drag steam trolley into autoclave to steam,it need 10-12 hours.

Finished block dealing

Finished product out of autoclave,with separting machine to separate layer by layer.

Package

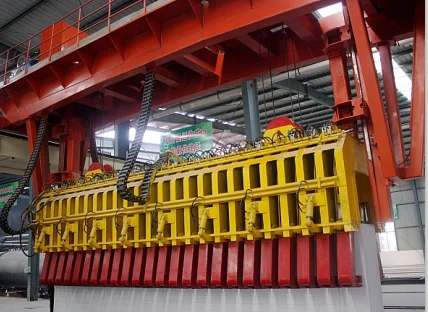

Using finished block carry hanger clamp the finished product to package line on wooden pallets,after  package, then by forklift transport the finished products to piled yard according to specifications to stack.

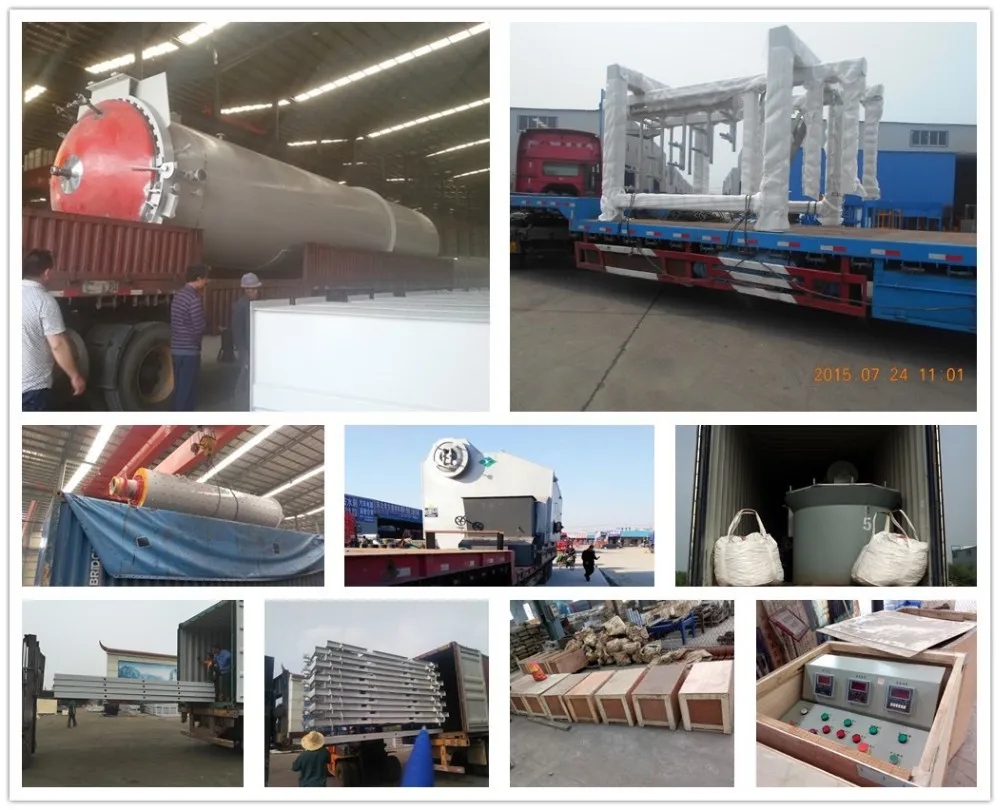

Package and delivery

1.German technology plant to produce lightweight concrete AAC blocks and Panels manufacturing proces,transport with 40HQ container.

2.The ball mill  transport with 40OT or transposrt with 40FR according the size.

3.The autoclave main body transport by car on port,and hoist  on deck of ship.

4.Cutting machine usually transport with 40FR.

5.Our package with wooden box,suitable for sea transport.

Product Advantage

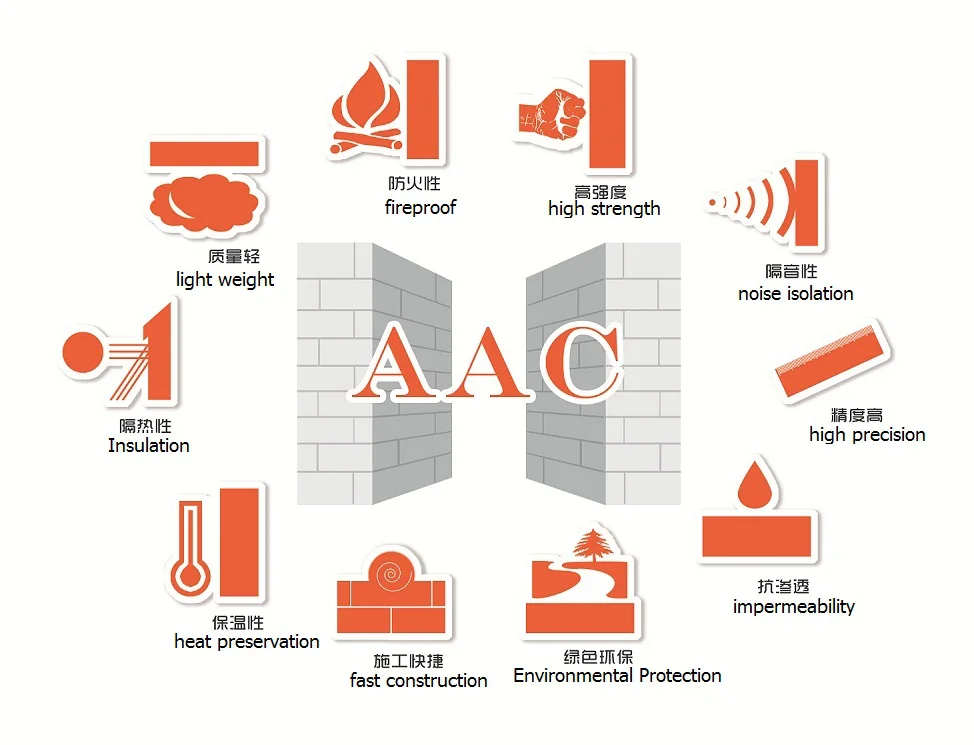

                                                               The advantage of AAC block

Low weight:holes gap: 70%~80%; volume density: 400~700kg/m3,1/4 of common cement ,1/3 of fireclay brick and 1/2 air brick, able to float like wood, and to reduce building weight and low building comprehensive construction cost.

Fireproof:Well fire resistance performance without harmful gas when fired; able to resistant 700°,225mins for 100mm wall and 480mins for 200mm wall.

Insulation:Excellent heat insulation with large amount of holes and micro pores; coefficient of thermal conductivity: 0.11-0.16W/MK, 1/4-1/5 of fireclay brick.

Noise isolation: absorbing noise with porous structure; 100mm can absorb 41 decibel.

Impermeability: low water-uptake for the materials consist independent pores

Environment protection: no pollution during manufacture, transportation and application; protect farm land, save energy and reduce consumption.

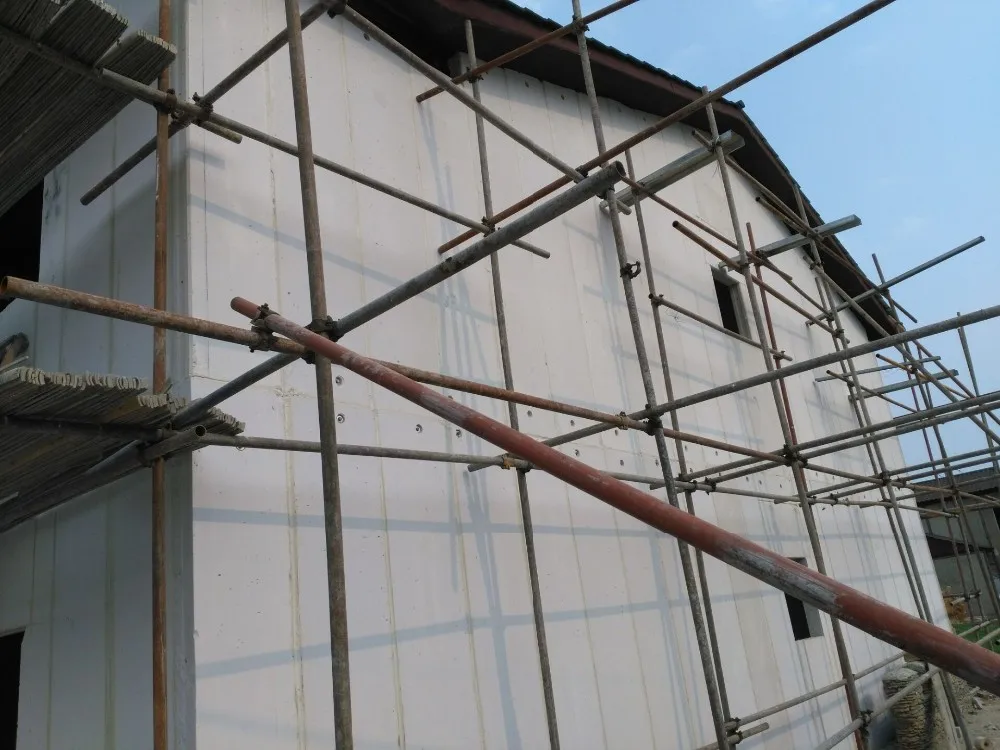

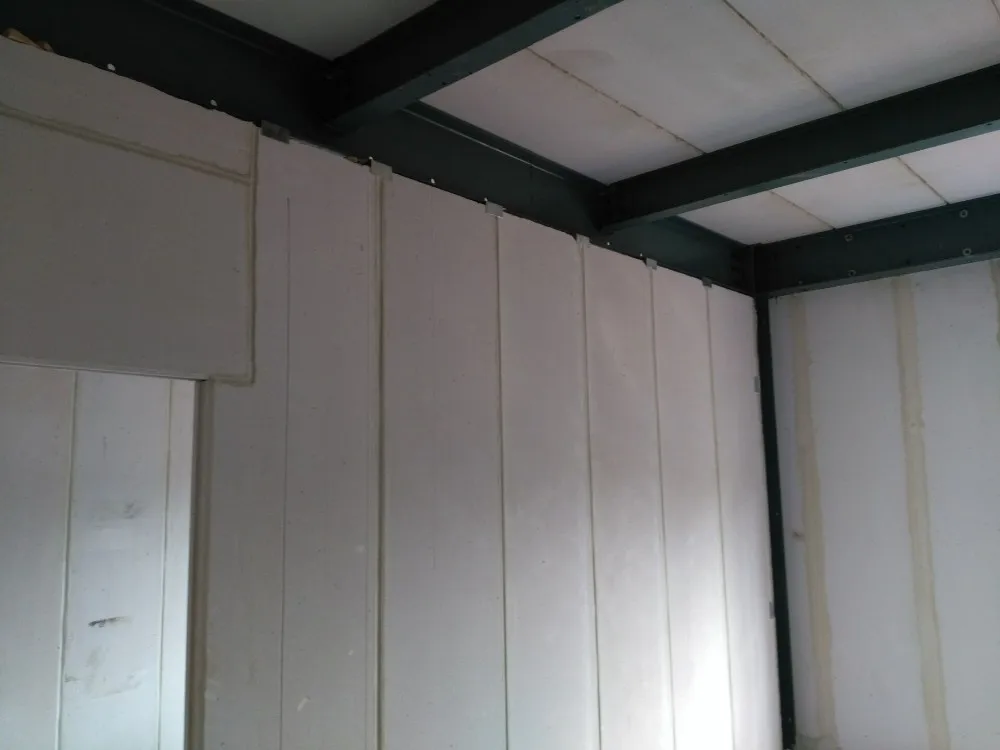

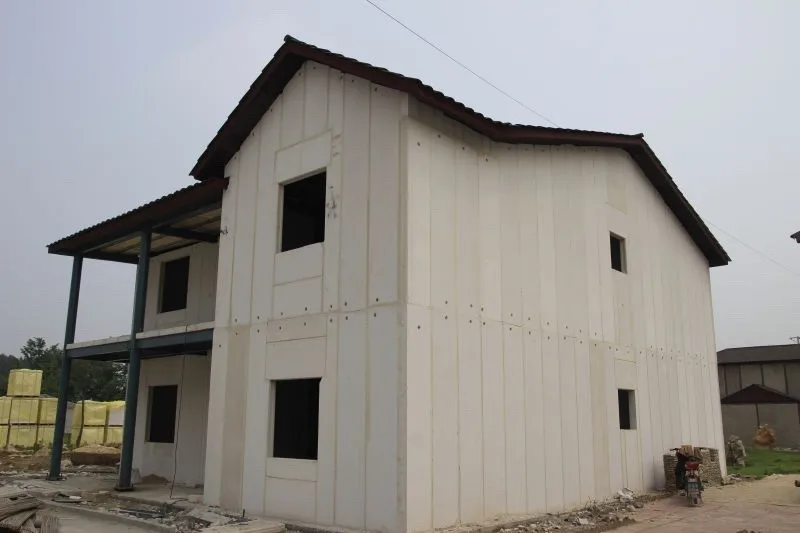

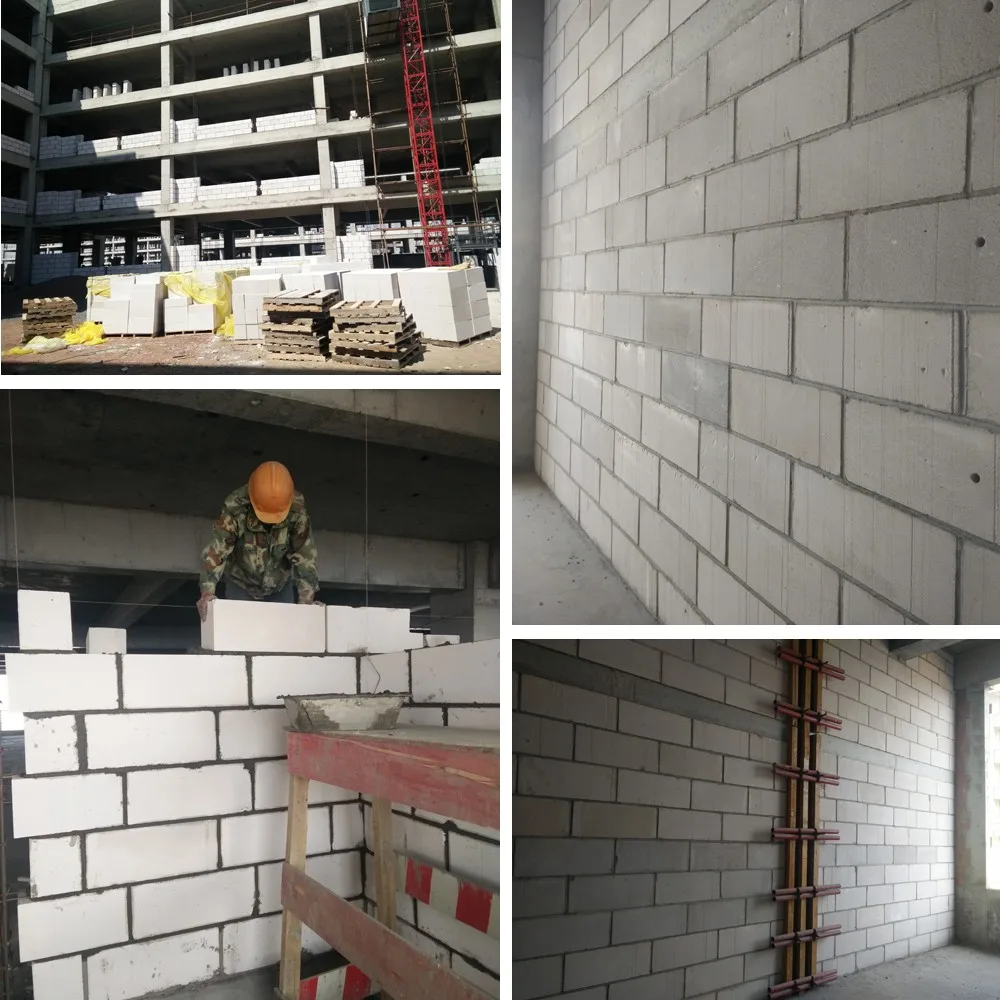

Product sample
AAC block material
Sand(65-70%): the core raw material of AAC product; the main resource of silica-aluminum components; correspond with JC409-91; the clay should less than 4%
Content
Super Grade Ⅰ
First GradeⅡ
Qualified productⅢ
SiO2
85%
75%
65%
CI-
0.02%
0.03%
0.03%
Mica
0.5%
0.5%
1%
SO3
1%
1%
2%
clay
3%
5%
8%
Lime(12-20%): one of the main raw materials of fly ash AAC; the main effect is to provide efficient calcium oxide with cooperation of cement making calcium oxide react with SiO2,Al2O3 in hot water then to produce calcium silicate hydrate. Therefore, lime is also the main resource of strength. Effective calcium oxide of lime should not less than 65%, over 80% is perfect and should accord with JC/T621-1996.
Item
Super Grade Ⅰ
First GradeⅡ
Qualified productⅢ
A(CaO+MgO) Quality Fraction %
90
75
65
MgO Quality Fraction %
2
5
8
SiO2 Quality Fraction %
2
5
8
CO2 Quality Fraction %
2
5
7
Digestion speed ,min
  ≤
8-15
Digestion temperature , ℃
 60-90
Undigested residue quality fraction ,%
5
10
15
Fineness (0.080 square hole sieve left amount) %
10
15
20
Cement(8-10%): the strength of fly ash AAC product mainly depends on cement which provides calcium materials. The cement suits to the AAC product lying on its type and label. Ordinary Portland Cement 42.5 should be first choice. While considering the cost of production Ordinary Portland Cement could also be a choice.
SiO2
Al2O3
Fe2O3
CaO
21-23
5-7
3-5
64-48
Gypsum(1-2%): Gypsum is the foaming regulator in AAC which dispels quicklime and postpones slurry's densification.
CaSO4
>
70%
MgO
<
2%
Chloride
<
0.05%
Preferably ground residue 90µm
<
10-15%

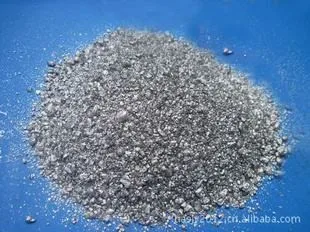

Aluminum(0.074%):it is the forming agent type and recommendation for supply depend on raw materials and mix formula
Metal Content
Approx.
>=90%
Powder

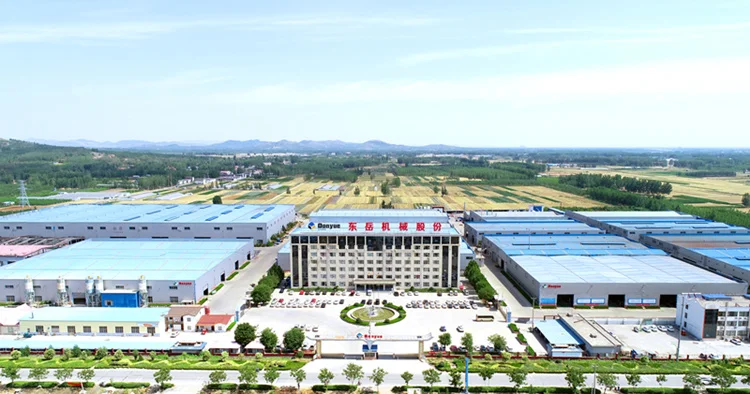

Company information

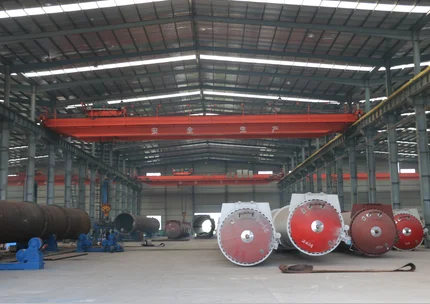

 Dongyue Machinery Group Co.,Ltd(Subsidiary company-LinYi Dongyue IMP&EXP Co.,Ltd). is a company specialized in producting Automatic brick machine , the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, plant asphalt nine series,more than 60 varieties.

On June 17th, 2013. Dongyue Machinery Co.,LTD and AAC-Concept GMBH signed the agreement of technology cooperation. This meant the great improvement for Dongyue Machinery Co.,LTD in terms of exporting Germany advanced AAC technoloy.

In 2012 and 2017,Dongyue successfully held China AAC industry meeting,which is the most professional AAC industry in China.This shows Dongyue's leading position in the AAC instry and Dongyue's strength in the manufacture of AAC block and panel production line.
