Gold Jaw Crusher Mineral Separation Small Diesel Engine Jaw Crusher Hot Sale Mini Jaw Crusher For Sale

  • 1 - 2 Sets
    $4,000.00
  • >=3 Sets
    $3,500.00
Power(W):
90-110 kw
Model Number:
PE-900*1060
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works , Energy & Mining
Condition:
New
Type:
Jaw Crusher
Application:
Mining, Metallurgy, etc.
Motor Type:
AC Motor
Capacity(t/h):
200-380 t/h
Place of Origin:
China
Brand Name:
JXSC
Dimension(L*W*H):
2690x2556x2800 mm
Weight:
31 t
Certification:
CE, ISO, SGS
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Product name:
Jaw Crusher
Quality:
International Standard
Model:
PE-900*1060
Feeding size:
900*1060 mm
Max feeding size:
780 mm
Discharge size:
200-290 mm
Factory visit:
Welcomed Warmly
Price:
Negotiatable
After sale Service:
Life-long Service
Installation:
Engineer Guide
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Standard parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole machine is loaded in the container.
Port
Xiamen/ Shenzhen/ Guangzhou/ Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Product Description

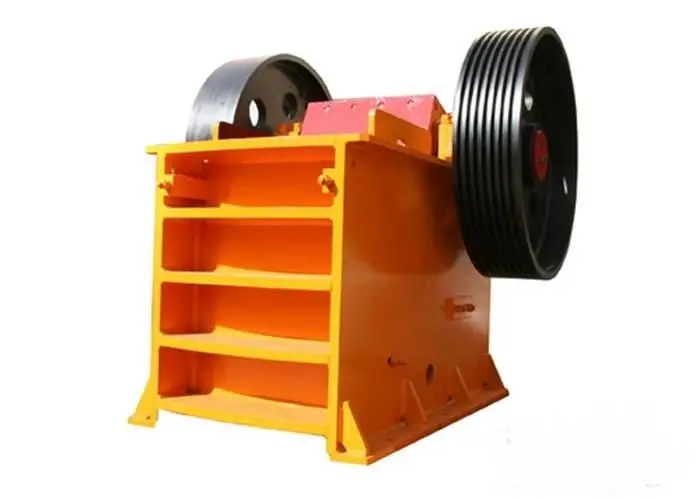

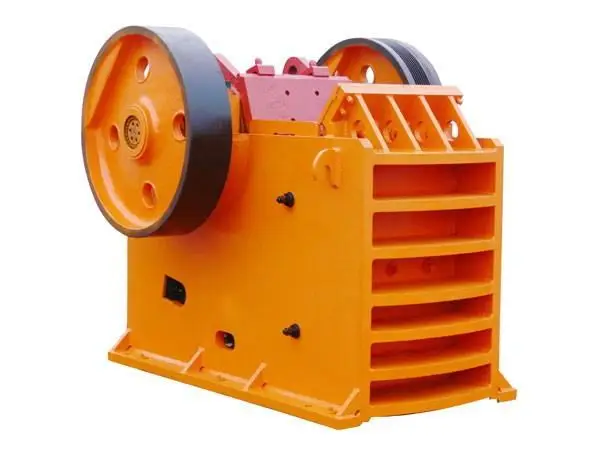

Jaw   Crusher

Jaw Crusher Product Introduction:

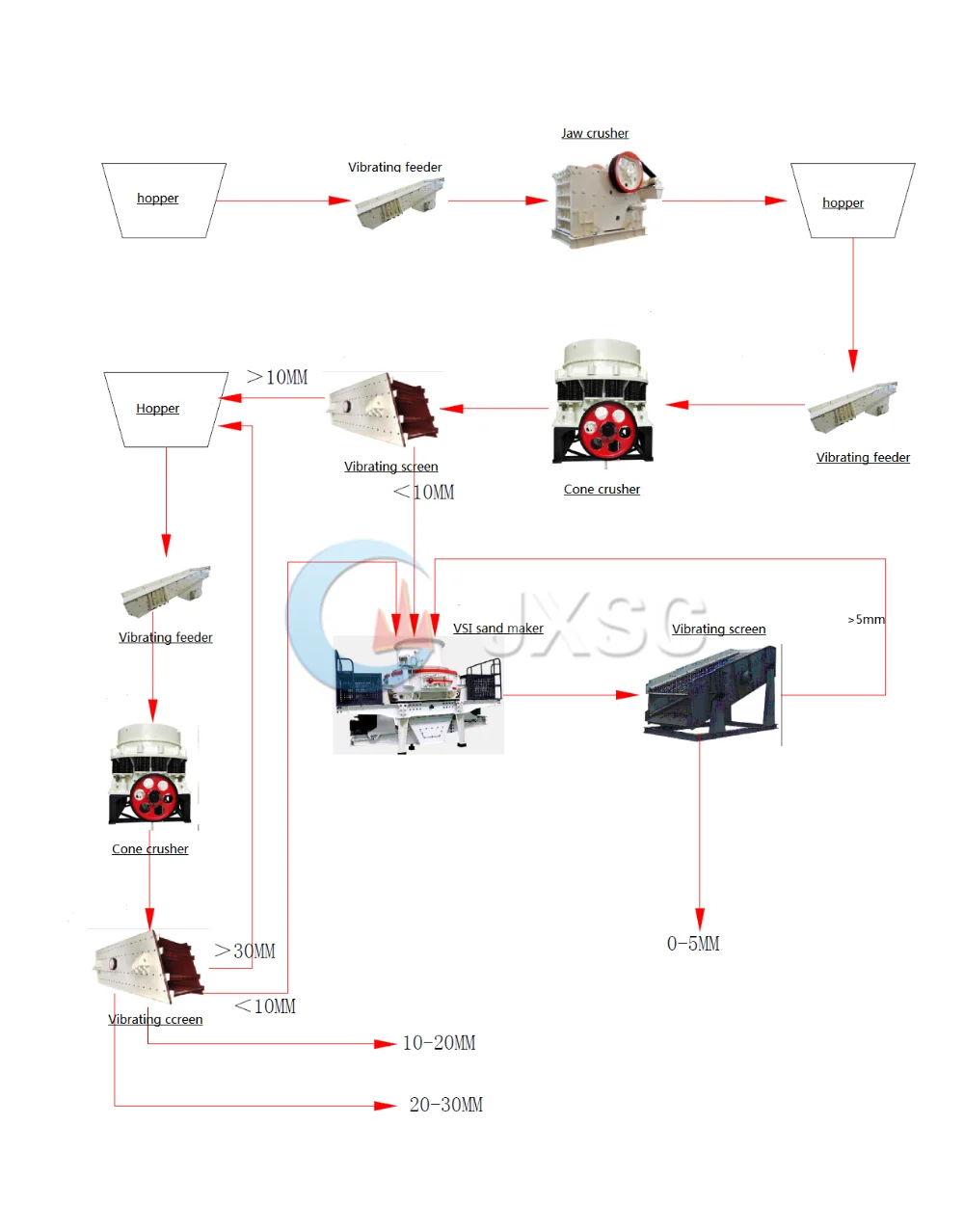

The processing principle of jaw crusher for material is jaw squeeze each other. It used in the first step for a variety of ore rock broken. All kinds of ores which compressive strength is not higher than 320 Mpa can be one-time processing to moderate granularity. Often forms a complete set of sand production line with the cone crusher, counter attack crusher, sand making machine, etc. It widely used in mining, metallurgy, chemical industry, building materials, electricity, water conservancy, transportation and other fields.


Jaw Crusher Application Field:

Jaw crusher is used for crushing in all kinds of ores and rocks of coarse, medium and fine grinding. All kinds of ores and large materials crushed to medium size, in mining, metallurgy, building, highway,railway, water conservancy and chemical industry, etc.

Jaw Crusher Suitable Material:

Granite, marble,basalt, limestone, quartz, pebble, iron ore, copper ore, etc.

Performance characteristics of our products:

◆ Simple structure, convenient in use and maintenance. Stable performance, low operation cost, high crushing ratio.

◆ Crushing cavity depth and no blind spot, increasing the feeding ability and capacity.
◆ High crushing ratio, uniform product size.
◆ Gasket type discharging mouth adjusting device, reliable, convenient and the adjusting range is big, increase the flexibility of the equipment.
◆ Lubrication system safe and reliable, easy to parts replacement, small maintenance workload.
◆ Simple structure, reliable operation, low operating costs

◆ Energy saving: stand-alone energy saving 15% ~ 30%, the system energy saving more than double.
◆ Discharging mouth wide adjustment range, can meet the requirements of different users.
◆ Low noise,little dust.

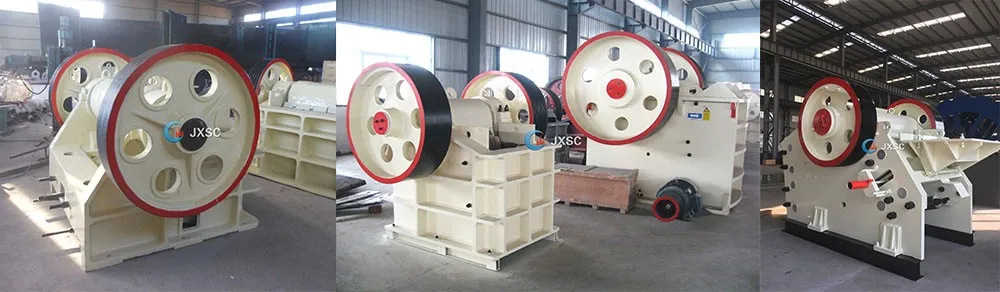

Jaw Crusher Product Details

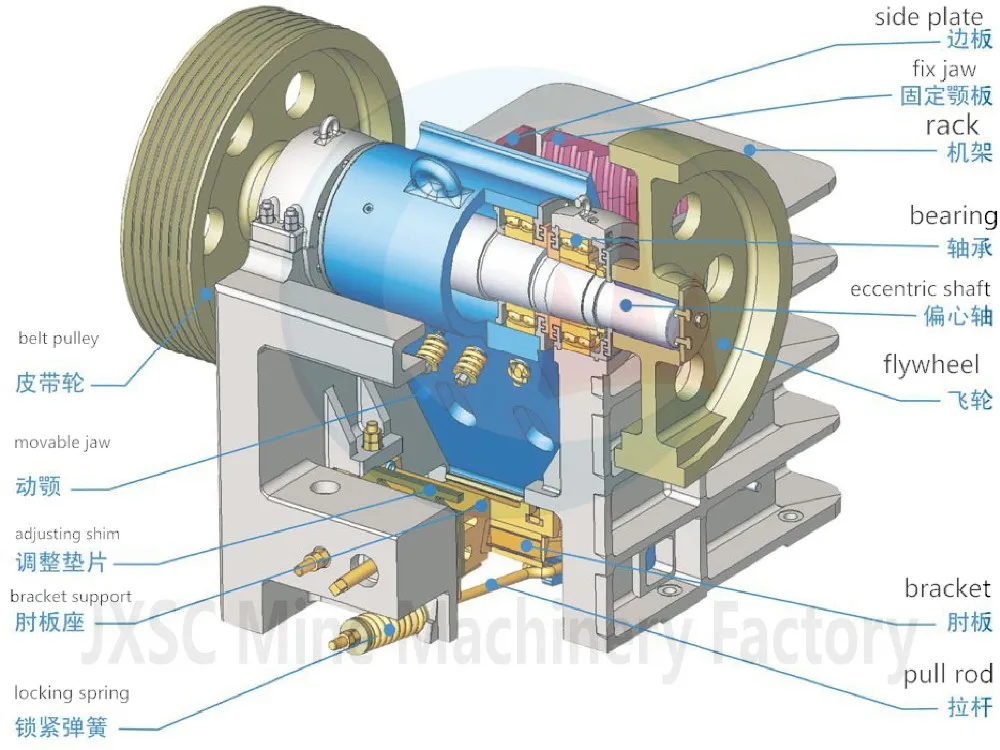

The main mechanism of the jaw crusher consists of five mechanisms: the frame, the eccentric shaft, the moving jaw plate, the fixed jaw plate and the bracket. There are other auxiliary parts, such as fixed tooth plates, lining plates, hoods, gaskets, sliders, thrust plates, set screws, and locking devices.

Jaw Crusher Work Principle

The motor drives the belt and the pulley, and moves the movable jaw up and down through the eccentric shaft. When the moving jaw rises, the angle between the bracket and the moving jaw becomes larger, thereby pushing the movable jaw to approach the fixed jaw, and at the same time the material is crushed or crushed. Broken, to achieve the purpose of crushing; when the moving down, the angle between the bracket and the moving jaw becomes smaller, and the moving jaw leaves the fixed jaw under the action of the rod and the spring, and the broken material is discharged from the lower opening of the crushing chamber. .

Parameter of Jaw Crusher

Model
Feeding size(mm)
Max feeding size
(mm)
Discharging Range size(mm)
Capacity (t/h)
Motor power
(kw)
Weight (t)
Overall dimension
(LxWxH)(mm)
PE-250*400
250*400
210
20-80
5-20
15
2.8
1450x1315x1296
PE-400*600
400*600
340
40-100
16-60
30
6.65
1565x1732x1586
PE-500*750
500*750
425
50-100
40-110
55
11.73
1890x1916x1870
PE-600*900
600*900
500
65-180
80-180
55-75
16.13
2305x1840x2298
PE-750*1060
750*1060
630
80-180
110-320
90-110
28
2450x2472x2840
PE-800*1060
800*1060
680
100-200
140-340
90-110
30
2610x2556x2800
PE-870*1060
870*1060
750
170-270
180-360
90-110
31.22
2660x2556x2800
PE-900*1060
900*1060
780
200-290
200-380
90-110
31
2690x2556x2800
PE-900*1200
900*1200
780
95-225
220-450
110-132
49
3335x3182x3025
PE-1000*1200
1000*1200
850
195-280
280-550
110-132
51
3435x3182x3025
PE-1200*1500
1200*1500
1020
150-300
400-800
160-220
100.9
4200x3732x3843
PE-1500*1800
1500*1800
1200
210-360
525-1120
280-335
132
5100x4700x4300
PEX-150*750
150*750
120
18-48
8-25
15
3.5
1380x1658x1025
PEX-250*750
250*750
210
25-60
13-35
30
4.96
1545x1667x1330
PEX-250*1000
250*1000
210
25-60
16-52
30-37
6.5
1530x1992x1380
PEX-250*1200
250*1200
210
25-60
20-61
37-45
8.52
1900x2192x1430
PEX-300*1300
300*1300
250
20-90
25-95
55-75
12.6
1750x2320x1724
PEX-350*1200
350*1200
300
70-140
25-120
75
12.35
2162x2220x1723
Our Services

Pre-sales service: We provide you with the pro-phase plan, process flow design and manufacturer equipment according to your special demand.

●Sales service: Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.

●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.

●How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

●What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine`s delivery time is 30-48 days.

●What is the nearest port?
Xiamen, Guangzhou, Shenzhen

●What is the trade terms?
CIF,FOB,DDU ect is acceptable.

●Service and Payment Terms?

We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.

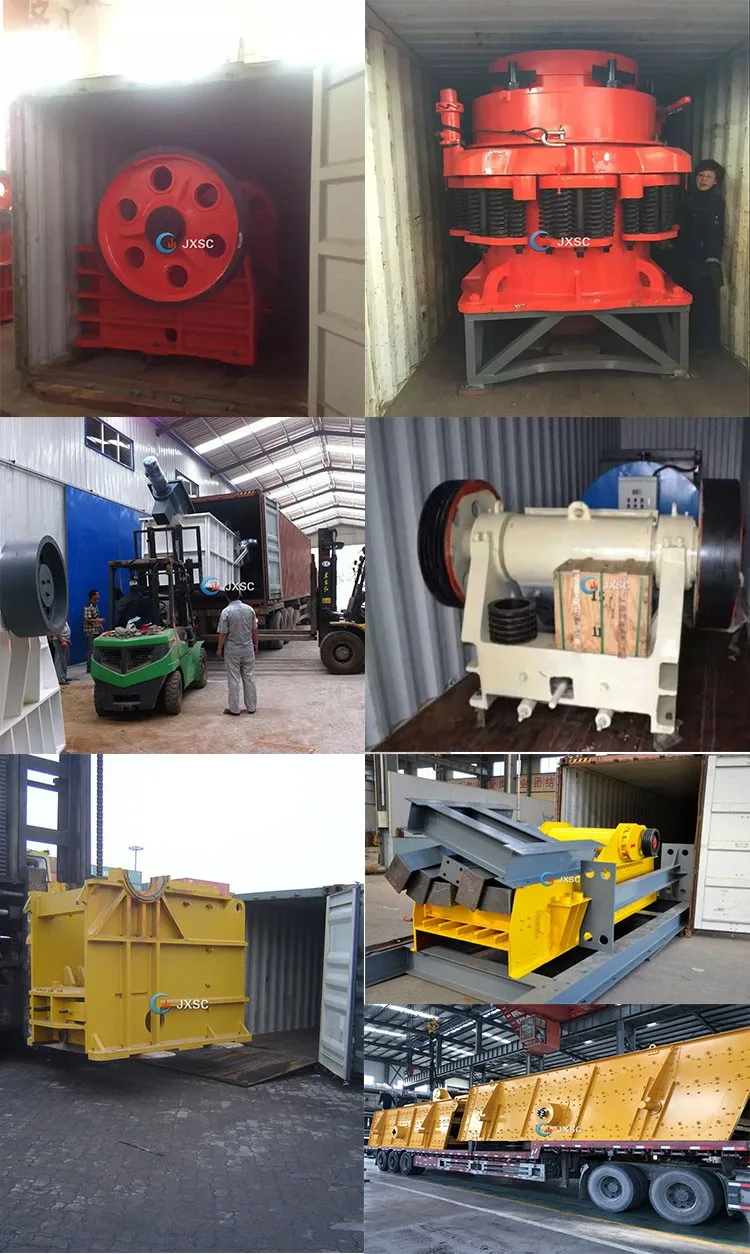

Packing & Delivery
Ways     of    Packing
  1
Standard Parts Packed in the Wooden Cases
2
Big Parts Packed by Plastic Membrane
3
The Whole Machine is Loaded in the Container

Shiping by Sea/Air Freight

or Any Way the Customer Requires

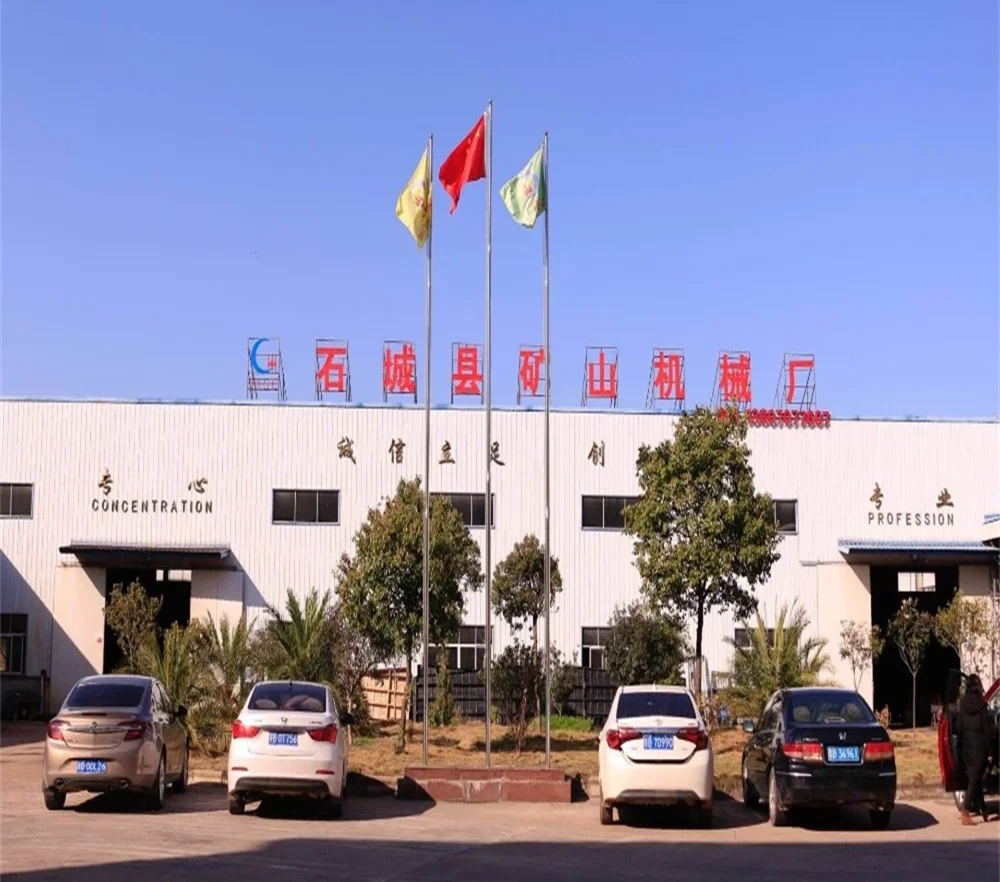

About Company



Jiangxi shicheng Mine Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant work flow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory.

Our products are exported to Africa,Nigeria,Zambia,Zimbabwe,Congo,Uganda,Mozambique,Angola,Southeast Asia,South America and many other countries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.

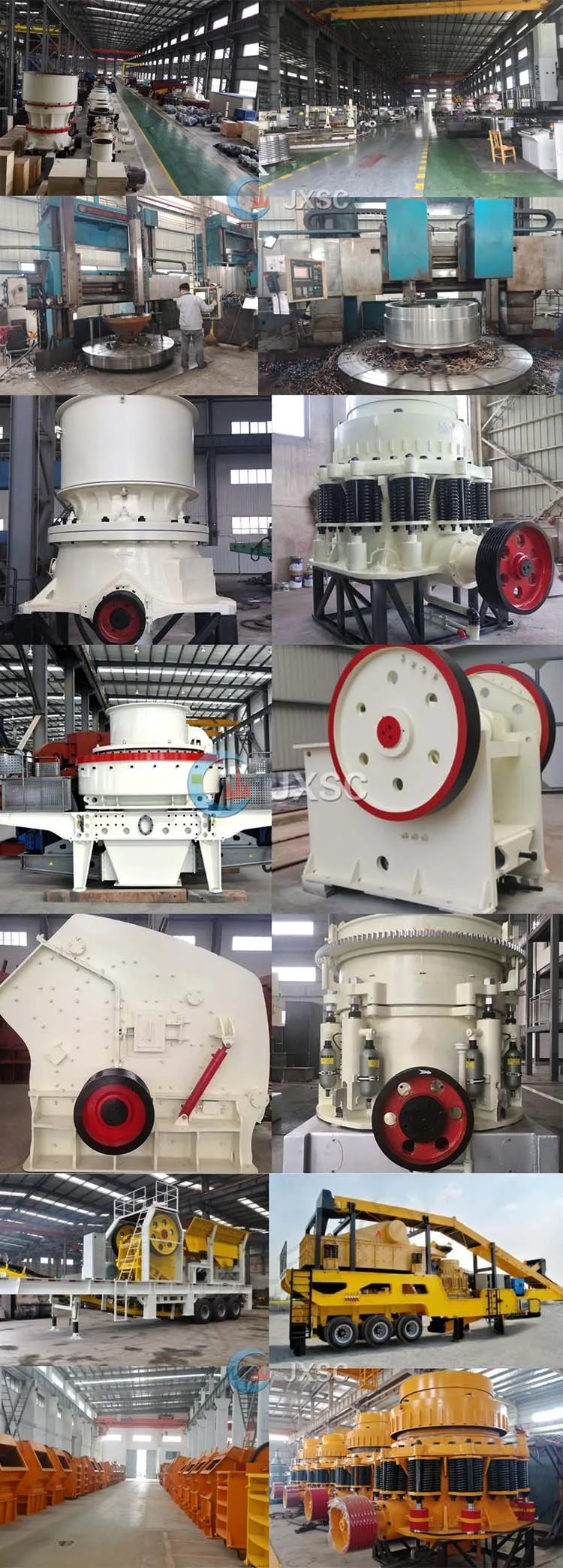

Our Workshop

Our Customers

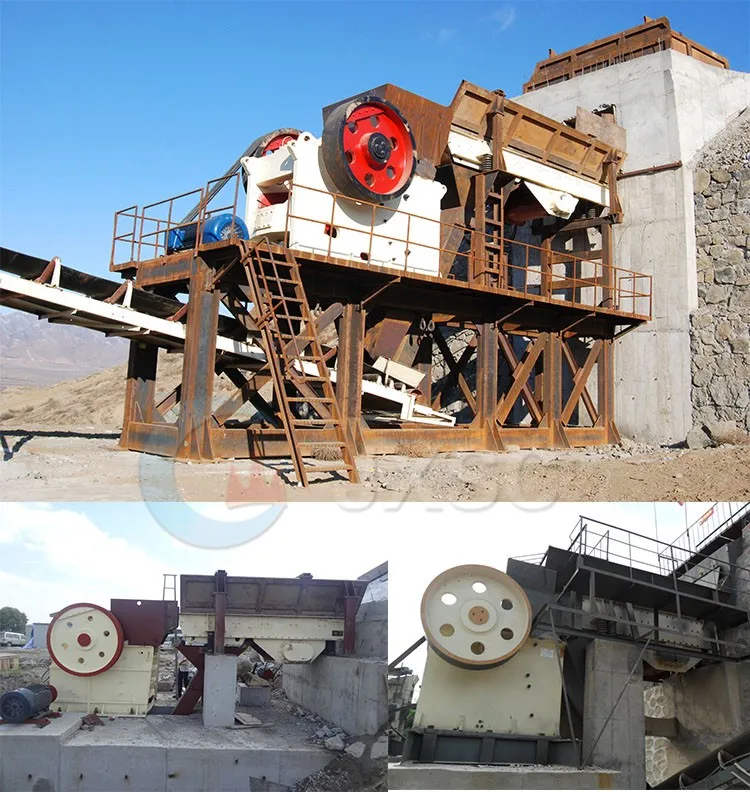

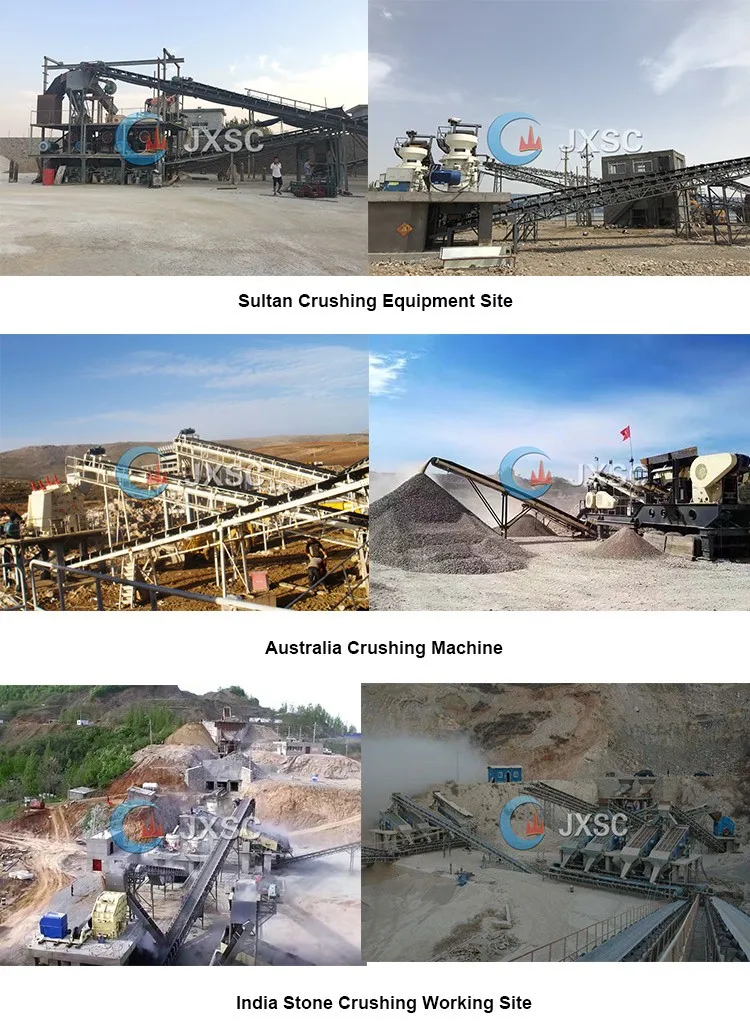

Successful Cases

Related Products
Contact US

If you are interested in our products, please don't hesitate to contact us. You can tell me the following questions, so that we can send you accurate quotation soon, including extra discounts!

1. Which machine do you need? like Jaw Crusher, Cone Crusher, Impact Crusher, Sand Washer, VSI Sand Maker or Disc filter, etc.


2. What is your raw material plan to process? like pebble, granite, basalt, coal or limestone, etc.


3. The capacity you need? Like 100 tones per hour or 2000 tones per day.


4. Your contact information? Both Email and phone number are essential, we can contact you easier.



Can Get Extended Warranty!
