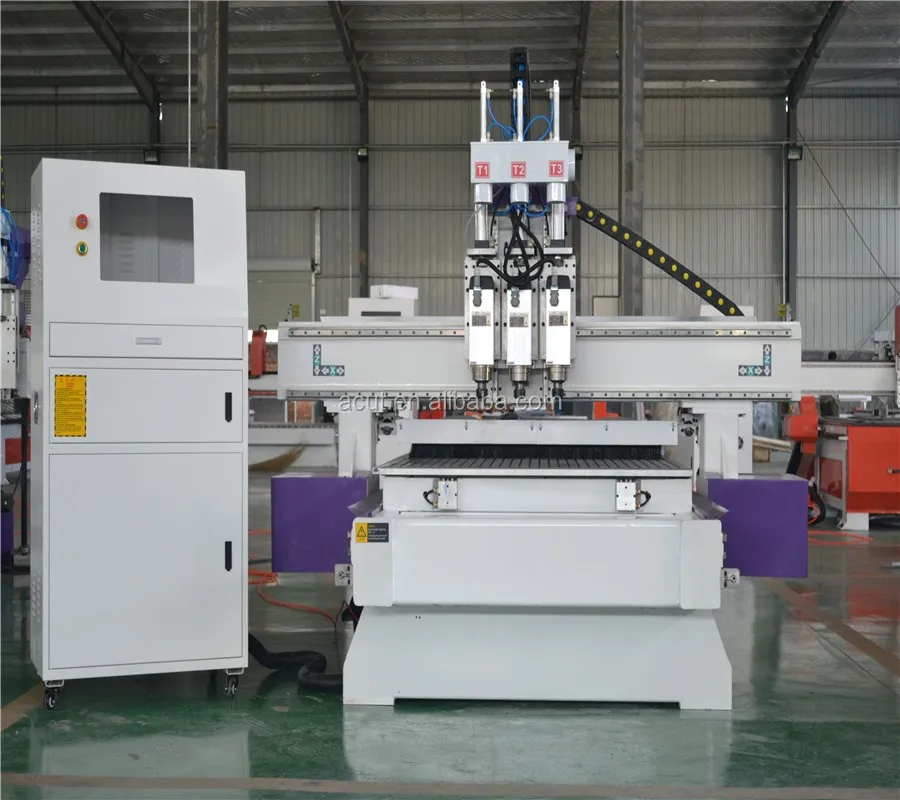

Good after service 3 heads pneumatic ATC wood working cnc router

FOB Reference Price:Get Latest Price
$8,000.00 - $15,000.00 / Set | 1 Set/Sets Good after service 3 heads pneumatic ATC wood working cnc router (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Brand Name:
ACUT
Model Number:
1325
Voltage:
220V/380V
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE ISO
Name:
Good after service 3 heads pneumatic ATC wood working cnc router
Working area:
1300*2500mm
Working table:
Vacuum table
Control system:
DSP control system
Spindle:
5.5kw Chinese Brand Water Cooling Spindle
Motor:
Japanese Yaskawa servo motor
Spindle speed:
0-24000RPM
Inverter:
5.5kw Fuling Inverter
Transmission:
XY-axis:rack
Color:
Required
Weight:
1800kg
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Power:
5.5KW
Supply Ability
Supply Ability:
2000 Set/Sets per Year Good after service 3 heads pneumatic ATC wood working cnc router
Packaging & Delivery
Packaging Details
Good after service 3 heads pneumatic ATC wood working cnc router,Plywood case for export, wrapped with water-proof
materials or as customer required.
Port
Qingdao
Lead Time :
Shipped in 15 days after payment
Product Description

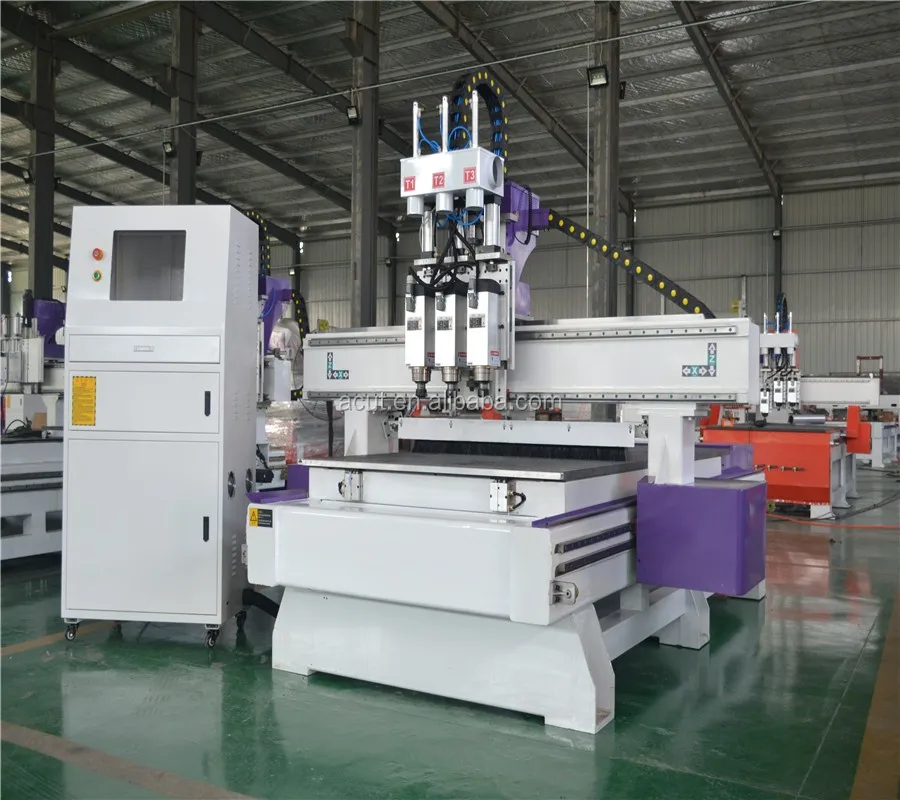

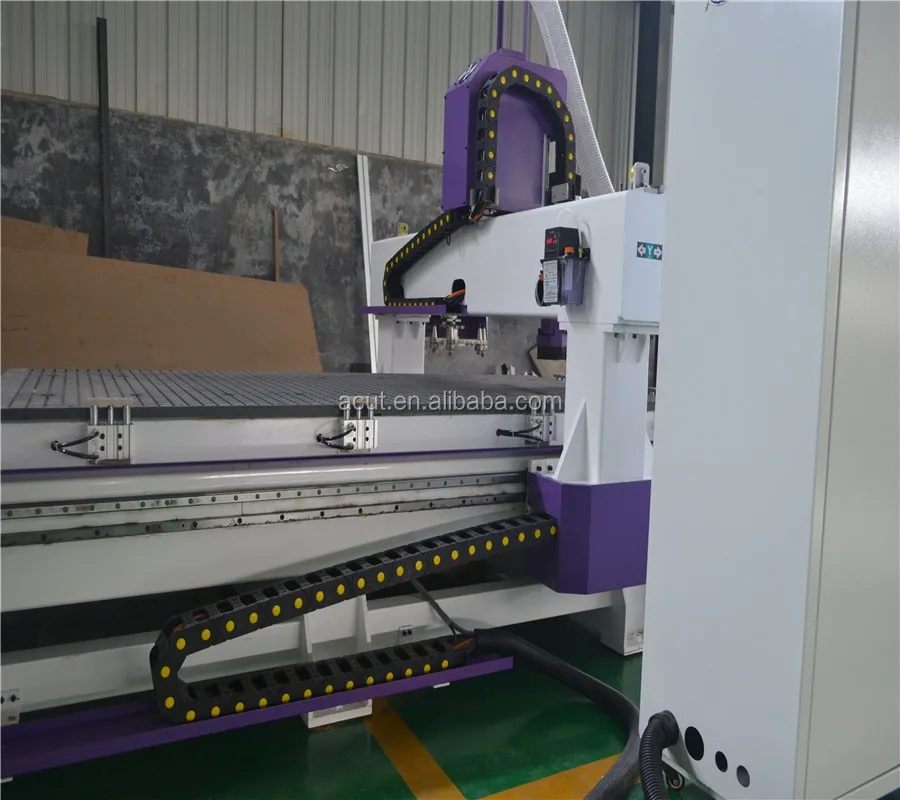

Good after service 3 heads pneumatic ATC wood working cnc router





Product Application



We design and manufacture multi-spindles CNC Router series with small working size to fit for the engravings on solid wood furniture. This series includes the Separated Multi-spindles CNC Routers(2-6 heads), Cylinder Multi-spindles(2-3 heads) ,etc. It applies to the small working piece engraving with high working efficiency .


Machine configuration


1300*2500mm working size

5.5kw water cooling spindle

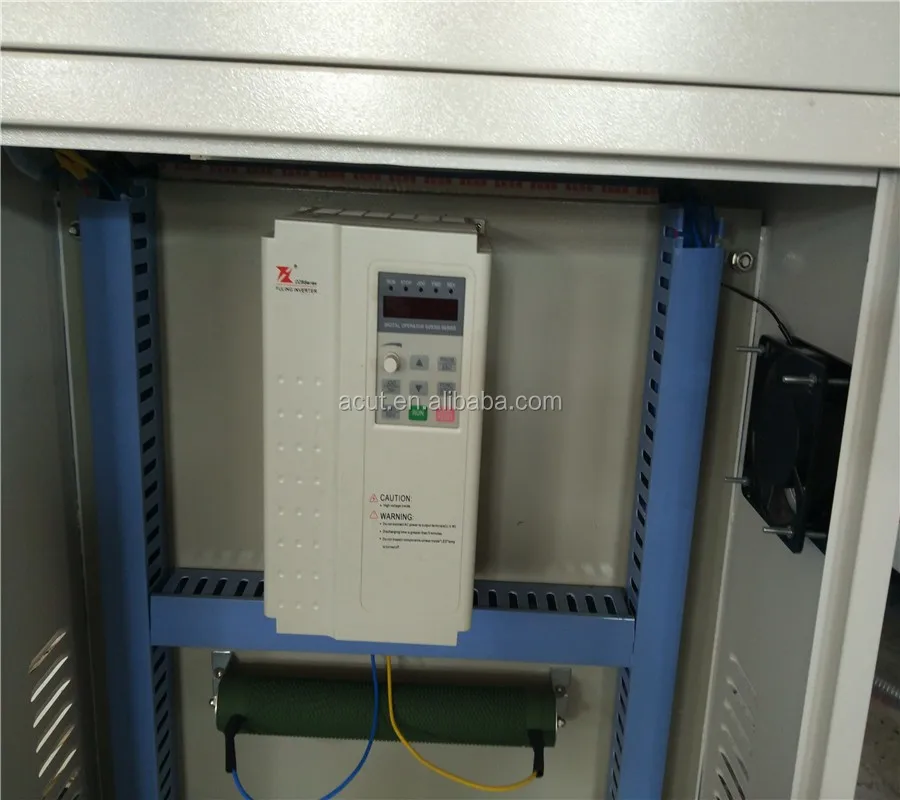

5.5kw Fuling inverter

Japanese Yaskawa 850W servo motor

DSP control system

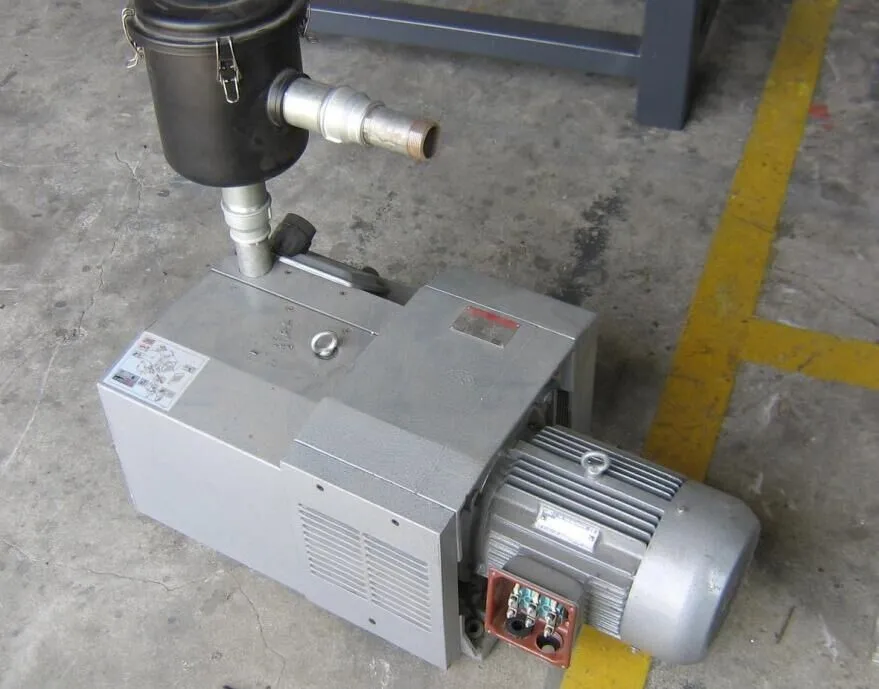

5.5kw Tongyou vacuum pump

3.0kw dust collector

3.0kw air compressor


SPECIFICATIONS
Name
X,Y,Z working area
1300*2500*200mm
Machine Precision
Processing Precision
±0.1mm
Repeat Positioning Accuracy
±0.03mm
Machine Structure

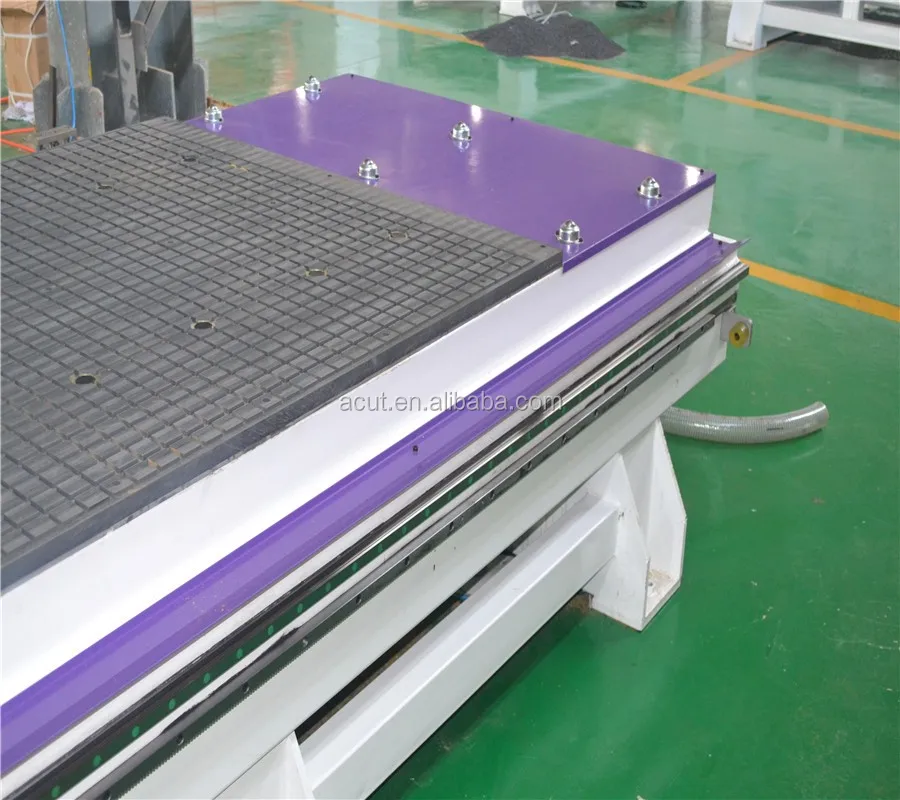

Work Table
Vacuum table
X,Y,Z tramission

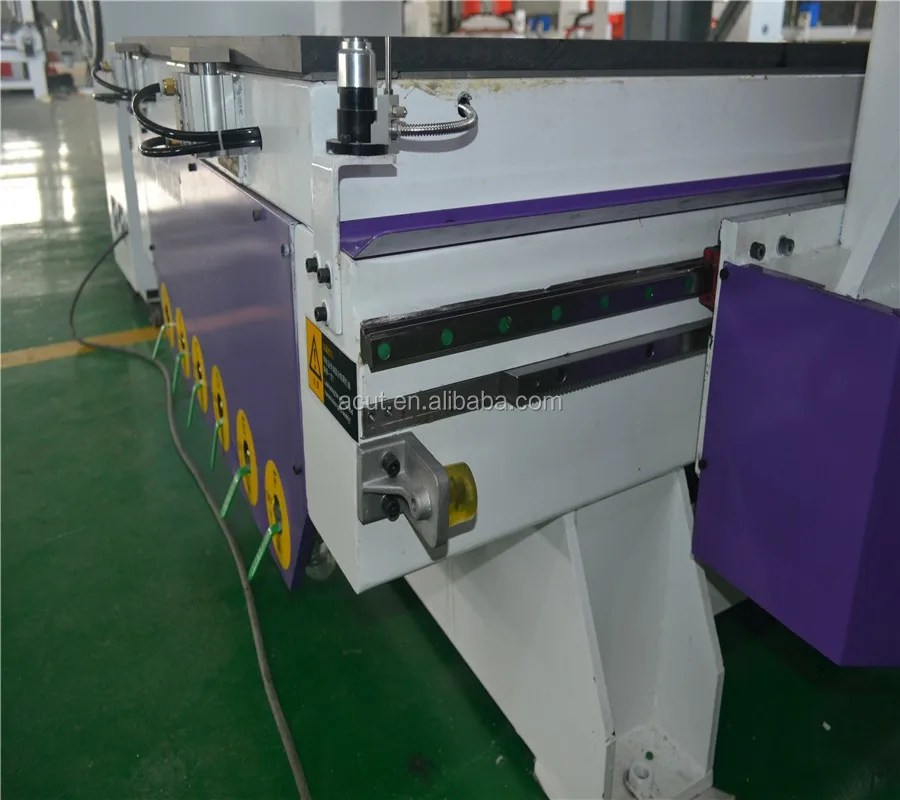

X,Y rack pinion,Z axis Taiwan TBI ball screw
Speed
Max travelling speed
25m/min
Max cutting speed
15-20m/min
Spindle Motor
Spindle Power
5.5kw Chinese Brand water cooling spindle
Spindle Speed
0-24000RPM
Dimeter of cutter
Φ3.175-Φ16mm
Operation System
DSP control system
Operation Instruction
G-code,*Nc
Overall Size
3600*1300*1600mm

Main Features

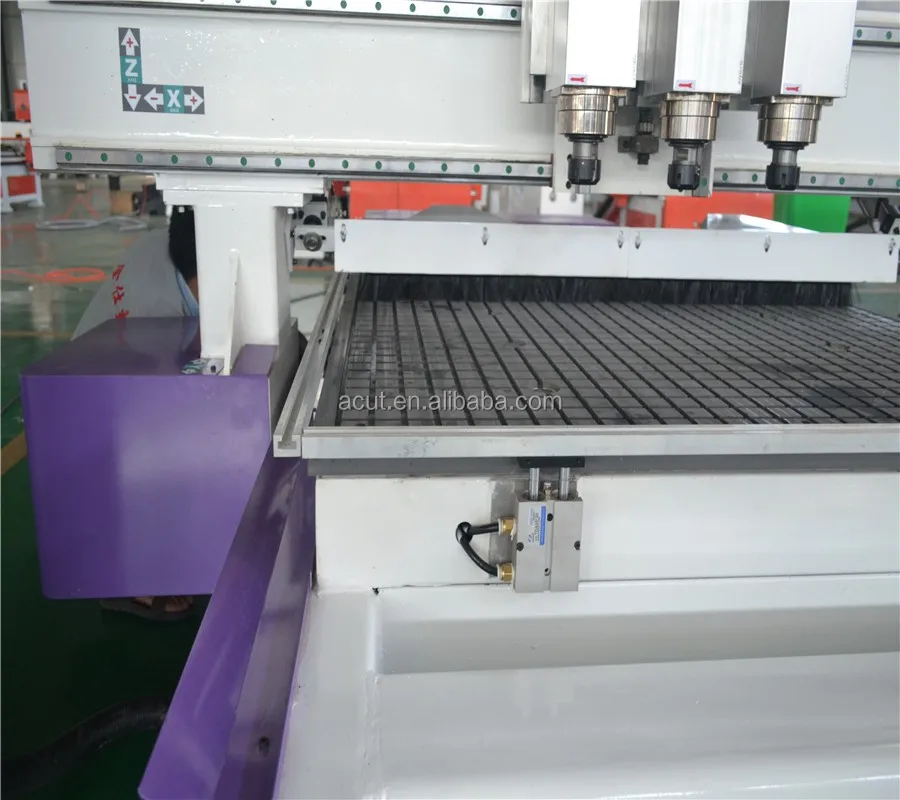

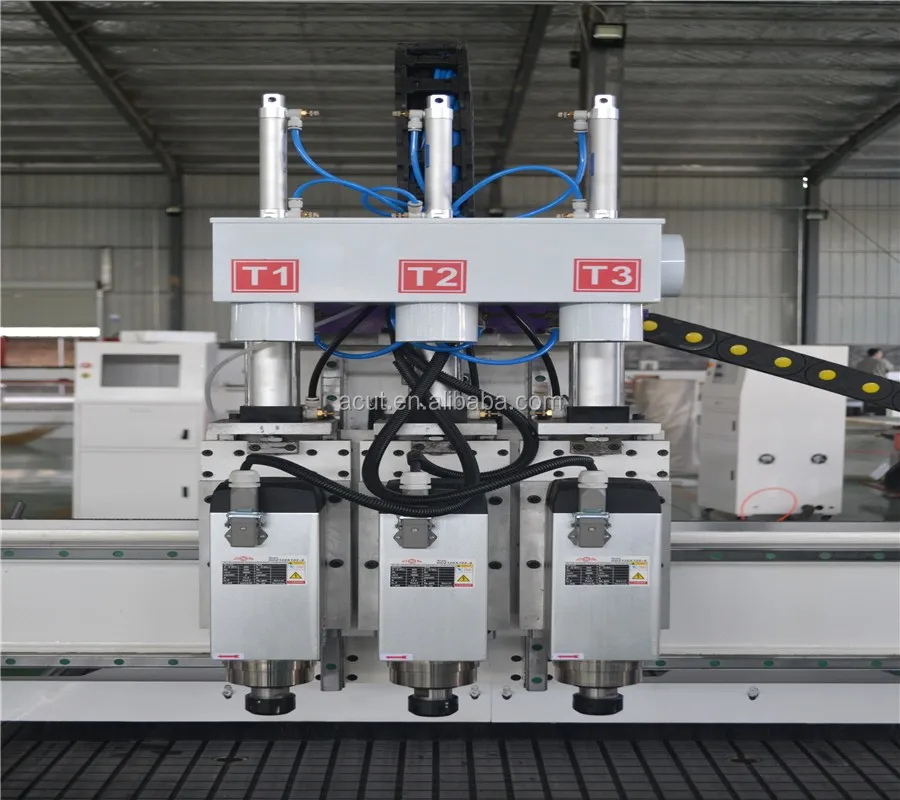

Cylinder Multi-spindles CNC Router is mainly designed for changing tools easily while it is working. For example, when you make a workpiece by two or three tools to make different patterns, the Cylinder Multi-spindles CNC Router can short the time of adjusting and checking the tools. After turning on the machine and once adjusting the knife, the machine can complete all the work absolutely at the same time and you can choose a horizontal side spindle to process keyhole slot, which can increase the accuracy and the additional time

Separated Multi-Spindles CNC Router, the power and quantity of the spindle and motor can be properly increased, because each motor has its own drive current with strong cutting effect and adjust tools conveniently. While the cost of it is more expensive than that of Board-holden Multi-heads CNC Router.

Machine Sample

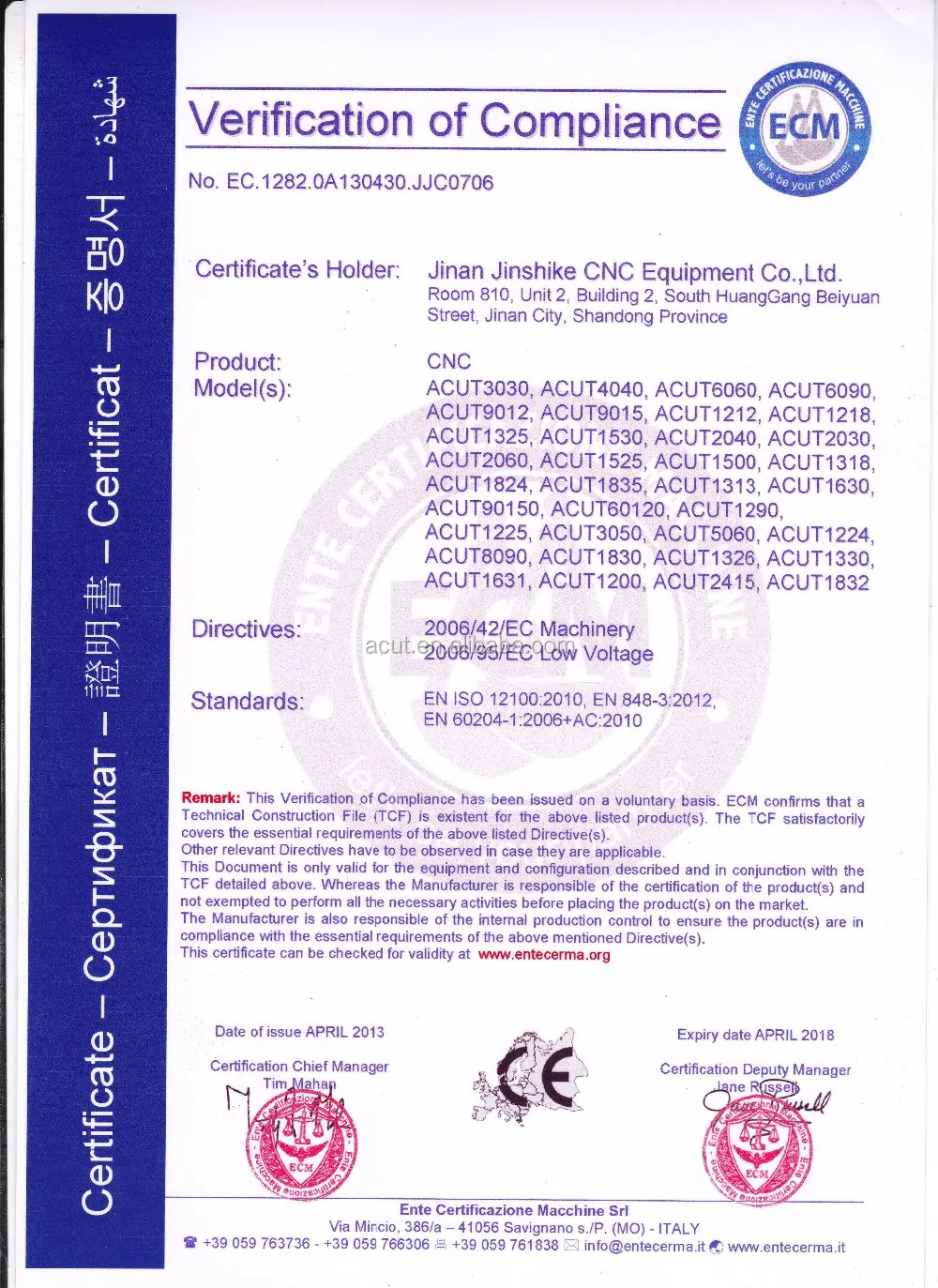

Machine Cerficate
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

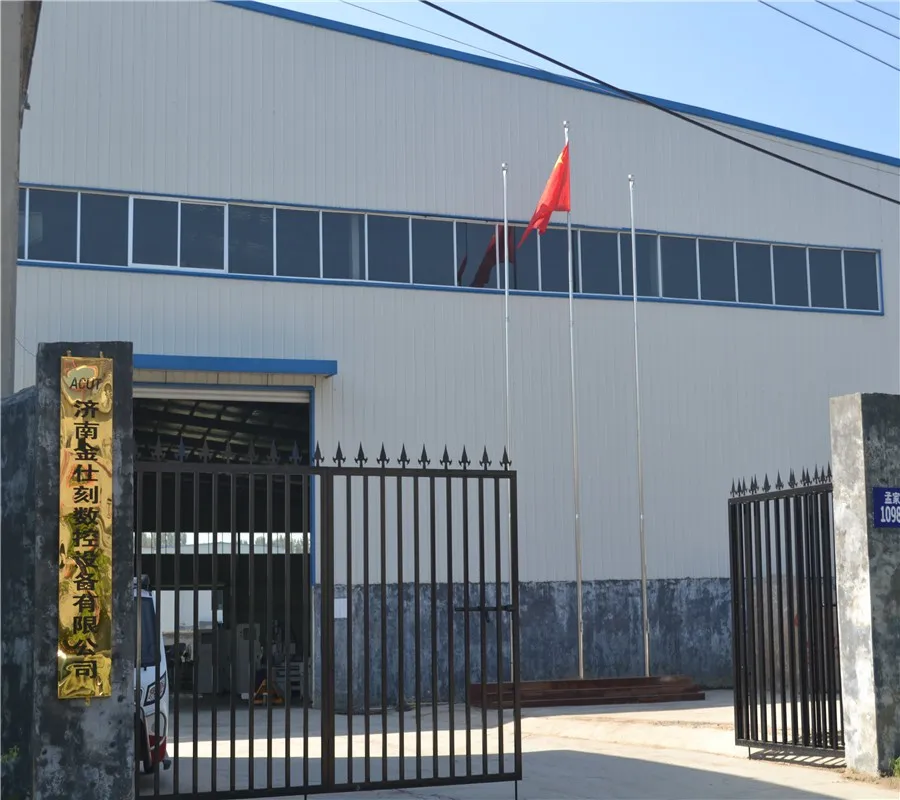

* View our Factory.

*Provide machine specification

*Solved machine questions

After-Sales Service

1.offer the specification for the machine,2 years warranty.
2.English software,user manual and operation video.
3.24 hours technical support by email,calling,if u have any problems,we will within 12 hours to solve it.
4.During the warranty period,if any part is broken,we will provide for free.
5.support engineer come to your country for traning.
6.10 working days to produce the machine,in the meanwhile,we will report the production process in time.

Packing & Delivery
Packaging
Size
3500*2300*900mm
Weight
1550kg



Packaging Details
The normal package is wooden box can according to customers special request.
