Good quality low price 12v 24v auto PWM controller 30A 40A 50A solar charge controller china factory

  • 10-99 Pieces
    $20.00
  • 100-499 Pieces
    $19.00
  • >=500 Pieces
    $18.00
Rated Voltage:
12V 24V
Maximum Current:
30A
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples: $20.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $20.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SUNS
Model Number:
HP2430LCD-4
Application:
Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller
Type:
PWM
Work Time (h):
5000
Max PV Voltage:
55V
Max PV Power:
450W/12V ; 900W/24V
Item::
low price solar controller
System voltage::
12/24V
Battery type::
Sealed AGM Gel Flooded Lithium Battery
Display::
LCD
Max Charge current::
30A
Application::
Solar system controller
Enclosure::
IP30
Guarantee::
2 years
Certificate::
CE,RoHS,ISO9001
Brand ::
OEM order is welcome

Packaging & Delivery

Selling Units:
Single item
Single package size:
16.5X10.5X5 cm
Single gross weight:
0.55 kg
Package Type:
1pc/box, 165*105*50mm, 0.5kg 18pcs/carton, 285*250*250mm, 9.5kg
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 500 >500
Est. Time(days) 5 10 15 To be negotiated

Good quality low price 12v 24v auto PWM controller 30A 40A 50A solar charge controller china factory

Product Description

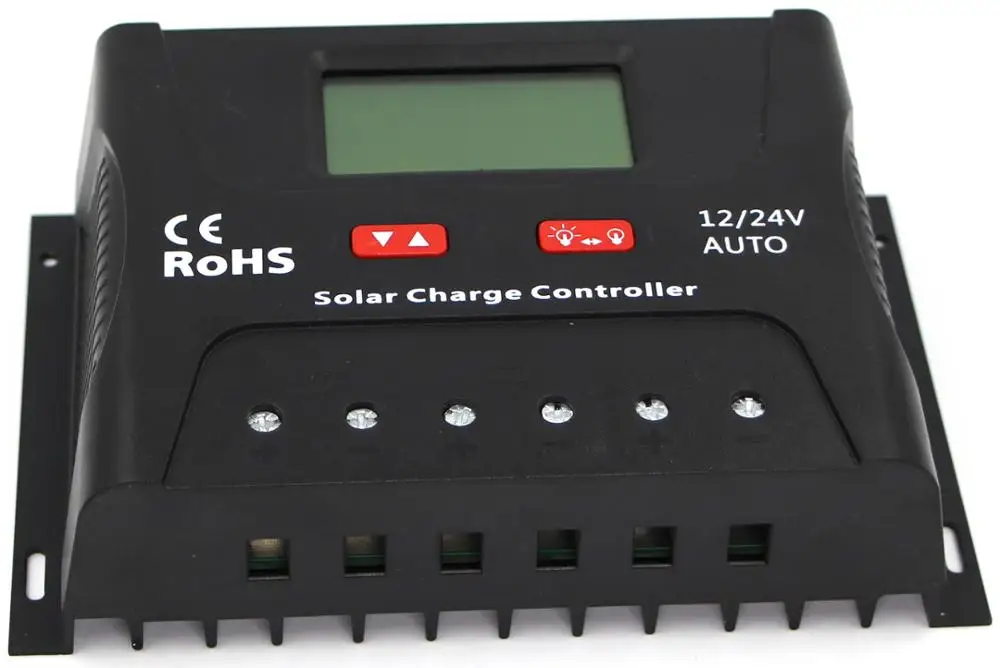

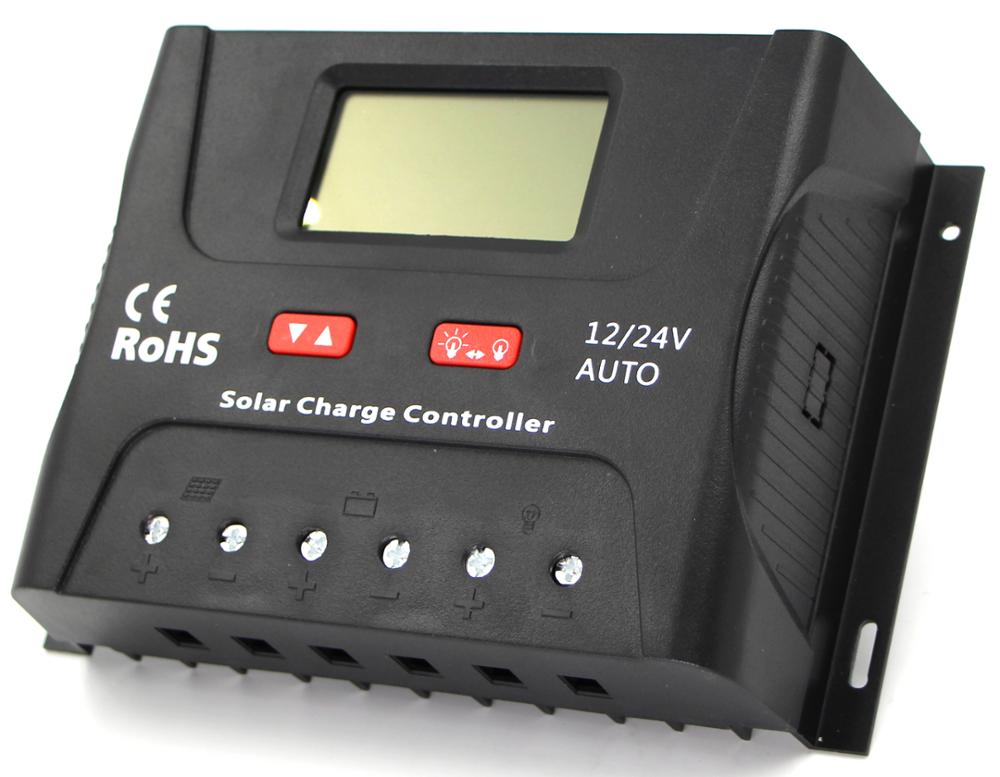

Model number: HP2430LCD

SR-HP2450-10

Remarks

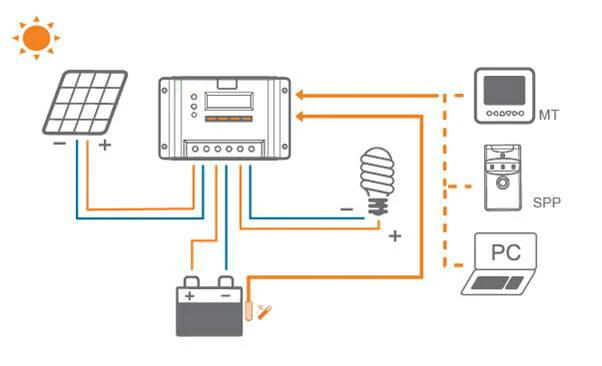

50A charging solar controller is designed for off-grid solar system, such as street light, solar home system or small power station etc. It has LCD display, reliable battery charging , full electronic protection, and programmable parameters.



Options

1.HP2430LCD,12/24V,30A(for both PV and loads)

2.HP2450LCD,12/24V,50A(for both PV and loads)

SR-HP2450-5

Specification

Model

HP2430/2440

HP2450/2460

HP4830/4840

Remarks

Rated current

30A/40A

50A/60A

30A/40A



System voltage

Automatic recognition of 12V/24V

48V



No-load loss

< 13mA/12V;< 15mA/24V

<20mA



Max. Solar energy input

voltage

<55

<110V



Max. voltage

at the battery end

<34V

<68V



Battery type

Parameters



Flooded

FLD

Sealed

SLD

GEL

GEL

Lithium

LI

Default

SLD

Overvoltage protection

16.0V

×1/12V;

×2/24V;

×4/48V;

Equalizing charging

voltage

14.8

14.6

-

-

Boost charging voltage

14.6

14.4

14.2

14.4

Floating charging voltage

13.8

13.8

13.8

-

Charging recovery voltage

13.2V

Over-discharge recovery voltage

12.5V(settable with the keys)

Over-discharge voltage

11.0V(settable with the keys)

Equalizing charging interval

30days

-

-



Equalizing charging time

1H

-

-

Boost charging time

2H

-

Temperature

compensation

-3.0mV//2V

-

Light controlvoltage

Light control on 5V, light controloff 6V (light control on plus1 V)

×1/12V;

×2/24V;

×4/48V;

Light control

judgment time

10 minutes

USB function

Yes

No

No



Operating temperature

-25to+55℃;



IP protection degree

IP30



Net weight

390g

650g

650g



Protection

functions

attery reverse connection protection, solar panel reverse connection protection, reverse charging protection at night



Charging overload protection,overcurrent protection , short circuit protection



Dimensions

164.0×103.5×47.0(mm)

189.27×127.2×54.0 (mm)

189.27×127.2×54.0 (mm)
