Grain bucket elevator price

  • 1-4 Sets
    $6,500.00
  • >=5 Sets
    $6,400.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Bucket Conveyor, Vertical transportation
Material:
Carbon steel, Carbon steel bucket elevator price
Material Feature:
Fire Resistant
Structure:
Bucket elevator, Bucket elevator
Load Capacity:
10t/h to 200t/h
Place of Origin:
Shandong, China
Brand Name:
TSE ELEVATOR MASTER
Model Number:
TDTG50/19
Voltage:
220V/380V/415V/600V/450V
Power(W):
0.4kW - 45kW
Dimension(L*W*H):
According To Customer's Requirements
Certification:
ISO9001, BV, CE
Treatment:
Painted or hot dip galvanized
Bucket elevator name:
grain bucket elevator
After-sales Service Provided::
Engineers available to service machinery overseas
Coating mass:
Hot dip galvanizing coating/ paint coating
Warranty:
free service one year after commissioning
Keyword:
bucket elevator grain elevator
Belt material:
Rubber belt / PVC belt
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
593X234X240 cm
Single gross weight:
2500.0 kg
Package Type:
With plastice film. Grain bucket elevator price
Picture Example:
package-img
package-img
Lead Time :
2
Product Description

Product Application

Grain bucket elevator grain elevator is suitable for vertical transmission of powder, granular and small block and less abrasive bulk materials, which has a small requirement for the type of materials, characteristics and block degrees, it can raise powder, granular and bulk materials, and abrasive materials such as grain, cement, crushed ore, etc. It can also raise high temperature products that below 250°C with the max height of 40m.
The capacity of steel grain bucket elevator grain elevator ranges from 10ton per hour to 200ton per hour;
It will depend on your practical use to choose the most suitable professional grain bucket elevators .

TDTG series large capacity bucket elevator grain elevator price is a kind of special equipment for continually and vertically deliver grains, which is widely used in different fields such as oil, feed, flour, seed starch, grain and so on. Taking advantage of the present best price bucket elevator for silos situation both at home and abroad, we designed TDTG Series chain bucket elevator, which caught up the advanced national levels.

Features of Elevator

1. Bucket elevators grain bucket elevator are capable for different small particle materials handling, including powder, granular and massive materials
2. Big capacity. The series of bucket elevator has a variety of specifications. The lift range is 10-800 m³ / h.
3. Small power consumption. Use intensive layout of the large-capacity transportation. chain speed medium, to enhance the amount of the capacity. So driving low energy consumption.
4. Long service life  Agricultural machinery steel bucket elevator grain elevator
5. High hoisting height. This series of chain hoist speed moderate, smooth operation, and adopts the plate chain high strength wear resistant chain, so can reach high hoisting height (up to 40-50m)
6. Good sealing, less environmental pollution

7. Easy to operation, convenient maintenance, less wearing parts

Elevator Structure

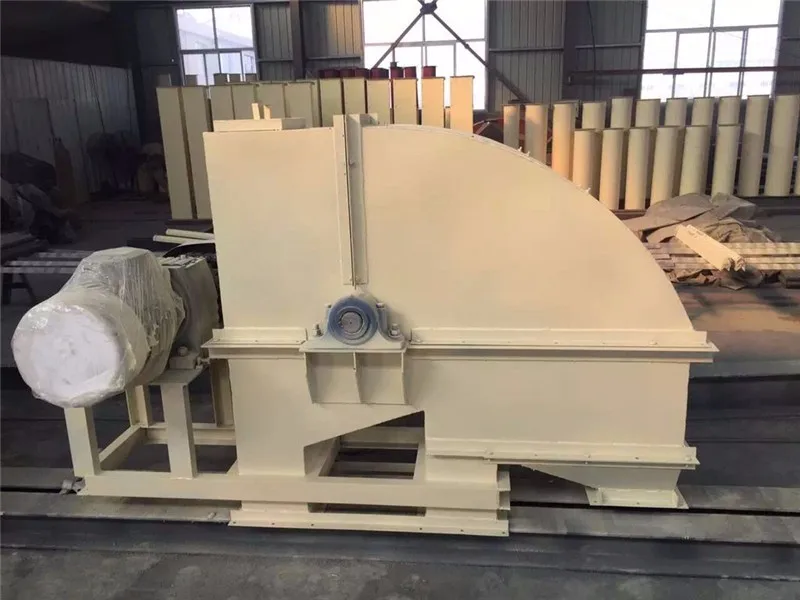

Bucket elevator head


Agricultural machinery steel grain  bucket elevator is comprise of the headpiece shell, coating main wheel, main wheel axle, equipped with the anti-explosion hole and hoop plate.

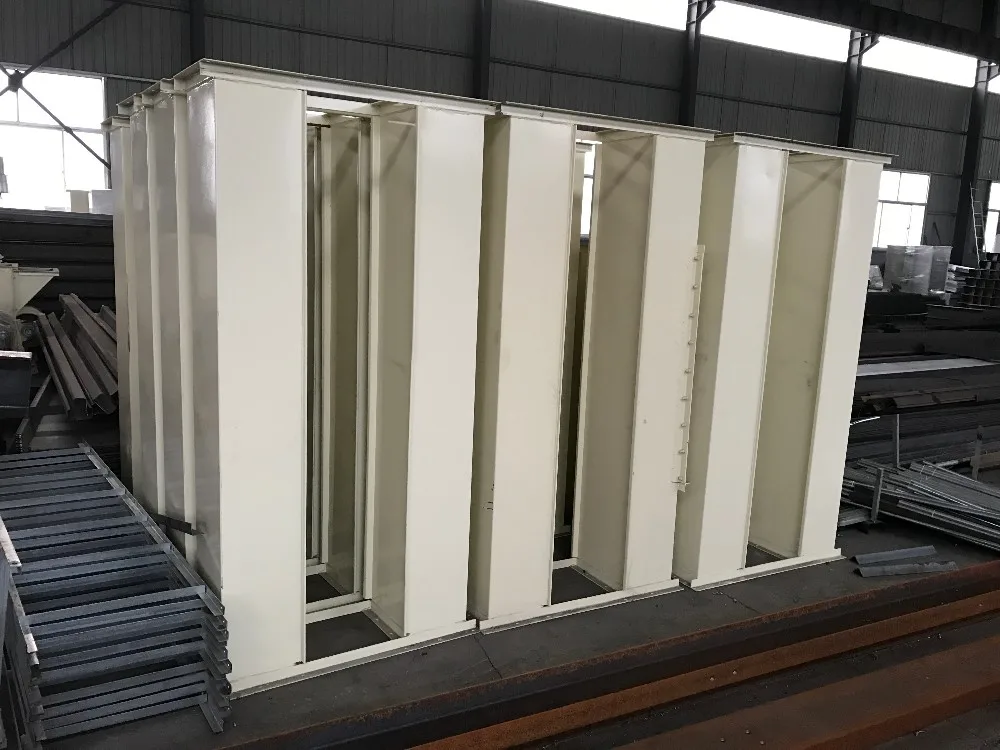

Bucket eleavtor tube

Including the normal elevator tube balance double elevator tube, overhaul elevator tube. The standard length of normal grain elevator tube is 2m per section. The balance double bucket grain elevator tube is used to keep the air pressure balance with two bucket tube, guarantee the bucket loading and unloading smoothly; there is access door in the overhaul tube, used for observe and exchange the bucket, bucket belt.

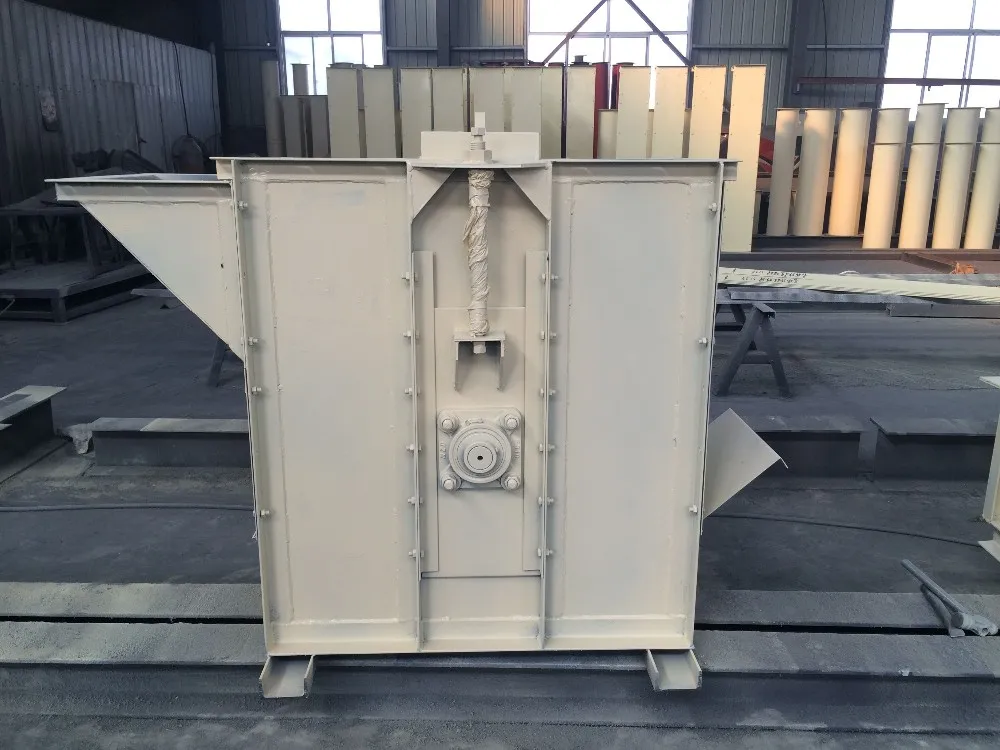

Bucket elevator basement

Grain bucket elevator basement is comprise of engine base shell, tail pulley, tail block axle, tension bridle, feed hopper, tension bridle used to adjust the relative position the head and tail wheel in order to avoid pass-line deflection and slip; there are the dumping spiles that is used to clean up the surplus food grain and sundrise in the both sides of the engine bass.

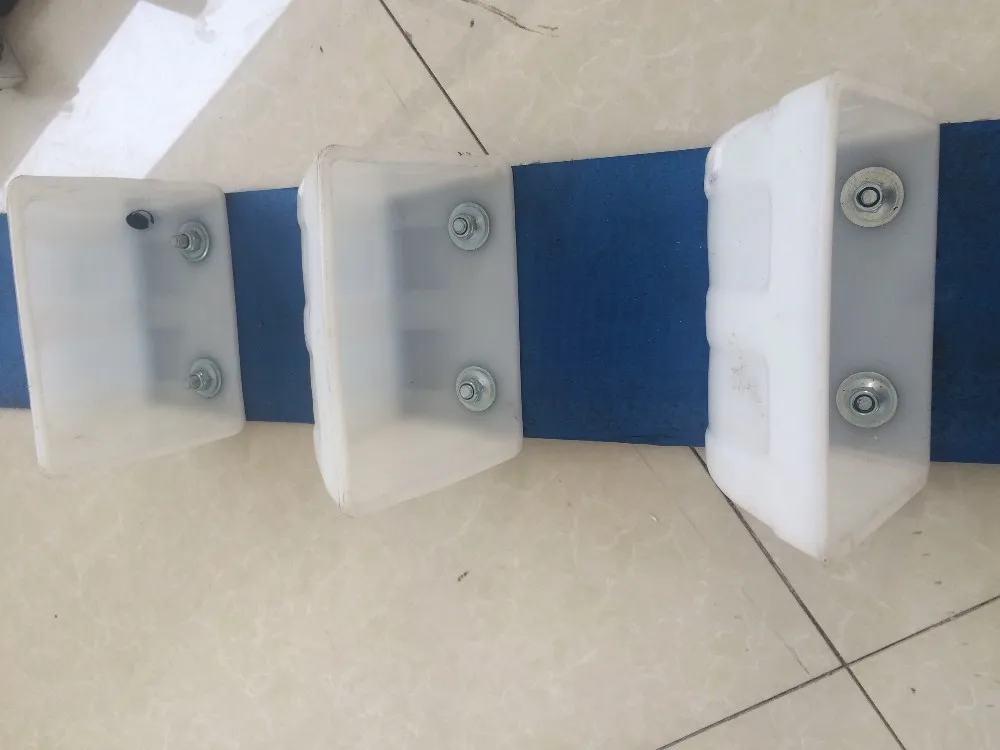

Elevator bucket and belt


Bucket adopt the light and high strength plastic bucket, according the regular spacing fix to the bucket belt with the special bolts. bucket belt adopt the textile Enhancement mode rubble belt, little coefficient of elongation, high strength, stand wear and tear, light weight, non-toxic and tasteless.

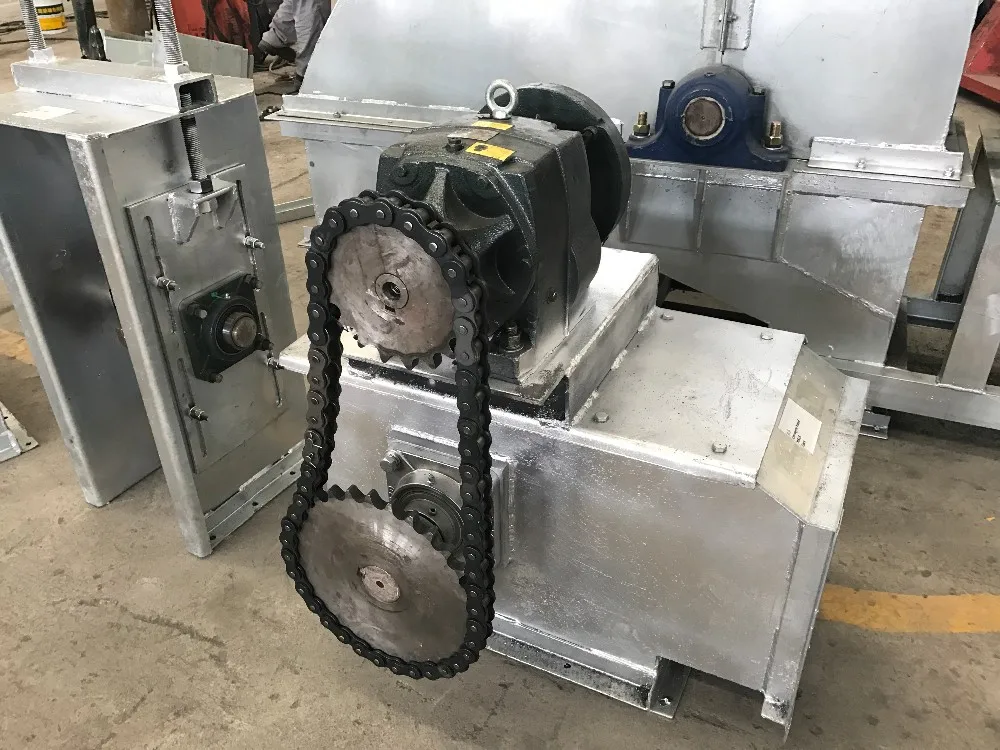

Drive device


Actuating device is Cycloidal-pin gear speed reducer and low speed coupling, actuating device drive the head wheel, make the grain elevator get power and turn.

Certifications

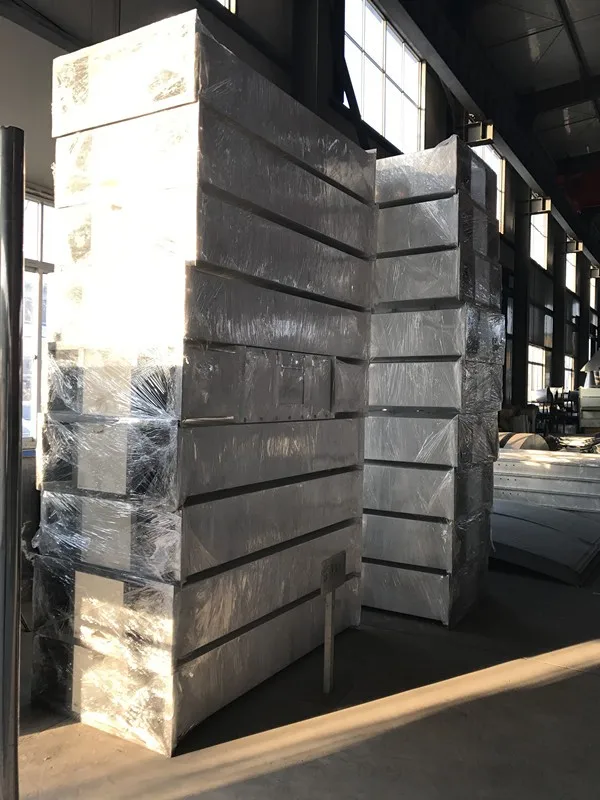

Products Shipping

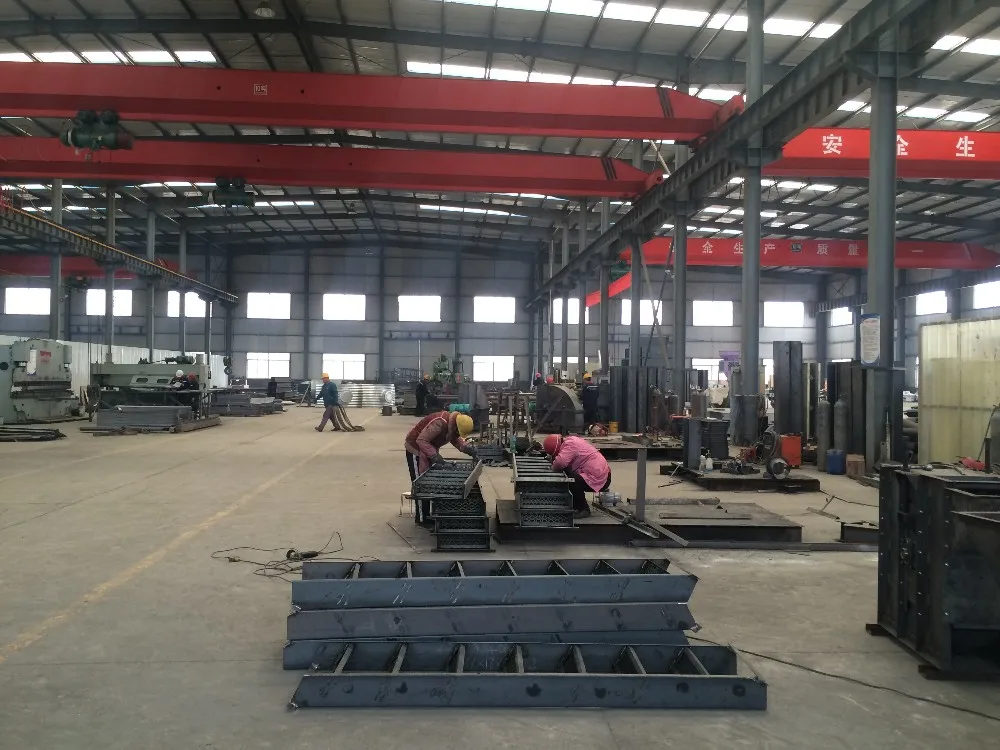

Elevator Production

Product development plays important role in Shelley Engineering which helps us establish competitive advantages in the steel silo market. We have over 15 talented silo experts who are responsible for product design, integrated solution design, structure analysis, installation deployment and system integration. These experts, engineers and experienced technicians are our real wealth and competence. After 10 years continuous investment of product development, technological innovation and manufacturing process improvement and strict quality assurance, our customized grain silo products and solutions are enjoying leading position in grain storage industry.


Contact: Cassie Ni

Phone(whatsapp, wechat): +86 18653877119

Skype: shelley9008

QQ: 1537462338

Trademanager: cn220044600

FAQ

1. Will you help with installation and stuff training ?
Of course, we can send our skilled engineers to provide you entire service from the installation, commissioning and training.

2. How do you control the quality?
We insist "Quality is life” and always pay great attention to quality control from the beginning to the end. You can also be reassured by our one-year warranty and CE&BV&ISO Certificates.

3. Can you provide turn-key project?
Yes, we have enough experience in installing turn-key projects overseas.

4. Where is your factory located? How can I visit there?
Our factory is located in Taian City, Shandong Province, China.  You can fly to Beijing airport or Jinan Airport directly. All our clients, from home or abroad, are warmly welcome to visit us.

5. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
