Great features professional plate and pipe fiber laser cutting machine

FOB Reference Price:Get Latest Price
$28,850.00 - $75,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
LX3015FT
Power:
3000W 1500W 1000W Other 2000W
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Laser Type:
Fiber Laser
Application:
LASER CUTTING
Applicable Material:
metal
Condition:
New
Cutting Area:
1500*3000mm
Cutting Speed:
60m/min
Graphic Format Supported:
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cutting Thickness:
0-8mm
CNC or Not:
yes
Cooling Mode:
WATER COOLING
Control Software:
MCC3721H
Place of Origin:
Shandong, China
Brand Name:
UNICH
Certification:
ce, ISO
Laser Source Brand:
MAX
Laser Head Brand:
1 )RAYTOOLS 2 )WSX 3 )Precitec
Servo Motor Brand:
FUJI
Guiderail Brand:
HIWIN
Control System Brand:
Au3tech MCC3721H
Weight (KG):
4200 KG
Key Selling Points:
Multifunctional
Warranty:
3 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
None
Showroom Location:
None
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
3 years
Core Components:
Motor, Gear
Product name:
500w fiber laser cutting machine
Machine model:
LXF1530
Working area:
1500*3000mm
Positioning accuracy:
±0.01mm
Laser generator:
500w/700w/1000w/1500W/2000W/3000W
Laser type:
fiber laser
Laser source:
Fiber 500W
Power supply:
380V/220V
X,Y move speed:
60m/min
Function:
Metal plate and metal pipe cutting
Supply Ability
Supply Ability:
1 Set/Sets per Week 500w fiber laser cutting machine
Packaging & Delivery
Packaging Details
strong plywood case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Product Description

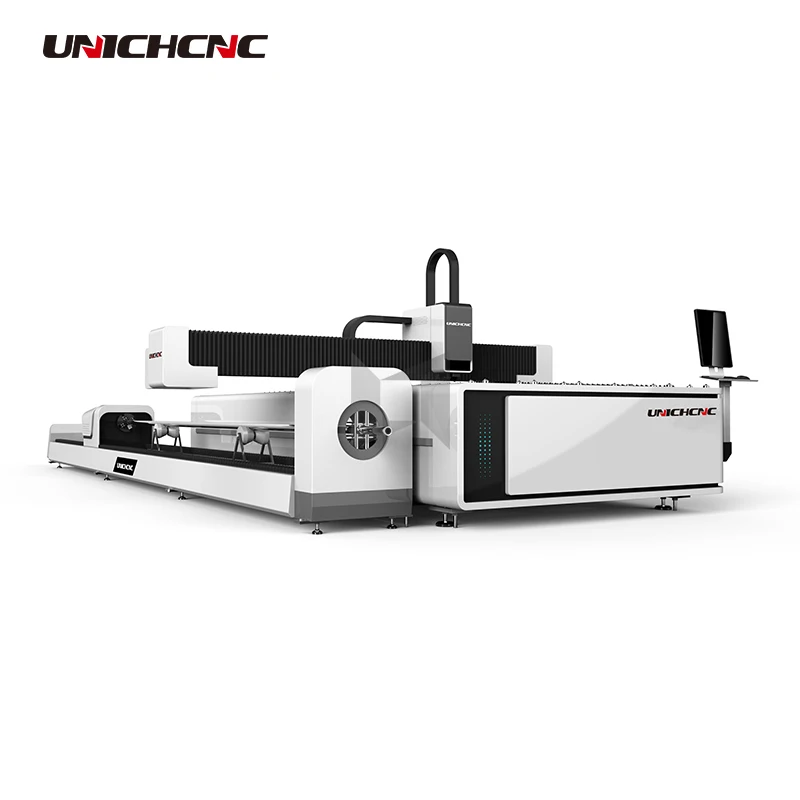

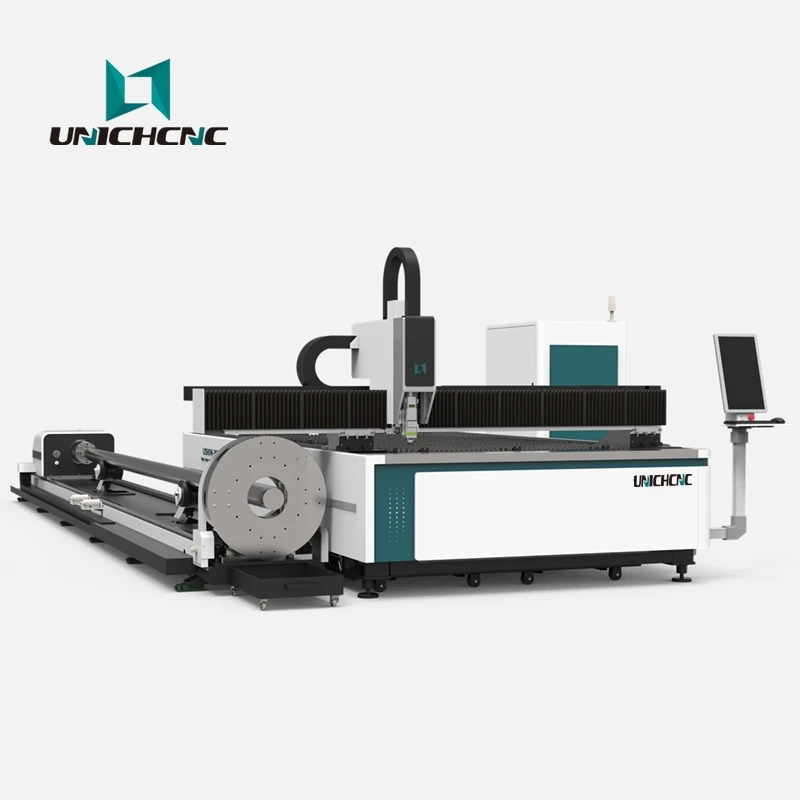

2020 NEW DESIGN LX3015FT

details pls contact us ,24-hour online service

CLASSICAL DESIGN LXF1530R

support OEM&ODM service ,outlook can be customed
Detailed Images
STAR MACHINE PARTS

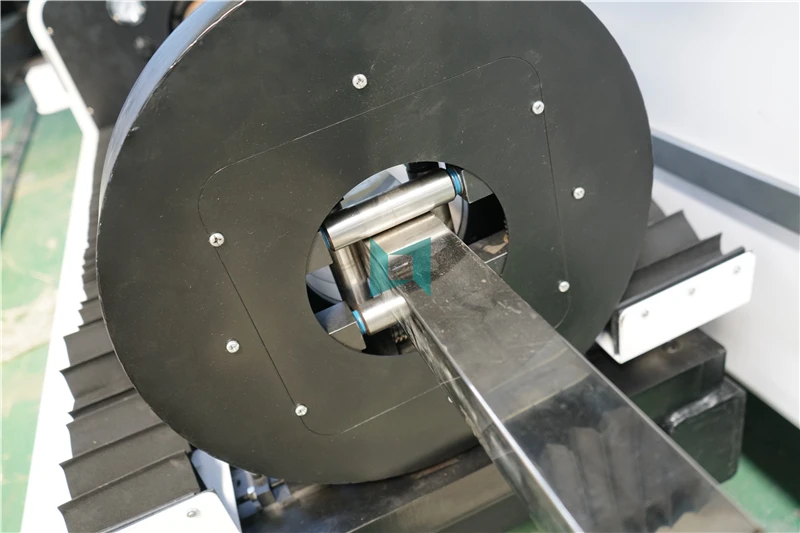

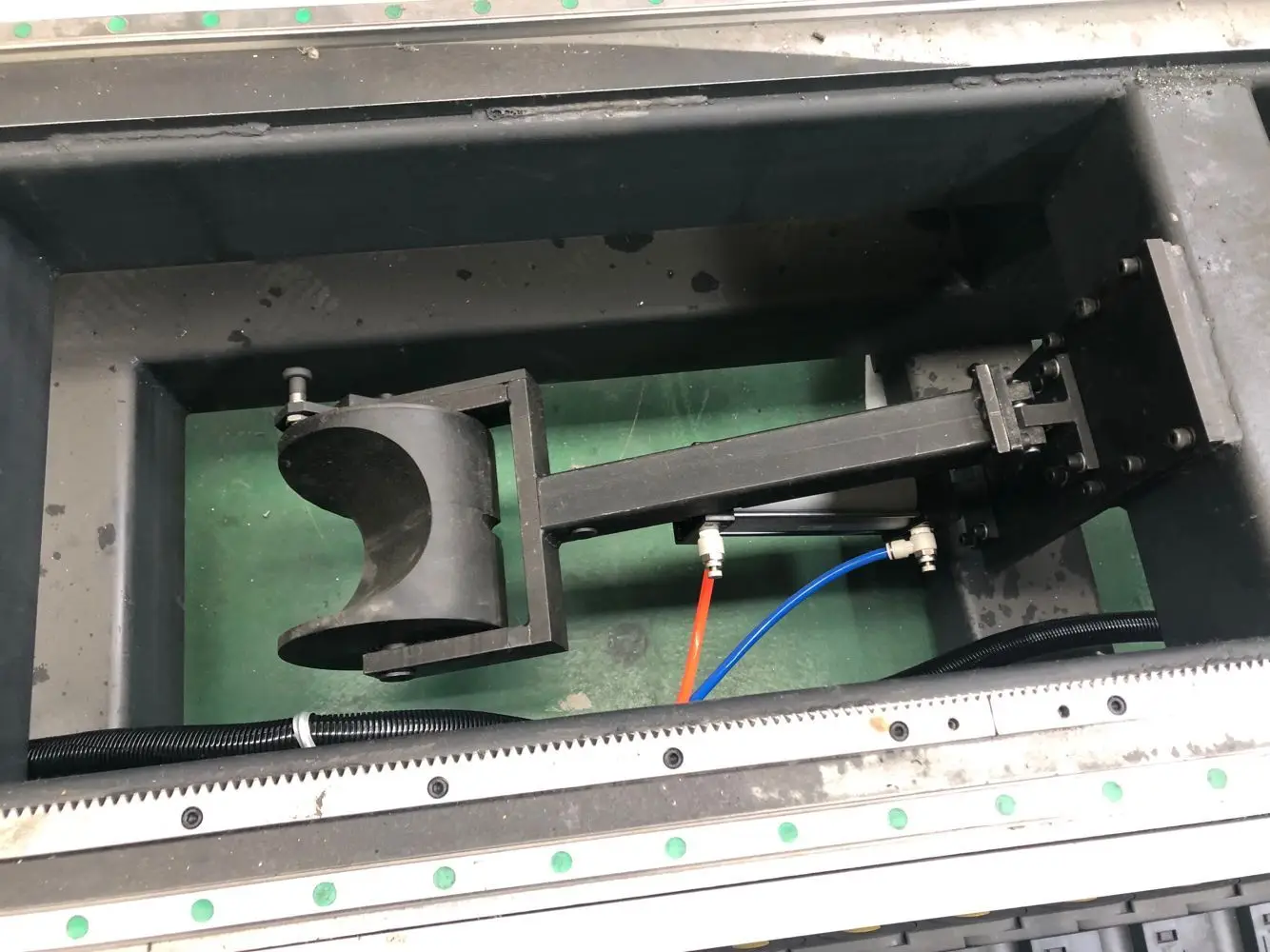

Double pneumatic support
Automatic clamping
Precision cutting

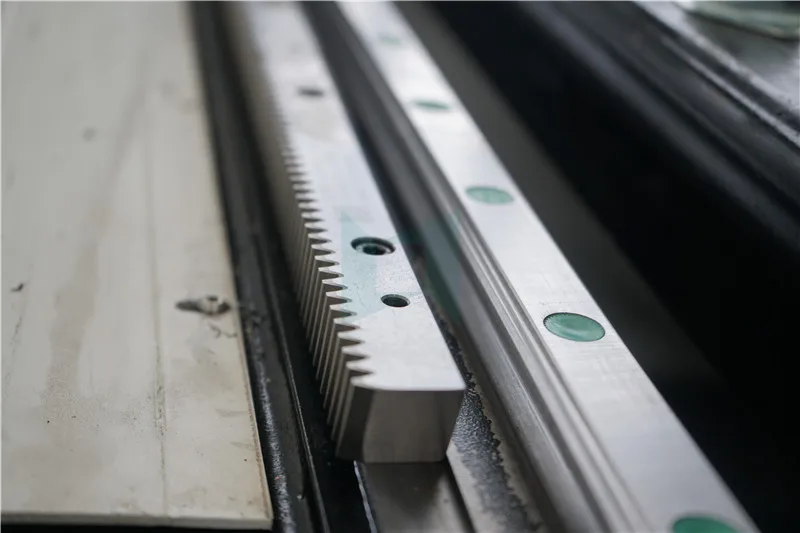

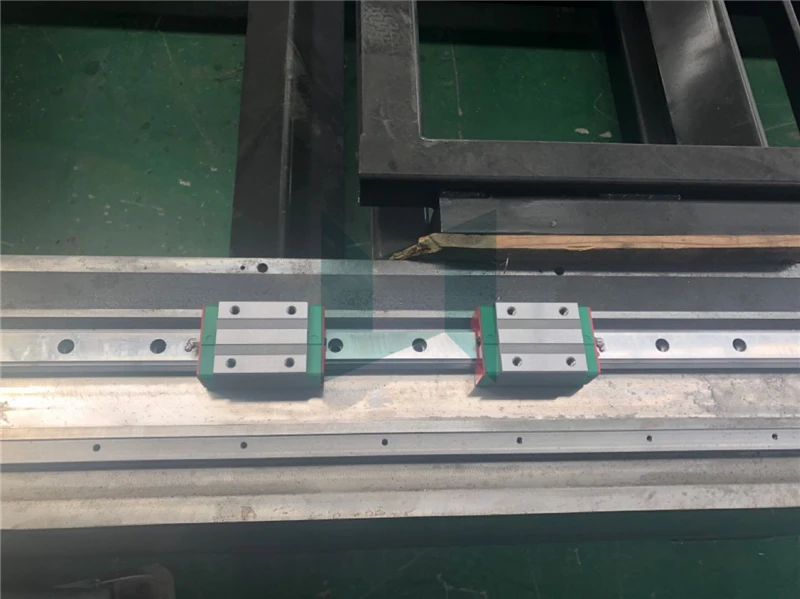

GUID RAILS AND GEAR

HIWIN RAILS AND OTHER OPTIONAL

AVIATION ALUMINUM BEAM

STAND WEAR AND TEAR

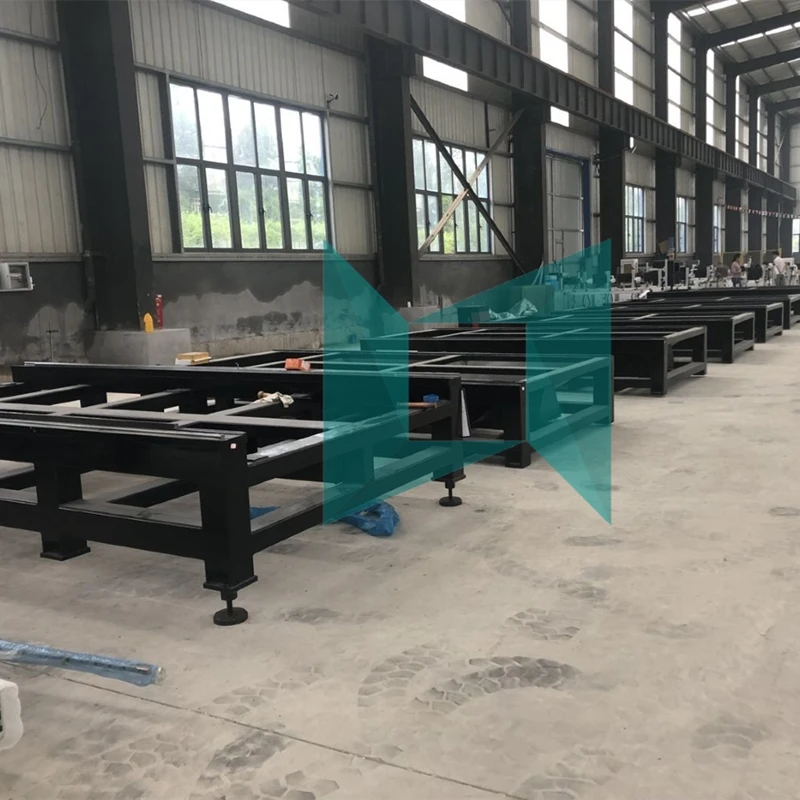

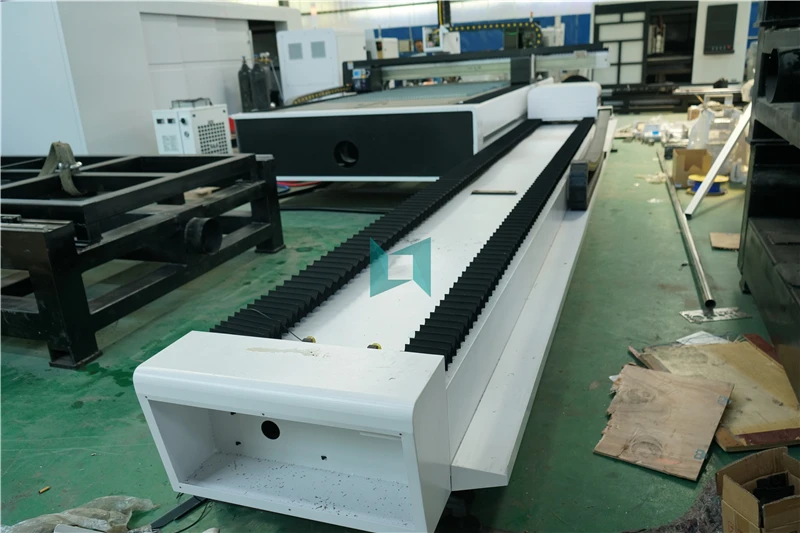

MACHINE BED

PLATE WELDED MACHINE BED

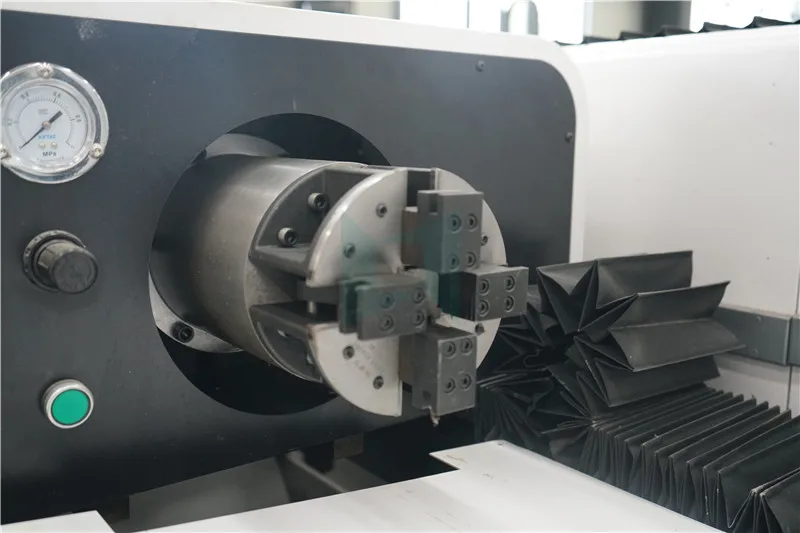

ROTARY

DIAMETER 20-350mm, 3-12M (CAN BE CUSTOMED)

CUTTING HEAD

THIS PRICE IS WITH RAYTOOLS
AU3TECH/WSX/PRECITEC OPTIONAL
YOU CAN CHOOSE ACCORDING TO METERIAL

GENERATOR

THE DISPLAY PRICE IS WITH RAYCUS 1000W
MAX/JPT/NLIGHT/PRECITEC
500W-3000W OPTIOANL

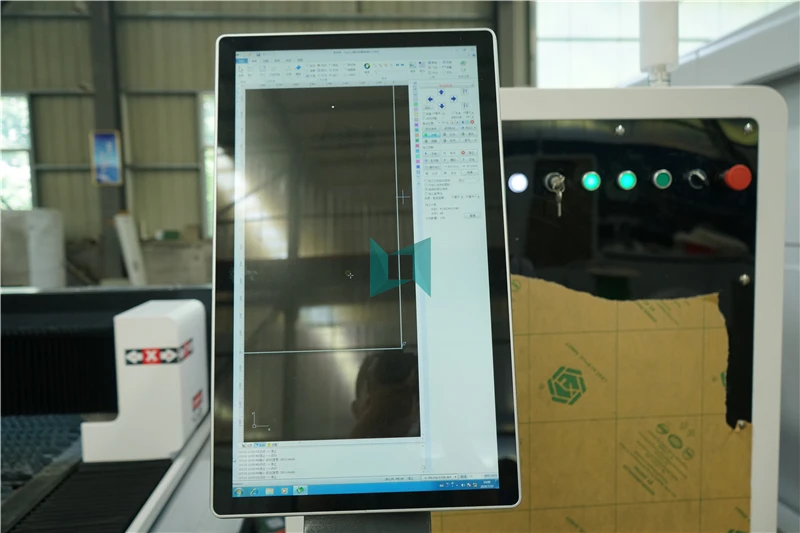

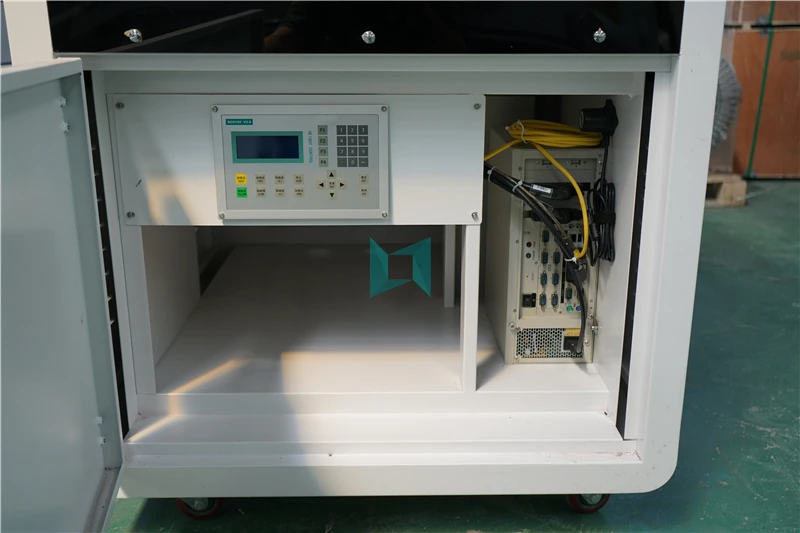

CONTROL SYSTEM

BOCHU FSCUT3000S WITH CYPCUT TUBPRO

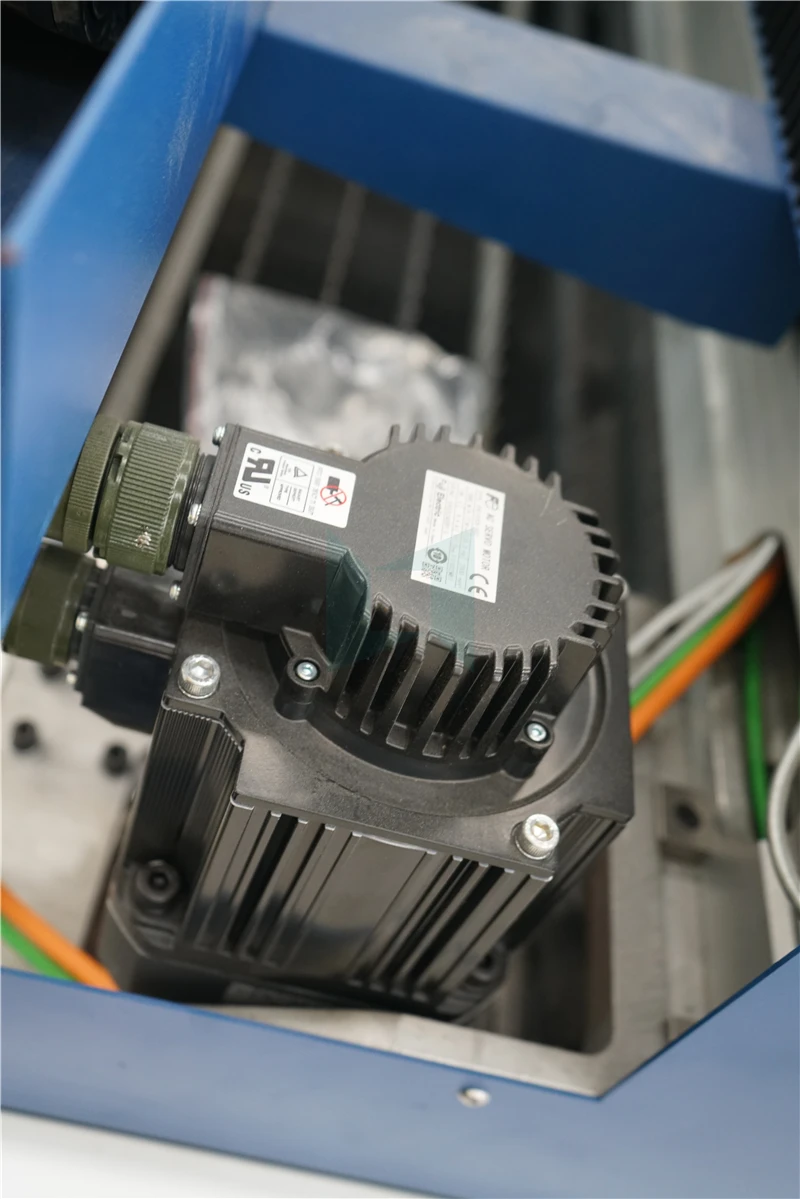

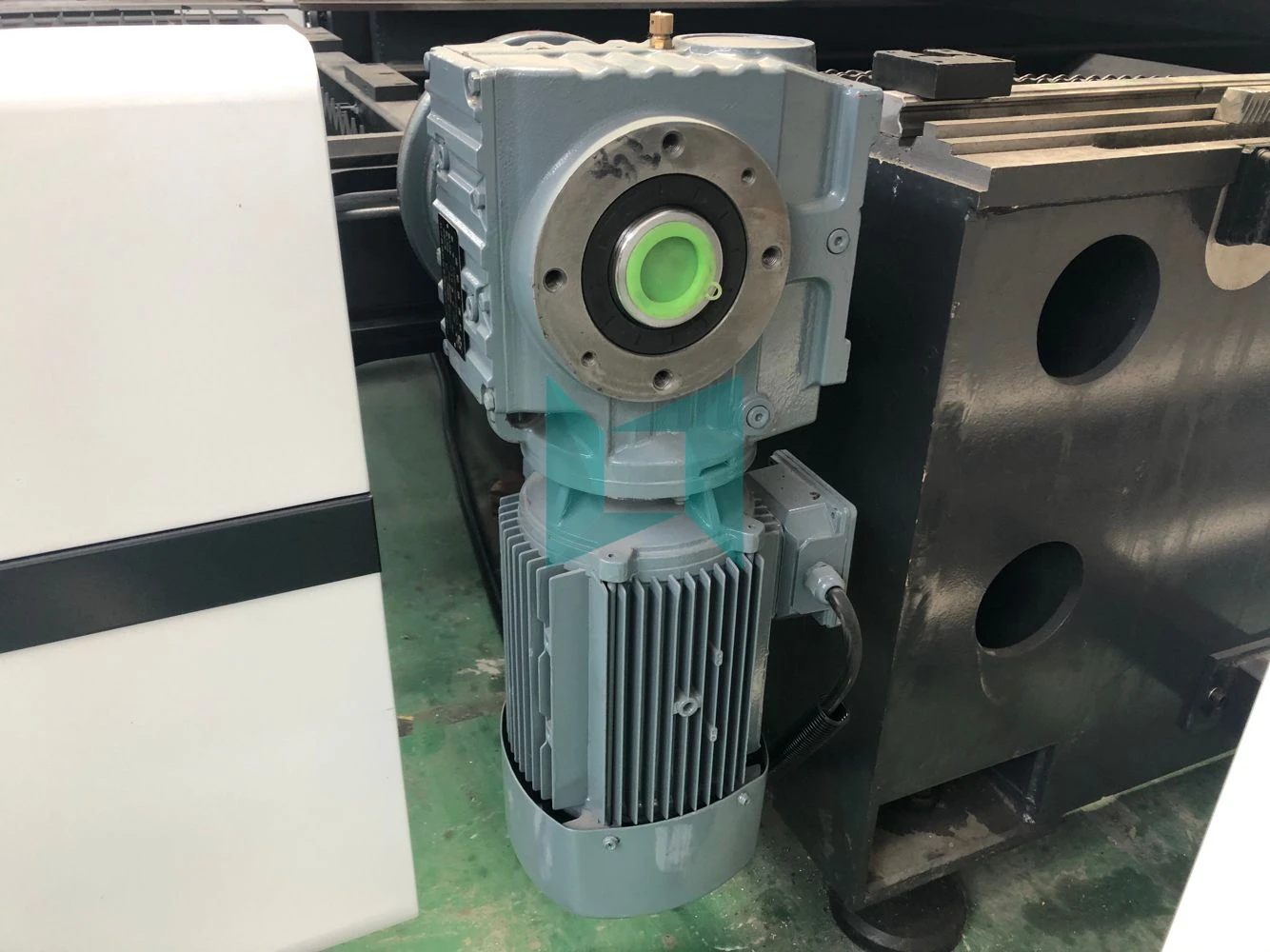

MOTOR AND DRIVER

JAPAN FUJI /YASKAWA SERVO MOTOR
OTHER PARTS
More real pictures please contact us!
Samples
WE SUPPORT FREE SAMPLES SERVICE
YOU CAN TELL US ABOUT METERIAL AND THICKNESS, GET SAMPLES FIRST!
Product Paramenters
1
Machine Name
New Design Fiber Laser cutting machine with rotary
2
Model
LX3015FT
3
Laser machine cutting area
3000x1500mm
tube diameter 20mm-200mm(350mm max)
4
Fiber Laser Power
800/1000/1500/2000/3000w(optional)
5
Laser wave length
1064nm
6
Transmission system
Gear + rails
(we have standard brand,we can also produce as your requirements)
7
X.Y axis location accuracy
±0.01mm
8
X.Y axis repeat location accuracy
±0.01mm
9
X.Y axis max moving speed
60m/min
10
Max cutting speed
1--60m/min
(it will according to metal material and laser power and machine configuration)
11
Cutting thickness
Detailed in the following cutting thickness
12
Application Material
Metal sheet
Iron/CS/SS/Aluminum/Copper and all kinds metal
Cutting Thickness
MATERIAL
THICKNESS (MM)

POWER &SPEED





500W
800W
1000W
1200W
1500W
2000W
2200W
3000W







CARBON STEEL
(Q235)O2
2
3-4
3.5-4
4-5
4.5-6
5.7
6
0.7-0.9
1.1-1.3

1.2-1.4
1.3-1.5
1.5-1.8
2.1-2.3
2.5-2.65
2.5-2.8
8
0.8-1
0.9-1.1
1-1.2
1.2-1.4
1.8-1.9
1.8-2
2.2-2.4
10
0.6-0.8
0.75-0.9
0.8-1
1-1.2
1.2-1.35
1.3-1.4
1.1-1.3
12
0.6-0.75
0.65-0.8
0.75-1
0.9-1.05
0.9-0.95
0.9-1
8
14
0.5-0.7
0.65-0.8
0.85-0.9
0.8-0.85
0.8-0.9
16
0.6-0.7
0.75-0.8
0.65-0.7
0.7-0.8
18
0.45-0.6
0.7-0.75
0.6-0.65
0.6-0.75
20
0.6-0.65
0.55-0.6
0.5-0.65
22
0.53-0.6
0.45-0.5
0.4-0.55
25
0.4-0.53






STAINLESS STEEL
(304)N2
1
10-12
16-19
20-22
21-24
2
2
1.8-2.5
3.5-4.7
4.5-6.5
6-7.5
7-10
11.5-13
11-13
18-23
3
0.7-0.9
1.5-2
1.8-2.5
2.5-3
4.5-6
5-6.5
6.5-7.5
7-9
4
0.45-0.6
1-1.7
1.5-2
1.7-2
2-3.5
3-3.5
4.5-6
5
0.45-0.7
0.7-1.1
1-1.3
1.8-2.2
2-2.3
2.5-3
6
0.5-0.7
0.8-1
1.5-1.8
1.8-2
1.5-1.9
8
0.6-0.7
0.75-0.9
1-1.3
10
0.3-0.5
12



ALUMINUM
(1060/6061)N2
1
2.5-4
12-18
15-20
20-26
2

2-3.5
2.5-4.5
4.5-5.5
6-8
12-13.5
11-12.5
14-17
3

0.3-0.5
0.8-1.5
1.6-2
2.5-4
5-6.5
5-5.5
6.5-8
4
0.4-0.6
0.8-1.3
2.5-3.2
2.3-2.5
3-4
5
0.2-0.35
1.5-1.65
1.5-1.6
1.6-2
6
1.1-1.5
0.93-1
1.3-1.6
8
0.4-0.45
0.4-0.45
0.65-0.8
10
0.3-0.45
BRASS
(H62)N2
1
2.5-3.5
15-18
15-20
20-25
2
2.5-3.5
2.5-4
4-5
6-8
12-13
9-10.5
12-16
3
0.5-0.5
0.8-1.4
1.5-2
2.5-3
5.5-6
4.5-5.5
6-7.5
4
0.4-0.6
0.8-1.2
2.6-3
2-2.5
2.5-3.6
5
0.2-0.3
1.5-1.65
1.3-1.45
1.5-1.8
6
1.1-1.5
0.8-0.95
1.2-1.6
8
0.35-0.4
0.35-0.4
0.65-0.8
10
0.3-0.45
RED COPPER (T2)O2
1
1.5-1.8
4-6
5-8
9-11
12-14
20
2
0.4-0.6
0.6-0.8
0.8-1
2-2.6
5-6
4.5-5.5
6-7.5
3
0.3-0.5
0.4-0.6
1.2-1.6
1.65-1.8
1.85-2
3-3.8
4
0.4-0.8
0.7-0.85
1-1.25
1-1.2
5
0.4-0.45
0.5-0.65
0.65-0.8
6
0.3-0.45
Why Choose Us
Jinan Unich Machinery Co., Ltd.
 is established in July 2004,owns more than 500 square meters of researching  and office space,more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001.Products are sold to USA,Canada, Australia, Europe,South east Asia, Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufacturers

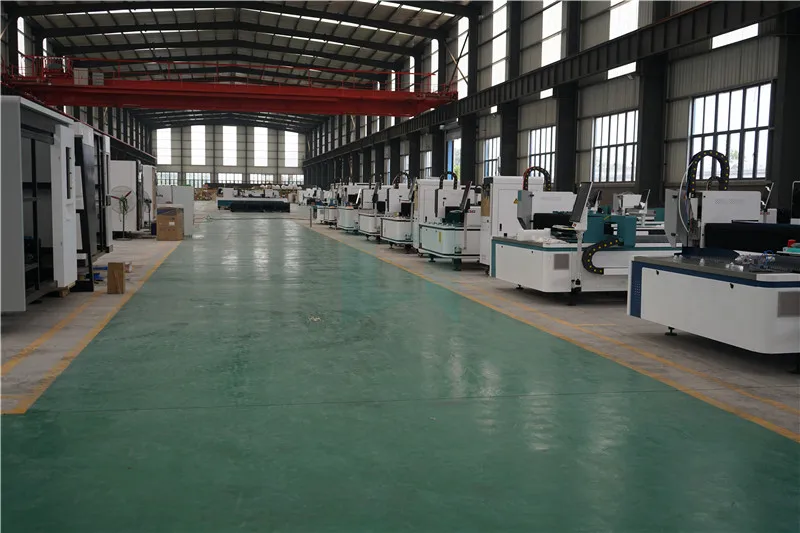

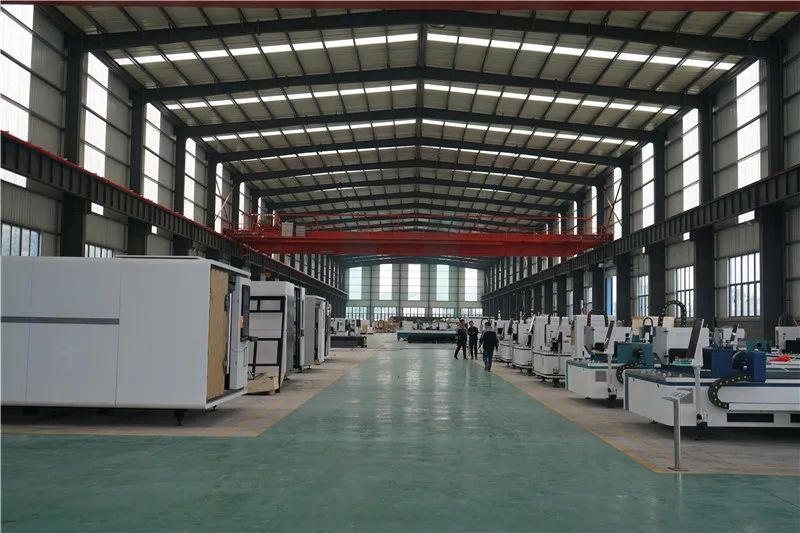

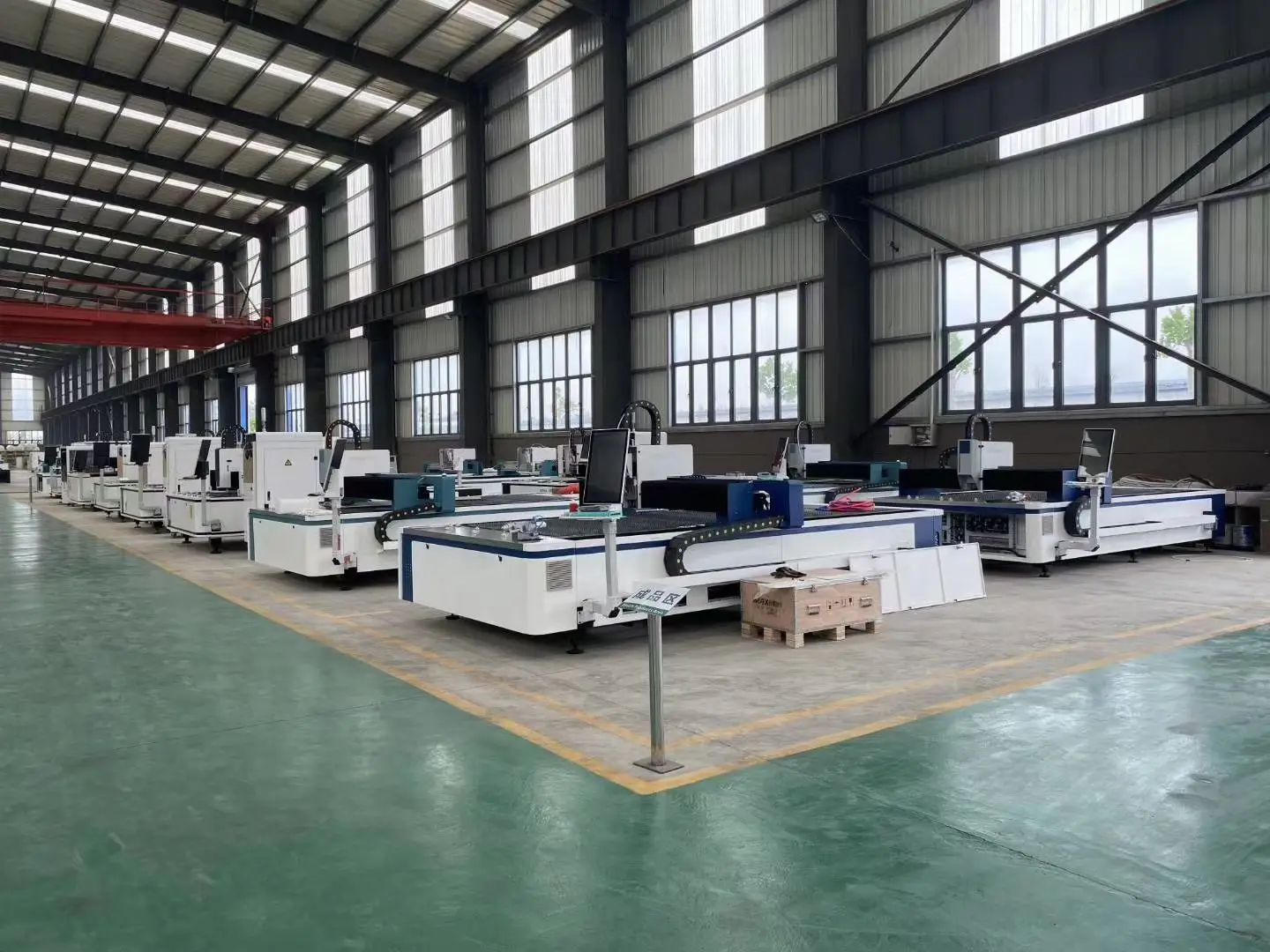

PREMIUM OEM FACTORY

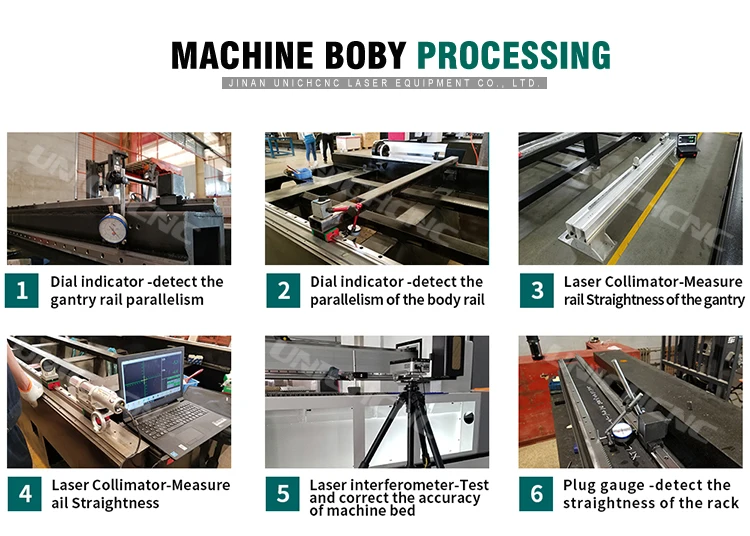

Production and Quality Control
FAQ
Q1 :Our workers can't operate the machine, how to train the staff?
A1:We will send you the teaching video of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 1-3 days,if you want door-to-door service,We can arrange local service in 48 hours
Q2 : I don’t know which one is suitable for me ?
A2:Please tell me your
1) Your materials
2) Max size of your material
3) Max cut thickness
4) Popular cut thickness

Q3 :It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do？
A3:We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.

Q4 :Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5 :I don’t know how to use after I receive Or I have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
