H01N2-D -E Neoprene Welding Cable

FOB Reference Price:Get Latest Price
$0.50 - $3.00 / Meter | 1000 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
RONGHUA
Model Number:
H01N2-D -E
Insulation Material:
Rubber
Type:
LOW VOLTAGE
Application:
Industrial
Conductor Material:
Copper
Jacket:
Rubber
Product name:
H01N2-D -E PCP Welding Cable
Conductor:
Bare Copper class 5/6
Sheath:
Rubber Sheath
Sample:
Free sample
Standard:
IEC60245
Rated voltage:
AC 450/750V
Packing:
In rolls or drums
Working temperature:
-35℃-+85℃
Core:
Single Core
Color:
Black or red upon request
Supply Ability
Supply Ability:
300000 Meter/Meters per Day super flexible welding cable manfuacture
Packaging & Delivery
Packaging Details
100M/Roll or 500M/wooden drum or 1000M/wooden drum
Port
Tianjin Port or other port of China

H01N2-D -E PCP Welding Cable







  Product introduction







Construction
Conductor:

Plain annealed copper wire class 5/6

Separator:Polyester film isolating layer

Jacket: PCP

Standard:IEC 60245

Technical properties:
Rate voltage:450/750V
Working temperaure:-35℃-+85℃
Sheath color:Black or red or orange

Feature:

Resistant to cuts, tears and abrasion in addition to moisture.

Welding Wire offers good color retention along with great flexibility.

Application:

Welding cable can be used as entertainment or stage   lighting cables for movie theatres, lighting and sound systems, and communication vans. Other possible uses for welding cable include battery cables for cars, inverter cables, and as a cheaper alternative to pendant/reeling cable on hoists and cranes. For example, many solar power installations use welding cable extensively to connect solar panels, battery banks, and converters.



>>>  Starting Business Now





  Product Show







   Specification





Nominal section area

(mm2)

Max. diameter of wire

(mm)

Coated layer thickness

(mm)

Sheath thickness in double coated layers(mm)

Average outer diameter

(mm)

Max. resistance at 20℃

(Ω/km)

Min.

Max.

Tin coated wire

Copper wire

16

0.21

2.0

1.3

9.2

11.5

1.190

1.160

25

0.21

2.0

1.3

10.5

13.0

0.780

0.758

35

0.21

2.0

1.3

11.5

14.5

0.552

0.536

50

0.21

2.2

1.5

13.5

17.0

0.390

0.379

70

0.21

2.4

1.6

15.5

19.5

0.276

0.268

95

0.21

2.6

1.7

18.0

22.0

0.204

0.198





  • The aboved only a part of the size range.
  • AWG like 1/0  2/0 welding cable also can be provided.



 >>> Contact Us





  Packaging & Shinging



Packaging:

Small cross section cable:100M/Roll then packaged on pallet

Big cross section cable:500M or 1000M packaged on wooden drum

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping:

Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.




 >>>Sending Inquiry Now

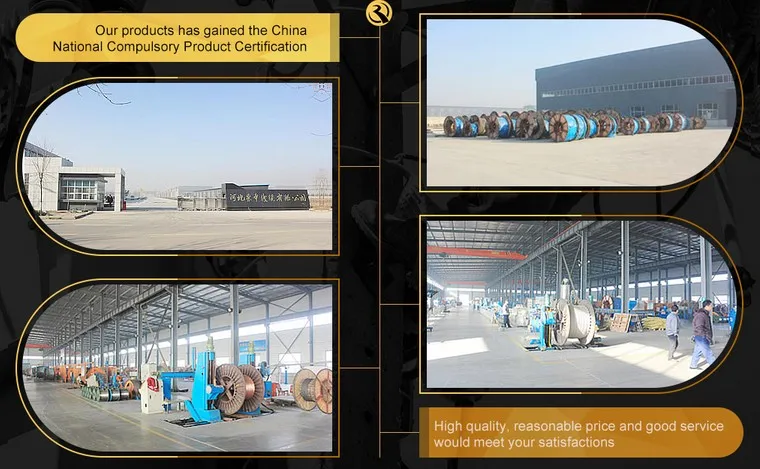

   Factory introduction

Hebei Ronghua wire and cable Co.,Ltd
-Professional manufacturer of wire and cable in China
With high quality products and excellent service,we have won trust from customers.We have received great achievement in sales with our products,which have been widely applied in various trades and electric network systems of different areas.We are in pursuit of satisfactory of clients,and we are also responsible for it.




   Advantage



1. Sufficient support for our tendering representatives.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support (technical data, drawing, etc.)
7. Cable solutions to your particular requirements.

8. Free sample is available with economic express fee.

9. 12 months quality guarantee after delivery.
