HDD XZ450PLUS Thailand Horizontal Directional Drilling rig machine sale

  • 5-9 Sets
    $129,800.00
  • >=10 Sets
    $120,000.00
Model Number:
XZ450PLUS
Power(W):
190kw
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
Place of Origin:
Jiangsu, China
Brand Name:
China Brand
Usage:
Coal
Voltage:
360v
Weight:
13300kg
Certification:
ISO
Type:
Core Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
8800x2200x2610mm
After-sales Service Provided:
Overseas service center available, Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Push-pull:
Rack and pinion
Max.pullback/thrusting:
480kn
Spindle speed:
0~135r/min
Travelling speed of power head:
38m/min
Backreaming diameter:
800mm
Entry angle:
10-20°
Other character:
HDD in Thailand
Other features:
HDD machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
8800X2270X2340 cm
Single gross weight:
8500.0 kg
Package Type:
Nude packing by container loading;
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Product Description

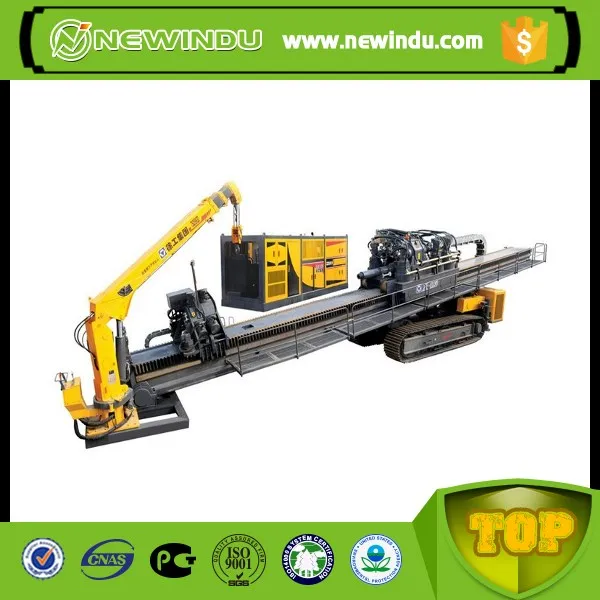

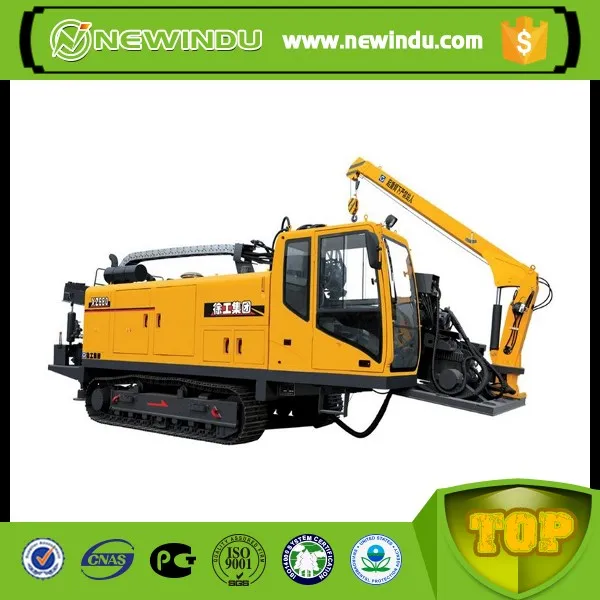

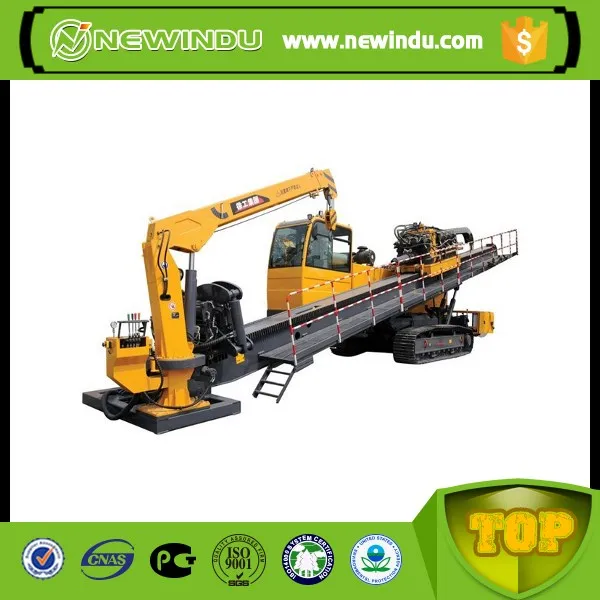

XCM XZ450PLUS Horizontal Directional Drilling rig machine





XZ450/XZ450plus: America(194kW) engine, 480kN of thrust-pull force,23500N·m of Max.spindle torque, self-propelled steel tracks chassis , high strength box-type drilling frame. Imported  rotating  reducer; rack and pinion push-pull, and onboard 450L/min mud pump.



ModelXZ450
EngineAmerica engine
Rated power194/2200
Push-pullRack and pinion
Max.pullback/thrusting480kN
Spindle torque(max)23500N.m
Spindle speed0~135r/min
Travelling speed of power head38m/min
Backreaming diameterΦ800mm
Pipe length(single)3m
Pipe diameterΦ89mm
Entry angle10-20°
Mud flow ratw(max)320L/min
Mud pressure(max)80bar
Overall weight13300kg
Dimension(LxWxH)8800x2200x2610mm
