HF-FP09 Rugged Android 4G Fingerprint 2D Barcode Scanner Thermal Printer Terminal

  • 1-99 Pieces
    $365.00
  • >=100 Pieces
    $330.00
Type:
Card
$
- +
available
fingerprint
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 200 Pieces)

More

Graphic customization (Min. Order: 200 Pieces) Less
Samples: $365.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $365.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
HFSECURITY
Model Number:
FP09
Screen:
5.5'' Touch Screen
ROM:
2GB
RAM:
16GB
Communication:
4G / WIFI / Bluetooth
RFID:
Read/Write 13.56MHz card
Barcode Scanner:
all barcode scan
Rugged:
IP65
Camera:
Front: 2.0 MP; Rear: 8.0 MP
SIM card slot:
Dual
SD card:
Up to 64GB

Packaging & Delivery

Selling Units:
Single item
Single package size:
24X18X9 cm
Single gross weight:
2.0 kg
Package Type:
Carton 24 * 18 * 9 cm
Lead Time :
Quantity(Piece) 1 - 1 2 - 100 >100
Est. Time(days) 2 15 To be negotiated
Video Description
Product Description

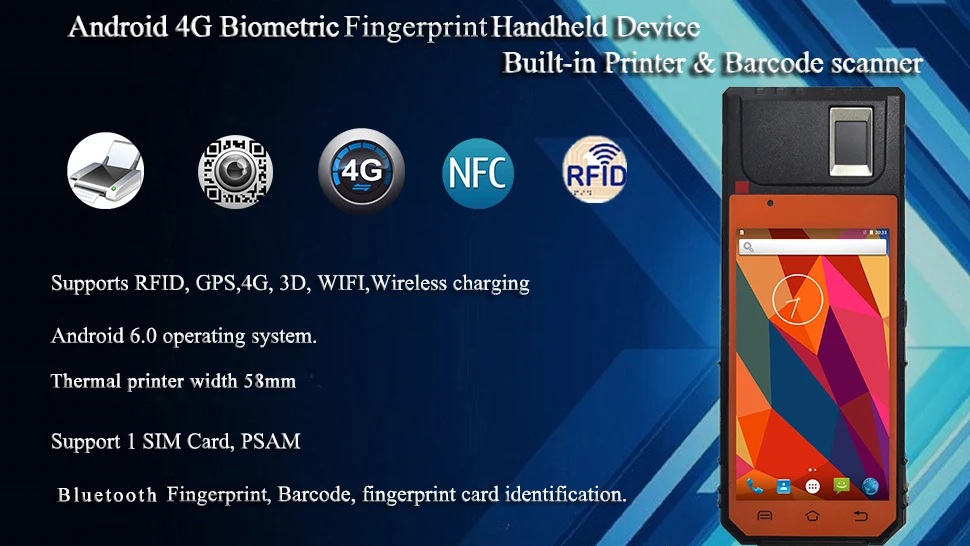

HFSecurity FP09 is a all-in-one Biometric fingerprint device for the most demanding identification and authentication requirements, it integrates registration, matching, verification, printing(built-in Thermal printer), barcoding, contact/contactless/magnetic strip card and so on. which can be deployed anywhere like: bank, government, school, hospital, supermarket etc
Specification
Hardware
Color
Orange and Black

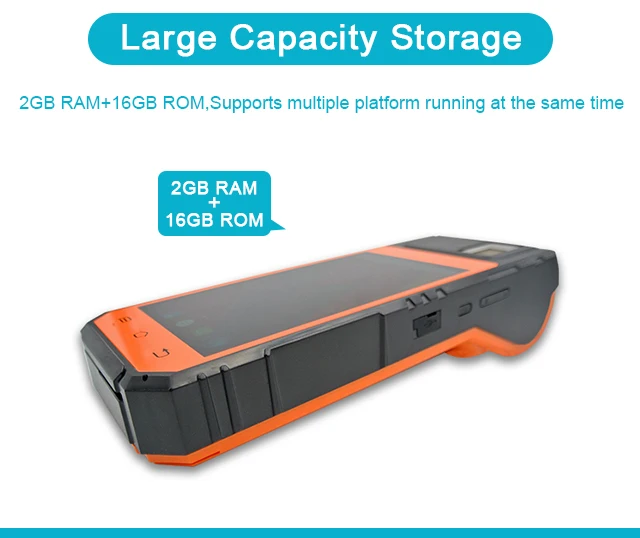

RAM
2GB
ROM
16GB

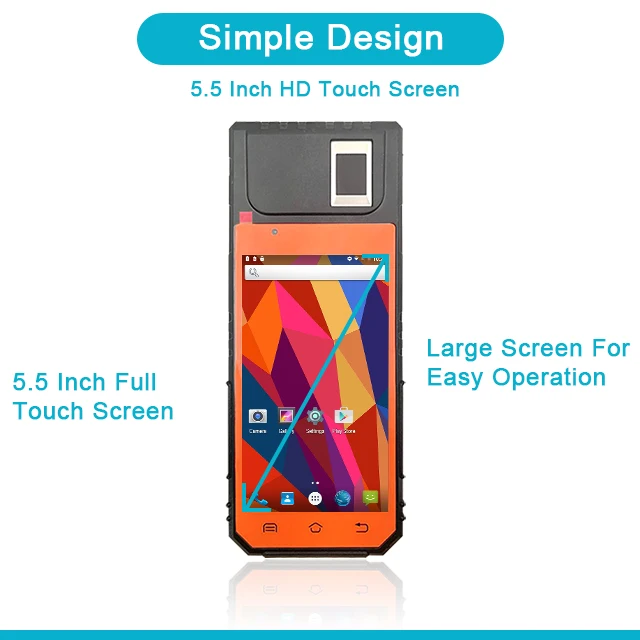

LCD Display
5.5”, 720*12

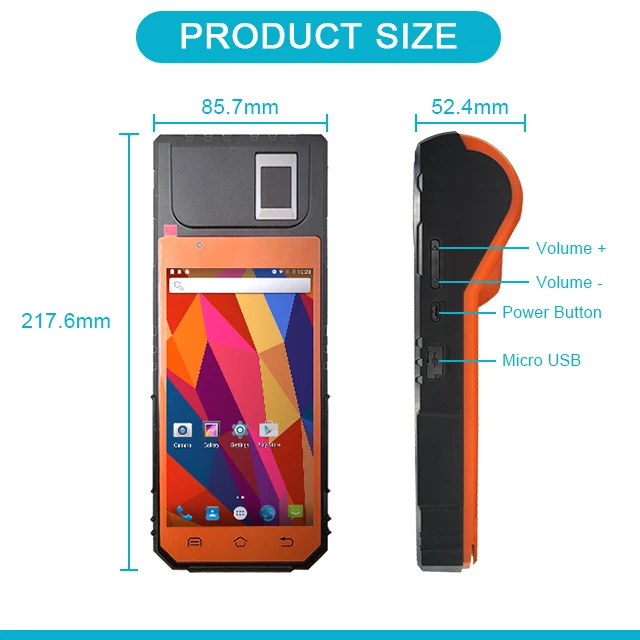

Dimension
217.6(L)*85.66(W)*52.36(H)
Touch Panel
Multi-finger touch
Camera
Front: 2.0M, Rear: 8.0M

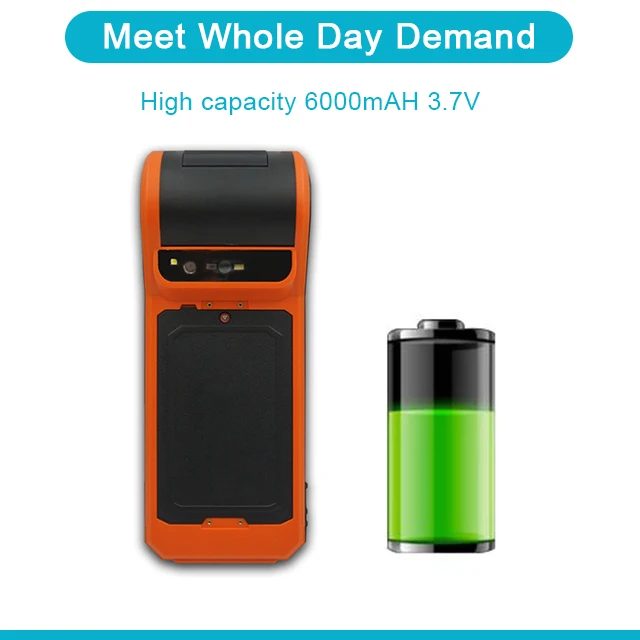

Battery
DC 3.7V/6000mAh

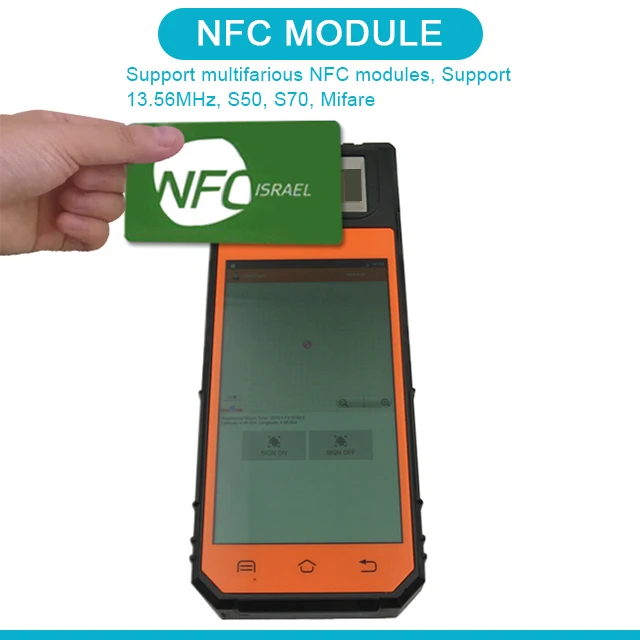

NFC
Support 13.56MHz, S50, S70, Mifare
Card
Magnetic trip and smart chip card
G-sensor
Gravity acceleration sensor
MIC
Built-in microphone
TF
1x mini SD card up to 64G
BT、GPS
Yes
Earphone
3.5mm stereo phone jack
Storage Temperature
 -5~60℃
Barcode scanner
1D/2D barcode function standard; PDF417 code (Optional)
Digital-Pen signature function
Support (Sample not come with pen)
Thermal Print
Width:58mm, Speed:80mm/s
Certificate
ISO9001, CEMicro-USB an
PSAM
1 slot, Support PSAM card, company with the UnionPay standard (optional function)
Radio Frequenc
GSM
GSM:B2/1900 B3/1800 B8/900
WCDMA
WCDMA:B1 B2 B8
LTE-FDD
LTE-FDD:B1 B3
LTE-TDD
LTE-TDD:B38 B39 B40 B41B

Equalizer
YES
Speed Rates
GSM CS:UL 9.6kbps/DL 8.6kb
GPRS:Multi-slot Class 10

EDGE:Multi-slot Class
WCDMA:UL 11.5Mbps/ DL 42.2Mbps
LTE-FDD:UL 40Mbps/ DL 150Mbps
LTE-TDD:UL 50Mbps/ DL 150Mb
Software
OS
Android 6.0
CPU Processor
ARM Cortex-A53 1.2GHz Quad core
3GPP Protocol
Release
RAS Dailin
Support
SM
Support
Lock net
Support
Upgrade
Yes
 Fingerprint Sensor
Yes
Sensor
FBI sensor (FAP10)
Image Size
256*360 pixels Image
Image resolutio
508DPI
Gray scal
8-bit (256 levels)
Imaging area
18.00mm*12.80mm

Standard
Support ANSI378, ISO19794-2/-4
Image Format
WSQ, RAW, JPG, etc
Communication
Data link
3G/4G
Wi-Fi

802.11 b/g/n
USB
Type C with OTG function
Bluetooth
Bluetooth 4.0

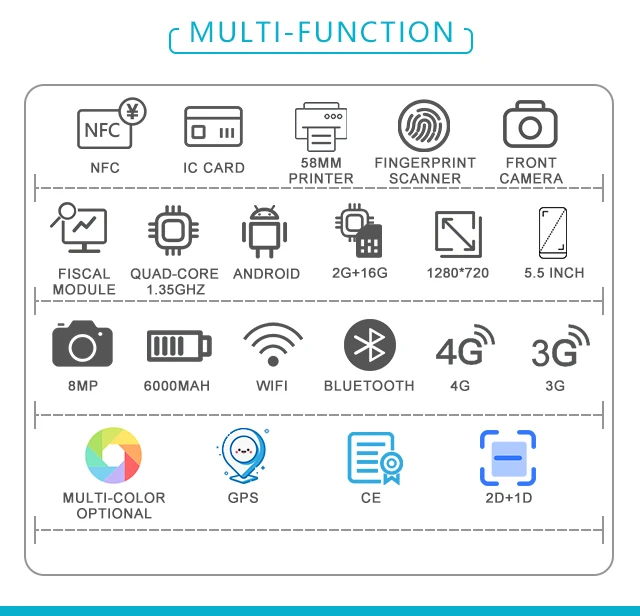

Features
Pictures
Applications

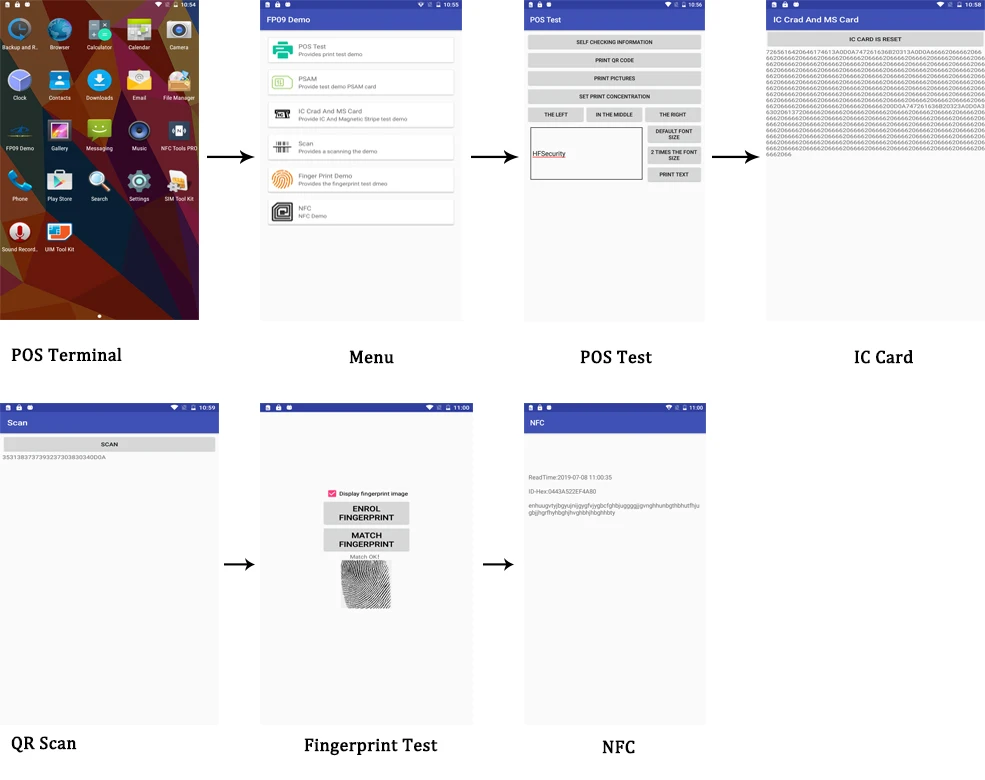

Demo show
FAQ
F:Do you offer warranty for the device?
Q:Yes,we offer one year warranty,also life soan technical support

F:What is your MOQ
Q:MOQ is 2pcs

F:What is your payment term?
Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card

F:How to get software and SDK?
Q:Software and SDK is free.Will send download link after you place order.
