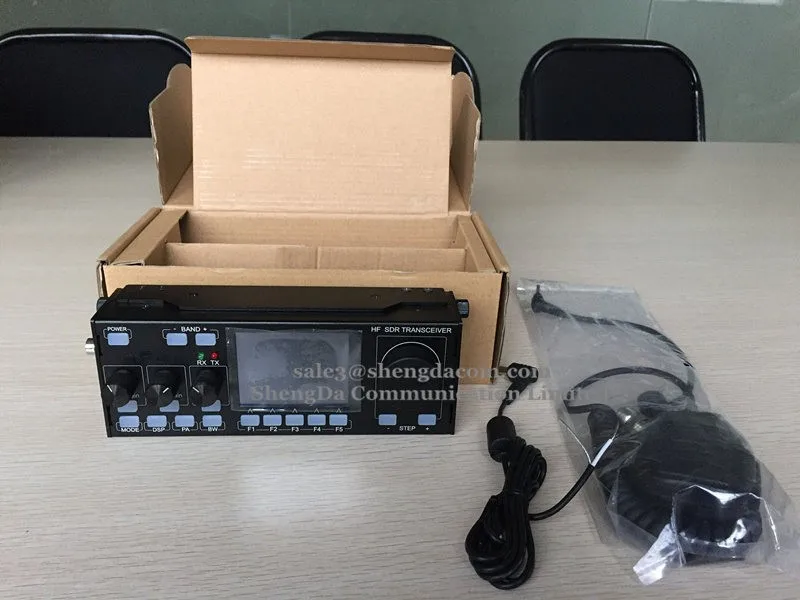

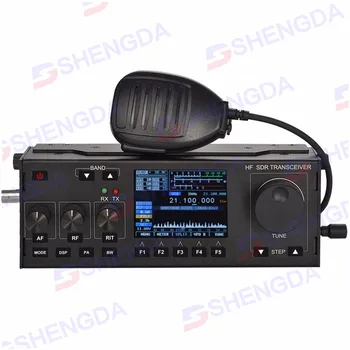

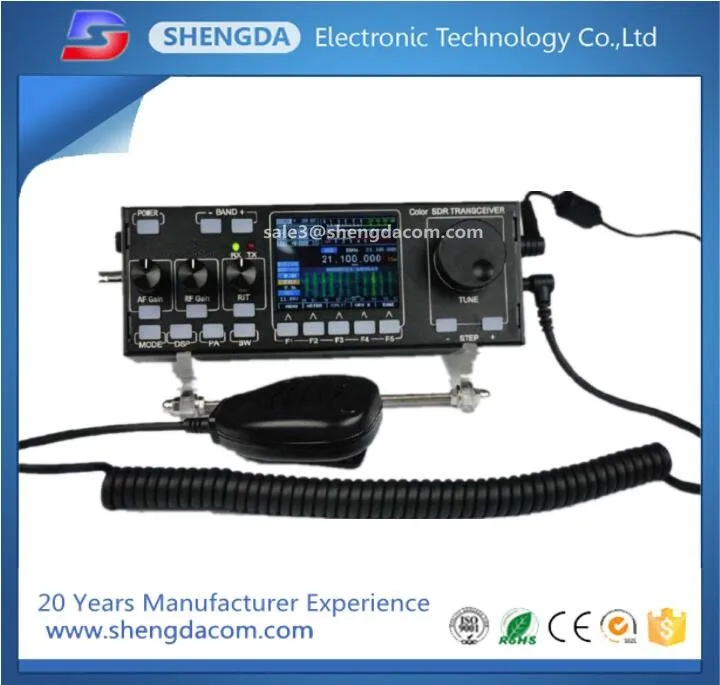

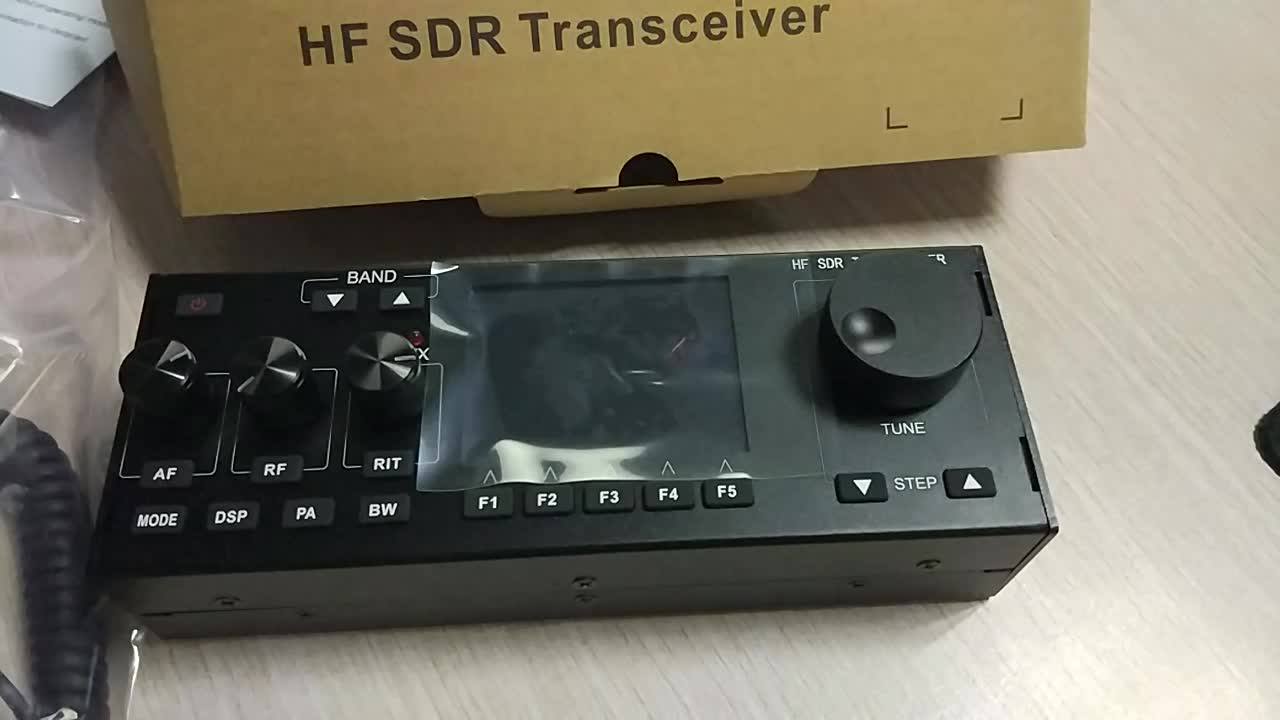

Youtube link of this HF radio Operation video:
https://youtu.be/7L3B-r-E6Jo
Basic Specifications:
Frequency Range:
RX: 2.5—30MHz
TX: All HAM HF BANDS
Operating Mode: SSB, CW, FM, AM (RX Only)
Minimum Frequency Step: 1Hz
Antenna Impedance: 50ohm
Operating Temperature Range: -10℃ - +60℃
Frequency Stability:
±1.5PPM @ Power on 5 Minutes (Standard)
±0.5PPM if Optional TCXO Used
Operating Voltage: 9-15V DC
Operating Current:
RX: ＜450mA; Around 65mA after Power Off (Can be improved at5mA)
TX: Max. 3A(FULL Power），1.5A(5W Power)
Equipment Size: 190mm(W)﹡70mm(H)﹡40mm(D)
Packing Box Size: 245mm(W) * 125mm(H) * 80mm(D)
Transmitter Specifications
Frequency Band: 80-10m All HF Ham Band
TX Power: Standard 5W (13.8VDC),15W (FULL，13.8VDC)
Modulation Mode: SSB Software Balanced Modulation, 10KHz FM
AM Software Low Modulation (RX only)
Spurious Rejection: ＞40DBC
Carrier Rejection: ＞45DBC
Selectivity: SSB 2.3KHz (-6db)
CW 500Hz (-6db)
IF Frequency: 0
RX Sensitivity: ＞-115dBm
Dynamic Range: ＞95dB
RIT Frequency Tuning Range: ±1KHz
Audio Output: 8ohm, 0.5W

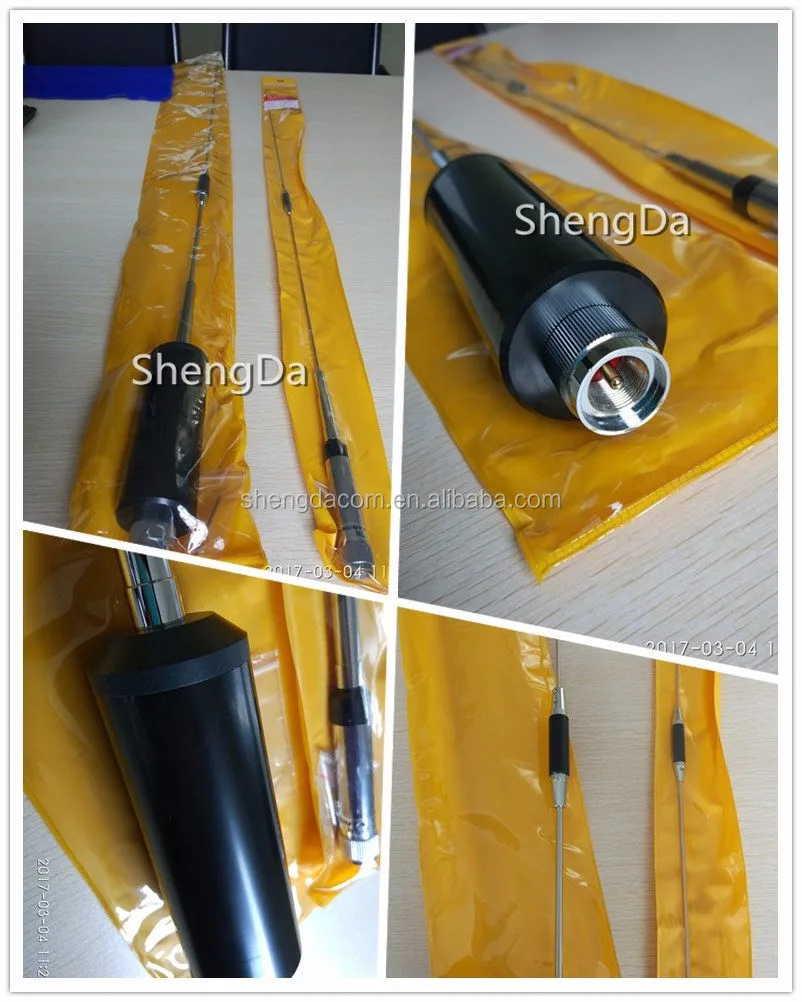

SD-HF-2
Freq:0.5-30MHz
Length:1300mm
Gain:3.5DBi
Max.power rating:50W
Impedance:50ohms
VSWR:Less than 1.5:1
Connector:UHF-Male
SD-HF-1
Freq:6-50MHz
Length:1300mm
Gain:3.5DBi
Max.power rating:50W
Impedance:50ohms
VSWR:Less than 1.5:1
Connector:UHF-Male
You may also need suitable 4 bands car antenna:
CR8900 Diamond mobile antenna
Freq:29/50/144/430MHz (10m/6m/2m/70cm)
Length:1.26m
Gain:2.15dBi(144MHz),5.5dBi(430MHz)
Max.power rating:60W FM(Total)
Impedance:50ohms
VSWR:Less than 1.5:1
Connector:MP
Type:1/4wave(29/50MHz),1/2wave radialless(144MHz),2x5/8wave(430MHz)
Vehicle mounted mobile radio
for Car Truck Van and other vehicles
SD007VU
Frequency:
RX:136-174/220-260/400-470/470-520MHz
TX:136-174/222-225/400-470/470-520MHz
Back light:8 colors
LCD display:wide screen
DC Power Supply Unit:12-24V DC power supply
RF Power Output:50/25/5W
SD005QB
Frequency Range :
RX:26-33/47-54/108-180/320-512/700-985MHz
TX:26-33/47-54/137-174/400-470MHz
Output Power:50/20/10/5W (26/50/144MHz)
35/20/10/5W (430MHz)
Power Supply:DC13.8 V(±15%)
Channels:Over 800 Memory Channels
SD009VU
Frequency Range :136-174MHz/400-480MHz
Output Power:25W/20W
Storage Channel: 200
Talk Range: 20-50km
Dimensions: 98*35*118mm
SD9800
Frequency Range:
Dual Band TX, Five Band RX, AM+FM RX
RX: 108-520 MHz & 700-999.990 MHz;
TX: 136-174 MHz & 400-470 MHz
Output Power
VHF:50/20/10/5W; UHF:45/20/10/5W
Channel Capacity:1105
Operating Voltage:DC13.8V±15%
Dimensions(W×H×D):140mm × 42mm × 168mm
Marine mounted Radio
use for fishing boat,Ocean,Sea,ship
SD506M
IP-67 Waterproof and Dustproof
1 Meter Depth for 30 Minutes
External GPS Receiver
Frequency Range
TX：156.025-157.425MHz
RX：156.050-163.275MHz
RF Power :25W/1W
SD507M
IP-67 Waterproof and Dustproof
1 Meter Depth for 30 Minutes
External GPS Receiver
Frequency Range
TX：156.025-157.425MHz
RX：156.050-163.275MHz
RF Power :25W/1W
Q1:What is your payment terms?
A: We accept the T/T,Western Union,Paypal and so on.
Q2:When can you arrange the shipment after I have placed and order?
A:If for the two way radio,usually we can arrange shipment within 15 days.
If for earphone and antenna,usually we can arrange the shipment 5-7 days.
Q3:Could you supply the sample for me to test first?
A:Yes,we can supply the sample first,however,the customer should pay the cost.
Q4:What is the MOQ of your products.
A:Usually,it is serious requirement.However,it depends in different products.
Q5:Can you accept customized?
A:OEM&ODM are welcomed.
Inquiry me:
Call Us
|
≤8h
Response Time
The average amount of time supplier took to respond to every buyer’s first message over the past 30 days.
|
|
|

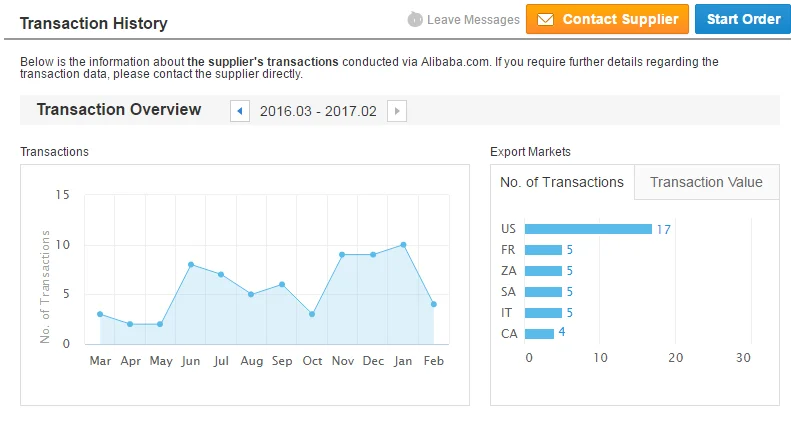

180,000+ for 121 Transactions
