HS06 PS024 IP68 High quality 19mm On-Off Self-locking Ring Illuminated Stainless Steel 12V Blue Led Piezoelectric Switch

  • 2-19 Pieces
    $10.00
  • >=20 Pieces
    $7.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 5000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces)
Wire length (Min. Order: 100 Pieces) Less
Samples: $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
ABILKEEN
Model Number:
PS19B-PANOZ-EB12V/S
Protection Level:
IP68
Max. Current:
200mA
Max. Voltage:
24V
Product Name:
Push Button Switch
Mounting Hole Size:
19mm
Operation Type:
ON-OFF Latching
Switch Combination:
1NO
Head Type:
Chamfer
Terminal type:
Wired with 300mm long 24AWG
Enclosure Material:
Stainless steel(Or Aluminum oxidation)
LED Lamp:
12V BLUE LED
Cable length Customized:
Acceptable
Product type:
Piezoelectric Switch

Packaging & Delivery

Selling Units:
Single item
Single package size:
5X5X5 cm
Single gross weight:
0.050 kg
Package Type:
HS06 PS024 IP68 High quality 19mm On-Off Self-locking Ring Illuminated Stainless Steel 12V Blue Led Piezoelectric Switch Exported carton, 40pcs/Box
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 200 >200
Est. Time(days) 15 To be negotiated

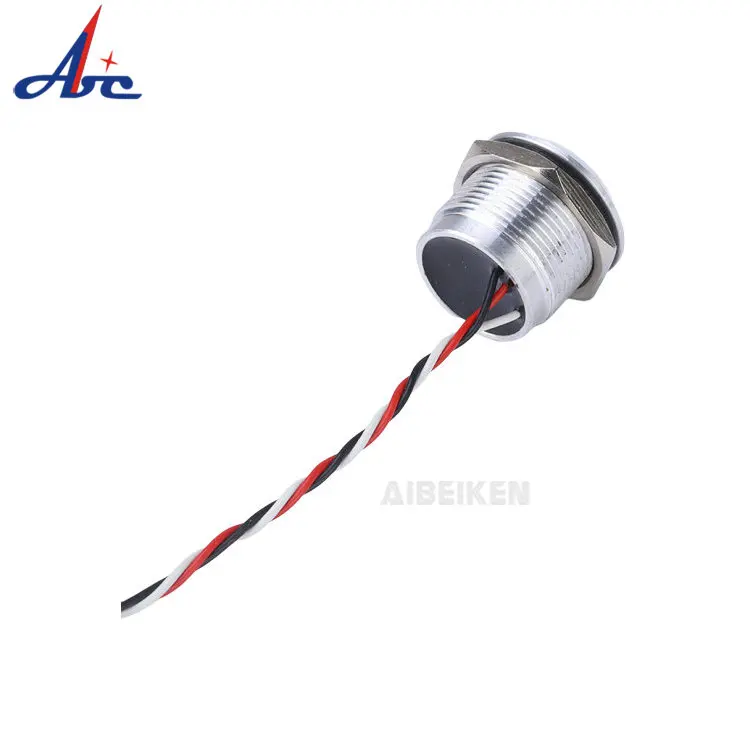

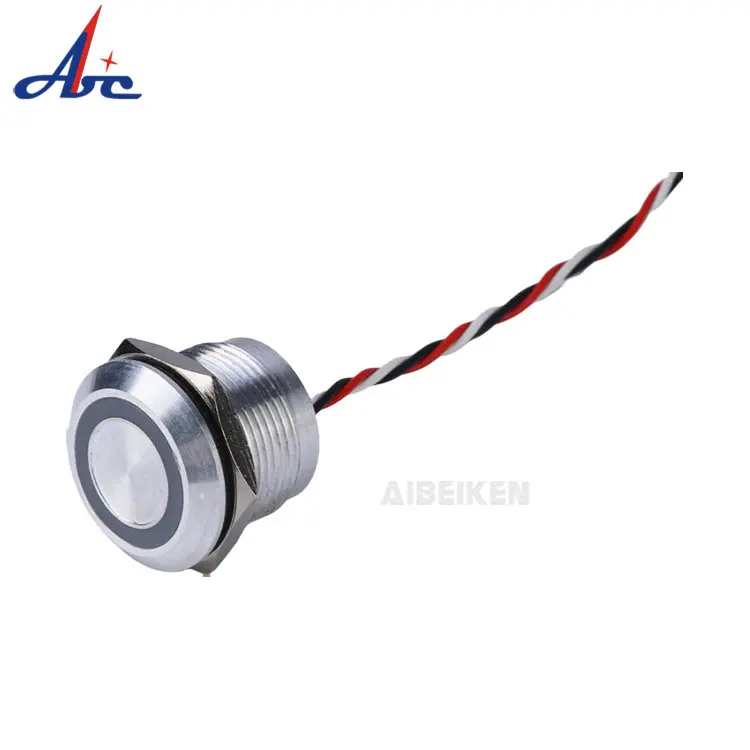

HS06 PS024 IP68 High quality 19mm On-Off Self-locking Ring Illuminated Stainless Steel 12V Blue Led Piezoelectric Switch

Product description:

19mm piezo switch with 2A 24V IP68 Waterproof

Material: Stainless Steel

Function: ON OFF latching

Flying leads: AWG26 Length 300mm

Life expectancy : 50 million cycles

Switch body length: about 20mm

Item specifics:

Item type: Switches

Switch type: Pressure Switch

Features: IP68 Waterproof

Material: Stainless steel

Head: Chamfer head 3.0

Function: Momentary normal open

Ratings: 2A 24V

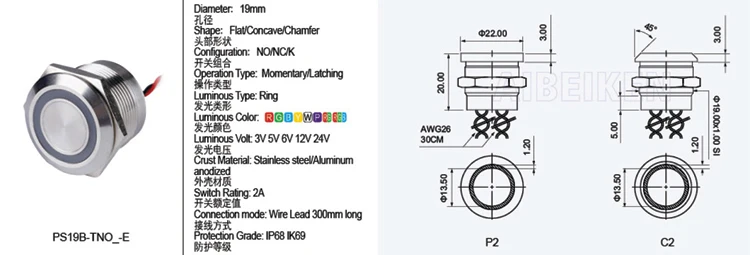

Product Name

IP68 Waterproof Piezo Switch

Model

PS19B-TNOZ-E/S

Mounting Hole

19mm

Operation Type

Latching (Self locking)

Switch Combination

1NO

Actuator Shape

Chamfer Round Head

Cable Length

300mm long

Current

2A

Led Voltage

12V (or 3V/5V/6V/24V)

Led Color

Blue

(Red, Green, Yellow, White, Purple, Bi-color, Tri-color available)

Illuminated Type

Ring Led

Enclosure Material

Stainless Steel 316L (or Silver Aluminum oxidized)

Operating Force

6 to 15N

Life Expectancy

50 Million cycles

Waterproof Degree

IP68

Operating Temperature

-40°C ~+75°C

Customized colored housing or Connector

Acceptable and with fast shipping

Accessories

Nut, Rubber Waterproof O-ring

Customized Order Confirm

1. What Led Color?    2. What Led Voltage?

What You Get

1X Piezo Switch:

19mm, Latching, 12V Blue LED, Stainless steel

Note: If you need Customized LED, please inform us by mail:

 1. What Led Color?     2. What Led Voltage?
