HW4007 Fast Delivery Telescopic Lifting Equipment

FOB Reference Price:Get Latest Price
  • 1 - 9 Sets
    $2,085.00
  • >=10 Sets
    $1,983.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Balance
Model Number:
SJG-HW4007
Lift Mechanism:
Scissor Lift
Lift Drive / Actuation:
Hydraulic
Power:
2.2kw
Rated Loading Capacity:
4000kg
Min. Lifting Height:
300mm
Max. Lifting Height:
1400mm
Table Size:
1700*1500mm
Overall Dimensions:
1700*1500mm
Weight:
505kg
Certification:
CE / ISO 9001
Product name:
HW4007 Fast Delivery Telescopic Lifting Equipment
Color:
Customers' Requirements
Material:
High-duty Steel Structure
Voltage:
110v 220v 240v 380v Optional
Base size:
1620*1400
Lift speed:
35-40 S
Application:
Lifting Goods
Anti-Pinch Design:
Equip
Pump station:
High quality
Control handle:
one
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
HW4007 Fast Delivery Telescopic Lifting Equipment. Wooden box, Pallet, Plywood box, Steel strip, Containers available, according to the model and quantity.
Port
Shanghai Port
Lead Time :
10-15 working days upon receipt of payment
Product Description

HW4007 Fast Delivery Telescopic Lifting Equipment

▲Heavy Duty Design.

▲ HW series lift tables meet EN norm and ANSI/ASME safety standards.

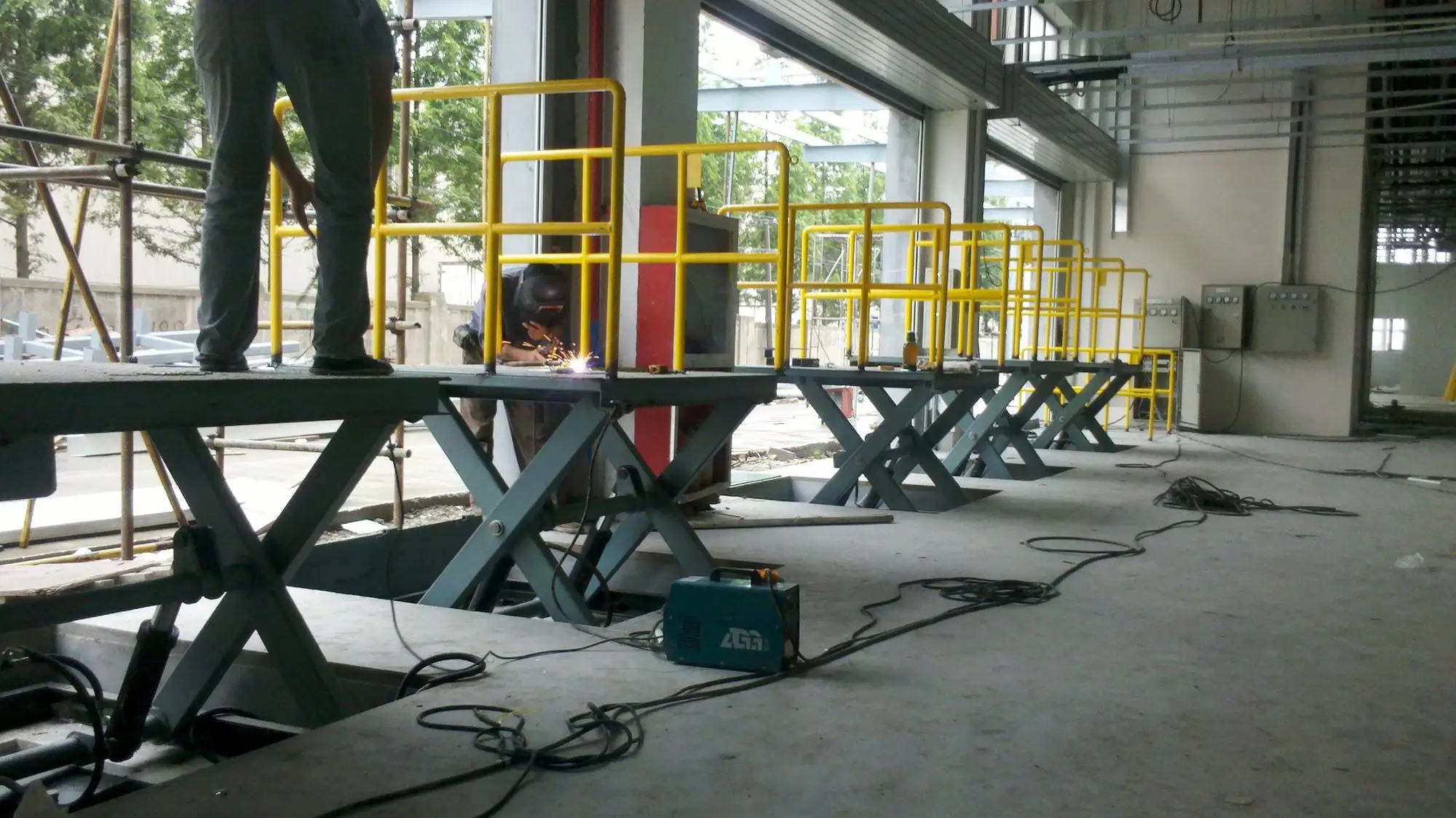

▲ These models can be used in above-floor or in-floor pit applications.

Standard Safety Features

▲ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

▲ Low-tension (24V) control box with up-down buttons.

▲ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

▲ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

▲ Safety clearance between scissors to prevent trapping during operation.

Other Standard Features

▲ Self lubricating bushings on pivot points.

▲ Removable lifting eye to facilitable handling and lift table installation.

▲ Equip High quality AC power packs.

Anti-pinch design

Equip safety bar under platform. It stops when platform lift down and meet barrier, to ensure safety.

High Quality Pump Station

Adopt high quality import pump station, lift up cargo stably and powerfully.

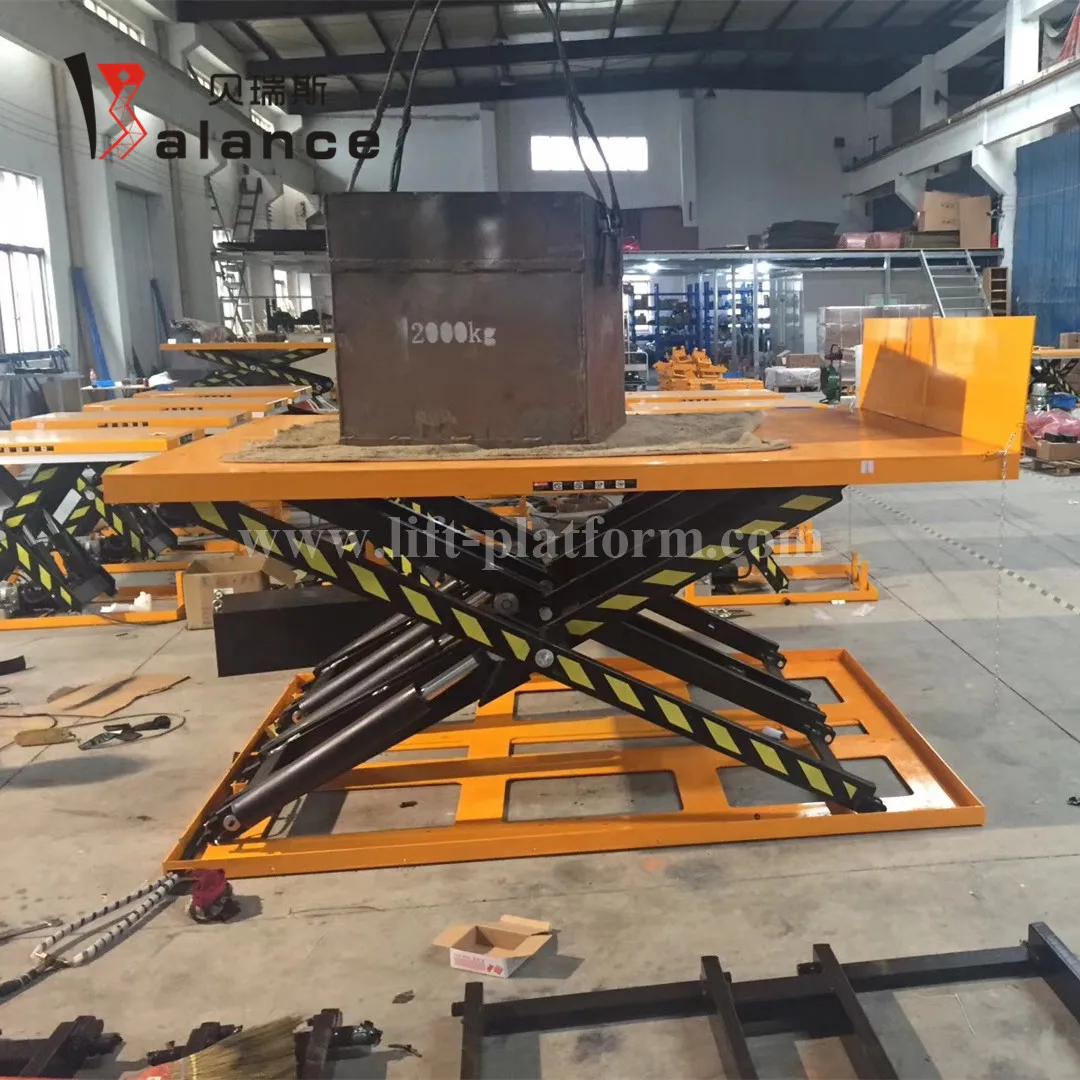

Loading Test

We will test every sets load and quality before delivery.

Model
Capacity
Min height
/Max height

Platform
(length*width)

Base size
(length*width)

Lift time
Voltage
Net weight

(Kg)
(mm)
(mm)
(mm)
(s)

(Kg)
SJG-HW1001
1000
205/990
1300×820
1240×787
20-25
380V/50H
160
SJG-HW1002
1000
205/990
1600×1000
1240×787
20-25
380V/50H
186
SJG-HW1003
1000
240/1300
1700×850
1615×787
30-35
380V/50H
200
SJG-HW1004
1000
240/1300
1700×1000
1615×787
30-35
380V/50H
210
SJG-HW1005
1000
240/1300
2000×850
1615×787
30-35
380V/50H
212
SJG-HW1006
1000
240/1300
2000×1000
1615×787
30-35
380V/50H
223
SJG-HW1007
1000
240/1300
1700×1500
1615×1404
30-40
380V/50H
365
SJG-HW1008
1000
240/1300
2000×1700
1615×1404
30-40
380V/50H
365
SJG-HW2001
2000
230/1000
1300×850
1220×785
20-25
380V/50H
235
SJG-HW2002
2000
230/1000
1600×1000
1220×785
20-25
380V/50H
268
SJG-HW2003
2000
250/1300
1700×850
1615×785
25-35
380V/50H
289
SJG-HW2004
2000
250/1300
1700×1000
1615×785
25-35
380V/50H
300
SJG-HW2005
2000
250/1300
2000×850
1615×785
25-35
380V/50H
300
SJG-HW2006
2000
250/1300
2000×1000
1615×785
25-35
380V/50H
315
SJG-HW2007
2000
250/1400
1700×1500
1615×1404
25-25
380V/50H
160
SJG-HW2008
2000
250/1400
2000×1800
1615×1404
25-25
380V/50H
160
SJG-HW4001
4000
240/1050
1700×1200
1600×900
30-40
380V/50H
375
SJG-HW4002
4000
240/1050
2000×1200
1600×900
30-40
380V/50H
405
SJG-HW4003
4000
300/1400
2000×1000
2000×900
30-40
380V/50H
470
SJG-HW4004
4000
300/1400
2000×1200
2000×900
35-40
380V/50H
490
SJG-HW4005
4000
300/1400
2200×1000
2000×900
35-40
380V/50H
480
SJG-HW4006
4000
300/1400
2200×1200
2000×900
35-40
380V/50H
505
SJG-HW4007
4000
300/1400
2200×1200
1620×1400
35-40
380V/50H
505
SJG-HW4008
4000
350/1300
2200×1800
1620×1400
35-40
380V/50H
460



Specialized in manufacturing Lifting Platform







Batch orders with more favorable price.




Stable supplying, standard manufacturing, specified materials to produce special equipments, experienced workers to produce reliable products.






Customize more approporate equipment for you.

Application

These models can be used in above-floor or in-floor pit applications.
