Haida 588 ton High efficiency high precision production of plastic stool Thermoplastic injection molding machine price

  • 1 - 9 Sets
    $84,000.00
  • >=10 Sets
    $71,500.00
Clamping Force:
5880kN
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
$74,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
865 mm mm
Distance between Tie Bars(Height)(mm):
865 mm mm
Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Clamping Force (kN):
5880 kN
Ejector Stroke(mm):
220 mm mm
Ejector Force(kN):
152 kN
Theoretical Shot Volume(cm³):
2496 cm³
Injection Rate (g/s):
430 g/s
Machine Type:
Hydraulic
Injection Weight (g):
2271 g g
Screw diameter (mm):
85 mm mm
Distance between Tie Bars:
865*865
Weight (KG):
24000
Type:
Preform Injection
Place of Origin:
Zhejiang, China
Open Stroke(mm):
870 mm mm
Model Number:
HDX588
Brand Name:
HAIDA
Certification:
CE/ISO9001
Power (kW):
85 kW
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Uzbekistan
Showroom Location:
Uzbekistan
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump
Machine Weight:
24T
Opening Stroke:
870mm
Injection Rate:
380.9-482g/s
Injection Weight:
2012*2546g
Power(W):
55kW
Plastic Type:
Thermoplastic
Automatic:
Yes
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN PALLET
Port
NINGBO
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

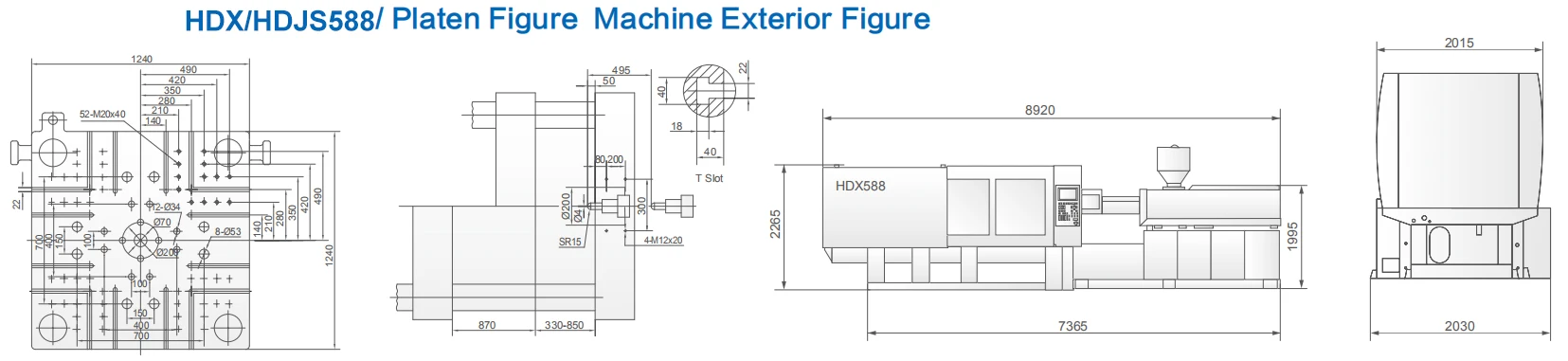

Technical Parameters >>

MODEL
HDX588
ITEM
UNIT
DATA



INJECTION UNIT
Screw Diameter
mm
80
85
90
Screw L/D Ratio
L/D
21.1
19.9
18.8
Injection Volume
cm3
2211
2496
2798
Shot Weight
g
2012
2271
2546
Injection Rate
g/s
380.9
430
482
Injection Pressure
Mpa
178
158
141



CLAMPING UNIT
Clamping Force
KN
5880
Opening Stroke
mm
870
Space Between Tie-Bars
mm
865*865
Mould Thickness(Min-Max)
mm
330-850
Ejector Force
KN
152
Ejector Stroke
mm
220





GENERAL
Pump Pressure
MPa
16
Motor Power
KW
55
Heater
KW
30
Machine Dimension
m
9.0*2.1*2.3
Machine Weight
t
24
Mould Orientation Ring Diameter
mm
Φ200
Nozzle Radius
mm
SR15


characteristic

HDX series injection molding machine

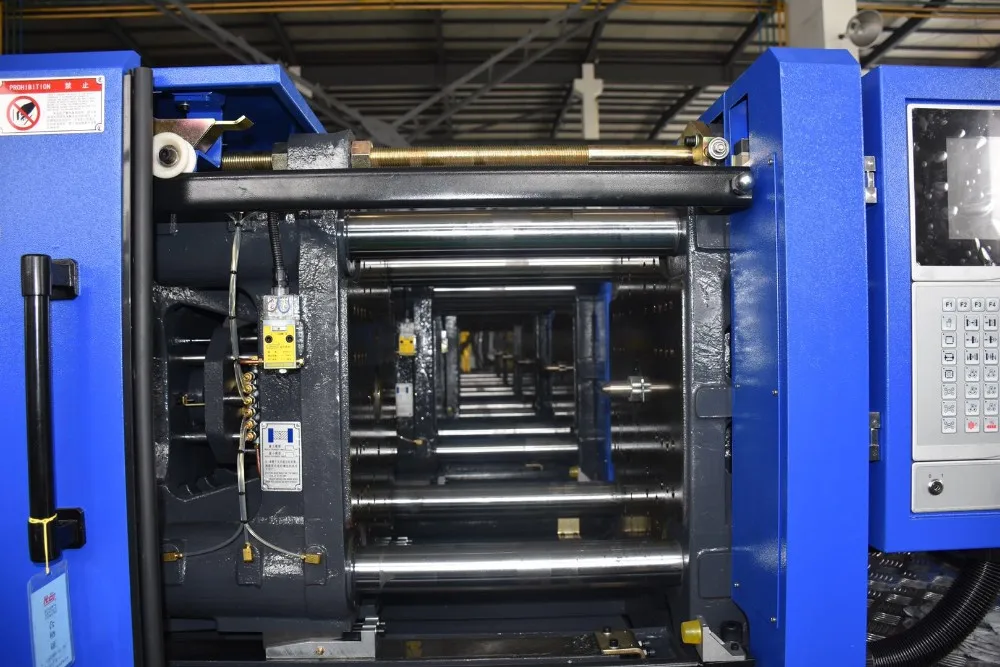

Clamping unit


Strong rigidity, reliable and durable



The formwork structure adopts the European style design, the comprehensive optimization parameter and the force distribution, the frame USES the high rigid material and the manufacture craft, guarantees the complete machine solid, the stability is reliable.





Simple and easy operation


High precision


high speed


stable


low noise



High Performance To Price Ratio:

Concise And Effective, Rapid Flexible ,

Manipulation Of The Simplified Simple Maintenance

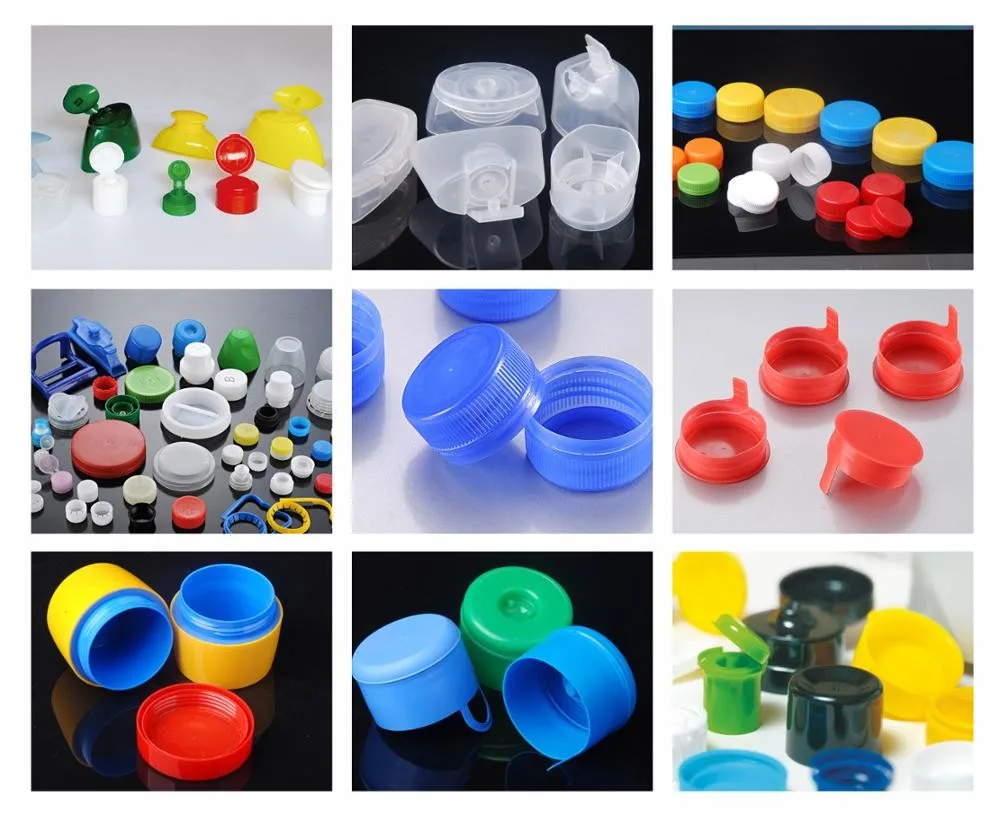

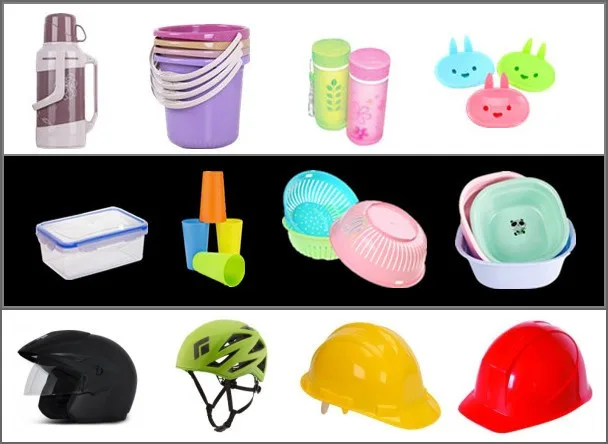

Application
Packing & Delivery
About Us

HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection moulding machinery manufacturer. During the past 27 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection moulding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.

exhibition and visiting

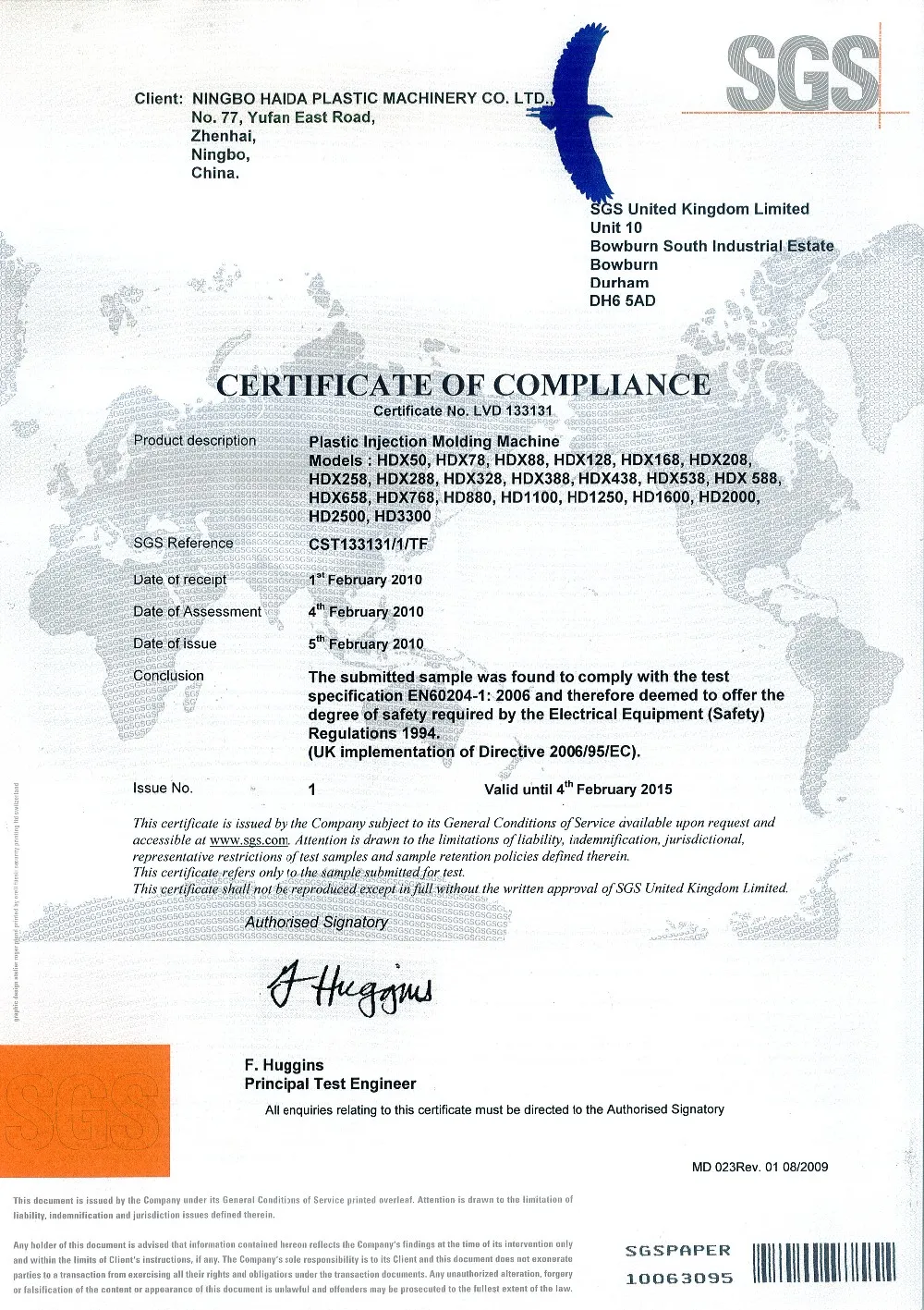

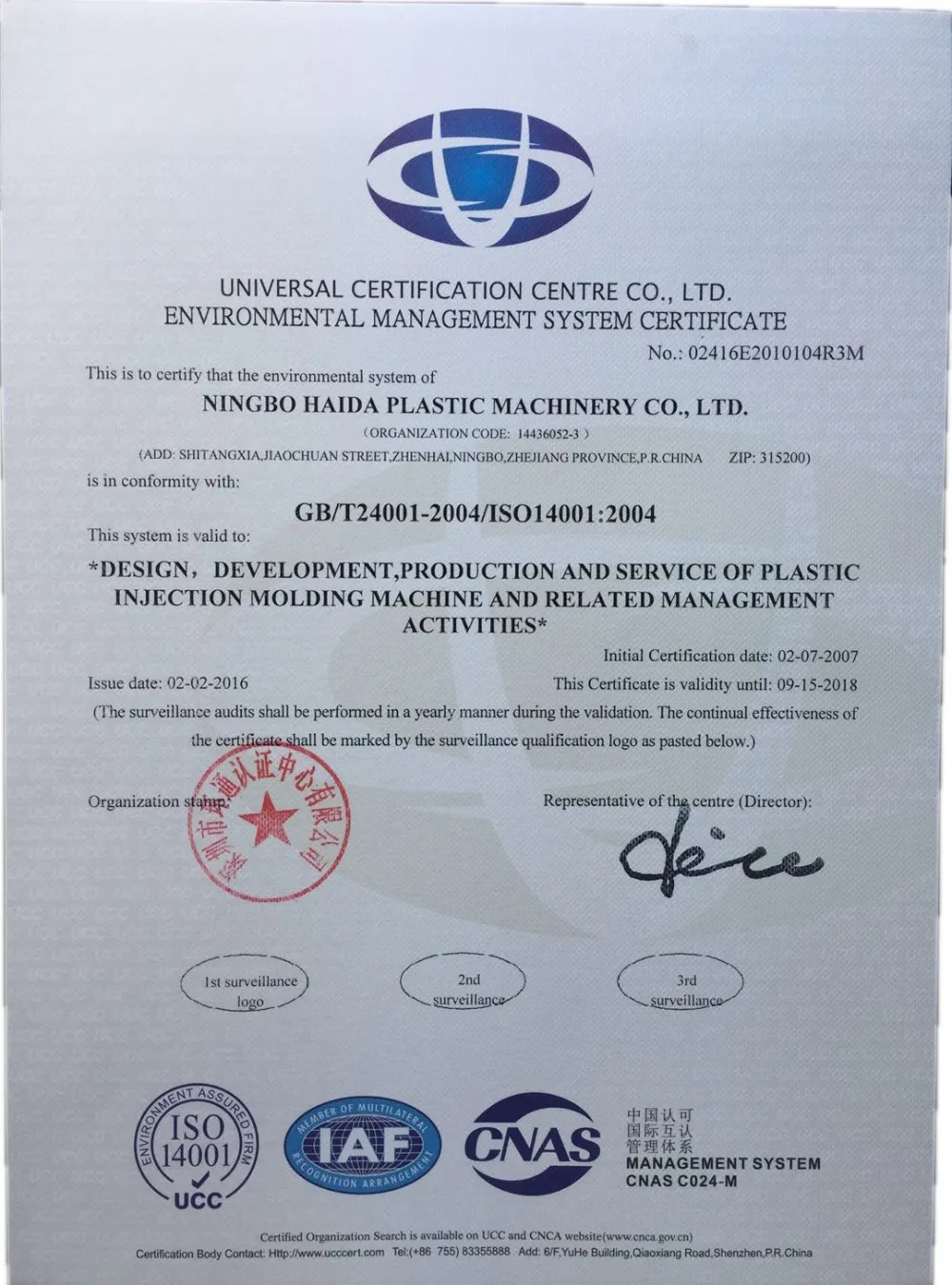

Certificates
