Hammer mill crusher machine for scrap metal recycling / scrap metal recycling machine

$14,000.00 / Set | 1 Set (Min. Order)
Model Number:
HJ200.HJ300.HJ450 HJ 900
$14,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples: $14,000.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $14,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China
Plastic Type:
Other
Machine Type:
plastic crusher
Max.Production Capacity (kg/h):
17000
Production Capacity (kg/h):
200 - 17000 kg/h
Brand Name:
HJ BRAND
Use:
Scrap metal recycling
Voltage:
Customized
Dimension(L*W*H):
Variable
Certification:
CE ISO
Warranty:
2 years, can installed in the buyer's factory
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Applicable Industries:
Manufacturing Plant, Energy & Mining
Key Selling Points:
High Safety Level
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
philippines, SAUDI ARABIA, Mexico
Showroom Location:
philippines, SAUDI ARABIA, Morocco
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, MOTOR, pump
Capacity:
Depending on the model
Weight:
35T
Application:
Scrap metal recycling
Blades material:
9CrSi/D2/SKD-11
Keyword:
hammer crusher
Color:
Client's Requirements
Power(W):
Depending on the model
spare parts:
5 piece

Packaging & Delivery

Selling Units:
Single item
Single package size:
102X24X43 cm
Single gross weight:
68.000 kg
Package Type:
General export packing
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description

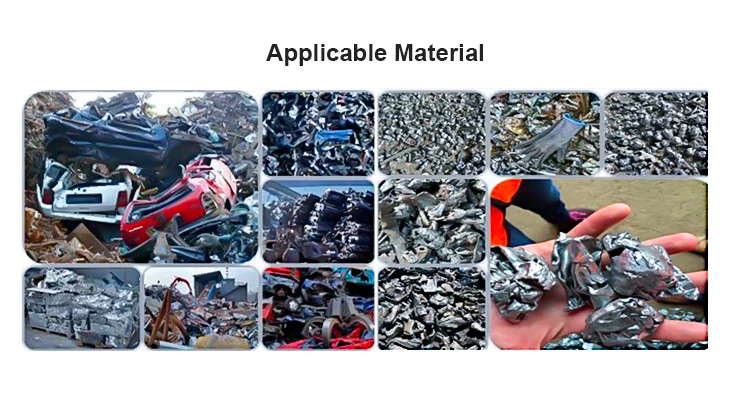

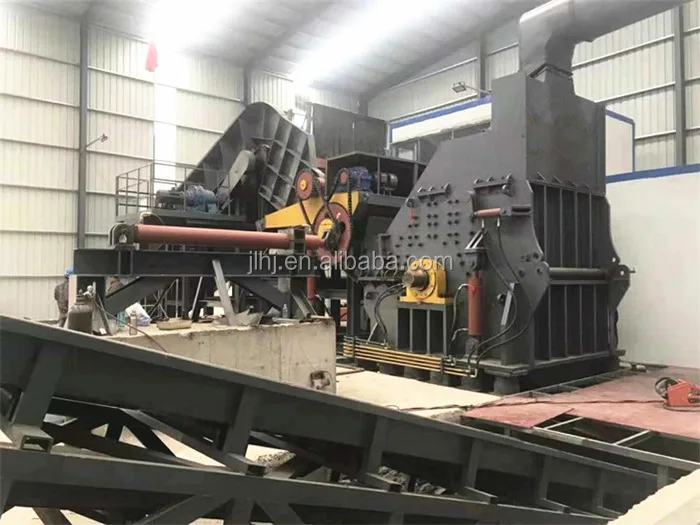

Scrap Steel Hammer Shredder is a crushing equipment used to treat scrap steel. It is mainly used for crushing scrap car
household appliances and light and thin scrap steel.
The crushing material treated by scrap crusher has high density, high purity and little impurities. When the crushing material is re-melted into new products by steel mills and other manufacturing enterprises, the unit energy consumption is low, the output is high, and the comprehensive economy is obvious. Scrap crusher is recognized as an ideal equipment for scrap treatment.
Working Principle Of Crusher

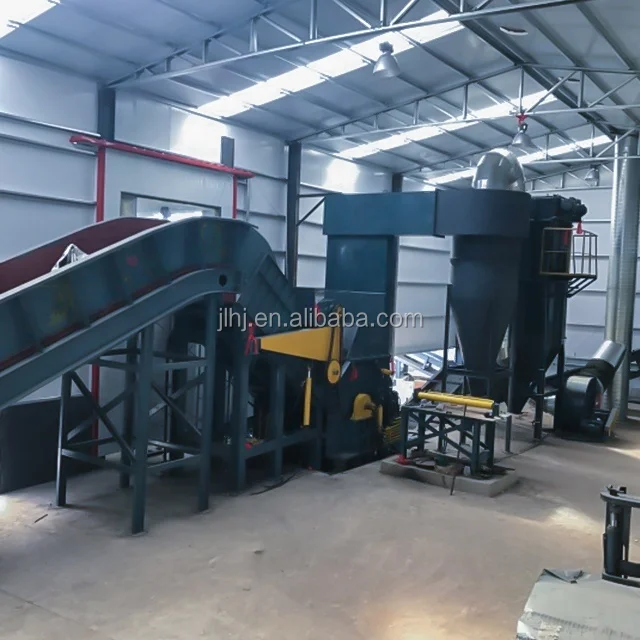

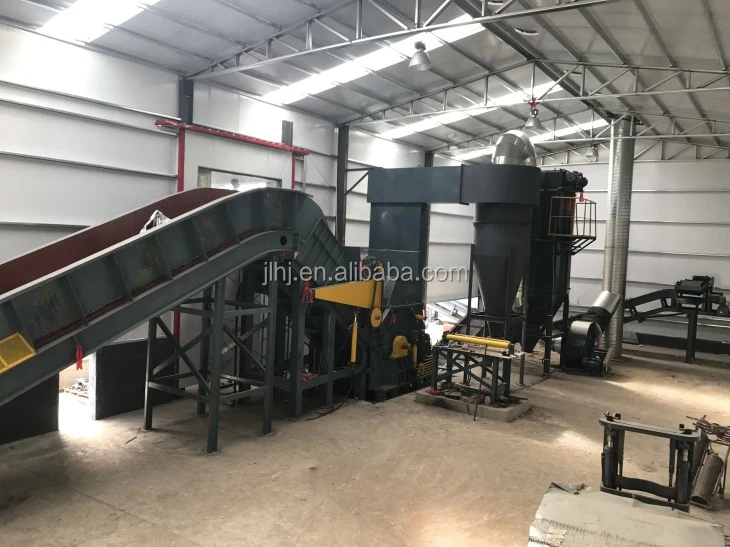

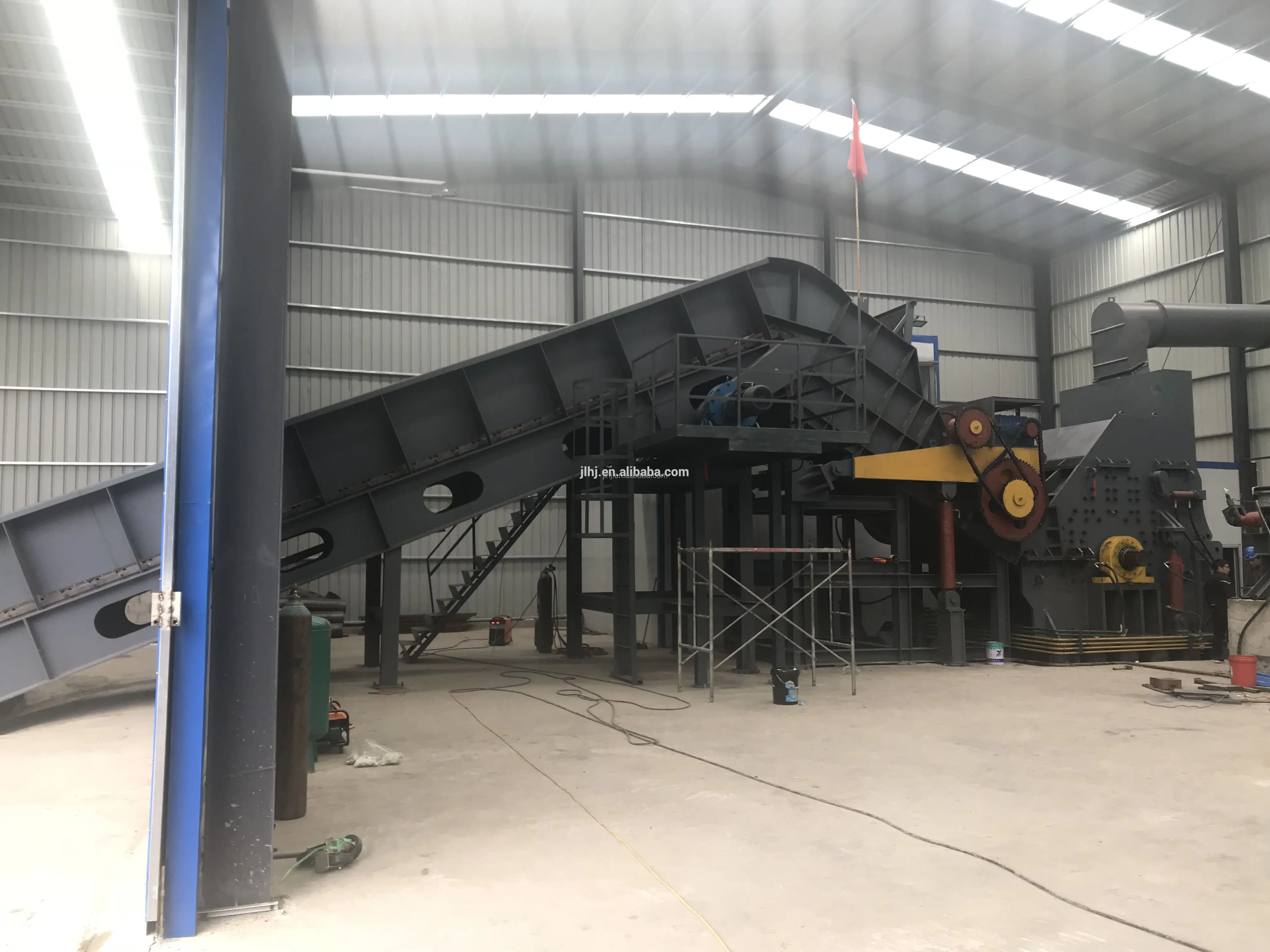

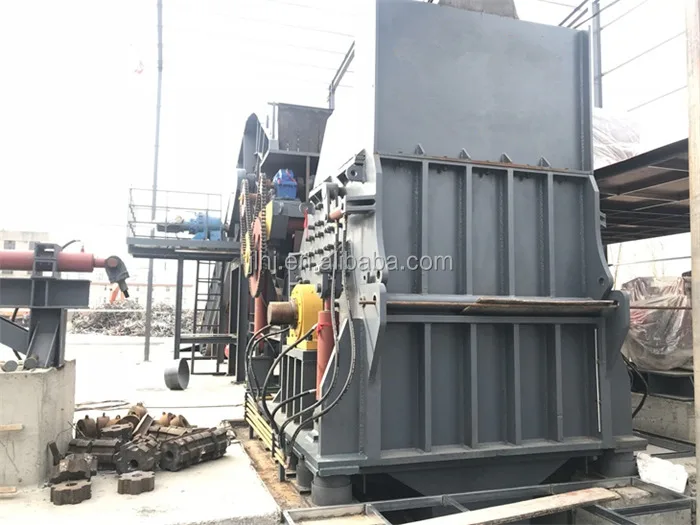

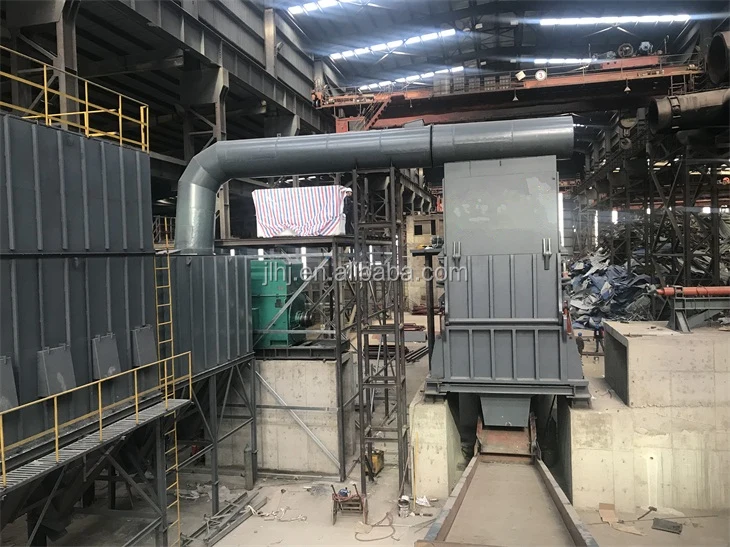

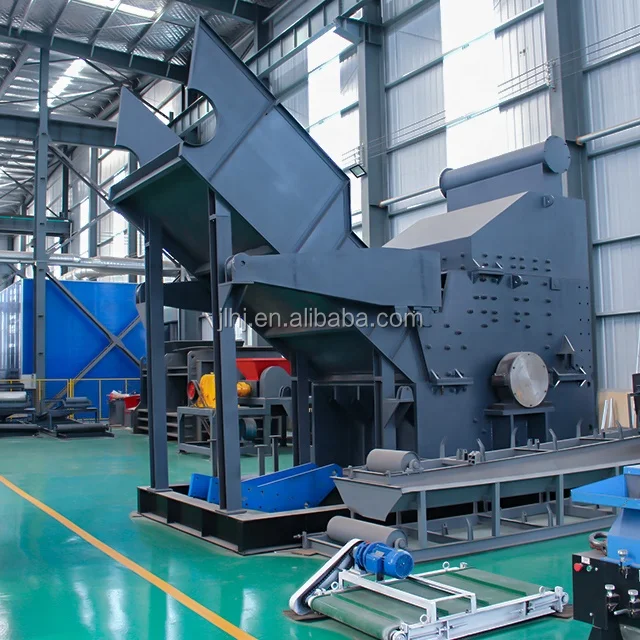

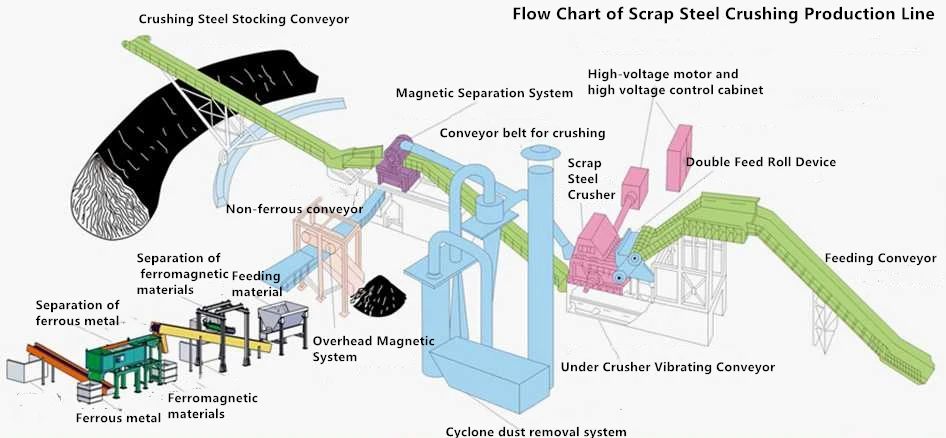

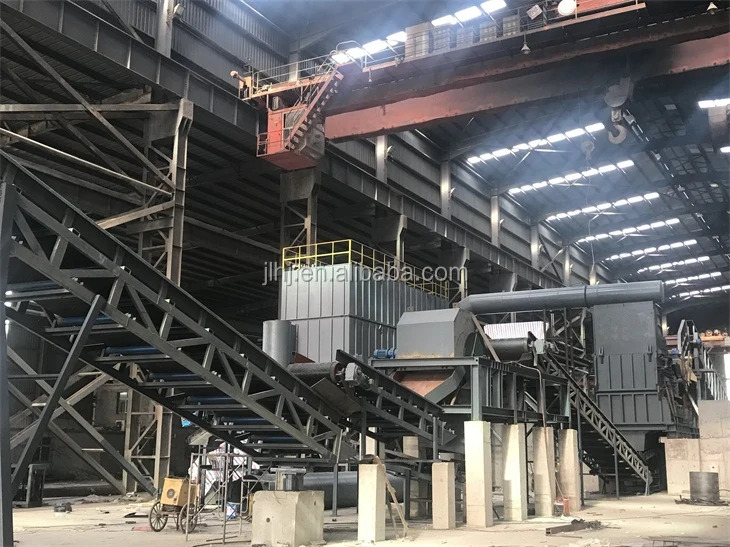

The whole production line of scrap crusher consists of feeding conveyor, main engine, vibration feeder, discharging conveyor,magnetic separator, iron conveyor, impurity conveyor, dust collector and PLC control cabinet. The crushed materials from scrap hammer shredder are separated from non-ferrous and non-ferrous metals by vibration feeder, belt conveyor and magnetic separation system, and sent out to stack by their respective conveyors. Non-ferrous metals and non-metallic materials in the conveyor will be searched by magnetic separation equipment again, and free iron metals will be sorted out, so as to improve the recovery rate of iron metals. At the same time, non-ferrous metals can be sorted by eddy current separator, which can improve the recovery efficiency. The whole broken line is controlled by PLC, which can realize computer control and manual operation.
The main equipment of scrap crushing line includes chain plate feeder, scrap crusher main machine, hydraulic feeder, vibration feeder, belt feeder, upper suction magnetic separator, discharging conveyor, iron remover, rotary conveyor, etc.

Our Advantage

1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Product Details

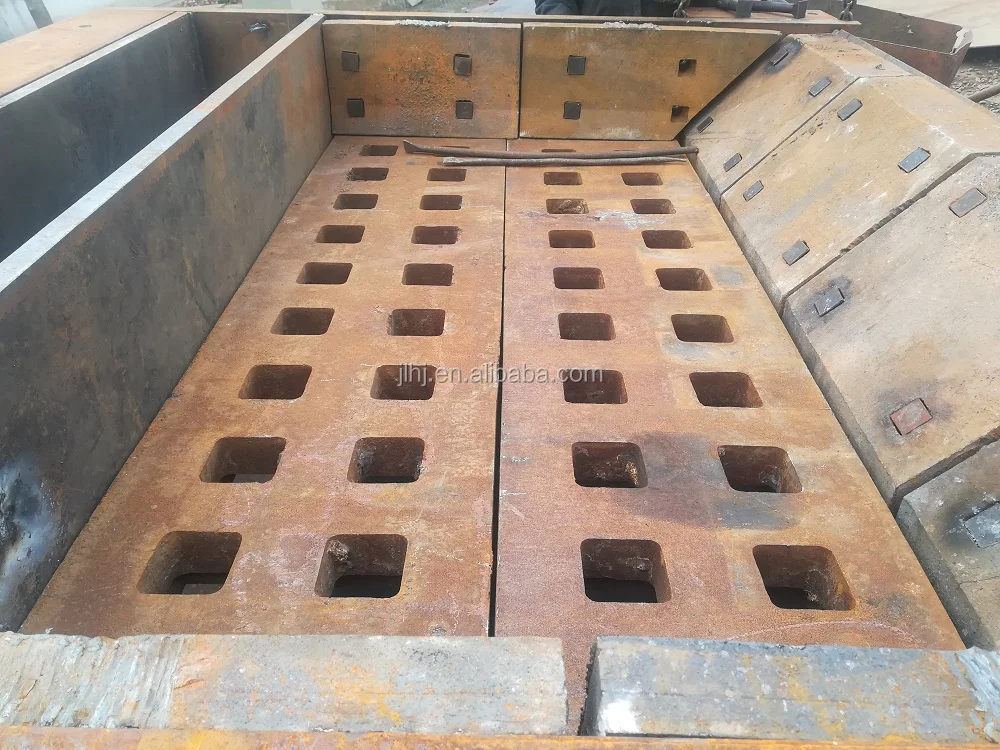

Screen
Liner plate

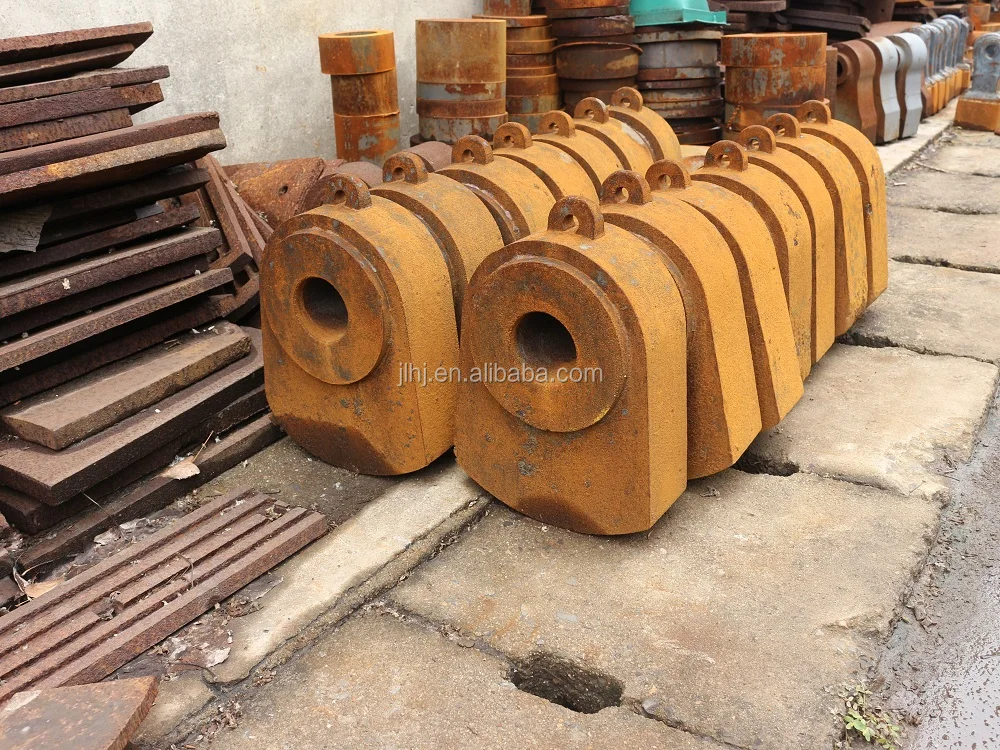

Hammer

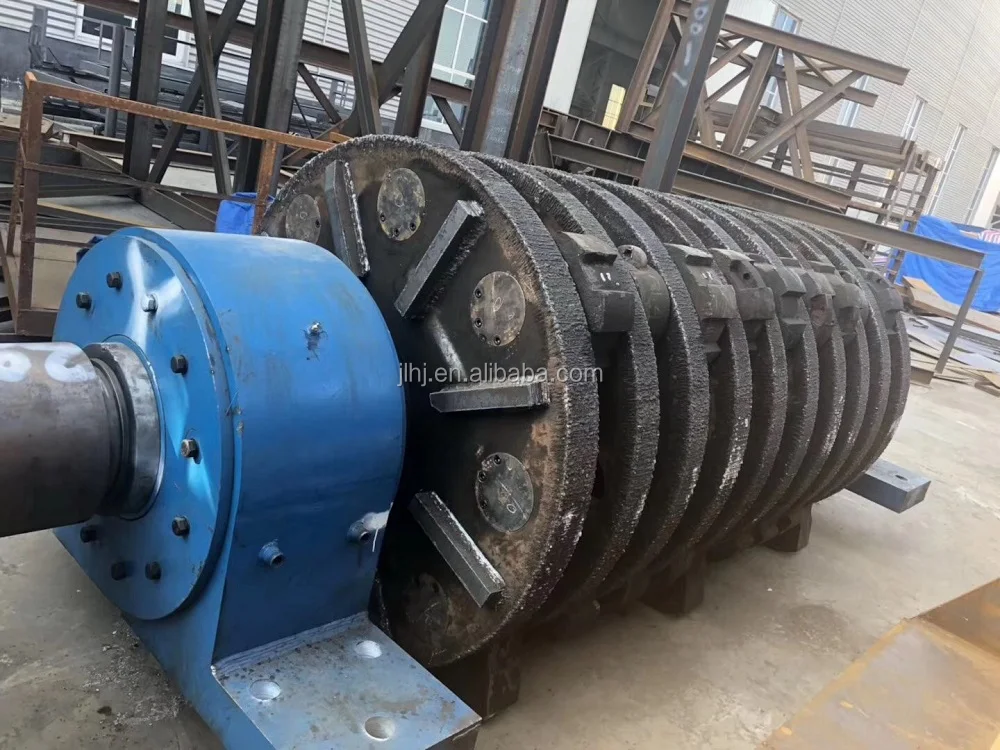

Rotor assembly

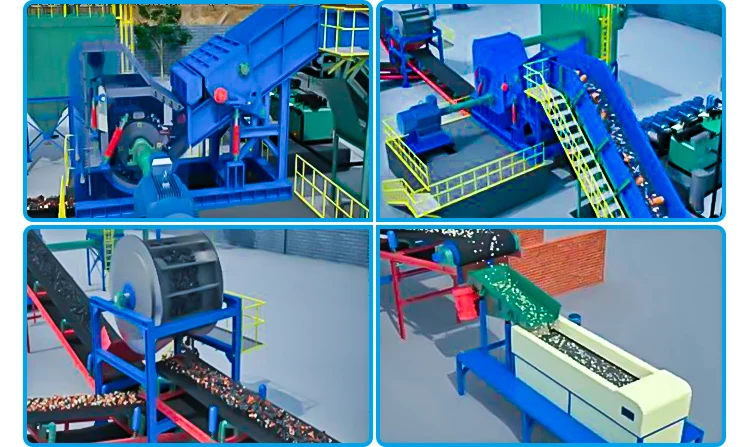

Accessory Equipment

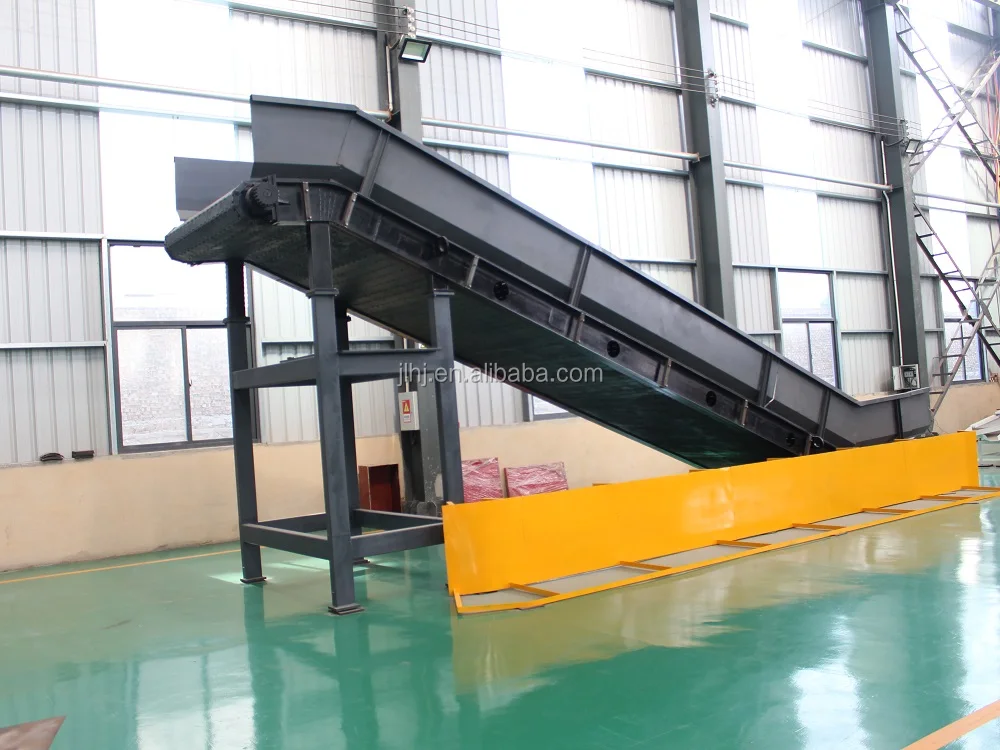

Chain conveyor

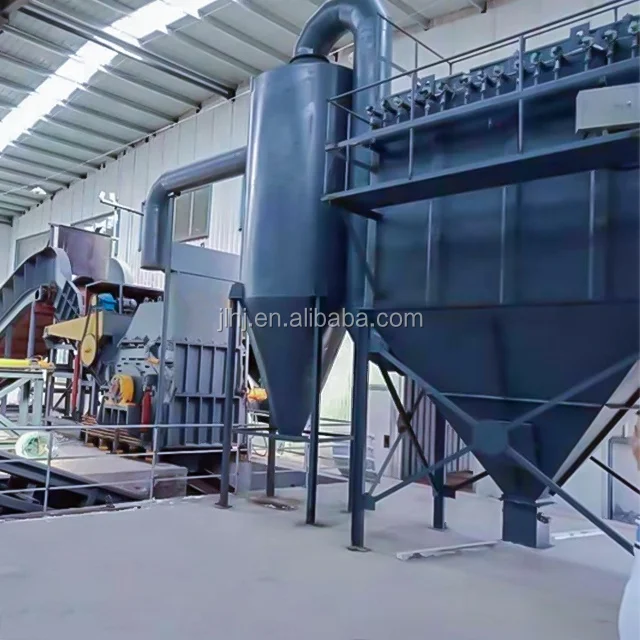

Pulse dust collector

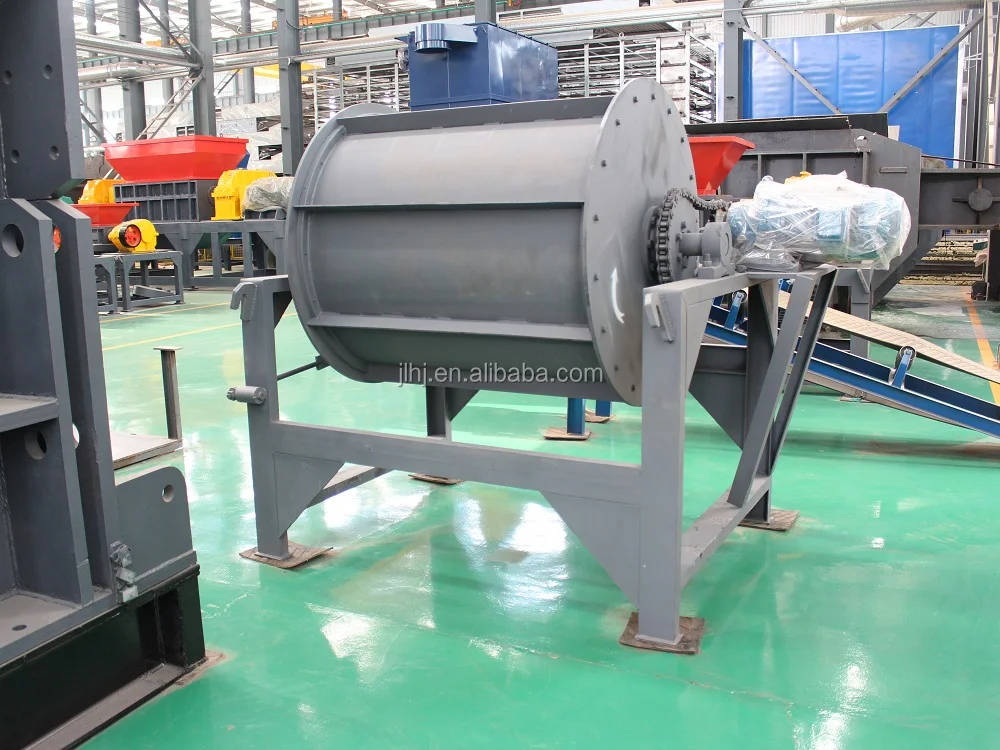

Magnetic separator

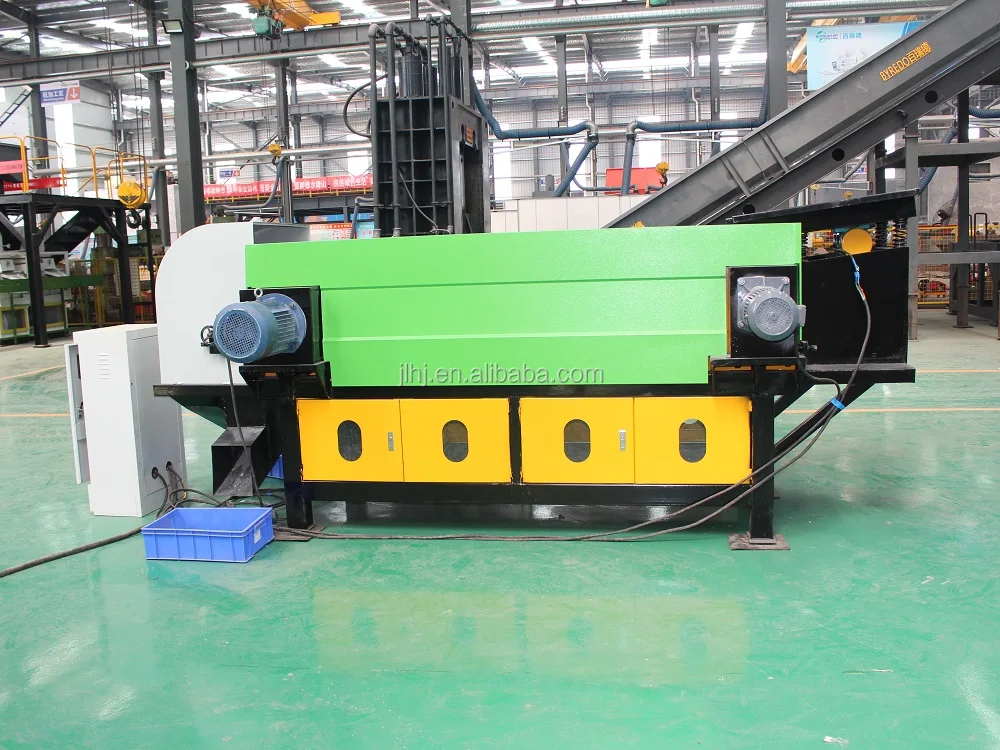

Eddy current sorter
model
voltage
power(kw)
capacity(t/h)
accessory equipment
PSJ-140
380v
132
2-3
Feeding conveyor one

Discharging conveyor one

Iron conveyor one

Impurity conveyor one

Magnetic separation system one

Dust removal system one

Control system one

Intelligent Visual System (Optional) one

Sprinkler system (optional) one
PSJ-200
380v
200
3-5

PSJ-280
380v
280
4-7

PSJ-315
380v
315
5-8

PSJ-450
380v
450
8-12

PSJ-630
10kv
630
10-15

PSJ-750
10kv
750
12-17

PSJ-800
10kv
800
15-20

PSJ-900
10kv
900
20-30

1500HP
10kv
1200
25-40

2000HP
10kv
1500
50-60

3000HP
10kv
2250
60-80

4000HP
10kv
3000
80-100

6000HP
10kv
4420
100-160

8000HP
10kv
6000
160-200

10000HP
10kv
7500
200-260

1 )Selecting equipment type;
2 ) Designing and fabricating the products in accordance with the special requirements of the clients;
3 )Training technical personnel for our clients;
4 ) Providing construction and technology consultations or working out proper construction schemes for those new,
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1)Checking products acceptance ahead of delivery;
2)Introducing the service system to our clients.
lmprove the added value of our products,and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3)Training the first-line operators on site;
4) Examining the equipment regularly;
5)Taking the initiatives to eliminate the failure(s) rapidly at site;
6)Distributing the guarantee fittings door-to-door;
7)Providing technical exchanging;
8)Providing maintenance for big items.
