Hampool High Quality Colorful Medium Wall Heat Shrink Tubing with Adhesive Lined

  • 100-1999 Meters
    $0.60
  • 2000-19999 Meters
    $0.50
  • >=20000 Meters
    $0.40
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Graphic customization (Min. Order: 20000 Meters)
Customized packaging (Min. Order: 20000 Meters)

More

Customized logo (Min. Order: 20000 Meters) Less
Samples: $0.60 /Meter, 1 Meter (Min. Order): Buy Samples
Contact Supplier
Samples - $0.60 /Meter, 1 Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Hampool
Model Number:
HP-DWT
Type:
Insulation Sleeving
Material:
PE, PE
Rated Voltage:
600V
Application:
Low Voltage, Insulation
Tensile Strength:
>12MPa
Name:
Heat Shrink Tubing with Adhesive Lined
Standard color:
Black
Shrink ratio:
3:1
Operating range:
-55℃--+125℃
Flammability:
VW-1
Certificate:
RoHS SGS UL ISO9001
Others:
Brand/Logo can be printed on tube

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X0.8X0.8 cm
Single gross weight:
0.04 kg
Picture Example:
package-img
Lead Time :
Quantity(Meters) 1 - 10000 10001 - 50000 >50000
Est. Time(days) 7 10 To be negotiated
Video Description
Product Exhibition
Technical Data
Property
Specification Requirement
Test Method
Typical Value
Tensile strength (Room temp.)
Min. 10.4Mpa
UL224
12Mpa
Elongation at break (Room temp.)
Min. 200%
UL224
400%
Tensile strength after aging (158℃ 168hrs)
Min. 7.3Mpa
UL224
10.8Mpa
Elongation after aging (158℃ 168hrs)
Min. 100%
UL224
300%
Voltage withstand (Un-aged)
Withstand 2.5kV for 1 minute and breakdown
UL224
Pass
Voltage withstand (Aged)
Withstand at least half of un-aged breakdown
voltage for 1 minute and breakdown
UL224
Pass
Corrosion (158℃ 168hrs)
No corrosion
UL224
No sign of deg.
Longitudinal shrinkage
≤10%
UL224
≤5%
Low-temperature flexibility (-40℃ 4hrs)
No cracking
UL224
Pass
Flammability

UL1581
VW-1
Volume resistivity
Min. 1014Ω·m
UL224Pass
Heat shock (250℃ 4hrs)
No cracking
UL224Pass
Dielectric strength
>19.7kV/mm
ASTM D2671
>25kV/mm

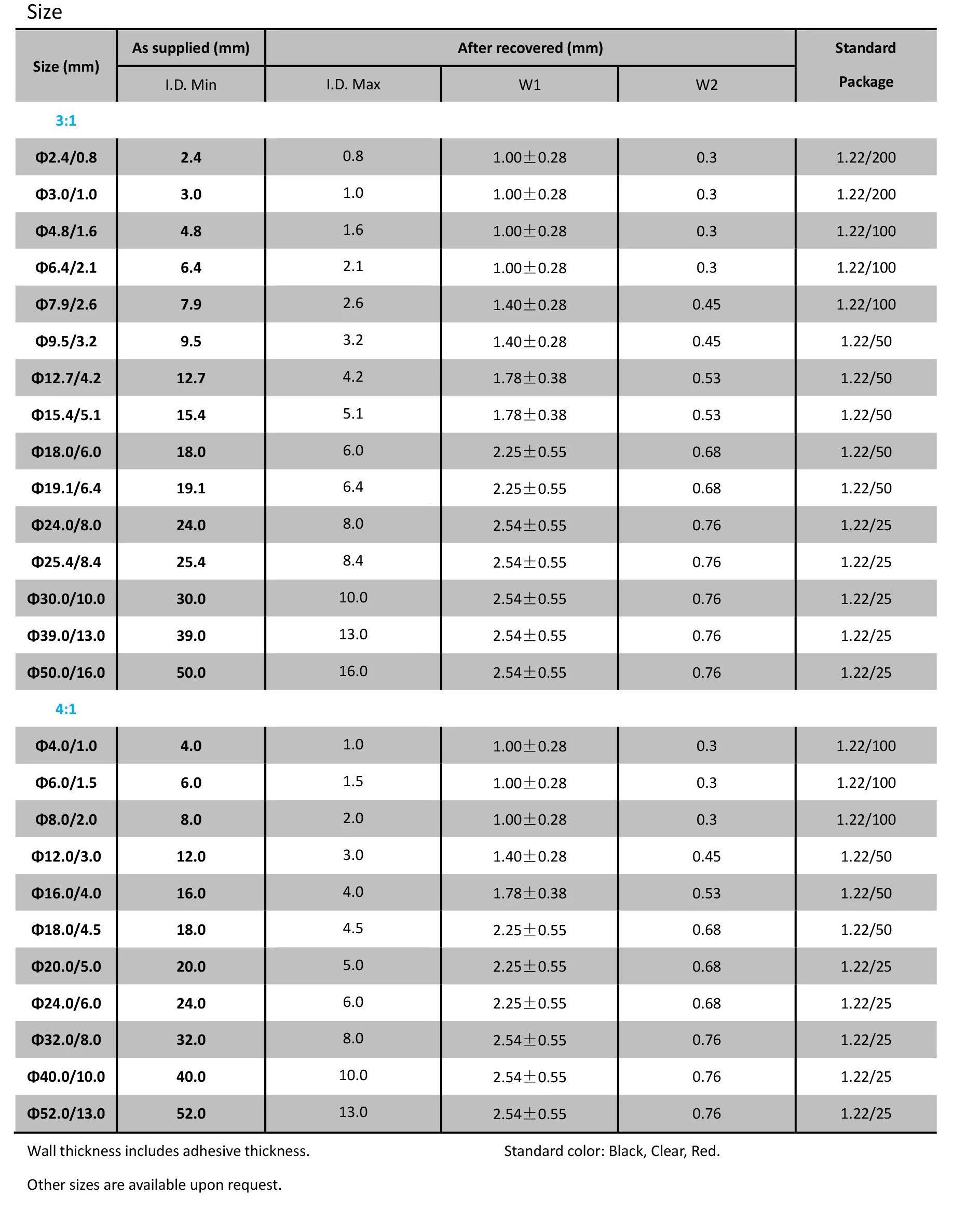

Data Sheet of HP-DW(1)-2.jpg
