Overview
Quick Details
- Applicable Industries:
-
Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food & Beverage Shops
- After Warranty Service:
-
Video technical support, Online support
- Local Service Location:
-
None
- Showroom Location:
-
None
- Video outgoing-inspection:
-
Provided
- Machinery Test Report:
-
Provided
- Marketing Type:
-
Ordinary Product
- Warranty of core components:
-
1 Year
- Core Components:
-
Bearing, Motor, Condenser
- Condition:
-
New
- Power Source:
-
Electric
- Process:
-
Rotary
- Place of Origin:
-
Jiangsu, China
- Brand Name:
-
XINCHEN
- Voltage:
-
220V/50Hz
- Power:
-
3Kw
- Dimension(L*W*H):
-
990*550*1650mm
- Weight:
-
100KG
- Certification:
-
CE ISO
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Video technical support
- Key Selling Points:
-
Long Service Life

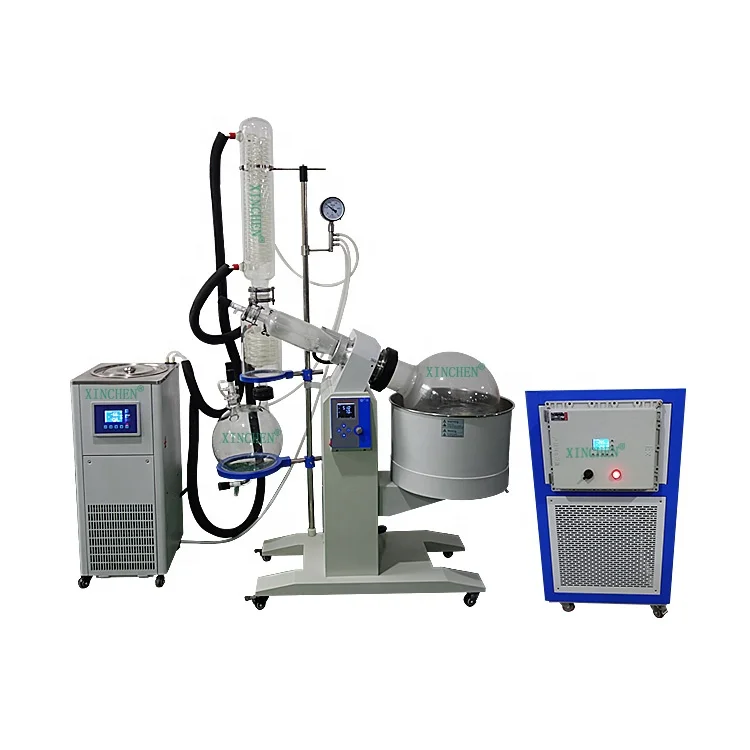

- Product Name:
-
High Efficiency Vacuum Rotary Evaporator
- Product Model:
-
XZ-10L
- Glass Material:
-
Borosilicate (Pyrex: G3.3)
- Frame Material:
-
SUS 304
- Heating method:
-
Electricity
- Condenser:
-
Main Condenser+Assistant Condenser
- Rotary flask:
-
10L
- Other auxiliary equipments:
-
Vacuum Pump
- Rotating Speed:
-
10-140rpm
- Usage:
-
Hemp Oil Extraction
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 1.000 kg
- Package Type:
- Standard export carton package and wooden case with efficient protections ( light weight with protective ) . Some foam boards and bubble films or other light materials will be put into the carton package to protect the glass components & accessories ( vessel , cover , collector , valves , pipelines , etc ) for any damage during the transit. The neutral or other packages you would like to customize , all of them can be available .
- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3 Est. Time(days) 10 12 15 To be negotiated
Product Description
The laboratory instrument rotary evaporator is mainly used for continuous distillation for a large number of volatile solvent
under reduced pressure. In particular, the concentration of the extract and the distillation of the receiving liquid in the
chromatographic separation can separate and purify the reaction product.The basic principle of a rotary evaporator is vacuum distillation, that is , in the case of reduced pressure, the distillation flask is continuously rotated as the solvent is
distilled. The glass bottle filled with materials is rotated and uniformly heated at a constant temperature . Under the condition of connecting negative pressure , the boiling point of the material is lowered , the liquid forms a film and evaporates , and then the solvent is recovered through the glass coil condenser and the collecting bottle. It is especially suitable for the concentration, crystallization , separation and solvent recovery of heat sensitive
materials .
under reduced pressure. In particular, the concentration of the extract and the distillation of the receiving liquid in the
chromatographic separation can separate and purify the reaction product.The basic principle of a rotary evaporator is vacuum distillation, that is , in the case of reduced pressure, the distillation flask is continuously rotated as the solvent is
distilled. The glass bottle filled with materials is rotated and uniformly heated at a constant temperature . Under the condition of connecting negative pressure , the boiling point of the material is lowered , the liquid forms a film and evaporates , and then the solvent is recovered through the glass coil condenser and the collecting bottle. It is especially suitable for the concentration, crystallization , separation and solvent recovery of heat sensitive
materials .
Feature
2. Bath can reduce the damage degree in the lifting . During the evaporation of low boiling point , collecting bottle can be
immersed in bath , which can reduce the secondary evaporation.
3. The collecting bottle connected by flange port, easy loading and unloading , and it has high sealing .
4.High temperature durable seal dynamic seal system has corrosion resistance and long service life, good air tightness under high temperature .
5. Using Japanese technology- AC induction motor, stepless speed regulation, no brush ,no spark , can work long time under effectively .
6. Rotary evaporator chassis , bath , main rod , shaft are made of high quality stainless steel , beautiful appearance and
corrosion resistance.
7. Intelligent temperature control , water and oil bath , more widely used. The temperature fluctuation is relatively small only 0.2℃， evaporation is more stable ,not easy to wash away the material.
8. The series of modular design , strong expansibility , easy installation , convenient maintenance .
1. Advanced frequency control is adopted to ensure stable operation of the motor. High evaporation ,high recovery .
2. Bath can reduce the damage degree in the lifting . During the evaporation of low boiling point , collecting bottle can be
immersed in bath , which can reduce the secondary evaporation.
3. The collecting bottle connected by flange port, easy loading and unloading , and it has high sealing .
4.High temperature durable seal dynamic seal system has corrosion resistance and long service life, good air tightness under high temperature .
5. Using Japanese technology- AC induction motor, stepless speed regulation, no brush ,no spark , can work long time under effectively .
6. Rotary evaporator chassis , bath , main rod , shaft are made of high quality stainless steel , beautiful appearance and
corrosion resistance.
7. Intelligent temperature control , water and oil bath , more widely used. The temperature fluctuation is relatively small only 0.2℃， evaporation is more stable ,not easy to wash away the material.
8. The series of modular design , strong expansibility , easy installation , convenient maintenance .
Product Paramenters
Model | XZ-5L | XZ-10L | XZ-20L | XZ-50L |
Rotary flask | 5L Flange mouth 50 | 10L flange mouth 95 | 20l flange mouth 125 | 50L flange mouth 125 |
Receiving flask | 3l | 5l | 10l | 20l |
Rotation speed | 20-140rpm | 20-130rpm | 20-130rpm | 20-110rpm |
Rotary motor power | 250w | 250w | 250w | 250w |
Condenser pipe | Vertical dual coil pipe | Vertical type main condenser + auxiliary condenser efficient tri-backflow condenser pipe | Vertical type main condenser + auxiliary condenser efficient tri-backflow condenser pipe | Vertical type main condenser + auxiliary condenser efficient tri-backflow condenser pipe |
Bath material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Temperature range | RT-100℃ | RT-100℃ | RT-100℃ | RT-100℃ |
Maximum vacuum degree | -0.096Mpa | -0.096Mpa | -0.096Mpa | -0.096Mpa |
Evaporative capacity | Water: max 2L/hAlcohol: max 4L/h | Water: max 4L/h Alcohol: max 6.5L/h | Water: max 5L/h Alcohol: max 11L/h | Water: max 10L/h Alcohol: max 19L/h |
Lifting stroke | 0-150mm | 0-160mm | 0-190mm | 0-180mm |
Power supply | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz |
Overall power | 1.5kw | 3kw | 4.5kw | 9kw |
Dimension | 830*400*1100mm | 990*550*1650mm | 1160*600*1780mm | 1350*770*2150mm |
Model | FBXZ-5L | FBXZ-10L | FBXZ-20L | FBXZ-50L | |||
Rotary flask | 5L Flange mouth Ø50 | 10L Flange mouth Ø95 | 20L Flange mouth Ø125 | 50L Flange mouth Ø125 | |||
Receiving flask | 3L | 5L | 10L | 20L | |||
Rotation speed | 20-140rpm | 20-130rpm | 20-130rpm | 20-110rpm | |||
Rotary motor power | 40W | 180W | 180W | 370W | |||
Condenser pipe | Vertical dual coil pipe | Vertical type, main condenser + auxiliary condenser, efficient tri-backflow condenser pipe | |||||
Bath material | Stainless steel | ||||||
Temperature range | RT-100℃ | ||||||
Maximum vacuum degree | -0.096Mpa | ||||||
Evaporative capacity | Water ≥2L/h Alcohol ≥4L/h | Water ≥4L/h Alcohol ≥6.5L/h | Water ≥5L/h Alcohol ≥11L/h | Water ≥10L/h Alcohol ≥19L/h | |||
Lifting function | Electric lifting | ||||||
Lifting stroke | 0-150mm | 0-160mm | 0-190mm | 0-180mm | |||
Power supply | 220V/50Hz | 220V/50Hz | 380V/50Hz | 380V/50Hz | |||
Overall power | 1.5Kw | 3Kw | 4.5Kw | 9Kw | |||
Dimension | 830×400×1100mm | 990×550×1650mm | 1160×600×1780mm | 1350×770×2150mm | |||
Detailed Images
Control panel
Rotation mechanism
Three-way bottle
Recommending Styles
Company Introduction

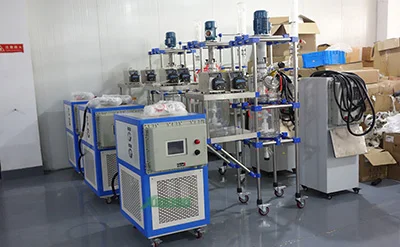

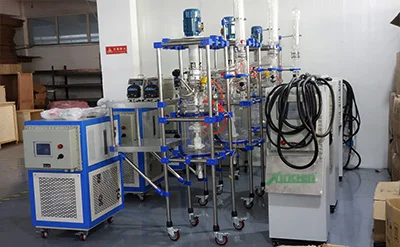

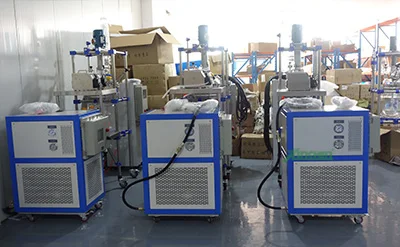

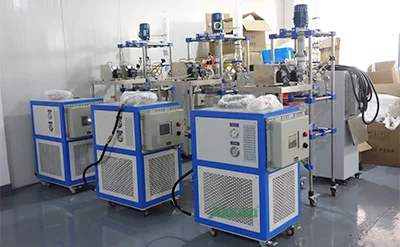

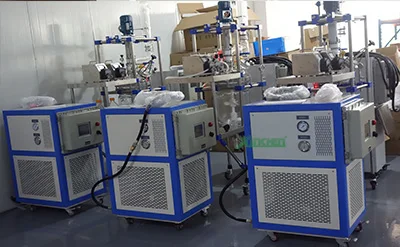

Nanjing Ningkai Instrument Co., Ltd , which a professional lab & Chemical Pharmaceutical Industry supplier for Glass Reactor Rotary Evaporator Heating Refrigerated Circulator , Low temperature Equipment , etc . For more than ten years manufacturing experience , service concept and reliable product quality . The most important thing we can provide the product certificates and real-time videos of our whole warehouse , manufacturing factory , product installation and actual images .
FAQ
Q1. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We also can design for you.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We also can design for you.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
