Handheld Ultrasonic Welding Stress Relief Equipment

Feedback Ratings
$3,100.00 / Set | 1 Set (Min. Order)
Model Number:
YPY25B-HB
$3,100.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Place of Origin:
china
Brand Name:
FYCG
After-sales Service Provided:
Free spare parts, Online support, Video technical support
Warranty:
1 Year, 1 Year
Function:
ultrasonic welding stress relief
Type:
YPY25B-HB
Voltage:
220V/50Hz
Power:
500-1000W
Frequency:
20Khz
Adjust range:
50-100%
Material of horn:
Cemented carbide

Packaging & Delivery

Selling Units:
Single item
Single package size:
49X49X49 cm
Single gross weight:
30.0 kg
Package Type:
Wooden Case
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

Ultrasonic Impact Machine/Handheld Ultrasonic Welding Stress Relief Equipment

   Eliminating stress using ultrasonic technology, using high-power ultrasonic to push the impact tool to impact the surface of metal objects at a frequency of more than 20,000 times per second. Due to the high frequency, high efficiency of ultrasonic waves and large energy under focusing, the metal surface layer generates a large pressure. Plastic deformation; at the same time, the ultrasonic shock wave changes the original stress field and produces a certain value of compressive stress; the ultrasonic impact portion is strengthened.


20khz 1000W Slip Ring for connection between device and generator

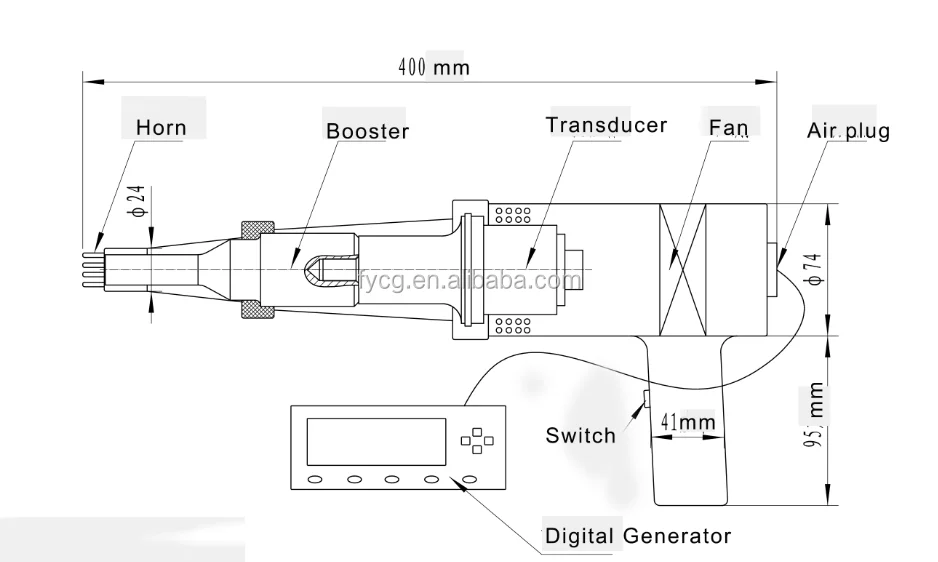

Technical Data: Input Power: 220V, 50Hz, 5A
Frequency: 20KHz
Power: 200-1000W
Length of Gun: 450 mm
Weight of gun: 4 kg
Weight of generator: 8 kg
Working Amplitude: 50-60μm (will be designed as constant amplitude work,offering the corresponding table between the power and amplitude)
Length of Cable: customized, 5 m

Technical Data

  Ultrasonic welding stress relief advantages:

Stable performance: It can work continuously for a long time.
The effect is ideal: the residual stress can be eliminated by more than 30%.
Easy to use: ergonomic design: light weight, portable and easy to use.

Ultrasonic welding stress relief effect:
1. The residual tensile stress in the surface layer of the metal weld is changed into compressive stress, thereby greatly increasing the fatigue life of the metal structure.
2. The metal grain structure in the surface layer is changed to produce a plastic deformation layer, so that the strength and hardness of the metal surface layer are significantly improved.
3. Improve the geometry of the weld toe and reduce stress concentration.
4. Change the welding stress field, significantly reduce the welding deformation and improve the dimensional stability of the workpiece.

Ultrasonic welding stress relief application areas:
A more demanding industry for the stability and strength of welds. Such as: metal welding treatment in bridges, electric power, shipbuilding, pressure vessels, steel structures and other industries.
