Hanhong reliable safety kerona kerosene heater m168 for commercial residential

FOB Reference Price:Get Latest Price
$120.00 - $399.00 / Sets | 5 Set/Sets (Min. Order)
Model Number:
HHJR-33
Report Suspicious Activity
Overview
Quick Details
Type:
Air Heater
Power Source:
Diesel
Dimension(L*W*H):
1200*650*1000mm
Weight:
61KG
Warranty:
1 year, 1 year
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Hanhong
Voltage:
220/240V, 220/240V-50HZ
Power(W):
0.8KW
Certification:
CE/UL
Color:
Customized
Power source:
kerosene/ diesel
Dimension:
1200*650*1000mm
N.W/G.W:
61/77 KGS
Heat Output(BTU):
120,000
Certificate:
CE
Motor Power:
0.8kw
Oil tank volume:
65L
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
2000 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Carton
Port
Qingdao port
Product Description

Characteristics:

● Available to connect with outer temperature controller

● Available to connect with outer hose tube

● Exhaust ventilation system

● Big airflow

● Overheat protection motor

● Cut-off cooling system

● Transparent oil filtration cup

● Double Filtration: Oil pump and oil nozzle

● Electron and photoelectric flame sensing controller

● Heat exchanger

● Stainless steel sealed combustion room

● Standard oil level indicator

●  Easy to maintain

●  Long lifespan

Detailed Images

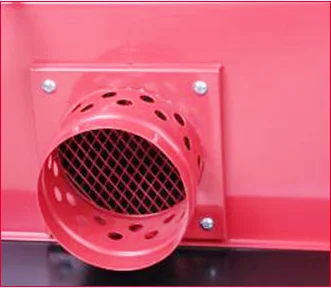

Independent Oxygen Inlet

This inlet allows heater to be working constantly long time without consuming oxygen indoor.

 Danfoss Oil Nozzle and Pump

Oil nozzle and pump supplied by Denmark Danfoss, which guarantee a stable oil injeciton and atomization process.

Combustion Room

This part is made of heat-resistence stainless steel, also equipped with automatic air cooling unit, which ensure machine running steadily and safely.

Alarm indicator

Verify where malfunction occur timely and precisely.

Technical Parameters
Model
HHJR-20
HHJR-33
HHJR-47
HHJR-81
Heat output (Btu)
68,300
112,800
160,400
276,300
Airflow Output (m3/h)
1,550
1,800
1,800
3,300
Lasting working time (h)
19
21
14
13
Temp. Controller
Optional
Optional
Optional
Optional
Fuel Consumption (KG/H)
1.67
2.71
3.9
6.8
Input Voltage
 (V-HZ)
220-240/50
220-240/50
220-240/50
220-240/50-60
Power (KW)
0.3
0.8
0.8
1.06
Water-Proof Grade
IP41
IP41
IP41
IP41
Oil tank volume
 (L)
36
65
65
105
Dimension
(L*W*H)
1200*400*530
1200*650*1000
1330*650*1000
1600*750*1180
N.W/G.W
33/37
61/77
65/84
100/124
Pcs/Pallet
8
1
1
1
Exhaust ventilation Diameter (mm)
120
150
150
150
Wind Outlet Diameter (mm)
230
340
340
400

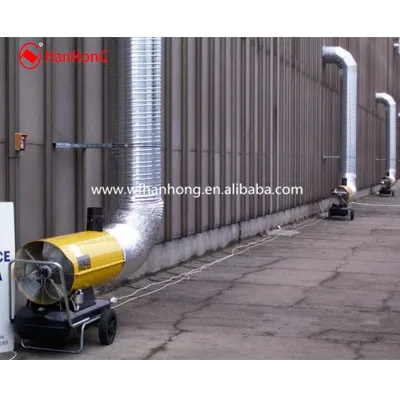

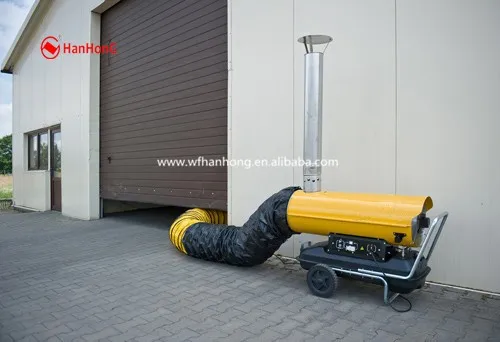

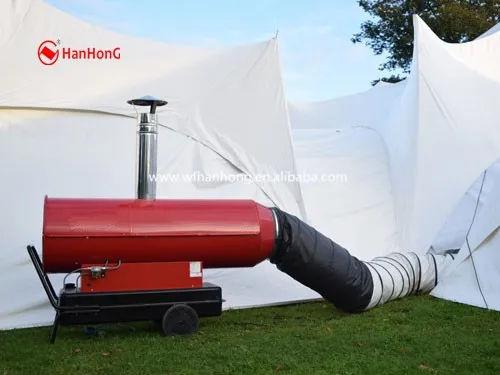

Application
