Heart-Lung Resuscitator

One of the FIRST FDA approved, automated CPR equipment over the world which follows the latest Heart Resuscitation Guidelines!

The Heart-Lung Resuscitator is also known as a cardiopulmonary resuscitator. It can provide both artificial ventilation via a mechanical respirator and sternal compression via a pneumatically powered position. The system can perform accurate compression and ventilation following the recommendation of the American Heart Association. It is completely mobile while strapped to patient and easy to set up and operate.

The Heart-Lung Resuscitator has the following features:

• Chest Compressor Thrust Control -- It controls the precise chest compression depth level for individual patient body shape and size.
• Ventilation Volume Control -- Volume-cycled ventilation system delivers adjustable volume of oxygen. Patient receives consistent, adequate Tidal Volume during each ventilation cycle.
• Travels with Patient -- Five Point Restraining System includes chest straps which adjust instantly for proper fit. Shoulder and groin straps keep CPR/STAT secured in place during transportation and resuscitation. A low profile compressor allows for transport in and out of any rescue vehicle.
• Completely portable; it is powered by oxygen/compressed air.
• Easy transition to mechanical CPR; it is able to transit with only two short pauses.
• Easy to operate; requires a short and simple training.
• Quick Connect Dual Oxygen Inputs. It permits continuous operation when changing oxygen sources.
• Compact Storage Size of 43 X  18 x 56 cm.
• Reinforced Ventilation Hose prevents kinking and occlusion. Built-in 15 millimeter fitting permits direct connection of ventilation hose to endotracheal tube, esophageal airway or face mask.
• Transparent face mask and Transparent plastic cup provides clear view of patient's nose and mouth, plus an inflated cuff which readily adjusts to facial cotour for adequate air seal.
• Relief value It pops off at 60cm H20 mask pressure, preventing excessive pressure.

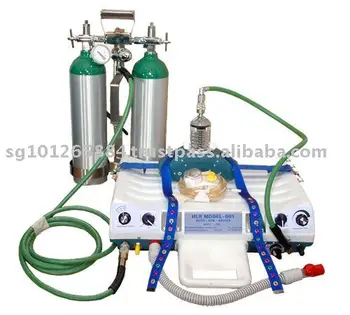

Heart-Lung Resuscitator and its main accessories	Heart-Lung Resuscitator in action
Carrying bag for the Heart-Lung Resuscitator	Suction Piston, a major accessory for HLR to remove phlegm within a patient's throat
