Heavy Duty Iron Cast Frame Mini CNC Machine With Rotary Axis for Aluminum Brass Wood MDF Acrylic Plywood Desktop CNC Router 6090

Feedback Ratings
  • 1-2 Sets
    $2,850.00
  • >=3 Sets
    $2,700.00
Model Number:
ABT-6090-R
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $2,850.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Garment Shops, Building Material Shops, Machinery Repair Shops, Food Shop, Printing Shops, Advertising Company
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Alpha
Voltage:
220V/110V
Dimension(L*W*H):
600*900*150mm
Certification:
CE ISO9001
Warranty:
1Years
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Control system:
Mach3/DSP/Nc-studio
Application:
MDF/ WOOD /ACRYLIC / SOFT METAL
Motor:
Stepper motor/servo motor
Spindle power:
1.5KW/2.2KW/3KW
Software:
ARTCAM/ Vectric Aspire/Type 3
Inverter:
Fuling/Sunfar/Delta
Spindle speed:
0-24,000RPM
Keywords:
cnc router
Power(W):
1.5kw/2.2kw/3kw
Weight:
350kg

Packaging & Delivery

Selling Units:
Single item
Single package size:
160X130X100 cm
Single gross weight:
350.0 kg
Package Type:
The CNC Router packed in a plywood case.
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 2 - 10 >10
Est. Time(days) 15 20 To be negotiated
Product Description
Heavy Duty Iron Cast Frame Mini CNC Milling Machine with Rotary Axis for Aluminum Brass Wood MDF Acrylic Plywood Desktop 6090 CNC Router

Introduction:

rTThe biggest advantage of our machine is the bed of the machine is iron cast. which is hardly deformed, and it can maintain high precision for a long time. It allow the customer not only process softwood such as wood, MDF, plastic, acrylic, but also can allow the customer process metal and stone. The machine is very heavy, so it won't shake during process hard material.

It is  is desktop style, which only need small space for it. Although it is small but is still a high quality machine, all the machine body is iron cast structure, which is with strong rigidity.
The machine can process many different materials, such as: wood, acrylic, MDF, plywood, ABS, OSB, foam, aluminum, stone, etc.
It is widely used in furniture, sign, stone, gift, decoration, and metal processing industry.
The machine can do 2D or 3D engraving, milling, cutting, drilling work.
No matter for the serious hobbyist or for the commercial shop, ABT-6090-H will be your best choice.

Main Features--multifunction cnc router

※ Heavy iron cast machine structure
※ 1.5kw water cool spindle
※ Easy to use Mach 3 Controller
※ Aluminum T-Slot and PVC Table
※ Hiwin square rail
※ High precision TBI Ballscrew

※ Rotary axis



ADescriptions
Parameters
X,Y,Z Working Area for Panel
600*900*150mm
Machine Frame

Steel
Spindle Power

1.5KW variable speed, water-cooled(2.2kw, 3kw for option)

X,Y,Z Traveling Positioning Accuracy

0.015mm
Table Surface

Thick Aluminum T-slot table

X,Y,Z Rail and Transmission

High precision ball screw

Spindle Speed
0-24000RPM

Drive Motors
Stepper motor

Working Voltage
AC 220V/50-60Hz or AC 110V/50-60Hz or Custom made

Command Language
G Code

Operating System
 Mach 3 ( DSP for option)

Computer Interface
Ethernet or USB

Software
Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks, etc.

Net/Gross Weight

280kg/300kg

Packing Size

1.6*1.3*1 m

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

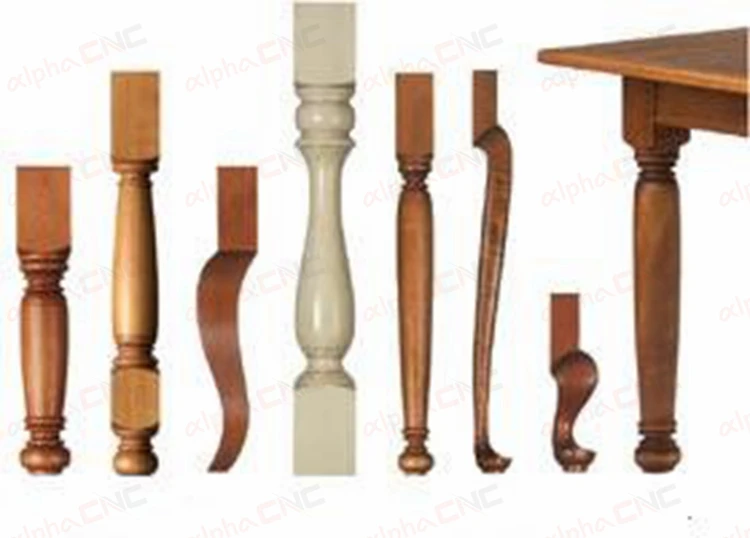

Sample
Detailed Images

Mach 3

Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC's to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.


1.5kw High Frequency Collet Spindle


The Alpha AMN series CNC Router machine comes standard with 1.5kw high frequency spindle. This precision spindle requires no maintenance, uses industry standard ER collets. Fully programmable speeds from 6000 to 24000 RPM.

Base Frame


The base frame is heavy iron cast, with strong rigidity. So the machine will not get deformed after long time use. It can process hard material such as stone and metal.






Drive Motors


The Alpha CNC Router utilizes brushless micro-stepper motors. These motors require no regular maintenance, therefore reducing any maintenance downtime.

Automatic tool calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

XYZ axis TBI ballscrew transmission

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality ballscrew, makes it high precision.

X Y Z Axis Hiwin square rail

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. And the use of high quality ballscrew, makes it high precision.

Japan Omron limited sensor

There is Japan Omron limited sensor on XYZ axis. The sensor will avoid the machine overtravel working. OMRON is the best quality and with longer service life.


Dustproof on X Z AXIS

The machine has dustproof on X Z axis, which will protect the dust do into the ball screw and the guide rail, to make sure the machine with long service life.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Optional Parts

Oil mist Coolant System

The Oil mist Coolant System is ideal for coolant tools for cutting metal. The unit's micro-dispenser delivers a very small amount of high-performance vegetable-based lubricant to the cutting tool by atomizing the lubricant in a high-velocity air stream. The result is higher material removal rates, improved finish, tighter tolerances and increased productivity.

Dust collector

Alpha offers 2 bags powerful vacuum cleaner, to ensure a clean and tidy workshop.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1600 (L) * 1300 (W) * 100 (H)
Weight
350KG



Packaging Details
The normal package is plywood box.If container is too tight,we will use PE film for packing or pack it according to customers special request.

Company

Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
Anyone is interested in our product, welcome to be the partner of Alpha.

Agent and distributor wanted all over the world!
