Hengbiao ISG series electric motor single stage single suction centrifugal vertical water pump

FOB Reference Price:Get Latest Price
$70.00 - $75.00 / Sets | 1 Set/Sets vertical water pump (Min. Order)
Lead Time:
Quantity(Sets) 1 - 2 3 - 9 >9
Est. Time(days) 7 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
HengBiao
Model Number:
ISG
Structure:
Single-stage Pump
Usage:
Water
Application:
Sewage, WATER
Power:
Electric
Fuel:
electricity
Pressure:
Low Pressure
Product name:
vertical water pump
Material:
wear-resistance Cast Iron
Flow Capacity:
4-1200m3/h
lift head:
5-150m
inlet diameter:
20-500mm
speed:
3500-1450r/min
Color:
Customer Specifications
item:
vertical water pump
Voltage:
380V/220V/415V/440V
Theory:
Centrifugal Pump
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
500 Set/Sets per Month vertical water pump
Packaging & Delivery
Packaging Details
Hengbiao ISG series electric motor single stage single suction centrifugal vertical water pump, Standard export carton Wooden Packing
Port
Tianjin/Shanghai/Qingdao/Guangzhou
Lead Time :
Quantity(Sets) 1 - 2 3 - 9 >9
Est. Time(days) 7 10 To be negotiated
Video Description

Hengbiao ISG series electric motor single stage single suction centrifugal vertical water pump

Product display 1




SPECIFICATIONS

Main performance parameters
Inlet&Outlet dia.
DN25~DN500
mm
Rated flow
1.5~2195
m3/h
Rated head
8~150
m




Electric motor
Power
0.75~160
kW
Speed
1450/2900/3500
rpm
IP code
55
/
Insulation grade
F
/
Voltage
110~525
V
Electrical frequency
50/60
Hz


Pump material
Casing
CI/SS304/316
/
Impeller
CI/SS304/316/
/
Shaft
CI/SS304/316
/



Product Description

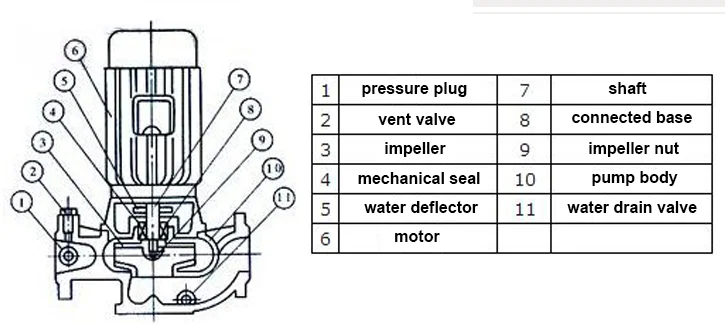

Structure

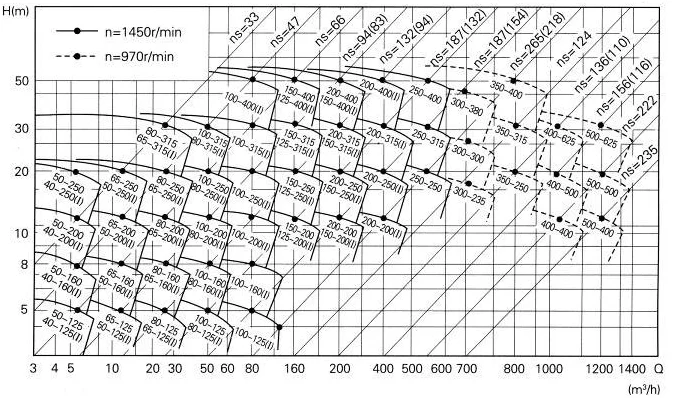

Performance curve

Advantages:

1. Stable Operation.

The impeller with absolute concentric degree featuring excellent static and dynamic equilibrium ensure smooth operation with no vibration.

2. Completely Watertight.

Sealed with different carbide, it has no leakage during transmission between different meida.

3.Low Noise.

With two low-noise bearings, this pump operates steadily with little noise simply made by the motor.

4. Low Failure Rate.

The structure is simple and reasonable. The quality of the key part is excellent as worldwide first-class. It is good enough to operate with low failure rate.

5. Easy Maintenance.

It is very convenient for replacement of seals and bearings.
