Hexagon 1710-1880MHz Low PIM Same Band Combiner

FOB Reference Price:Get Latest Price
$2.00 - $500.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 5 6 - 100 >100
Est. Time(days) 3 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Hexagon
Model Number:
101.C707
Frequency Range:
1710-1730MHz and 1735-1760MHz
Insertion Loss(dB):
0.8dB
Isolation:
30dB
Return Loss:
18dB
Power Handling:
250W
PIM:
-153dBc@2x43dBm inputs
Connector:
DIN type female
Waterproof:
IP50
Supply Ability
Supply Ability:
600 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Sealed and packed with ziplock bag, EPE and carton. We can also pack it according to customer's request.
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 5 6 - 100 >100
Est. Time(days) 3 30 To be negotiated
Video Description
Product Description

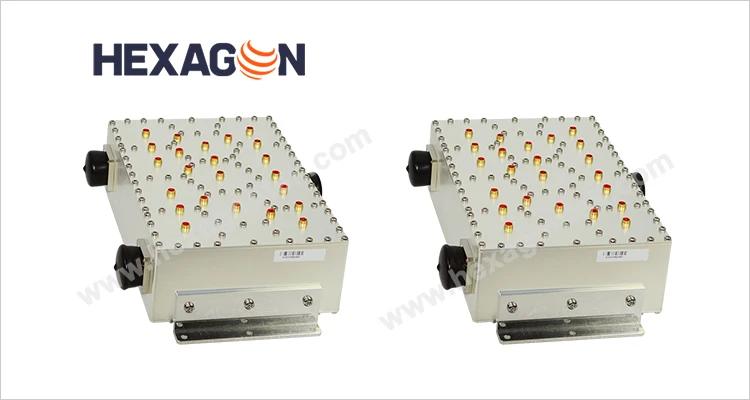

101.C707 is a 1800MHz Same Band Combiner, combining two inputs 1710-1730/1805-1825MHz and 1735-1760/1830-1855MHz to one way. It offers a low insertion loss in pass band and high isolation between two input ports. It's widely used in distributed antenna system for mobile communication.


Products Features:

• Low Insertion Loss • High isolation
• Low PIM as -153dBc@2x43dBm inputs
• Modularity: Single or Twin
• Available for all indoor applications
• Connectors: DIN type female
• RoHS compliant
• Applications: wireless base station, indoor DAS, metro coverage etc.


Parameter
Specifications
Port
Band 1
Band 2
Frequency Range
1710-1730/1805-1825MHz
1735-1760/1830-1855MHz
Insertion Loss
≤0.6dB
≤0.6dB
Power Handling
250W
250W
Isolation
≥30dB (Port to Port)
Return Loss
≥18dB

PIM
≤-153dBc at 2x43dBm inputs

Impedance
50Ω

Weight
2.2Kg

Dimensions
148mm * 216mm * 63mm (Excluding connectors and brackets)
Connector
DIN type female
Colour
Silver
Operating Temperature
-10 to 65ºC
Application
Indoor
Mounting
Pole or Wall Mount
Waterproof Grade
IP50

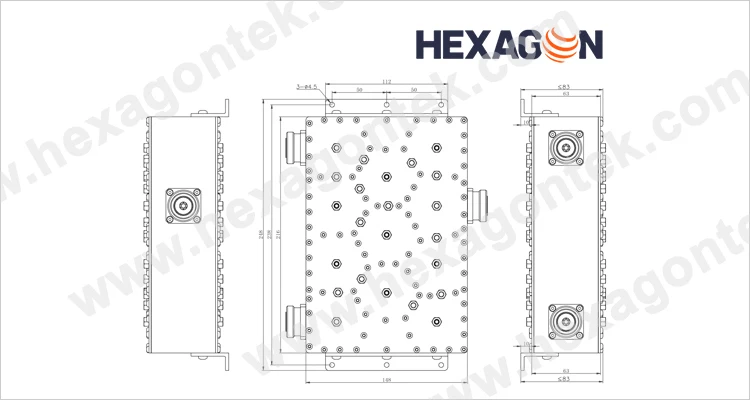

Outline Drawing:


S Parameters

Related Products

708 Same Band Combiners

2100MHz/2100MHz

718 Same Band Combiners

900MHz/900MHz

681 Same Band Combiners

900MHz/900MHz

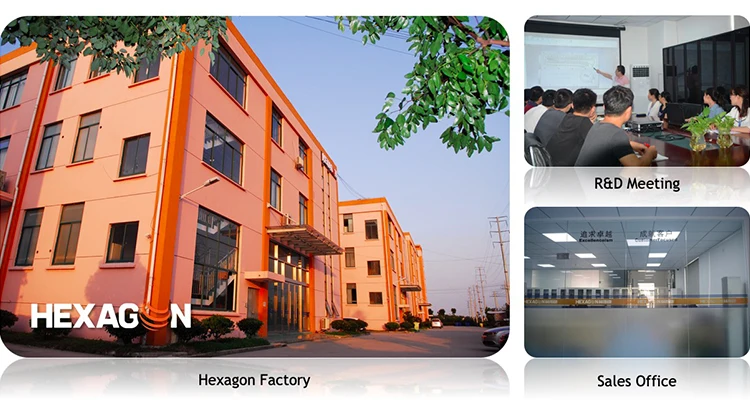

Our Company

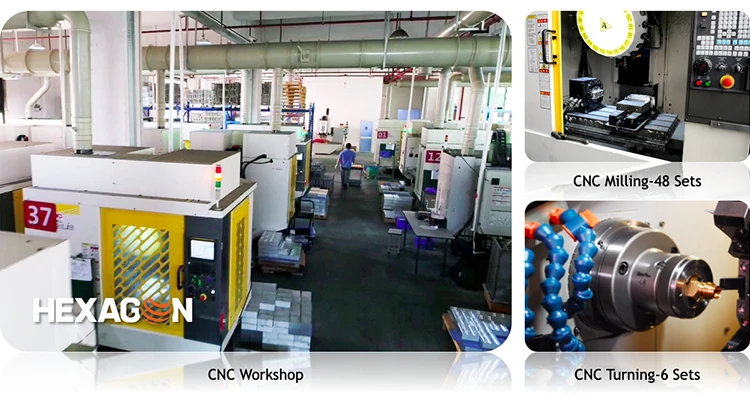

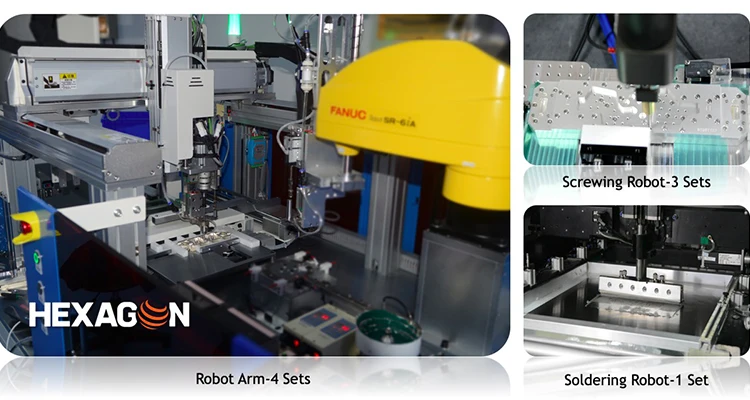

Hexagon, a manufacturer of microwave and millimeterwave components for cellular, microwave, satellite communications and radar applications. Hexagon supports High-mix Low-volume production system with own R&D, CNC workshop and automatic assembly & testing. Hexagon manufactures a full line of Microwave components (5.7-110GHz) including Waveguide Diplexers, Filters, Circulators, Isolators, OMT, Couplers, Diplexers with Isolator, Outdoor Branch Circulator Units and so on. Meanwhile, Hexagon manufactures a full line of low PIM RF products (80-6000MHz) including Bandpass Filters, Multi-band Combiners, Hybrid Couplers, POIs, Drop Passives and so on. As a low PIM specialist, Hexagon is willing to challenge the high difficulty of the product to satisfy customers.

Certifications
Packing & Delivery

Packing

Packed with EPE and carton. We can also pack it according to customer's request.

Delivery

FAQ


Q1. How many years have you engaged in this business?
A1: Hexagon, a manufacturer of microwave and millimeterwave components for cellular, microwave, satellite communications and radar applications, was established in 2012, while the core team have engaged in this business more than 20 years. Hexagon supports High-mix Low-volume production system with own R&D, CNC workshop and automatic assembly & testing.

Q2. What's your payment terms?
A2: Our payment term is T/T or L/C.

Q3. What is your MOQ (minimum order quantity)?
A3: 1 piece.

Q4. How do you ensure the product quality?

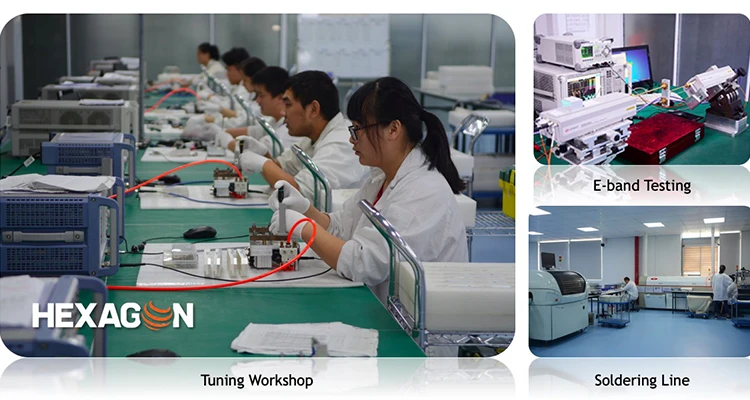

A4: Hexagon attaches importance on product quality and is well equipped with all kinds of testing facilities like 3D CMM, Material Analyzer, EDXRF spectrometer, X Ray Galvanic Thickness Measurement, Vibration Tester, Oven for Bake Test, Salt Spray Tester, Sealing Tester, Network Analyzer and PIM Analyzer etc. We have stringent requirements on design and must leave proper margin to ensure the product performance. No matter prototypes but also mass production, all the products must be passed the strict performance test before delivery.

Q5. What price term you can accept?
A5: EXW, FOB, DDU, etc.

Q6. What's the lead time?
A6: The lead time is 3 to 4 weeks ARO. For prototypes, it's 4 to 6 weeks ARO.

Q7. Do you support OEM service?
A7: Yes, we support both OEM and ODM service.

Q8. What's the basic information we need to check before ordering?
A8: Suggest you check the basic information including frequency range, power handling, waveguide size, flange type, required material and surface treatment etc. before ordering.

Product Paramenters
