High Accuary 4-20ma Large Range General Pressure Sensor

  • 1-49 Pieces
    $35.00
  • >=50 Pieces
    $33.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
LONN
Model Number:
1TX
Work temperature:
-20~+85℃
Precision:
0.1, 0.25, 0.5
Protection rating:
IP67
Response time:
<1ms
Pressure range:
-100~5, 100, 500, 800, 1000kPa, 0~2, 10...40MPa
Diaphragm material:
316L stainless steel, heusler alloy C-276
Output signal:
4~20mA , 0.5~4.5V
Pressure type:
Gauge pressure, negative pressure and absolute pressure
Input voltage:
12~36V DC(5V)
Product name:
Pressure Transducer

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X5X5 cm
Single gross weight:
0.5 kg
Package Type:
Packing for Submersible Pressure Transducer Gauge Absolute Hydrostatic Pressure Transducer Carton box or according to customers' requirements
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated

High Accuary 4-20ma Large Range General Pressure Sensor



LONN-TX pressure transmitter

1. It adopts the chip with stainless steel isolation diaphragm.

2. Can realize temperature and linear compensation, signal amplification, V/I switch, inverse polarity protection, and current limiting when pressure overloaded.

3. With advanced thick-film technology.






Parameter





Range

-100~0~5,100,500,800,1000KPa;0~2,10~40MPa

Pressure type

Gauge pressure, negative pressure and absolute

Output signal

4~20mA, 0.5~4.5V

Input voltage

12~36V DC (5V)

Accuracy

0.10.2(0.25)0.5

Nonlinear Repeatability

Delaying

0.10.2(0.25)0.5
Zero and sensitivity0.010.02(0.025)0.005

Temperature

-10℃~+70℃

Work temperature

-20~+85℃
Long-term≤0.1±%FS/year
Response time<1ms
Overload capacity

200%

Measurement medium

Corrosive media compatible with 316L

Diaphragm

316L stainless steel, heusler alloy C-276

Case material

1Cr18Ni9Ti

Protection rating

IP67



More Products



MORE PRODUCTS

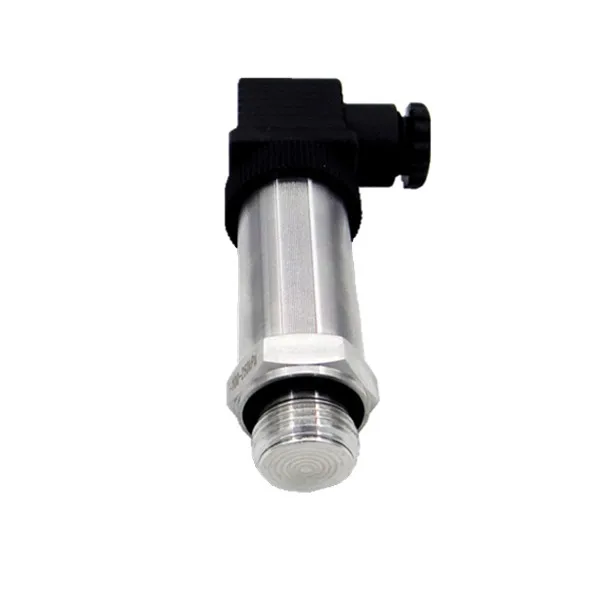

 LONN-1TX  general pressure  transmitter

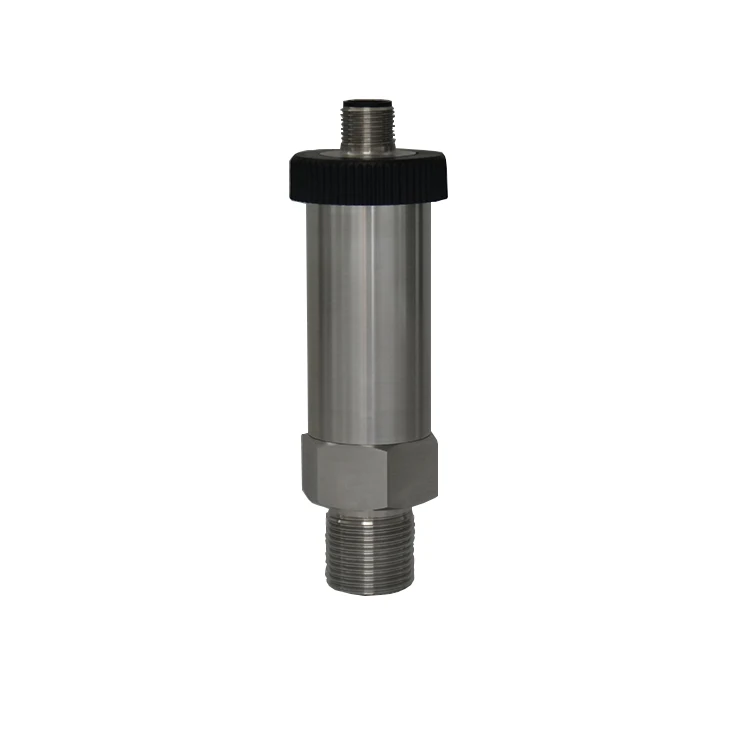

 LONN-5TX ceramic pressure  transmitter

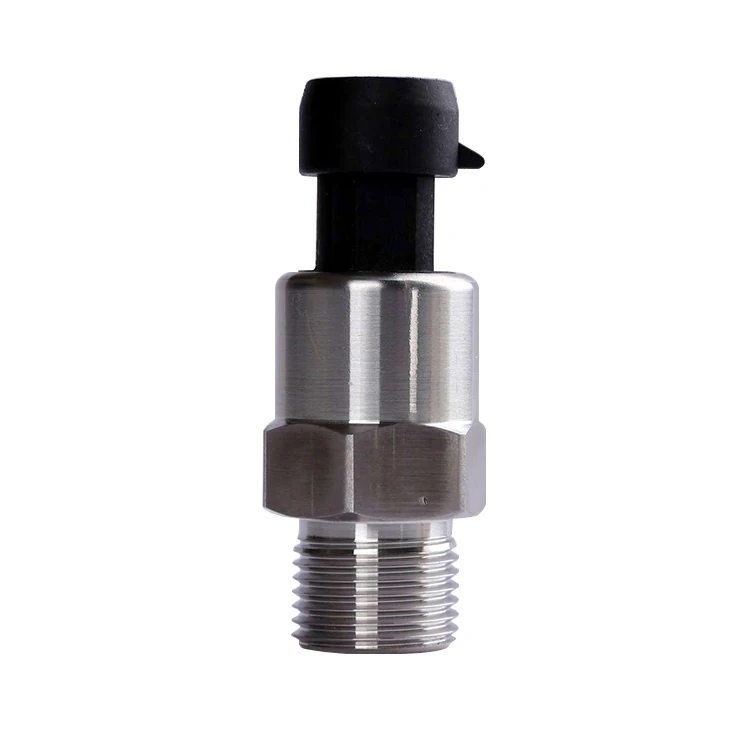

 LONN-3PX flat-diaphragm  pressure transmitter

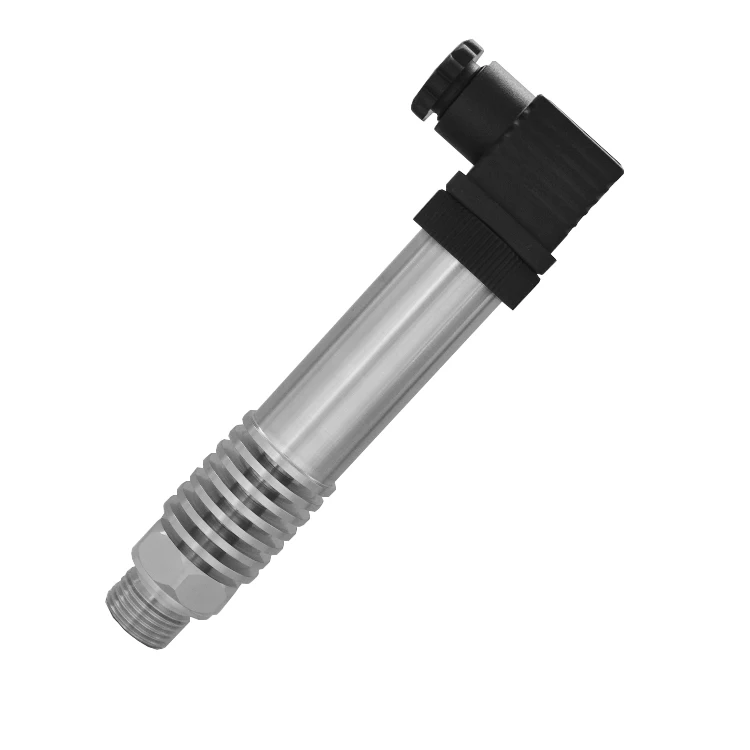

 LONN-4GX high temperature  pressure transmitter
