High Accuracy GMF2013A Gantry Milling Machine

FOB Reference Price:Get Latest Price
US $110,000-120,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20 Set/Sets per Month
Port:
Shanghai Port
Overview
Quick Details
Condition:
New
Type:
Gantry
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&C
Model Number:
GMF2013A
Voltage:
380V
Power(W):
15kw
Dimension(L*W*H):
6100*3120*4130
Weight:
17000KG
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Type:
GMF2013A CNC gantry milling machine
CNC system:
FANUC 0i MD
Spindle speed:
6000 Rpm
Precision:
0.021mm
Spindle specifications:
BT50
Gantry width:
1350
Automatic Tool Changer:
24
Application:
Molding Processing
Processing:
Metal Cutting Cnc Milling Machine
Color:
Custom-made
Packaging & Delivery
Packaging Details
wooden casing
Delivery Time
Shipped in 30 days after payment
Product Description

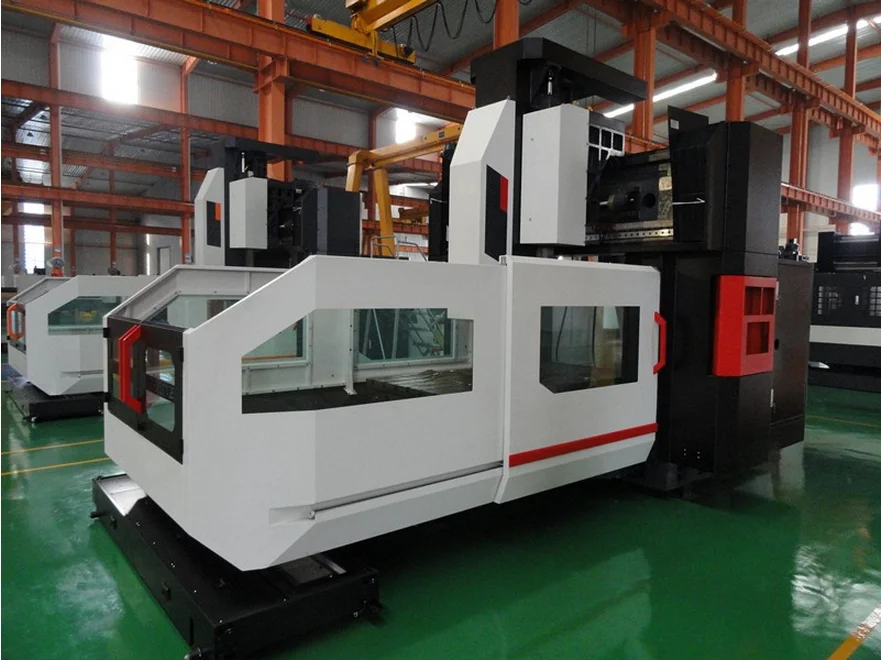

HIGH ACCURACY GMF2013A GANTRY MILLING MACHINE

Main Feature

1.GMF series can provide a high-performance mechanical system and a software interface which can be operated easily.
2.Design of machine tool ensures high rigidity of machine body
3.The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining.
4.Optional 90°milling head realizes five-face machining. Optional universal milling head realizes multi-angle machining.
5.Screw supporting structure is designed for above more than 5 meters (including 5 meters) gantries.

Main Parameter
item
Unit
GMF2013A
GMF2013B
GMF2513A
Worktable size
mm
2200*1100
2200*1100
2700*1100
Max loading of worktable
kg
6000
6000
8000
T-slot
mm
7-22*150
7-22*150
7-22*150
Gantry width
mm
1350
1350
1350
Travel for X/Y/Z axis
mm
2000/1300/800
2000/1300/900
2500/1300/800
Distance from spindle mose to table surface
mm
150-950
180-1080
120-920
CNC system

FANUC 0i-MD
FANUC 0i-MD
FANUC 0i-MD
Rapid shift of axes of X/Y/Z
m/min
12/12/10
12/12/10
12/12/10
Max cutting feed speed
m/min
7
7
7
Standard tool quantity

BT50/24
BT50/24
BT50/24
Positioning accuracy
mm
0.021
0.021
0.021
Accuracy of repeated positioning
mm
0.02
0.02
0.02
Motor power of spindle
KW
15/18.5
15/18.5
15/18.5
Integrated weight
kg
17000
17000
19000
Overall dimension
mm
6110*3120*4130
6110*3120*44801
7150*3120*4190
Process Details

Bed Body

The structure of the machine tool isanalyzed with ANSYS at all stages from foundation design to gurantee high speed and high precision continouos machining.A simulation testing for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool.

Spindle

The gear type spindle variable speed device provides powerful torque during peration at low speed and guarantees stable rotation during operating at high speed so as to enable wider machining range.

By enlarging diameter of spindle ends and flanges, the spindle with roller bearing could strengthens all factors related to spindle system.

ATC(Automatic Tool Changer)

Automatic tool changer is composed of tool maagazine and tool changing arms.Automatic toolchanger is installed separately from machine tool with the purpose of preventing adverse influences of vibration during running of automatic toolchanger and other reasoons on precision. Tool selection adopts the method of fixed address in the shartest path.

Related Products
IHT516 SLANT BED CNC LATHE

DBM-110 Boring And Milling Machine


V8 High Speed Machining Center


Ender User&Delivery
Why Choose Us

Company Introduction

DRC is a group company ,which is professional in products and sales of advanced CNC machine tools . Acting full operation of the six machine tool production company's overseas sales.
DRC is located in Dalian, which is one of the largest seaport cities of China.Our products exported to Russia, Dubai, Hungary, Italy, Argentina, the Philippines, India, Iran, more than 50 countries.
DRC has six factories in China, which covers many kinds of mechanical equipment.
Product Range:
◎CNC Lathe
◎Conventional Lathe,
◎Vertical Lathe
◎Machining Center
◎Boring and Milling Machine
◎Dental Milling Machine
◎Glass Tempering Furnace
◎Special Machine for Pipe Threading ,Valve Milling, End Facing and so on

After-Sale Service
FAQ

1. What is your minimum order quantity and warranty?

 MOQ is one set, and warranty is one year.

2.What CNC system do you use?

FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3.When is the delivery time?

We will delivery it within 90 days after received your payments

4. How to handle the warranty period?

During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

5.Can your company send the technical personnel to our company and direct our workers for free?

When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
