High Frequency 3KW 5KW Off Grid Hybrid Solar Inverter Pure Sine Wave Solar Power Inverter

FOB Reference Price:Get Latest Price
$160.00 - $420.00 / Pieces | 1 Piece/Pieces (Min. Order)
Output Power:
1 - 200KW
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Sacolar
Model Number:
Sunicorn MHP
Output Type:
Single
Size:
Based
Weight:
5-18KG
Input Voltage:
12V/24V/48V
Output Voltage:
220V
Type:
DC/AC Inverters
Output Frequency:
50Hz/60Hz
Output Current:
Load
Color:
Red, Silver, Blue, or customized
Parallel Inverters:
Optional
Monitoring Access:
Optional
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton box, or based on requirements.
Contact: Leo Tian, mobile/whatsapp: +86 187 0203 9884
Port
Shenzhen
Product Introduction

Sunicorn MHP series off grid solar inverter is integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.

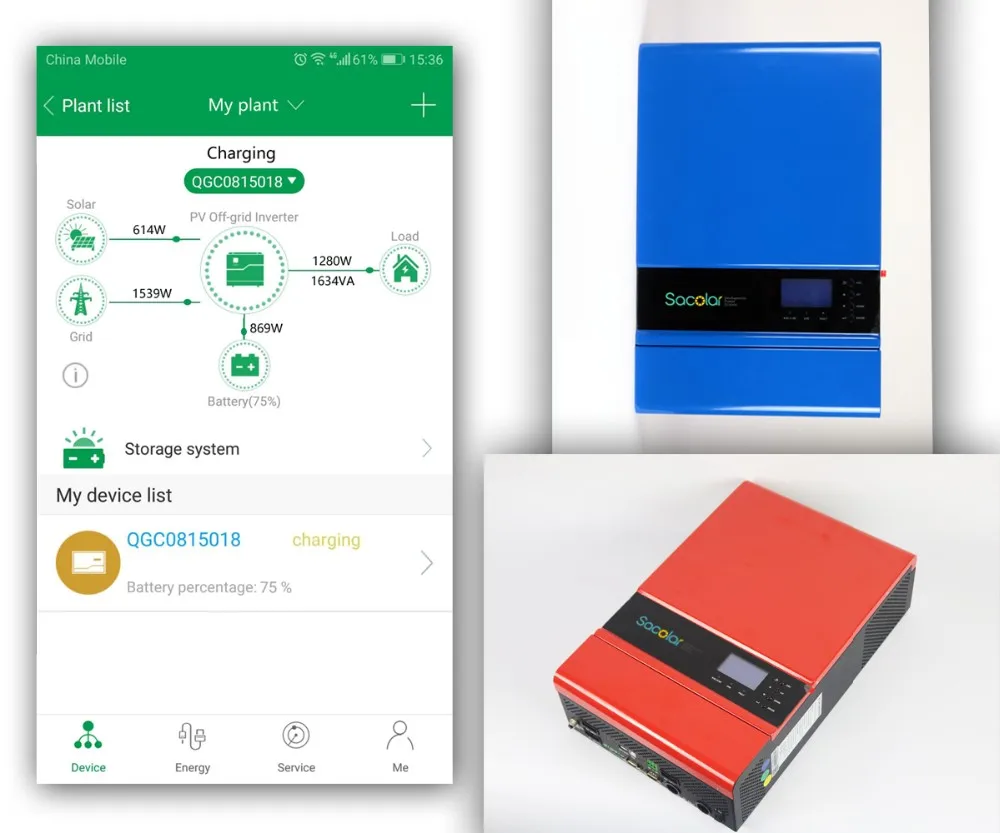

Sunicorn series inverter is available for motoring access. Customer can monitor the PV system on web or cellphone anytime anywhere.
Product Features

 Rated power 2KW to 5KW

 MPPT solar charge controller to maximize the solar output
 High frequency inverter with small size and light weight
 Pure sine wave AC output
 Overload, short circuit and deep discharge protection
 Configurable AC/ solar input priority via LCD setting
 Compatible to mains voltage or generator power
 WIFI/ GPRS remote monitoring (optional)
 Parallel operation for Sunicorn MHP 4KW/5KW


System matching recommendation:
Product Overview



DiSPLAY INFOMATION

1. LCD Display

2. Status indicator

3. Charging indicator

4. Fault display

5. Function buttons


BOTTOM PANEL

6. AC input                   7. WiFi/GPRS communication port
8. USB port                  9. Dry contact

10. PV input                 11. Power on/off switch

12. Battery input

13. Parallel communication ports (only for parallel model)
14. Current sharing ports (only for parallel model)
15. AC output              16. Circuit breaker

System Connection

Sunicorn series parallel connecting:

Specification

Sunicorn MHP series, with MPPT controller:

Model
Sunicorn MHP-2KW
Sunicorn MHP-3KW
Sunicorn MHP-4KW
Sunicorn MHP-5KW
Input / Output Voltage
DC 24V / AC 220V
DC 24V / AC 220V
DC 48V / AC 220V
DC 48V / AC 220V
Max. PV Power
1500W
1500W
4500W
4500W
Max. PV Charge Current
50A
50A
80A
80A
AC Charge Current
30A
30A
60A
60A

Sunicorn HP series, with PWM controller:

Model
Sunicorn HP-2KVA
Sunicorn HP-3KVA
Input / Output Voltage
DC 24V / AC 220V
DC 24V / AC 220V
Max. PV Power
1500W
1500W
Max. PV Charge Current
50A
50A
AC Charge Current
30A
30A

Sunforce Series, with MPPT controller

Model
Sunforce BC-3KVA
Sunforce BC-5KVA
Input / Output Voltage
DC 24V / AC 220V
DC 48V / AC 220V
Mx. PV power
3500W
5500W
MPPT
100A, 120V~430Vdc
100A, 120V~430Vdc
AC Charge Current
80A
80A
Product Processing

 With a assembly of the top talents in the industry
 One of the most intelligent and automatic inverter production lines in China
 Production capacity over 100, 000 pieces a year

Main Products

2KVA~5KVA OFF GRID INVERTER WITH MPPT CONTROLLER

FOB Price: US $ 160 - 450/Piece

5KW HIGH PV INPUT VOLTAGE SOLAR INVERTER

FOB Price: US $ 400 - 450/Piece

4KW~12KW LOW FREQUENCY SOLAR INVERTER

FOB Price: US $ 400-1500/Piece

Contact

Your success is our success. Please feel free to contact with us anytime :)
