High Lumen explosion-proof 100 watt linear led high bay light IP66 CE SAA factory

  • 10 - 999 Pieces
    $48.00
  • >=1000 Pieces
    $42.00
Color:
Multi
Lamp Power(W):
50
Emitting Color:
Cold White Warm White White
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 Negotiable
Samples - $50.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Warranty(Years):
5
Input Voltage(V):
220-240
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Working Temperature(℃):
-30 - 50
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
C-tick, CCC, CE, EMC, FCC, LVD, RoHS, SAA
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Topsung Lighting
Model Number:
HB-H50
Application:
WAREHOUSE, Commercial Lighting
Light Source:
LED
Lamp Luminous Flux(lm):
50000
LED Light Source:
2835
cover material:
PC
CCT:
2700-6500K
voltage:
100-130v, 200-240v
Beam angle:
120 Degree
Brand:
Topsung
Lifespan:
50000 hours
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc/ctn
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 To be negotiated

High Lumen explosion-proof 100 watt linear led high bay light IP66 CE SAA factory


Product Description



Feature of linear led high bay light
1.6063 Aluminum housing, with great heat dissipation.
2.High power, 50-400W available.
3.IP65 waterproof, widely applications.
4.High efficiency of 130lm/w.
5.Philips EMC3030 LED.
6.Meanwell driver, PF>0.93, AC90-305V or DC127-431V input.
7.Different beam angles for different application and installation height.
8.IK10.
9.Lifespan more than 50,000 hours, 5 years warranty.
10.TUV CE, CB, RoHS, SAA approval.

Specification of SAA linear led high bay light

Model No.Product Specification
PowerDimension (mm)LumenInput VoltageSMD typeRABeam AngleIP RatematerialCertificateWarranty
HB-H5050W140*125*285110lm/WAC90-305VAC    AC127-431VACEMC 3030 PhilipChip≥8030° 60° 90°IP 66PC PMMA 6063 Alum Housing CE ROHS SAA5 year
HB-H100100W140*125*555≥8030° 60° 90°IP 66
HB-H150150W140*125*825≥8030° 60° 90°IP 66
HB-H200200W140*125*1095≥8030° 60° 90°IP 66
HB-H300300W290*125*825≥8030° 60° 90°IP 66
HB-H400400W290*125*1095≥8030° 60° 90°IP 66

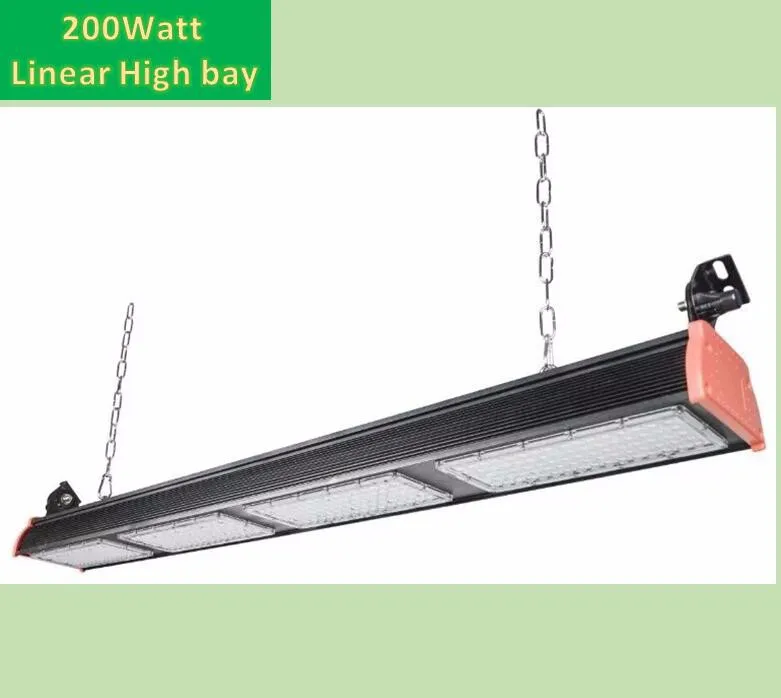

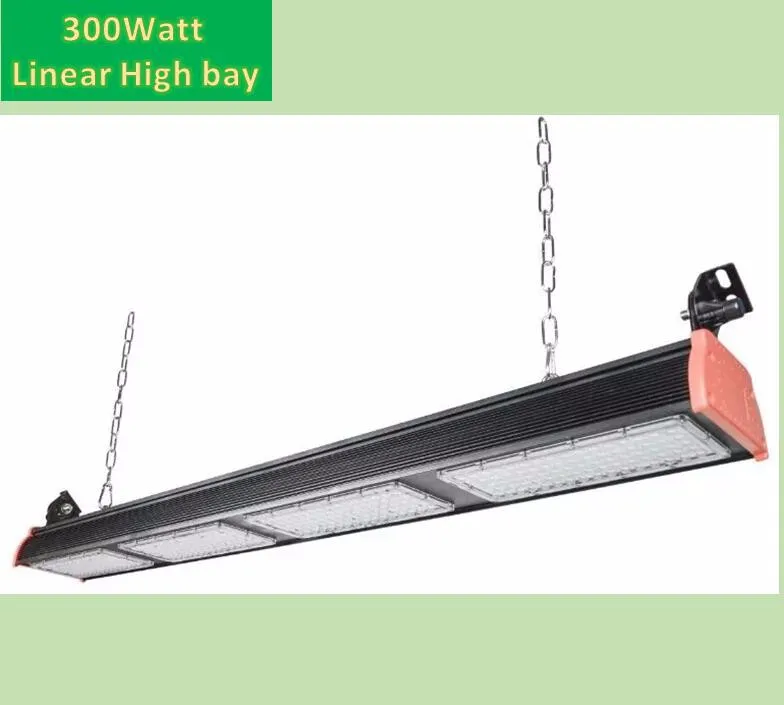

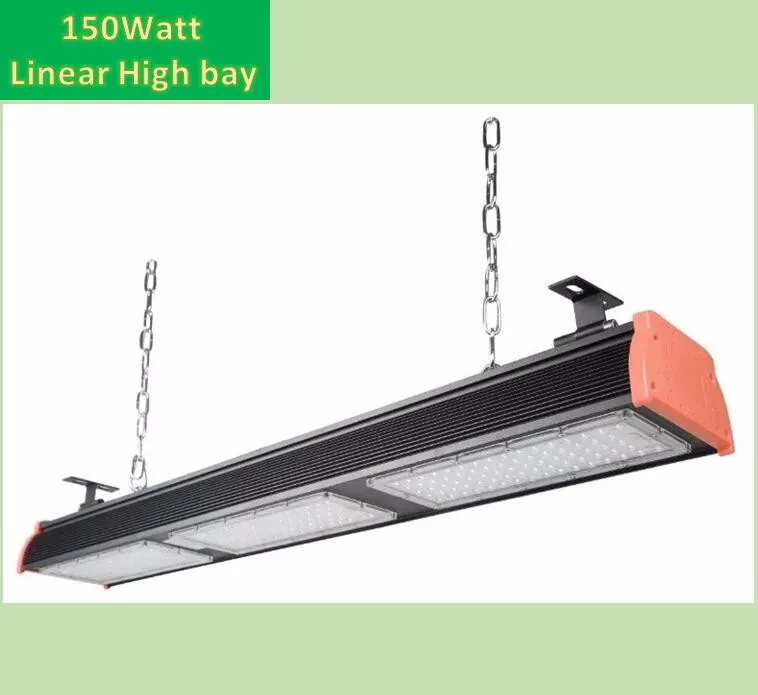

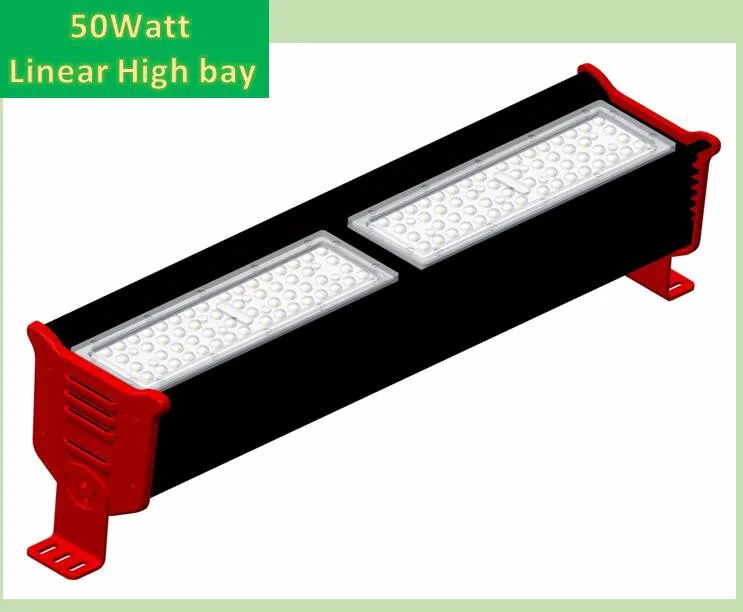

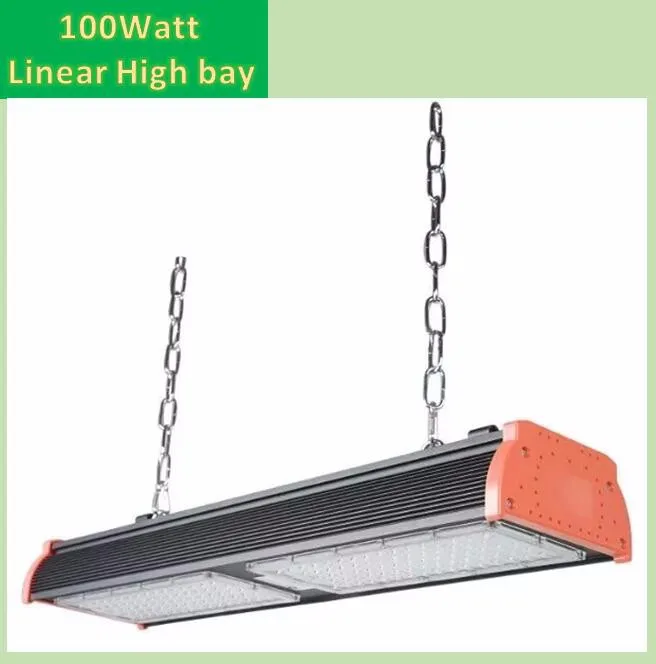

More pictures of Linear LED high bay






 Installation of Linear LED high bay
1.Confirm the rated voltage before the installation to keep the porduct from being damaged
2.Cut off the power until the installation is finished
3.Contact us when any problems happen,Never open the product without permition.
4.Basic electronic knowledge or professinal indication is needed for operator
5.Product surface temperature control during normal operation environment within 65 ℃, the bad environment to reduce product life cycle
6.Never use the prodcut in a humid environment




Packaging & Shipping
 Packing of Linear LED high bay
 1pc/inner box

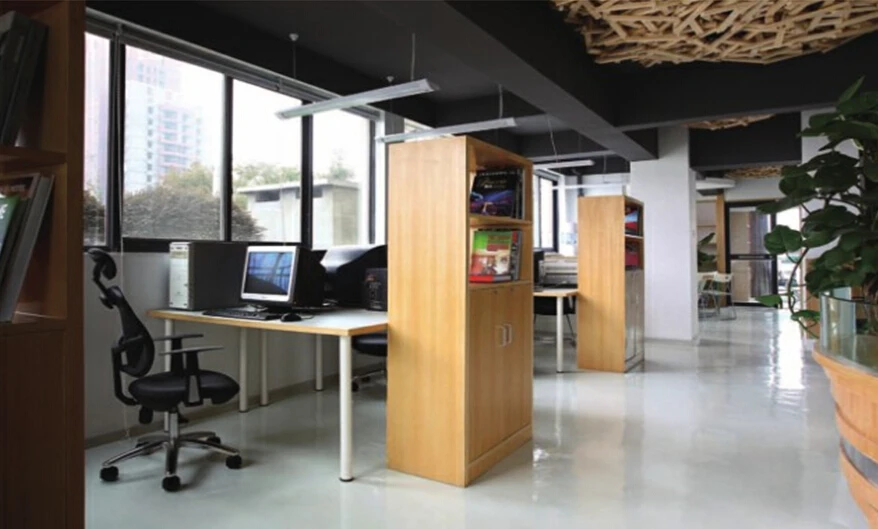

Application of Linear LED high bay
Commercial lighting, outdoor quantitative, engineering projects
Residential/institution buildings
Corridor, warehouse, parking lot, the tunnel3 foot 900mm led linear suspension lighting ce rohs approval
Certificate



Company Information



Shenzhen Topsung Lighting Co.,Limited with 12 years' rich experience on design/develop/export LED Products is one of the Factory of Topsung Industrial Co.,LTD.

Topsung main procuts include:

LED Decoration lights:

1) LED Neon Flex

2) LED Rope light

3) LED strings and christmas lights

Indoor LED Lights:

1) LED panel light

2) LED Linear Batten light

  • Tri proof light
  • Linear High Bay
  • Linear pandent light

3) LED tube lights

Topsung Lighting cares about customer's request and deveoped new design lighting products. Welcome your inquiry!
