High Performance Fanless Industrial Mini Computers with Intel i5 processor 2 COM 4 USB3.0 4G RAM 64G SSD 640G HDD

FOB Reference Price:Get Latest Price
Overview
Quick Details
Products Status:
Stock
Type:
Desktop, Embedded Computer
Screen Size:
No Monitor
Processor Brand:
Intel
Memory Capacity:
≥ 4GB
Hard Drive Capacity:
640GB
Graphics Card Type:
Integrated Card
Processor Main Frequency:
1.6Ghz
Brand Name:
Partaker
Model Number:
IN-I52C
Place of Origin:
Guangdong, China (Mainland)








Automation
Since the 1990s, as a result of PC-based industrial computer (the Industrial PC) the development
of an industrial PC, I / O devices, monitoring devices, the control network consisting
of PC-based automation system has been rapidly growing popularity, becoming achieve an important
way to low-cost industrial automation.

Industrial products and technology industry is very special. Providing reliable, embedded,
intelligent industrial computers for various other industries. With the depth of information
society from time to time, are intermediate products. Mission-critical key industries
will increasingly rely on the IPC, and with low interest IPC based industrial control automation
is becoming mainstream, some other place IPC manufacturers increasingly high level of attention.
With the rapid development of electric power, metallurgy, petrochemical, environmental protection,
transportation, construction and other industries, from digital home with top boxes, digital TVs,
ATMs, highway toll collection system, gas management, manufacturing production line control,
finance, government, defense and other industries increased demand
for information from time to time, a great demand for IPC, IPC market prospects are bright,
let us look at the IPC industry's future

Configuration
Model IN-I52C
CPUIntel Core i5 4200U 1.6Ghz The fourth-generation i5 Haswell Architecture,Dual core four threads
GPUIntel HD Graphics 4400, L3 3MB Cache, all SOC Design
RAMSupport  Dual Channel NB Memory SO-DIMM DDR3L (Maximum to 16G RAM, 2*8G)
StorageSupport 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB)
Wi-Fi
Dual Band Wireless-(150Mbps or 300Mbps optional)
Package

IPC+Power Supply+Power Cord (USA, European, UK Types for optional)



The fourth-generation i5
Haswell Architecture,Dual core four threads




Mini PC Rear I/O:



DC 12V
HDMI
VGA
Gigabit LAN
USB 2.0*2
USB 3.0*4
MIC Input
SPK Output

2*COM RS232



Fanless

Upgrade Service:

1.WiFi Optional, if need wifi, double antenna builtin wireless 150M add extra $8, 300M add $10

2. Bluetooth and WiFi 300M together Builtin add $20

3. USB IR Infra-red+ PC Remote Control add $15 (No battery inside)


4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

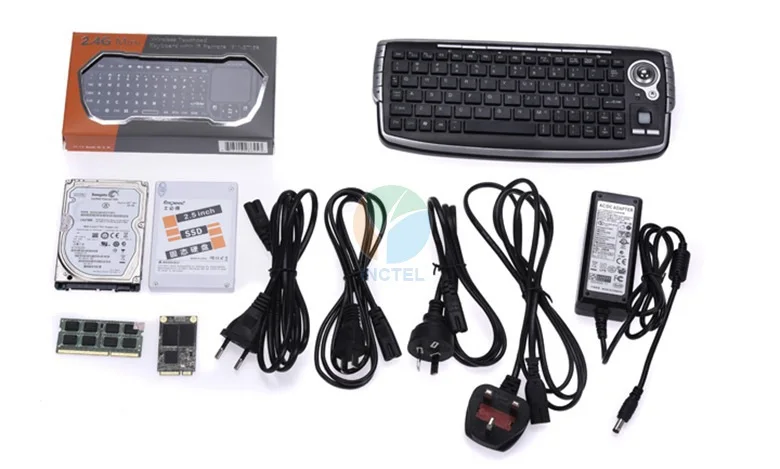

Ref. Photo as belows,








(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, Upgrade value, 1pc=$1)





4G RAM,64G SSD,640G HDD



If customer buy the configuration with RAM, SSD, HDD, We can install as belows,
XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8 add extra $5, Server 2003 add extra $5
Above OS is OEM cracked Version, if need orginal, needs to purchase separately
Original: Win7:$55;Win8:$65

Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales











The new Core I5 4200U fanless computer for sale, 15W power consumption SOC chip, INTEL technical peak, a chip integrates: CPU, Southbridge, Northbridge, IO chip, clock chip design saves board space, power consumption and overall heat is greatly reduced, master Lu 100,000 breakthrough performance evaluation directly, but TDP is only 15W. Future has come, desktop computer Terminator, INCTEL Almighty mini fanless computer: home entertainment, online games, business office, industrial control, graphic design, 3D CAD-aided design, hotel rooms, education, health care. All can be applied!
The highly integrated design, the entire board gall capacitance, the failure rate is much lower
Just a BGA chip
All SOC design, integration of CPU, Southbridge, Northbridge, core graphics, IO chip

3.5 inch industrial board design, dual channel memory, imported power supply design
Industrial grade quality
Commercial products prices

Support 1*MSATA3 SSD
At the same time 1* 2.5-inch notebook hard drive
Support full board SATA3



Super Premium Ice barbed version fanless cooling computer outrageously starter, four-generation Haswell architecture i3 4010u processor, 3MB cache,HD4400 graphics core 4K very clear



Support 4K HD output, support for digital high-definition interface, performance evaluation of Master Lu about 100,000 full version Sata3 only for the king was born, and only for tolerance from, do fanless mini computer in luxury



The world's first i5 4200u fanless mini PC Sync starting
Haswell i5 4200u ultimate super-cooling version has a surprise ice thorn listed
[Features]: zero decibel noise fanless aluminum core graphics IntelHD4400 smooth high-end 3D games to play online games perfect pass to kill everything perfect support 4K HD 3D Blu-ray support
The fourth-generation Core i5 4200u onboard processor supports Turbo Boost Technology Turbo Turbo to 2.6GHz up to 3MB cache, but only 15W TDP HD4400 integrated graphics core



Intel Core i5 4200U 1.6Ghz
CPU Overview
Model
i5 4200U
Processor Series
The fourth-generation i5
Core Name
Haswell Architecture
Core / thread
Dual core four threads
Process technology
22nm
TDP power
15W
CPU frequency
Frequency
1.6GHz
Acceleration Technology
Supports Turbo Boost Turbo technology, 2.6GHz
Maximum support memory frequency
DDR3L 1333/1600
CPU cache
Three cache
3MB
Graphics Core
Integrated graphics core
Yes
Graphics core
Intel HD 4400
Core Frequency
200-1000MHz
Function parameters
Energy-saving technology
Support energy-saving technologies, Speedstep
64-bit computing
Support for 64-bit computing
Virtualization (virtualization)
Support Virtualization (virtualization) technology
Hyper-Threading (Hyper-Threading):
Supports Hyper-Threading (Hyper-Threading) Technology

  1. Gigabit Ethernet support diskless boot definition HDMI interface supports both Blu-ray 1080P HD output hardware solution software solution
  2. External 12V DC power supply , environmental protection, daily use only 15W to 25W power
  3. Six USB which four USB3.0 2 USB2.0 ports whole 1000M 150M or 300M WIFI Wireless LAN Network optional
  4. All SOC Design, Haswell Architecture
  5. Energized electric power to support features
  6. All solid , shock , drop , long-term stable and reliable operation , SSD solid state disk speed of 260M / S SSD RAID0 support maximum speeds of more than 700M per secon



Market positioning:


1 Living room HD computer, put the TV in the living room below, after connecting the TV as a movie player, Internet access and viewing photos to use, but also do download machine, download movies (large capacity hard drive)

2 Business office preferred. Online shopping mall, shop office use, environmentally friendly energy, save electricity. Only 15W power down, companies office, save space. Many advantages, as the business office.
3 Rooms dedicated computer aluminum exterior, elegant, upscale. Placed hotel rooms is very convenient, all-solid-state design, not damaged, no dry sound, low power consumption, energy saving.
4. Education industry-specific computer has better performance than low-end cloud terminal, more convenient software compatibility, better color, faster, more suitable for the education sector.



DC IN 12V power supply support

Sizes 190mmx 190mmx29mm
Weight: 1500 grams to 1650 grams
Temperature :
Operating Temperature:
0 ° C ~ 70 ° C (32 ° F ~ 140 ° F)
Storage Temperature:
-20 ° C ~ 80 ° C (-68 ° F ~ 176 ° F)
Relative Humidity:
10% ~ 90% (non-condensing)

Master Lu computer performance evaluation beat 90% of the country, to get the gold medal, performance Needless to say, however, under such a powerful performance is ultra-small size, low power consumption (processor TDP = 15W) aluminum fanless noise 0 db. Achievement fanless PC king. There are always sophisticated mini-computer trend, while others can only follow the crowd!




Upgrade into fourth generation I5 4200U advantages:

a. Latest haswell architecture I5 4200U
b. 4K HD reach
c. Lower power consumption
d. More lower heat of it
e. There are 3D graphics core upgrade, performance enhanced a lot.
f. There is support for dual-channel memory ( 2* DDR3 Notebook)
g. SOC design, more reliable quality of it

In total, Such upgrade brings longer life, more difficult to be eliminated, factory offers upgrade but costs increased just a little bit, customer definitely choose the new architecture which more value for money! ! !

I5 4200U will fully replace i5 3317U very soon!

Lower power consumption, but the performance such big improvement, regardless of graphics card or CPU, all upgrade
The new architecture
Big enhance performance while reducing power consumption
Master Lu 100,000 performance evaluation, 92% of the country to defeat the computer. Performance encroaching i7 4500U

















  Shipping Term:

Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,



Flexible shipping cases as belows,





Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website: raslist.dhl.com/jsp/first.jsp







Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)



Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.

Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.





Case 4, Via HK post (mostly Spain prefer by HK post)

Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).





Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.
