High Precision Digital Snap Button Pull Tensile Test Testing Machine

  • 1-4 Sets
    $1,500.00
  • 5-9 Sets
    $1,400.00
  • 10-19 Sets
    $1,356.00
  • >=20 Sets
    $1,300.00
Usage:
Tensile Testing Machine
$
- +
available
Textile Testing Instrument
$
- +
available
Button snap pull tester
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Right
Model Number:
RT-218
Power:
Electronic
Product name:
High Precision Digital Snap Button Pull Tensile Test Testing Machine
Load capacity:
200N
Load gauge Accuracy:
±0.2% of full scale
Readability:
0.1N
Diameter of Pressing ring:
15mm 35mm
Instrument Dimension:
240X290X750mm(LxWxH)
Instrument Weight:
30kg
Standard:
ASTM D 4846
Material of grips:
Stainless steel
Warranty:
12 months

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X30X60 cm
Single gross weight:
30.0 kg
Package Type:
Export cases
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 50 >50
Est. Time(days) 10 20 To be negotiated
Video Description

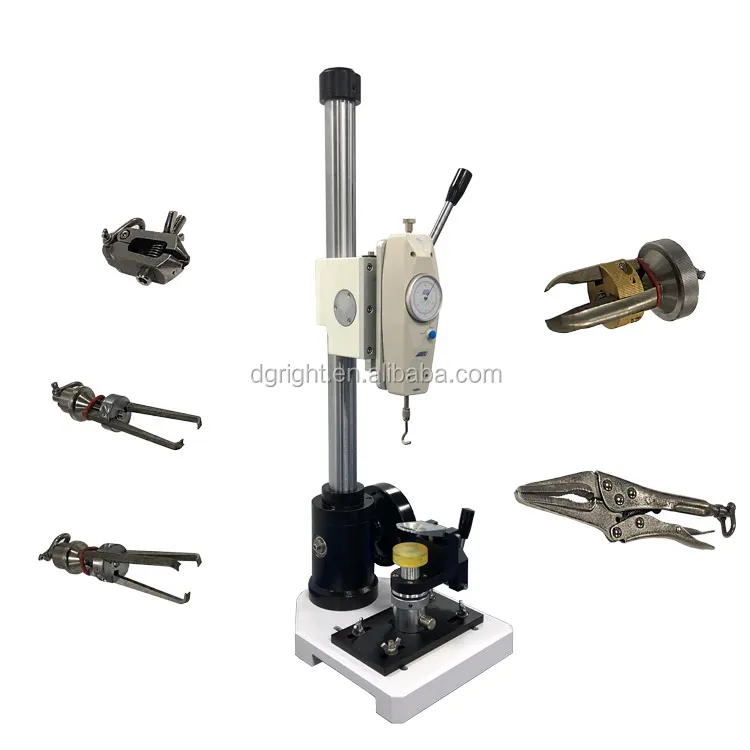

High Precision Digital Snap Button Pull Tensile Test Testing Machine


1. Application--  Portable Digital Button Snap Pull Test Machine

It is used to perform a button pullout test to prevent separation between the snap and the garment, which represent a dangerous situation if the loose snap is swallowed by children. The structure is specially designed and high precision of test results.123.jpg

Product Description

2. Technical parameters --Portable Digital Button Snap Pull Test Machine

ModelRT-218
ItemButton Snap Pull Test Machine
Size280*230*770mm
capacity30Kg
Machine WeightAbout 32Kg
Material of gripsStainless steel
Warranty12 months




Click here for more information

3. Technical standards --Portable Digital Button Snap Pull Test Machine

    16 CFR 1500.51-53, ASTM WK4510 PS79-96, ASTM F963, EN71-Part1, M&S P115A




4.Features  --  Portable Digital Button Snap Pull Test Machine

 This test method cover an uniform force required to pull a snap attachment perpendicular to the garment.

 The snap attachment is not forced to separate from the garment.

  • The machine is supplied with standardized weights .

  • Equipped with fully accessories.

  • The structure is specially designed and high precision of test results.

  • The Laboratory equipment is best for easy and quick operations.
