High Pressure Automatic Membrane Filter Press Machine

  • 1 - 2 Sets
    $9,000.00
  • >=3 Sets
    $8,500.00
Production Capacity:
High Efficiency
Model Number:
XMZG30/870
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops, water treatment
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Viet Nam
Showroom Location:
Viet Nam
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
PLC, Pressure vessel, Pump
Condition:
New
Automatic Grade:
Automatic
Place of Origin:
Henan, China
Brand Name:
Dazhang
Voltage:
Customize
Power:
2.2kw
Weight:
1098kg
Dimension(L*W*H):
2641*900*650mm
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Product name:
High Pressure Automatic Membrane Filter Press Machine
Description:
solid-liquid separation filter press machine
Filter area:
60m2
Plate size:
870mm*870mm
Cake Thickness:
<=35mm
Filter Chamber Volume:
955L
Filtration pressure:
0.6Mpa
Motor power:
2.2kw
Usage:
Chemical, Industry, Food
Product Certification certification
CE Certified.
Valid from 2016-10-08 until 2049-12-31
Supply Ability
Supply Ability:
20000 Set/Sets per Year High Pressure Automatic Membrane Filter Press Machine
Packaging & Delivery
Packaging Details
seaworthy packing
Port
shanghai , China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

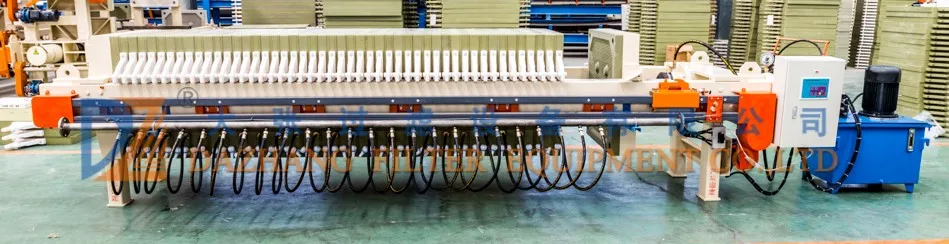

High Pressure Automatic Membrane Filter Press Machine
Membrane plates bring superrxcellent filtration effect and unimaginable benefits.

Squeezing twice after completion for filtration can improve solid content of the cake.



Membrane plate can carry out "Low pressure for filtration, higher pressure for squeezing." Improving life-span and reducing energy consumption.



Improved washing effect, shortened washing time, saved washing liquid and improved quality of products.

Model Filter Area/m² Plate Size/mm Filter Chamber Volume/L

Filtration ressure

/Mpa

Motor

Power

/kw

Weight

/kg

Dimensionns

/mm

XMZG30/870-30U 30 870×870 460 ≥0.6 2.2 2680 3180×1400×1230
XMZG40/870-30U 40 595 3050 3570×1400×1230
XMZG50/870-30U 50 748 3456 4110×1400×1230
XMZG60/870-30U 60 902 4003 4550×1400×1230
XMZG70/870-30U 70 1056 4584 4990×1400×1230
XMZG80/870-30U 80 1210 5082 5430×1400×1230

Features of membrane filter press:

1, Secondary pressing, the squeezing pressure can be 0.6Mpa, have a 5% -10% drier filter cake than chamber filter press.
2, In the late stages of filtration, using diaphragm squeezing function to do secondary pressing directly, leading to complete this cycle in a short time, save the power consumption, and can greatly shorten the cycle of the whole filtration process.
3, The moisture content can be reduced greatly, save drying cost and improve the yield.
4, Automatic functions includes automatic compress the plates, automatic pressure keeping, automatic plate shifting, automatic cake discharging etc.
5, Automatic plate shifting system: it is auxiliary function for cake discharging, after finish filtration, this device can automatically pull plates and cake discharging, it not only improve the efficiency of the filter and reduces the labor intensity, but also can reduce the filter caused by human factors board irregular arrangement.
6, The main material of frame is carbon steel:Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.
7, Filter plates do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.

8, Various kinds of filter cloth which suit for different kinds of material, improving the filtering accuracy.

Product datils



Technical Advantage

    1.Dazhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.

    2.The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide prodection welding.

    3.Dazhang self-developed filter press with the biggest filter area of 1000m2 goes well in Vietnam.

    4.The main beam of Dazhang filter press is designed by adopting welded box contruction, and manufactured by making use of submerged arc auto welding technology.

    5.The chain cover which is independently developed by Dazhang has the characteristic of high hardness and anti-corrosion.

    6.All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO epoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhestion. It can save hundreds tons of putty every year, thus not only reduce the cost, but also protect the enviroment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.

Packaging & Shipping

 Packaging Detail: Seaworthy packing

 Delivery Detail: 30 days from prepayment

Our Services

Pre-sale Serive

Our technical support team which have the professional knowledge level will help you to solve the problems that you meet in the using process of the solid-liquid equipments.

Services during the sale

In the process of the clients buying the products, we will provide clients the satisfactory and considerate service through a series of rigorous service style. We respect clients and always devote ourselves to improving the total of clients: help clients to draft solving plans.

After-sales service

Dazhang Filter Equipment Co., Ltd insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. Our mission is woking through professional consulation, exquisite thchnical support and standard solution in order to constantly meet your neds, and finally achieve satisfactory results.

Technological support

Dazhang Group has been largely adopting new technologies, new techniques and high-tech equipments. And Dazhang Group also has strict and effective quality control system. We have obtained Iso9001 quality system certificate.

Dazhang Filter Equipment Co., Ltd insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.

Certifications

Company Information

    Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment. Our products mainly include more than 6series related hundreds of good sellers,such as Automatic Membrane Filter Presses, Automatic Chamber/Racessed Filter Presses, Hydraulic/Mechanical/Manual Filter Presses, Special Filter Presses, Filter Plates(including CGR Gasketed Filte Plates),Belt Filter Presses, Bag Filters ect. In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.

    Our products find their extensive applications in the fields of petroleum, chemical, pharmacy, sugar refinery, food stuff, coal washing, oiling, printing and dyeing, ceramaic, mining and metallurgy, sewage disposal and so on. With good quality, our products are not only widely welcome in China, but also successfully exported to many countries,such as America, the EU, Russia, Australia etc. Many of our customers are lieted on Fortune Global 500 Companies.



FAQ



1). Are you filter press manufuacturer?

    Yes, we are the company whichis the joint of trade and industry, and we can also provide sample test,

equipment manufacture,after-sale serviece,etc.

2). Which country have your products been exported?

    Many country, such as Australia, EU, America and so on. And our company has agencies in Vietnam.

3). What industry application of this product?

    Many industries, such as chemical, food, medicine, sludge treatment and so on.

4). How many about your MOQ?

    1 Set.

5). What is the voltage/phase for this machine ?

    220V 50Hz 3Phs, 380V 50Hz 3Phs and 415V 50Hz 3Phs,also can made as the clients need.

6). What is the Mode of transportation ?

    LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air

7). How long can we get the goods?

    we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport.

8). What about Payment term?

    T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax,

 the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc.
