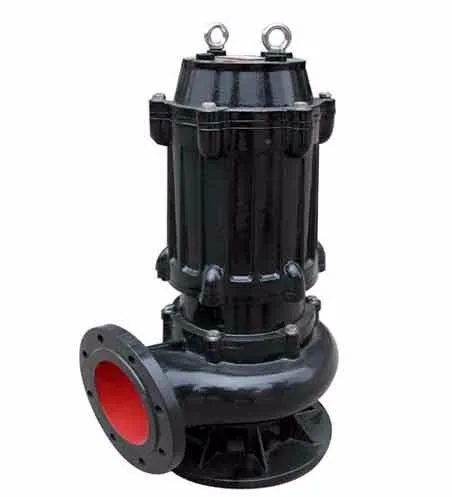

High Pressure High-lift Submersible Electric Water Pump 200 psi

FOB Reference Price:Get Latest Price
$204.00 - $5,779.00 / Sets | 1 Set/Sets High Pressure High-lift Submersible Electric Water Pump 200 psi (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MIMO
Model Number:
WQ
Structure:
Single-stage Pump
Usage:
Sewage, Water
Application:
Sewage
Power:
7.5-315kw, 10-420hp
Fuel:
e, Motor, Diesel, GasolinSolar, Turbine
Pressure:
High Pressure
Pump Head:
7-50m
Max. Pump Flow:
10-6000m3/h
Pump Driving type:
Motor, Diesel, Gasoline, Solar, Turbine
Pump Impeller No.:
Single-Stage Pump
Influent Type of Impeller:
Single Suction Pump
Position of Pump Shaft:
Vertical Pump
Pump Casing Combined:
Vertical joint Surface Pump
Pump Impeller:
Semi-Open
Transport Package:
Plywood Case
Specification:
ISO, SGS,CE
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
600 Set/Sets per Quarter High Pressure High-lift Submersible Electric Water Pump 200 psi
Packaging & Delivery
Packaging Details
Packaged by Sandwich Plate/ Ply Wooden Case/ Wooden Box/As customer required
Port
Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required
Lead Time :
Within 15 days after received payment
Video Description
Product Description

Product Introduction

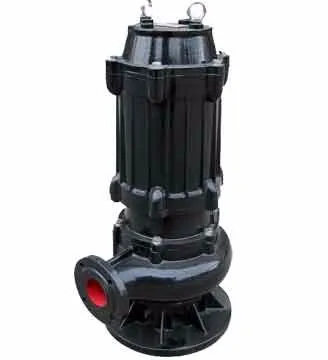

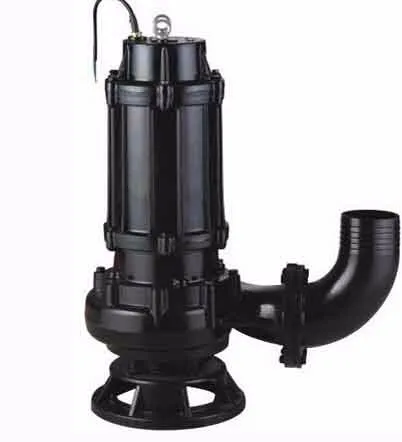

MIMO WQ Series submersible sewage pump is mainly used for municipal works, industrial buildings,hotels,hospitals,civil air defense,mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.

Type
Flow Rate
Head
Media
Application
Other characteristics
250WQ600-15-45
Min.: 480m3/h
Min: 13m

Sewage
Handing

Submersible Vertical
Max.: 750m3/h
Max: 17.5m

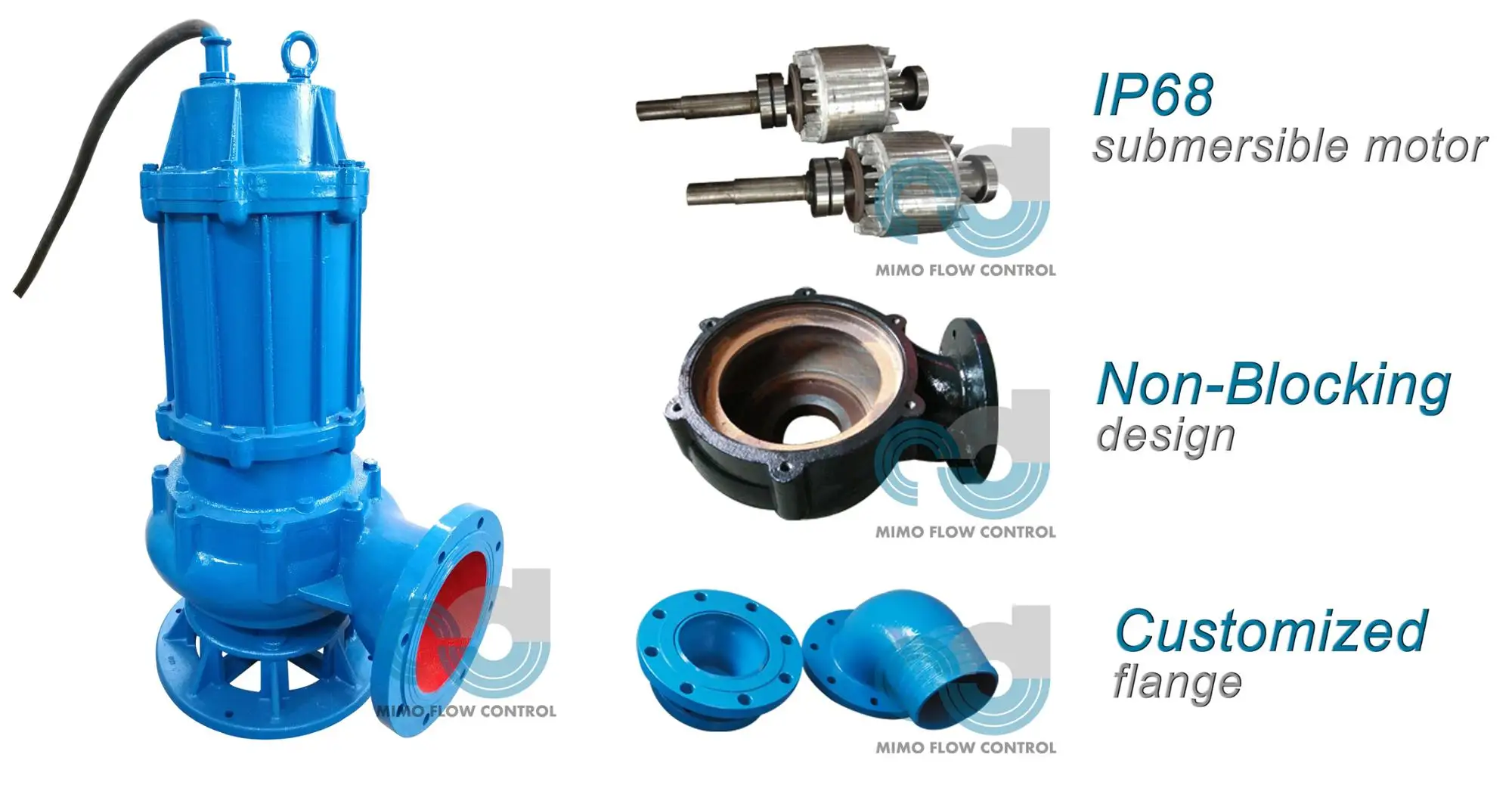

 WQ Submersible Sewage Pump Series

1.The wear parts are made of high-chrome alloy of abrasion resistance.
2.High efficiency and energy efficiency.
3.Light weight and long service life time.
4.Rational construction and reliable operation.
5.Lower noise and vibration of the pump translates into improved hydraulic efficiency.

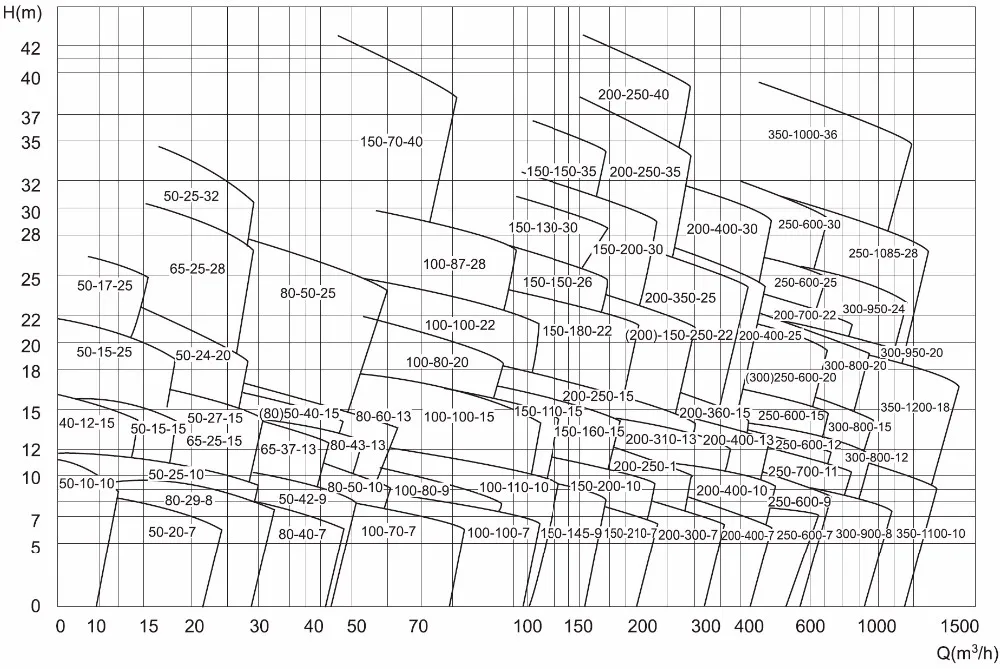

Specification
No.
Model
Outlet
Flow
Head
Power
Speed
mm
m3/h
m
kw
rpm
1
50WQ15-8-0.75
50
15
8
0.75
2860
2
65WQ30-10-2.2
65
30
10
2.2
2860
3
80WQ50-10-3
80
50
10
3
2860
4
100WQ80-10-4
100
80
10
4
2860
5
150WQ140-10-7.5
150
140
10
7.5
1450
6
200WQ300-7-11
200
300
7
11
1450
7
250WQ400-6-18.5
250
400
6
18.5
1450
8
300WQ800-35-132
300
800
35
132
980
9
350WQ1100-10-55
350
1100
10
55
980
10
400WQ1300-10-75
400
1300
10
75
980
11
500WQ2600-15-160
500
2600
15
160
980
12
600WQ3000-16-200
600
3000
16
200
980

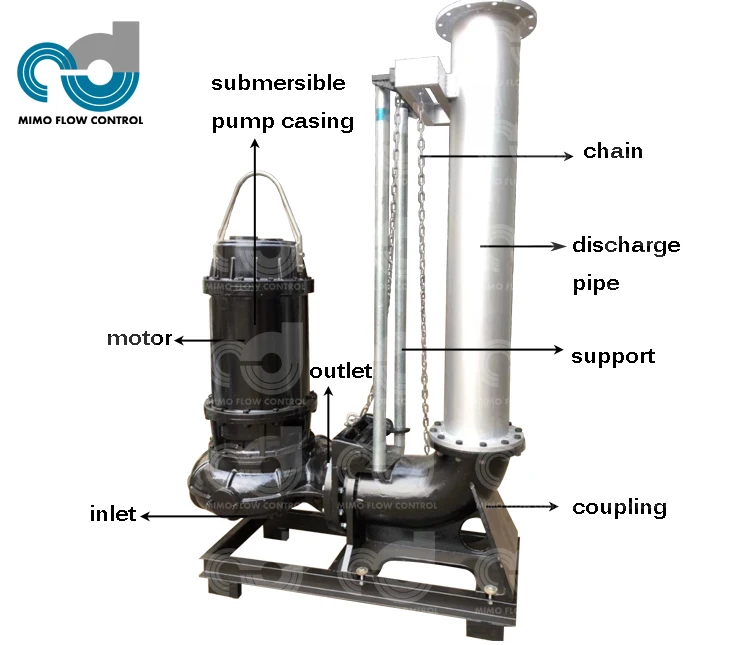

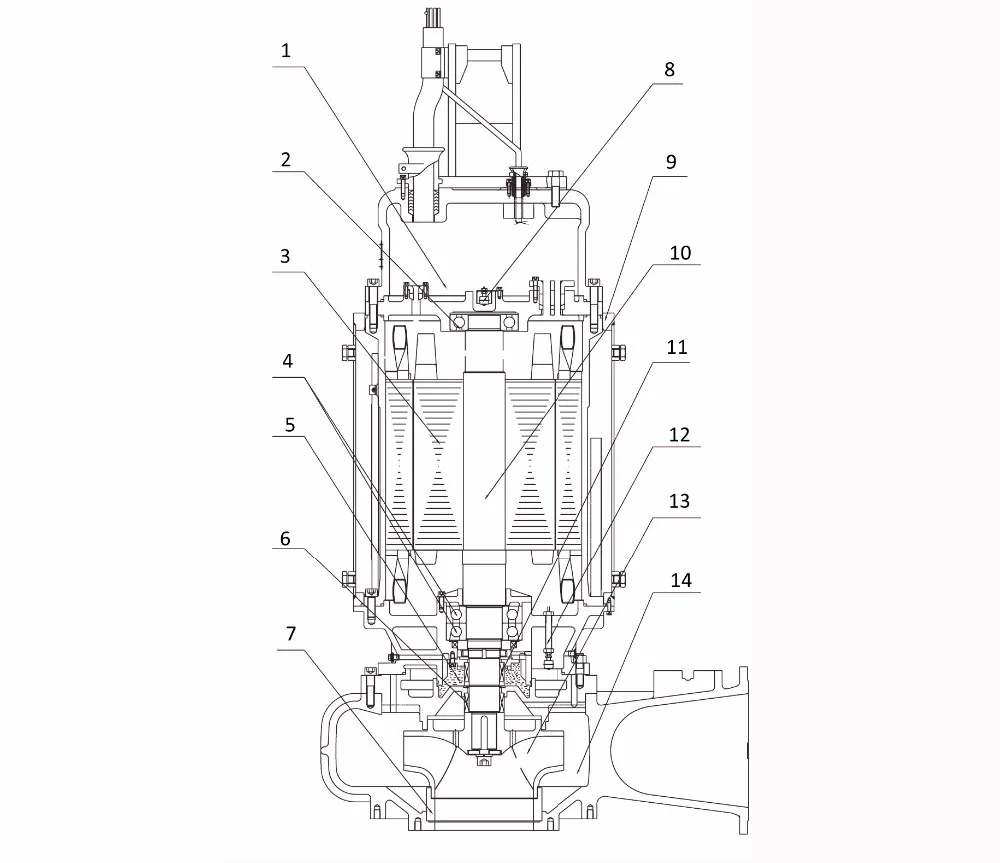

WQ Pump Structure
Part Description
Material Specification
Shaft
40Cr*
Wiring Rod
Cast Iron
Bearing
Cast Iron
Pump Casing
Cast Iron
Motor
Cast Iron
Oil House
Oil HouseCast Iron
Mechanical Seal
304Stainless Steel
Up Wet Sensor
Cast Iron
Applications

1.Waste water drainage in factories and industries.
2.Drainage system for municipal sewage plant
3.Waste water drainage in residential area.
4.Flood system drainage
5.Waste water drainage in hospitals and hotels
6.Municipal facilities and construction area
7.Exploration and mining equipment
8.Pump for biomass pool and agriculture irrigation
