High Pressure Steam Generator 500kg For Sauna

FOB Reference Price:Get Latest Price
$2,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
GLS LSS
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Structure:
Fire Tube
Pressure:
Low Pressure
Style:
Vertical
Fuel:
Oil-fired gas-fired
Place of Origin:
Henan, China
Brand Name:
Dakai
Output:
Steam
Dimension(L*W*H):
depends on boiler capacity
Weight:
depends on boiler capacity, 250-1150kg
Certification:
SGS ISO CE
Warranty:
2 years
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
High Pressure Steam Generator 500kg For Sauna
Design fuel:
natural gas, Liqufied,Diesel, City gas
Thermal efficiency:
101.3%
Color:
AS photo
Rated working pressure:
0.7Mpa(7bar) 0.8Mpa(8bar)
Burner brand:
Baltur&Riello from Italy;Hofamat&Weishaupt from Germany
Steam Capacity:
50kg 100kg 200kg 300kg 500kg
Keywords:
Steam generator
Steam temperature:
170℃,175℃
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Packing:
Standard Export Wooden Package
Port
Shanghai/Qingdao/Tianjin
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated

High Pressure Steam Generator 500kg For Sauna

Product Description

Steam Generator Introduction:

Product NameHigh Pressure Steam Generator 500kg For Sauna
TypeNatural Circulation
Capacity50kg/h 100kg/h 200kg/h 300kg/h  500kg/h 1ton/h 1.5ton/h 2ton/h steam generator
Water Capacity48.2L
StructureVertical
Pressure0.7Mpa (7bar) 0.8Mpa (8bar)
FuelNatural gas, Liqufied, Diesel, City gas
OutputSteam
Dimension(L*W*H)Depends on boiler capacity
Weight250kg-4000kg
After-sales Service ProvidedEngineers available to service machinery overseas
Boiler operation styleAutomatic
Steam temperature170℃,175℃
Application fieldWashing industry, Food Industry, Biological industry, Chemical Industry, Packaging Industry, Pharmaceutical industry etc.

Steam Generator Pictures:



Unique manufacturing technique and complete inspection process:
1.1.5 times' hydro test
2.Optimizing installation technique during 20 years' production
3.24 hours operation debugging of grate
4.60 lines inspection before delivery
5.Experienced welding construction team

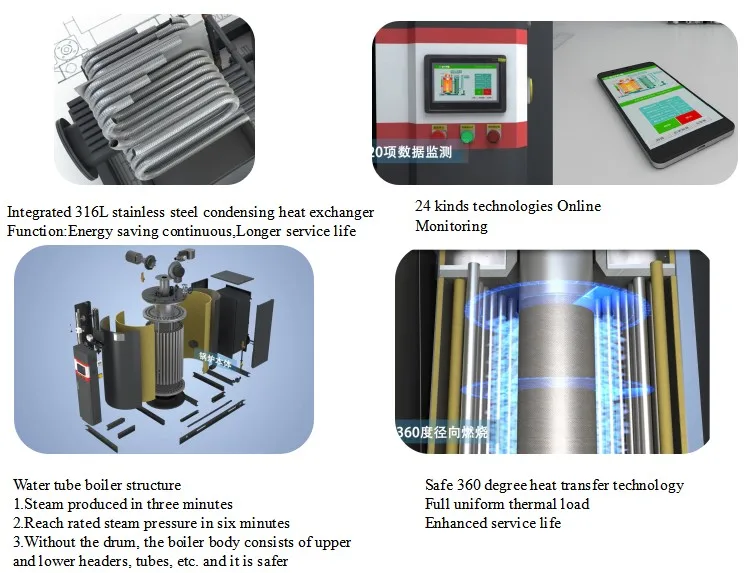

Unique technical expression:







Technical Parameters

Technical Parameters:

Fuel oil(gas)Steam Generator(0.3-0.5ton/h)
ModelLSS0.3-0.8-Y/QLSS0.5-0.8-Y/Q
Rated evaporation (Kg/h)300500
Rated pressure(Mpa)0.80.8
Saturated steam temperature(℃)175175
Water capacity(L)48.2048
Exhaust gas temperature(℃)135/66135/66
Thermal efficiency(%)Natural gas(%)100.01100.1
Liquefied gas(%)9898
Diesel(%)94.194.1
Fuel consumptionNatural gas(Nm3/h)21.235.3
Liquefied gas(kg/h)16.727.8
Diesel(kg/h)18.130.1
Steam production time(min)55
To the rated pressure time(min)1010
Diemension LxWxH(mm)Gas1770x830x22601860x950x2300
Diesel1600x830x22601650x950x2300
Weight(Kg)9501150
Water inlet caliber(mm)DN25DN32
Steam caliber(mm)DN25DN32
Drain outlet caliber(mm)DN40DN40
Chimney caliber(mm)Φ159Φ219
NO Emissions(mg/m3)<80<50



Boiler Accessories



Related Steam Boilers:



Customer case



Packing&shipping

Packing&shipping of the Boiler:
Boiler mian part and accessories all are packed by wooden case





About us

Henan Dakai Thermal Technology Co., Ltd. is an integrated thermal equipment supplier created by modern enterprise standards, processes, mechanisms. Its business includes:technology consult,system design,equipment sales and installation,after-sales maintenance.

We have mature matched ODM production base and OEM manufacture for stable systematic devices, so as to provide you with high quality equipment.

We have an experienced technical team,and the core technical staff has more than 20 years of design and operation experience, providing absolute professional technical support.

We possess the ability to research and develop technique independently,we have more than 20 technology patents at present.So we can guarantee your thermal system have a powerful technical advantage.

We own China's B class boiler installation qualification, with strict installation standards and responsible construction team,to create a standardized excellent project for you.

We not only provide superior equipment, but also focus on the technical matching of the entire heating system, to provide you with safe, intelligent, energy-saving, environmental friendly and stable operating system.



Our Service

1.We help to choose the suitable steam generator model according to the requirements of customer

2.Providing relative technical data, technical service and operation guidance for whole life long.

3.We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.

4.We will send engineers to your local project site to guide the installation and commissioning if

necessary,the buyer should take all the correlative charges (accommodation and food,round -trip tickets).

Application:





FAQ

Q1: How can you get the best price quickly?
(1)We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

 Q2: Why should you believe our boiler quality?

(1).Strength calculation report with applied materials information;

(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;

(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;

(4).Hydrostatic test: ensure the standard working pressure and safety;

(5).Passed SGS certificate.

 Q3: What about the installation and Commissioning?
 After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning. But the buyer will be in charge of fee corresponding.

 Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

  Q5:Whether the boiler can burn dual fuel or multi-fuel?
Dakai boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers’ requirement.
