Complies with EU standards
Attributes
CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
AC380V/50HZvoltage
4000weight (kg)
3 yearswarranty
range of spindle speed(r.p.m):6000 - 24000 rpm
positioning accuracy (mm):0.01
number of axes:5
No. of Spindles:ATC
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):9/13.5/17.5
brand name:BCAMCNC
dimension(l*w*h):3450*2310*2180mm
key selling points:Competitive Price
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Engine, Gear, Pressure Vessel, PLC, Gearbox
Accessory Type:Dust collection, Scanner

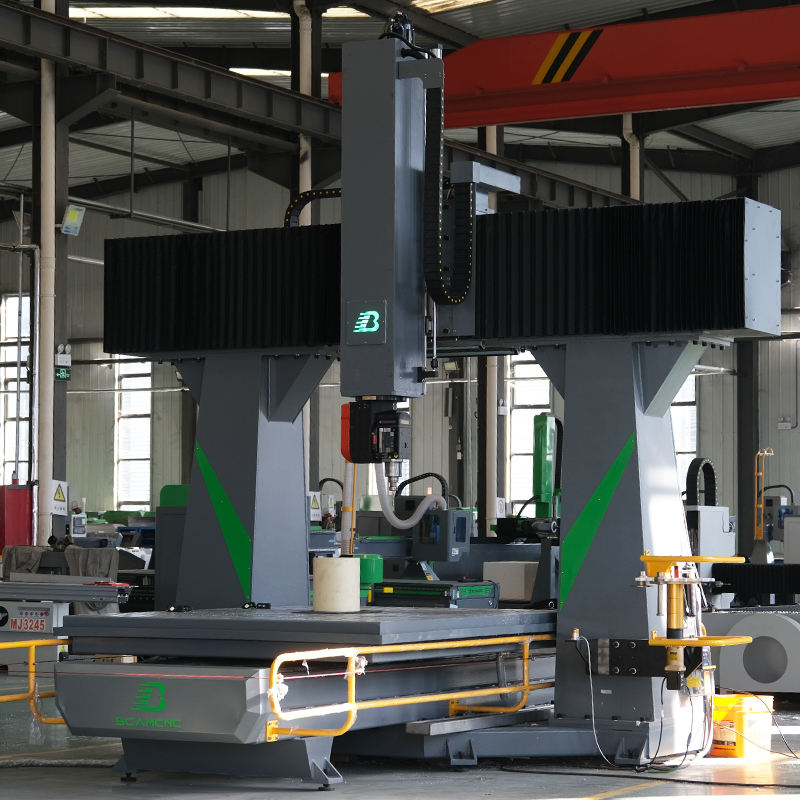

Product name:5 Axis cnc router machine
Application:FOAM MDF WOOD ACRYLIC ALUMINUM
Keywords:3d Wood Cutting Cnc Machine
Function:Wood Acylic Plywood MDF Engraving
Drive Motors:Japanese Yaskawa servo motor and drivers

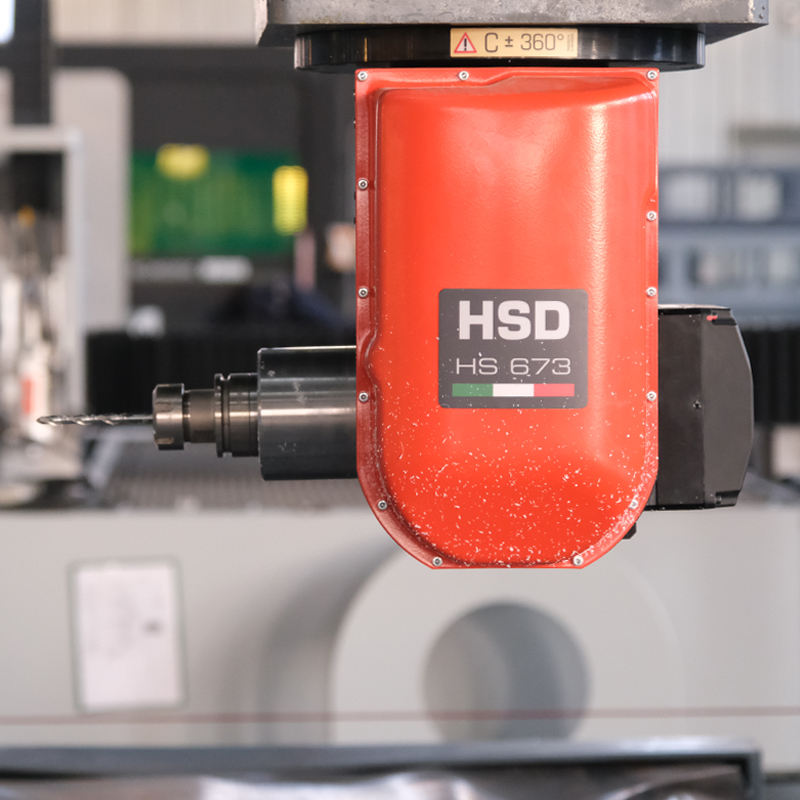

Spindle Power:13.5kw Italy HITECO air cooling spindle

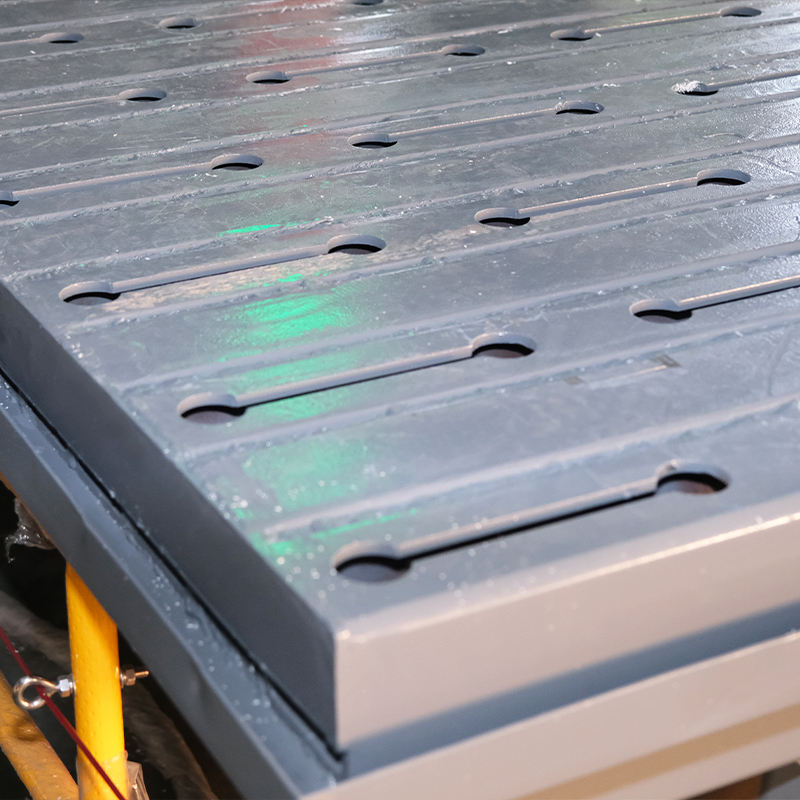

Table Surface:Vacuum table + T-solt table
Command Language:G Code

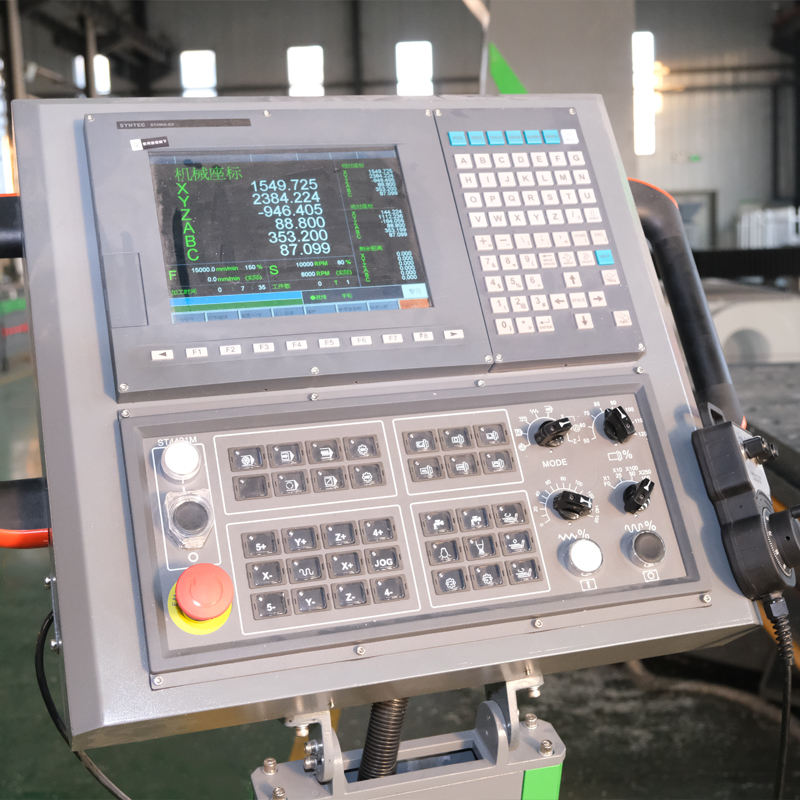

Operating System:Taiwan Syntec 6MB control system
Control system:Syntec
Selling Units:Single item
Single package size:400X220X210 cm
Single gross weight:2000.000 kg
