High Quality Coils , Windings Using Enameled Copper Round Wire

FOB Reference Price:Get Latest Price
$9.00 - $13.20 / Kilogram | 5 Kilogram/Kilograms (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Kilograms) 1 - 50 51 - 500 >500
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 10000 Kilograms)
Customized packaging (Min. Order: 100000 Kilograms)

More

Graphic customization (Min. Order: 10000 Kilograms) Less
Samples:
$50.00 /Kilogram | 1 Kilogram (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China
Brand Name:
Rvyuan
Model Number:
UEW
Type:
Insulated
Application:
motor,lgnition coils,relays,transforemers
Conductor Material:
Copper
Conductor Type:
Solid
Insulation Material:
Enameled
Product name:
Enameled Round Copper Wire
Diameter:
0.012-4.5MM
Material:
High purity copper
Color:
Reddish Brown/Red/Black
Insulation:
Polyurethane
Certification:
ISO9001/ISO4001/UL/SGS
Standard:
IEC,NEMA,JIS
Thermal Class:
155/180/200/220
Package:
bubble bag with carton
Pin hole:
0
Product Certification certification
UL Certified.
Supply Ability
Supply Ability:
10000000 Kilogram/Kilograms per Month
Packaging & Delivery
Packaging Details
Inner packing: winding wire with plastic spools (PT2-PT200) according to different diameters
Outer packing: Wooden pallet and wooden case or according to customers' special requirement.
Port
Tianjin/Shanghai/Ningbo/Qingdao/Guangzhou/Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Kilograms) 1 - 50 51 - 500 >500
Est. Time(days) 7 15 To be negotiated
High Quality Coils , Windings Using Enameled Copper Round Wire
Product Display
Enameled copper wire is a copper coated with a very thin layer of insulation.
It is used in the construction of transformers,inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.Super Enameled Copper Wire, for Motor Winding. This Super Enamelled Copper Wire is suitable for use in crafts or for electrical grounding. This single-strand wire is annealed for improved ductility.

The diameter of a ultra-fine wire is only 1/8 that of a human hair.
Features:
1.Solid enough, the wire is not easy to be broken
2.Insulation thickness can be customized
3.Wire can reach almost 0 pinhole
4.High consistency
5.The wire is even and tidy, which is convenient for users to wind
6. Low temperature soldering
7. Bonding method options: Hot
air,Solvent and others

Applications

Speaker coils;Watch coil;Coreless vibration;motor;Inductor;Mic coil,etc.


Specification
Conductor
Diameter
Overall diameter(mm)
Conductor Resistance
(20℃ Ω/m)
Elongation
(%)
Breakdown Voltage(V)
Grade 2
Grade 2
Upper limit
Lower limit
Lower limit
0,012
0,017
0,018
151,14
3
150
0,014
0,019
0,020
111,04
4
175
0,016
0,021
0,022
85,02
5
200
0,018
0,023
0,024
67,18
5
225
0,019
0,024
0,026
60,29
6
240
0,020
0,025
0,027
54,41
6
250
0,025
0,032
0,034
34,82
7
300
0,028
0,035
0,038
27,76
7
325
0,030
0,038
0,041
24,18
8
350
0,040
0,050
0,054
13,60
10
475
0,045
0,056
0,061
10,750
12
550
0,050
0,061
0,066
8,706
14
600
0,060
0,073
0,079
6,046
16
680
0,063
0,077
0,083
5,484
16
700
0,070
0,084
0,090
4,442
17
700
0,071
0,085
0,091
4,318
17
700
0,080
0,095
0,101
3,401
17
850
Certifications

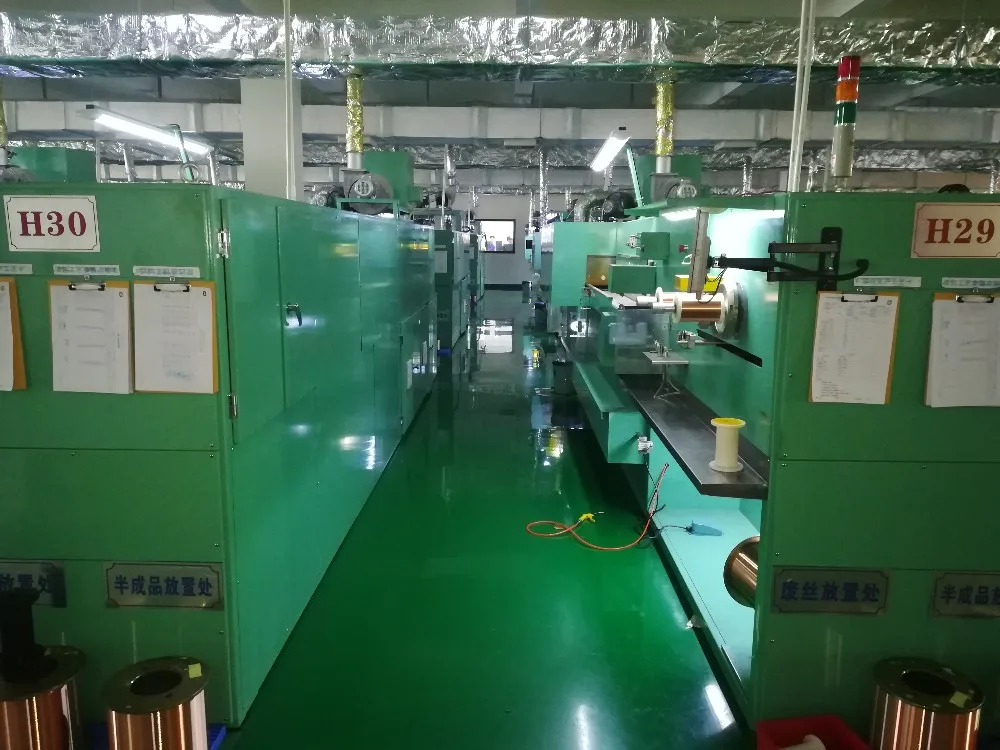

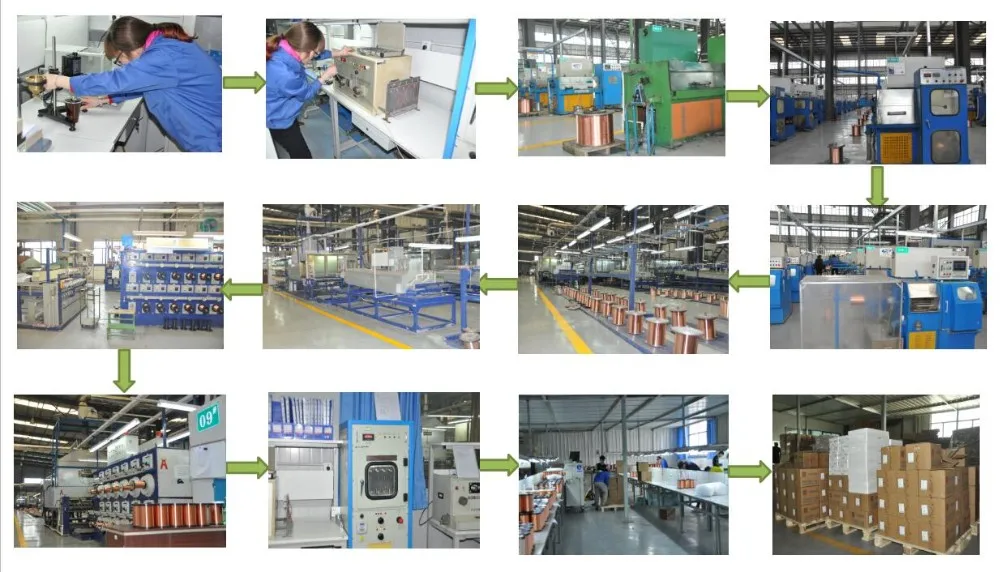

Production Flow

Enamel inspection - inspection of copper bar - middle wire drawing - fine wire drawing - Micro wire drawing - enameled copper wire production - Anneal - enamel coating - hang up - finished product inspection - Package-Storage

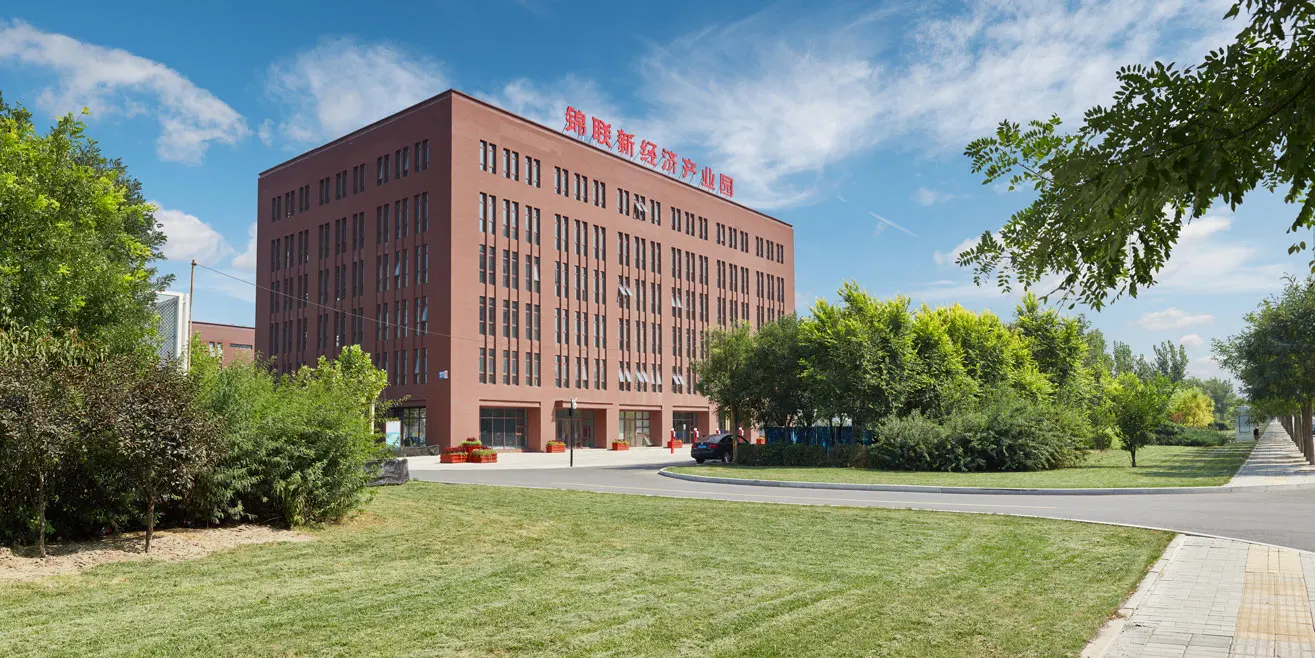

Factory Overview
Our Company
 COMPANY PROFILE
Tianjin Ruiyuan Electric Materials Co., Ltd. was established in 2002. For 17 years, we have focused on enameled round copper wire,three-layer insulated wire and enameled copper flat wire. We have clear advantages in enamel round copper wire sizes ranging from 0.012mm to 4.5mm. Ultra-thin copper wire 0.012-0.8mm F grade 0.35mm UL certified three-layer insulated copper wire.
All of our products are UL, RoSH certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.We are located in China's second largest port city. We work with internationally renowned courier companies.

We also have our own warehouse, and all warehouses can be delivered in time.
We look forward to being your most trusted partner.
Related Products
FAQ

1. Can I get sample for testing before bulk order?

Of course.Samples can be offered to you by free, but express costs should be undertaken by buyer.

2..What is your lead time?
Small sample order 3-5 working days; Large order should be within 15 working days after order confirmed.

3. What's your Guarantee?
Within 2 years, if any quality problem, the defect products will be all replaced at once.

4. How to purchase from us?
Offer Requirement for Inquiry →Producing Sample →Sample Confirmation → Quotation →PI → Confirm PI → Arrange Payment→ Manufacture → Shipping

5.How to Pay  with your visa&master card:

a. Please creat a personal buyer account before you buy from alibaba.

b.Write your email address, when place an order.

c. Go to your email and click the link, "send initial payment/pay balance" or "go to pay"
d. Then choose "+Add a new card to pay in USD($)"

e. Fill in the bank card information, "Confirm and Pay", that charge from your card derectely, place an order successful
6. What's your trade term?
EXW,CPT FOB CIF DDU DDP are all accep
table.
7. Can I order with my logo printing, size and shape?
Sure, but MOQ should be negotiated.
8.What's your payment term?
T/T, D/P, D/A, L/C, PayPal.

9. What's your express service?

Fedex, DHL,TNT,UPS with great discount up to 80%.
