High Quality Good price 4.3-10 mini Din Male Female Coax Connector

FOB Reference Price:Get Latest Price
$0.70 - $0.89 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 200 >200
Est. Time(days) 20 Negotiable
Customization:
Low PIM Solution (Min. Order: 1 Pieces)
Customized Cable assemblies (Min. Order: 10 Pieces)

More

Customize design (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Raynool
Model Number:
4.3-10
Type:
4.3-10
Application:
RF
Gender:
Male
Center Contact Plating:
Silver
Body Contact Plating:
White Bronze
Frequency Range:
DC-6GHZ
VSWR:
≤1.15
Insertion Loss:
≤0.05
Insulation Resistance:
≥10000MΩ
Proof Voltage:
2500V
Temperature Range:
-55℃ to +155℃
Impedance:
50 ohm
Supply Ability
Supply Ability:
15000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
High Quality Good price 4.3-10 mini Din Male Female Coax Connector
Port
Shengzhen,Shanghai. China
Lead Time :
Quantity(Pieces) 1 - 200 >200
Est. Time(days) 20 To be negotiated

High Quality Good price 4.3-10 mini Din Male Female Coax Connector

Product Description

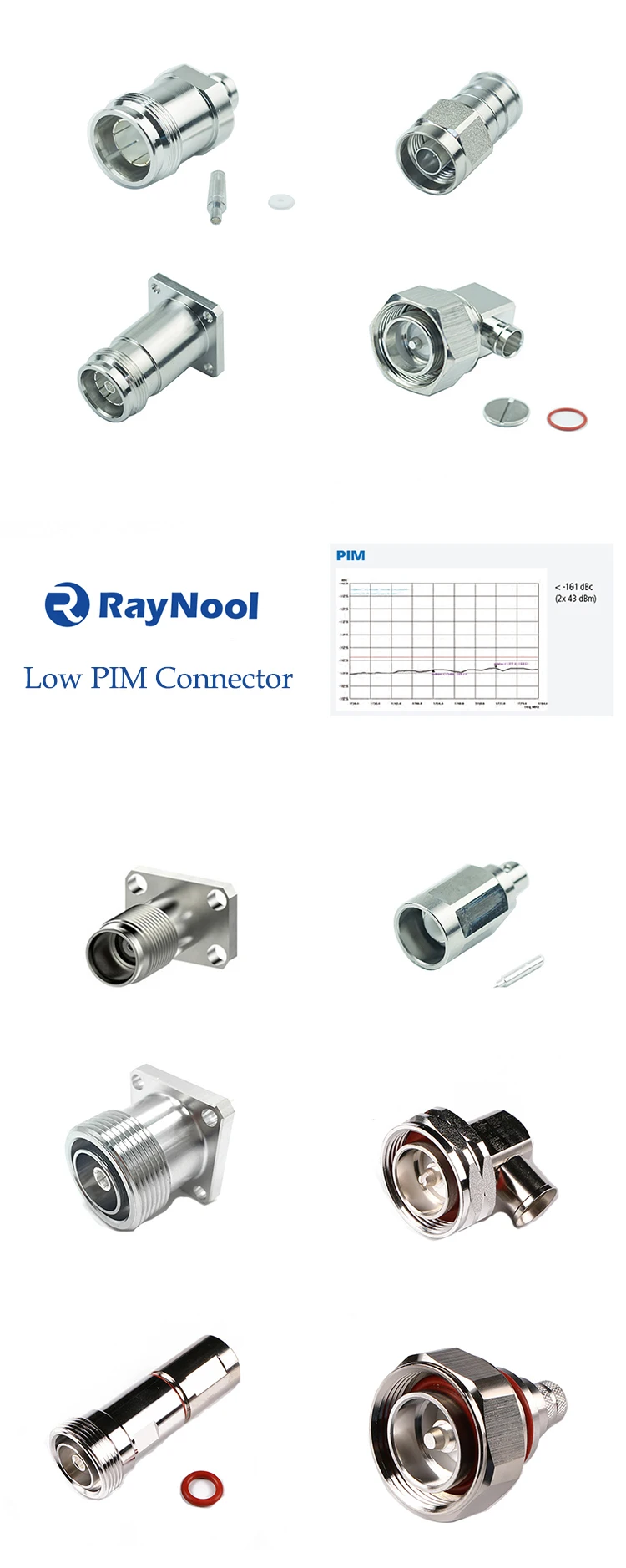

Low PIM Connector

The Low PIM connectors have a low PIM of < -160 dBc.

1 The designs incorporates lots of aspects and forces of contact assuring sufficient pressure for the prevention of PIM, including gold or silver-plated mid contacts while the connector bodies are white bronze or silver plated.

2 Manufacturing process is important, cold or cracked solder joints or poorly made mechanical contacts will cause PIM, these defeats may not appear at the beginning, but will have great risk in later application.

3 Keep clean of the connector, dirt, dust, moisture or oxidation in the surface or contact will cause PIM.

4 Pay more attention on installation. Inadequate torque, poor alignment or poorly prepared contact surfaces will cause PIM.



                                               Match Cable Type

                                              Application



Low PIM Connector refers to 7/16 or DIN Type, 4.3/10 or MINI DIN Type, N Type, NEX10 Type.



7/16 DIN Type is reliable and have good PIM performance, however, it is too large for the increasing RF connector density.



N Type is smaller but cannot match the PIM Performance of 7/16 DIN Type.



4.3/10 or MINI DIN Type is the front runner for the crown, its PIM Performance is similar to 7/16 DIN, while it is 37% smaller than 7/16 DIN Type.



NEX10 is the newest, release by HUBER+SUHNER, Radiall, Rosenberger, with JMA Wireless as the first additional supplier for NEX10.



In 4.3/10 Type Connector, 4.3/10 Male to 1/4''S, 4.3/10 Male to RG402, 4.3/10 Male to 1/4''S or SPP-250 is used widely in DAS and Small Cell.


Related Products

Company Information

Expert--Low PIM,Low Loss,High Frequency products



Raynool can provide practical guidance on the optimum combination of coaxial cable and connectors to meet specific electrical and mechanical requirements for a customer’s operating frequency band and temperature ranges.



Raynool technology Co.,ltd has Its own R&D team ,and focuses on manufacturing RF connector, Cable assemblies, high speed cable assembly, and accessories for Wireless Infrastructure.





Certifications

Certification



CPR Certificate

Our Services





FAQ

Q:Could you please advise reference list of customers?
A: We are an OEM manufacture of Amphenol & Rosenberger.

Q: Could you accept custom products?
A: Raynool is a custom solution provider,especially in Low PIM products,pls contact our sales and share the specification to us.

Q: What is your MOQ?
A: Our MOQ is normally 200 pcs.

Q: How about the Lead Time?
A: For connector,  the LT is 2 weeks.

    For Cable Assembly, the LT is 3 to 4 weeks.

    For Coaxial Cable ,the LT is 4 weeks.
