High Quality Small Milk Pasteurizer Milk Pasteurizer For Sale Batch Pasteurizer Milk

$2,300.00 - $43,000.00 / Set | 1 Set (Min. Order)
Model Number:
SJ-1 SJ-3 SJ-5 UHT-1 UHT-3 UHT-5 TG-UHT-1 TG-UHT-3 TG-UHT-5
Usage:
Milk
$2,700.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Restaurant, Home Use, Food Shop, Food & Beverage Shops
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Elite
Voltage:
110-380v
Power(W):
adjustable
Weight:
285kg
Dimension(L*W*H):
adjustable
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Product name:
Batch Pasteurizer Milk
Application:
Food Products
Sterilizing way:
Steam Heating
Heating way:
Electric Heating UHT
Function:
High Temperature High Pressure Sterilizing
Material:
Stainless Steel SUS304
Advantage:
High Efficiency
Working condition:
Safe
Control Mode:
Full-Auto
Keywords:
Milk Pasteurazation Machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
125X62X128 cm
Single gross weight:
300.0 kg
Package Type:
standard packing for export(wooden case or iron sheet) for High Quality Small Milk Pasteurizer Milk Pasteurizer For Sale Batch Pasteurizer Milk
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

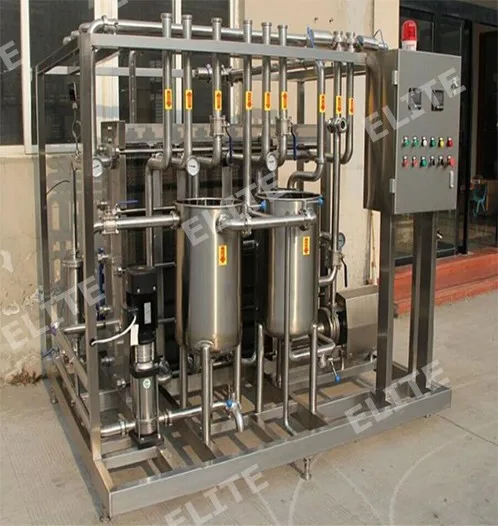

SJ,TG-UHT type sterilization it's mainly composed of steam system, material system, hot water system, cooling system, reflux system, CIP cleaning system and control system.
The materials are heated to 90-140 ℃ by pump input heat exchanger from the balance tank, then constant temperature at 95-98 ℃, and finally cooled to 35-85 ℃ for filling.The whole process takes place in a closed state.The system can be equipped with variable frequency control to adapt to different packaging speed, and can be used with the central CIP system.
The electrical control system of the equipment USES the whole process (from the cleaning of the equipment to the heat treatment of the material).The electric control cabinet is equipped with 10 "color touch screen, which monitors the work of the whole equipment.
The deviation will be issued and controlled and adjusted by the PLC control system to ensure the effective work of the equipment.

Technical parameters
Name Model
SJ
UHT
TG-UHT
Production capacity(T/H)
1-10
1-3
1-10
warm keeping time (s)
-
4-15
4-15
Material inlet temperature
5℃
Sterilizing temperature
65-138℃
Material outlet temperature
80-90℃
4-65℃
4-65℃
Steam cost
150-320KG/H
Compressed air pressure
>0.6Mpa
