High Quality Vortex Flow Meter Natural Gas Meter price

FOB Reference Price:Get Latest Price
$200.00 - $900.00 / Acres | 1 Acre/Acres (Min. Order)
Material:
SUS304
Accuracy:
±0.5%
Size:
45X30X30 cm
Customization:
Customized logo (Min. Order: 1 Acres)
Customized packaging (Min. Order: 1 Acres)

More

Graphic customization (Min. Order: 1 Acres) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
KAFLON
Model Number:
Vortex flow meter, VT
Type:
Coriolis meters, Rotary meters, Turbine meters, Orifice meters, Ultrasonic flow meters, Diaphragm/bellows meters, Pipeline / plug-in
Product Name:
Vortex flow meter
Size:
DN15-DN1500 mm
Power supply:
24VDC
Medium:
Gas / Vapour / liquid
Connection:
SUS304 flange
Working pressure:
1.6-6.4MPa
Liquid temperature:
<150℃ / <250℃ / <350℃
Explosion-proof degree:
Normal type / explosion-proof type
Supply Ability
Supply Ability:
20 Acre/Acres per Day To be negotiated
Packaging & Delivery
Packaging Details
Electromagnetic flow meter Plywood by KAFLON
Port
Shanghai, Ningbo
Product Description

Product Application

The flowmeter is designed based on the electromagnetic induction theory and Karman vortex theory. When a column object placed in flowing fluids in pipe, a series of vortices will be generated alternately on each side of the object as show as below, this eddies be known as Karman Vortices Street, the frequency of the vortex shedding is related to the velocity of the fluid and the width of the object .

Main Features

1.Two electricity supply channels: internal 3V -3.6V Li Battery or 24V DC external or use both channels at the same time;
2.All in one design with multi functionality, real time data appearance, very convenient for our customers, easy data adjustment;
3.Full scale of data output function: standard two-wire current output with 4-20mA, pulse output or RS-485 communication;
4.Well aseismatic and anti-jamming ability;
5.Stainless steel, anti-cauterization, no internal movable parts, long lasting using period;
6.Wide range and precise flow measurement.

Certifications
Product features
Measured medium
Gas
Vapour
Liquid
Medium temperature
<150℃
<250℃
<350℃
Working pressure
1.6; 2.2; 2.5; 4; 6.4Mpa
CL150,; CL300; CL400
10K; 20K; 30K
Process connection
Wafer connection
Carbon steel flange
SUS304 stainless steel flange
Thread connection
Tri-clamp connection
Fixed insertion
Adjustable insertion
Customization
Pressure and temperature compensation
Without compensation
With temperature compensation
With pressure compensation
With pressure and temperature compensation
Transmitter type
No local display, only frequency output
Standard type transmitter
Intelligent type transmitter
Explosion proof
Standard type(non explosion proof)
Explosion type
Local display
No local display, only signal output
LCD display
Power supply
24VDC
Battery supply
Two power supply(24VDC and battery supply)
Output signal 1
Frequency output; Pulse output; No output
Output signal 2
22-wire 4-20mA output; No output
Communication
No communication; RS485; RS232; HART
Detailed Images

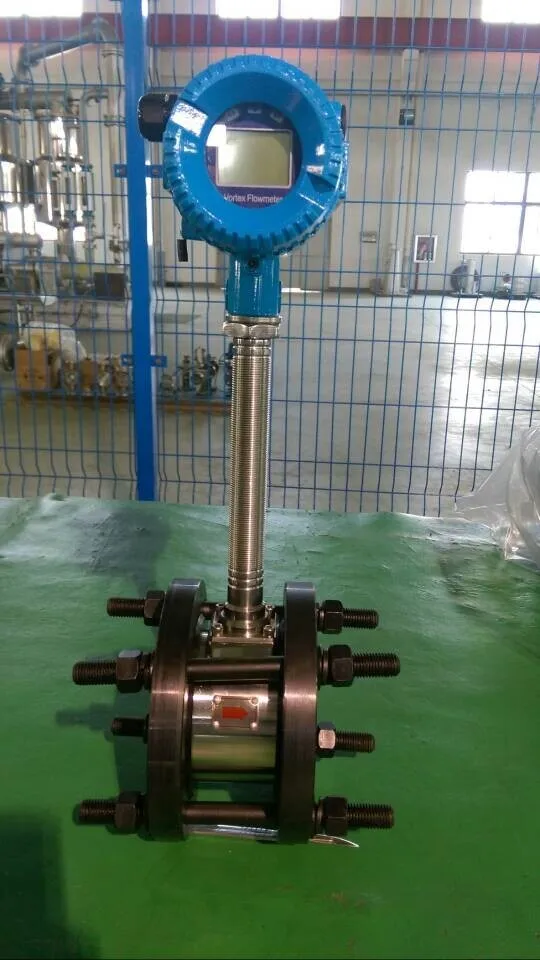

KFL-VT-X digital vortex flowmeter provide local display and setting, can display several variables on the local multi-funcational LCD display. The convertor also have 3 button so clients can do setting on it.



KFL-VT-X digital vortex flowmeter has a display to indicate "Frequency" "Flow rate" "Total flow". The KFL-VT-X multi-variable version or a standard KFL-VT-X working with RTD and pressure transmitter can also indicate other variables such as "Temperature" "Pressure" "Density" "Mass flow" etc. Please reference to picture below.



Our Service

Pre-Sales Service

* Inquiry and consulting support;
* Stock for urgent orders;
* View our Factory.

After-Sales Service

* Guiding how to install the flow meter;
* Technical support in using ;
* Re-calibration support.


Packing & Delivery
 Cardboard box or Plywood box
              Inner: Flow meter ---- PE bag ---- Foaming
DN10-DN65
43 x 26 x 28 CM (carboard box)
DN80-DN100
49 x 31 x 29 CM (carboard box)
DN125-DN150
55 x 38x 35 CM (carboard box)
DN200
61x 43 x 42 CM (carboard box)
DN250
67 x 48 x 49 CM (plywood box)
