High Quality overhead crane power rail conductor

FOB Reference Price:Get Latest Price
$1.69 - $3.56 / Meter | 5 Meter/Meters (Min. Order)
Lead Time:
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hubei, China
Brand Name:
MARCH
Model Number:
MCCBII-315A-AL
Brand:
MCCB II
Current range:
60A-400A
Color:
green or orange
Material:
Galvanized steel or copper
Standard length:
4.5 m
suitable:
ourdoor /sea /room
Type:
Power Distribution
Application:
Electric Power Transmission
Certificate:
CE
Warranty:
One year
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wooden case for High Quality overhead crane power rail conductor
Port
Shanghai
Lead Time :
Quantity(Meters) 1 - 10000 >10000
Est. Time(days) 15 To be negotiated

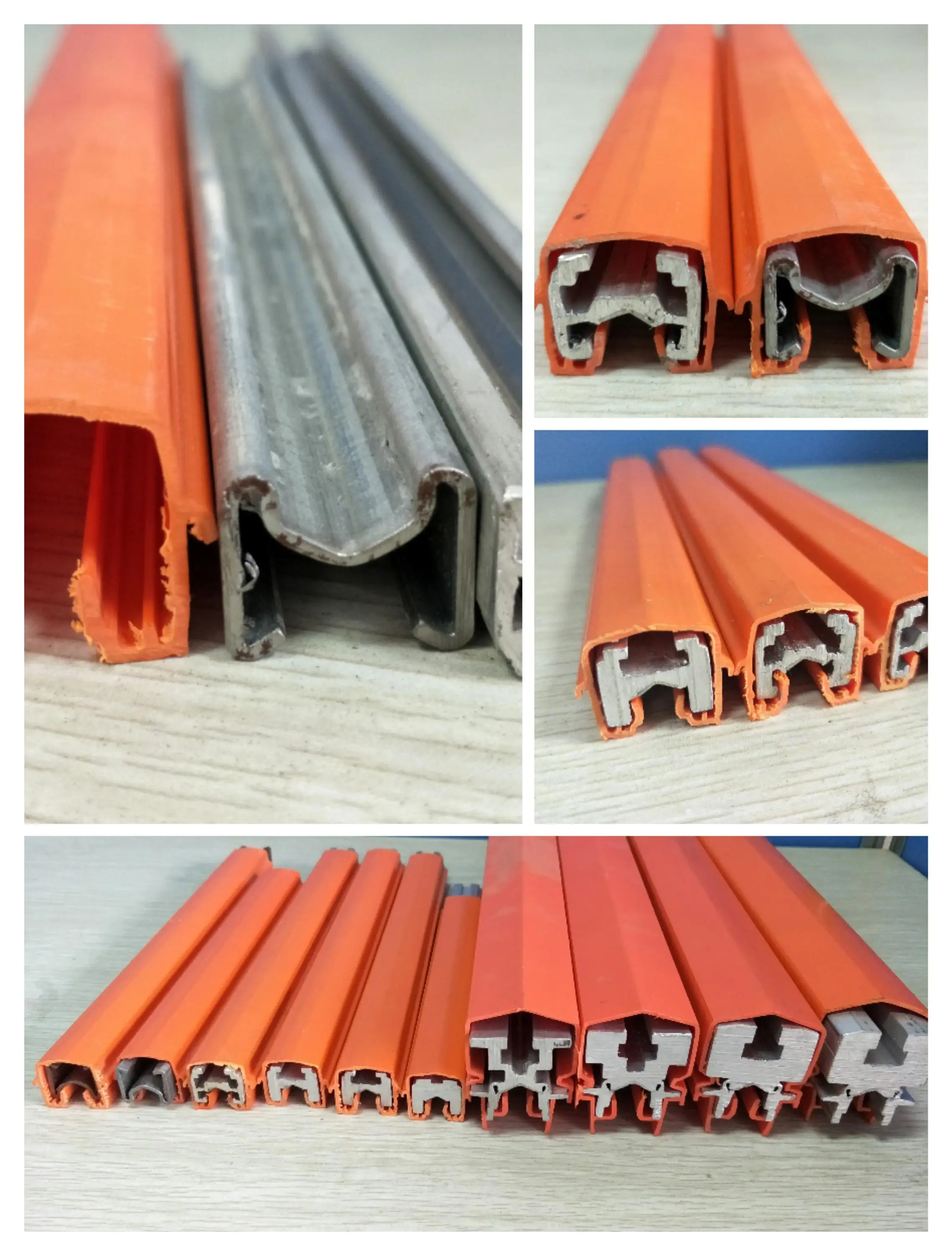

High Quality overhead crane power rail conductor

Type -Aluminum

Aluminum conductor busbar

ModelRated current (A)Section area (mm2)MAX Voltage      AC  (v)MAX Voltage  DC  (v)Full load permissible temperature (Degree)Weight (kg)
MCCBII-160A-AL160102550700251.98
MCCBII-200A-AL2001042.13
MCCBII-250A-AL2501102.19
MCCBII-315A-AL3151202.32
MCCBII-400A-AL4001572.81
MCCBII-500A-AL5001963.11



Stand Length : 4.5 m

Application environment : Suitable for the out door and sea , resistance to certain chemicals

Features:

1.Quick and Easy Assembly
2.Excellent Ellectrial Conductivity
3.CAD/CAM designed for Stable Quality




Applications:

1.Overhead Cranes,Monorails

2.Automated Storage and Retrieval Systems



Descriptions:

1.Expansion Sections not Required for Runs Less than 150m.

2.Minimum Bending Radius(Horizontal Only):1.5m.

3.Permissible Ambient Temperature:-34°C ~85°C(Standard Cover),-80°C ~125°C(Medium Heat Cover)


Current collector

50A-500A Insulated conductor busbar Current collector



Rated current (A)Head Vertical movement (mm)Horizontal movement (mm)Setting height (mm)Weight (kg)Shoe material
501---0.4Copper/Graphite
100 1+80/-20-63/+631020.8Copper/Graphite
2002+80/-2063/+631021.6Copper/Graphite
2501-50/+50-50/+502303.5Copper /Graphite
5002-50/+50-50/+502307Copper /Graphite



Contact area : 360mm2 &1088 mm2

Shoe Pressure :0.007 k/mm2

Allowed Wearing : 5mm & 8mm

Max Speed: 200 m/min

Spring Load Weight :2.5KG & 8KG















MCCBII Accessories



1. Expansion Sections

Rated Current (A)Material Weight(kg)Standard Length
60AGalvanized steel 3.224.5 M
100A3.48
125A4.37
160AAluminum &Stainless steel 3.19
200A3.30
250A3.49
315A3.61
400A3.69
500A4.01
160ACopper3.39
250A3.97
400A4.9

Application Environment :

The expansion sections are required to compensate for therma expansion

MCCBII System can run for 150m without an expansion section

2.Power feed

ItemWeight Parts No.
< 100A End Power Feed 0.04127105
<250A End power Feed 0.1826105
>250A End power Feed 0.2526106





3.Joints and Cover

Items Material Weight Parts No
JointsGalvanized steel 0.04928111
Copper 0.03128112
Aluminum 0.08228113
Joint Covers PVC 0.02826104



4. Hanger Clamps

ItemMaterial Largest Installation Distance Weight (kg)Parts NO.
Anchor ClampPVC 1.5 m0.0427104
1-Pole Hanger Clamp0.0328101
3-Pole Hanger Clamp0.0627103
4-Pole Hanger Clamp0.0727101
2-Bolt 4 pole Hanger 0.0827102




5. End Caps

Material Weight(kg)Parts No.
Steel 0.04228107
Copper 0.0428106
Aluminum 0.2228105
Transition Cover 0.1128104
