High Standard Metal Profile Step Grating Plank Steel Walkway Board Panel Making Roll Forming Machine Production Line Manufacture

Feedback Ratings
$65,000.00 / Set | 1 Set (Min. Order)
Model Number:
YD-WP-3003
Power(W):
15KW
$65,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
60 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
0.8m/min
Certification:
CE,ISO,SGS
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Condition:
New
Tile Type:
Steel
Use:
Wall
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YTSING
Voltage:
380V(as customer's request)
Dimension(L*W*H):
13m*0.9m*1.6m
Weight:
14500KG
Product name:
Walkway Board Panel Making Roll Forming Machine
Thickness of coil:
1.2-1.6mm
Shaft Diameter:
76mm
Control system:
Siemens PLC control with touch screen
Transducer:
Yaskawa
Encoder:
Koyo
Other components:
Schneider
Roller material:
GCr15,CNC machining,chromed
Cutting system:
Hydraulic cutting

Packaging & Delivery

Selling Units:
Single item
Single package size:
1300X90X160 cm
Single gross weight:
14500.0 kg
Package Type:
NAKE PACKAGE, 1X40 gp container
Lead Time :
Quantity(Set) 1 - 1 2 - 10 >10
Est. Time(days) 60 80 To be negotiated
Video Description
Our Company
Catalog Product
Product Description

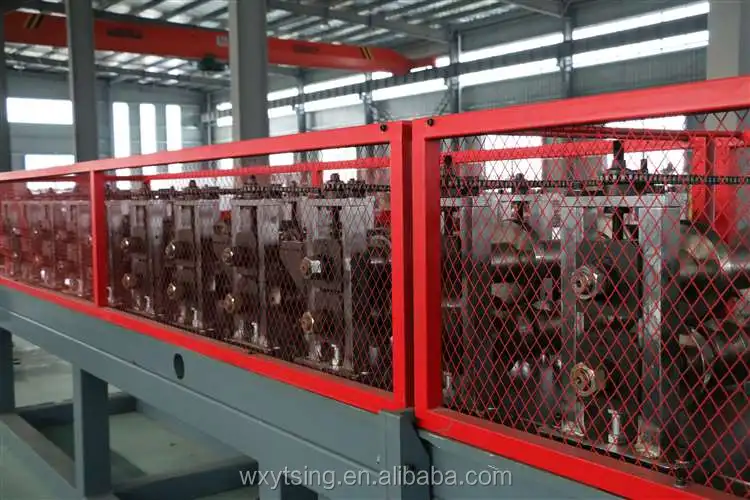

HIGH DUTY STRUCTURE


The sturcture we use for this machine has the higher duty mechanical behavior;


With protective net;

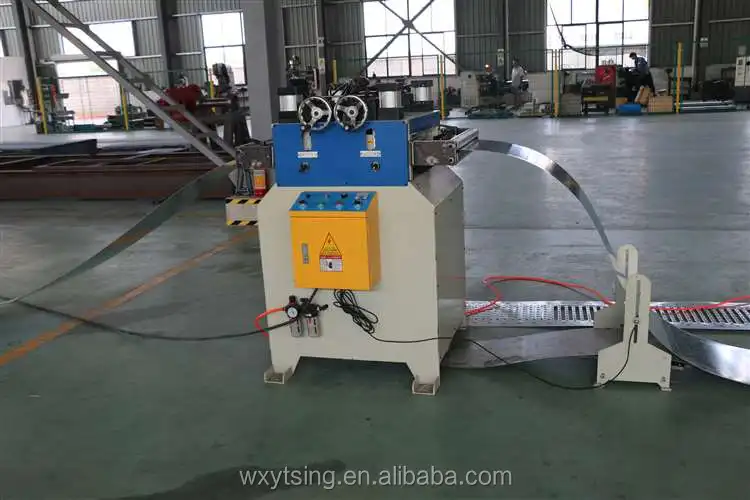

LEVELING MACHINE


To make the material level enough to the press machine;

Active type leveling, driving by motor

PRESS MACHINE


To punching holes according to the profile drawing;


Press machine capacity: 800 KN;

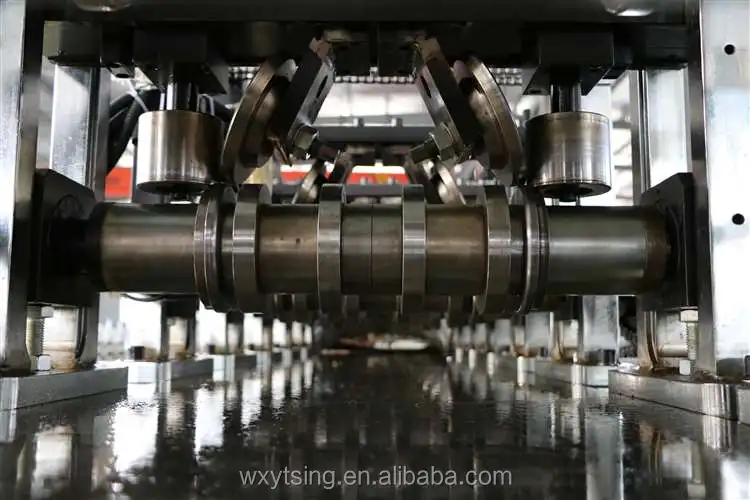

ROLLERS


The rollers processing by twice CNC machining and quenched, HRC 58-62;

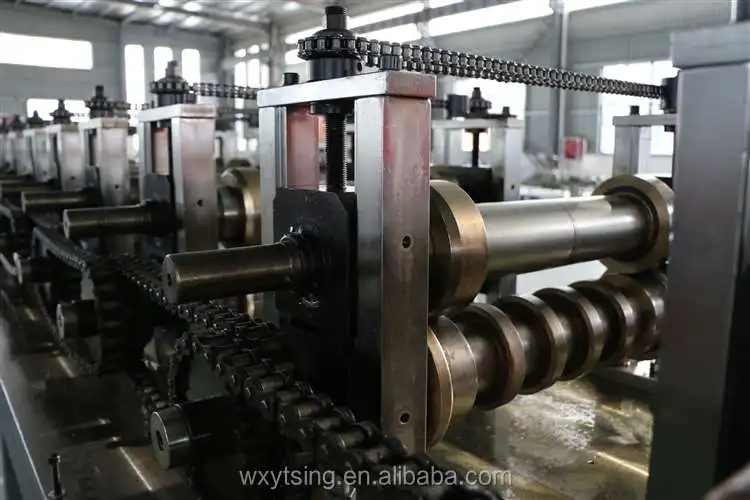

CHAIN DRIVING


Chain driving and adjusting;

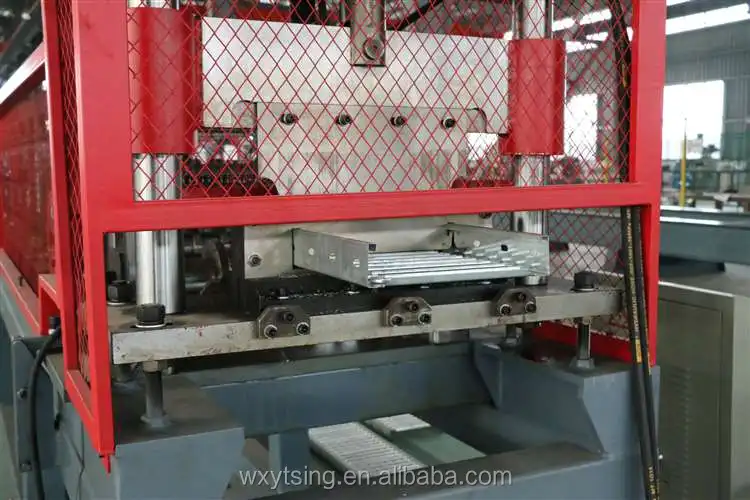

MOLD POST CUTTING


Cutting blade material: Cr15 Mov;




FAMOUS BRAND PLC


1. PLC controller -- Siemens


2. Transducer -- Yaskawa


3. Encoder -- KOYO


4. Other electronic component- Schneider

FINAL PRODUCT



Related Products


Punching hole box panel roll forming machine

Cable tray and cover cap roll forming machine


Electric wire box roll forming machine


Our Advantage

More than 10 year working life

Our machine can steady running at least 10 years.

Based on this situation, you could have stable productivity and avoid from fixing.

More individal service

If you have requrest of your using problem, like running space, operation program language. We can do better.

Better after-sale service

Life long response within 12 hours , while you have question of running machine,

Packing&Delivery
FAQ

1. Are you manufacturer or trading company?

We are manufacturer for 15 years


2. What is the delivery time?

For standard machine, delivery time is usually 60-70 working days.


3. What is your payment term?

30% TT deposit paid in advance, 70% balance paid before shipping.


4. How can I evaluate your company.

1-Please contact our sale service to answer all of the questions you have. By video chat you could check our workshop. And we are welcome you visit our factory for inspection anytime.

2-We have CE certificate, and our factory has been inspected by TÜV , SGS,  and Bureau Veritas. Please contact us to get the certificate document if you need.


5. How can I get to your factory.

We could pick you up in airport or high speed rail station. The nearest airport is NANJING international airport, and the nearest station is DANYANG station. The cities nearby also have driver to pick you up, please contact us.
