High Strength ASTM Ti Alloy Pipes Grade 5 Titanium Tube for Seawater oil drilling

FOB Reference Price:Get Latest Price
$25.70 - $42.00 / Kilogram | 10 Kilogram/Kilograms (Min. Order)
Samples:
$27.50 /Kilogram | 1 Kilogram (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Kilograms) 1 - 50 >50
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 50 Kilograms)
Customized packaging (Min. Order: 50 Kilograms)

More

Graphic customization (Min. Order: 50 Kilograms) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Changsheng
Model Number:
Titanium tube
Material:
Titanium Alloy
Outer Diameter:
15-300mm
Length:
3000mm
Standard:
ASTM B338
Application:
Oil Drilling. bike. car, auto
Technique:
Welded
Grade:
Gr5
Wall Thickness:
2.0-45mm
Inside Diameter:
Customized
Processing Service:
Bending, Welding, Cutting, Punching
Product Name:
Grade 5 titanium tube
Certificate:
SGS/ISO9001:2015
Surface:
Polishing or as your request
Processing:
Rolling/Welding
Shape:
Round Shape
Technical:
cold rolled
Supply Ability
Supply Ability:
50 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Seamless ASTM SB338 Grade 1 Grade 2 Titanium Tube Price
1. Package : Export standard wooden box
2. Delivery time : 7-15 days after receive your advance payment
Port
Tianjin / Beijing/Shanghai / Qingdao

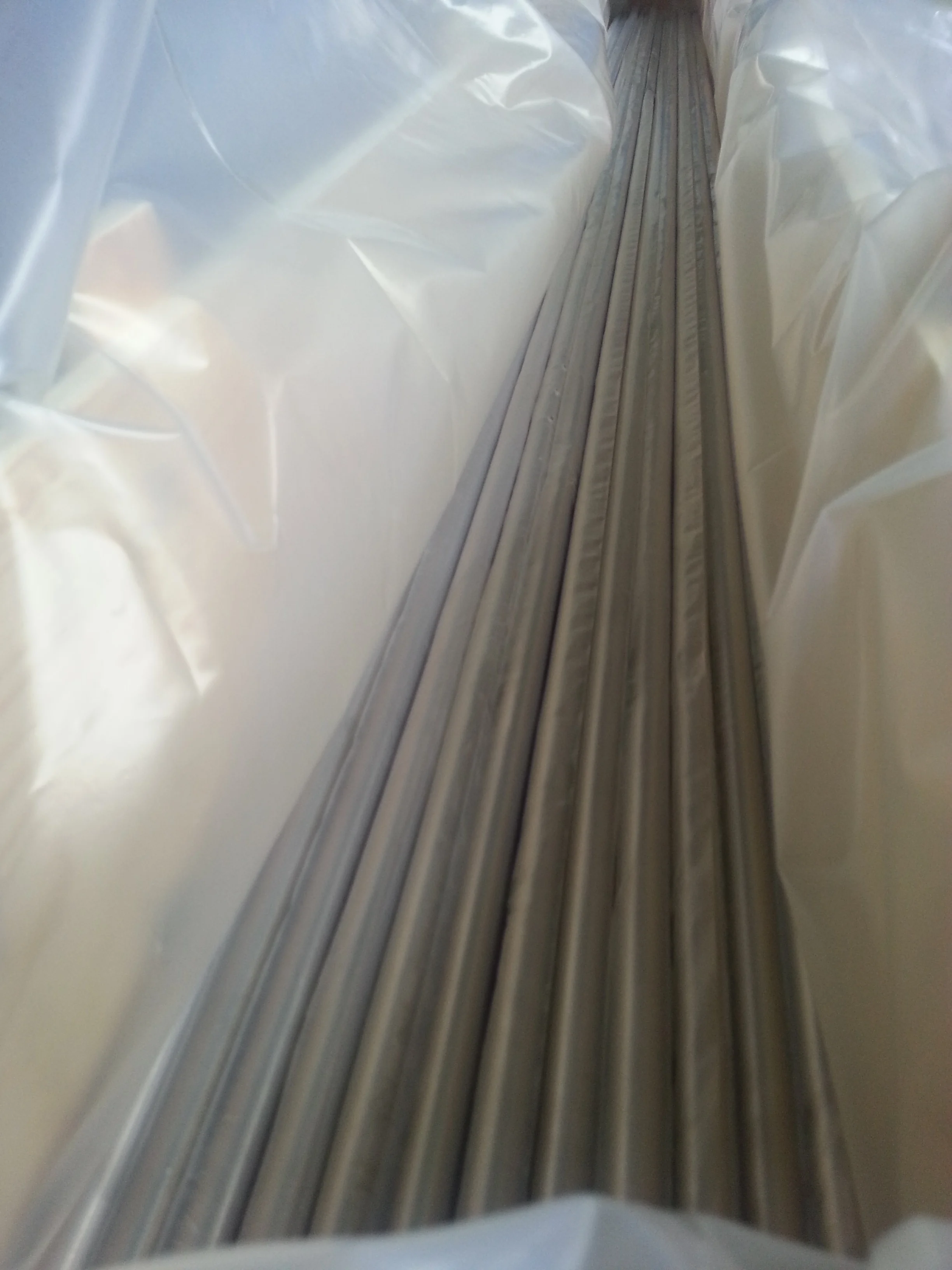

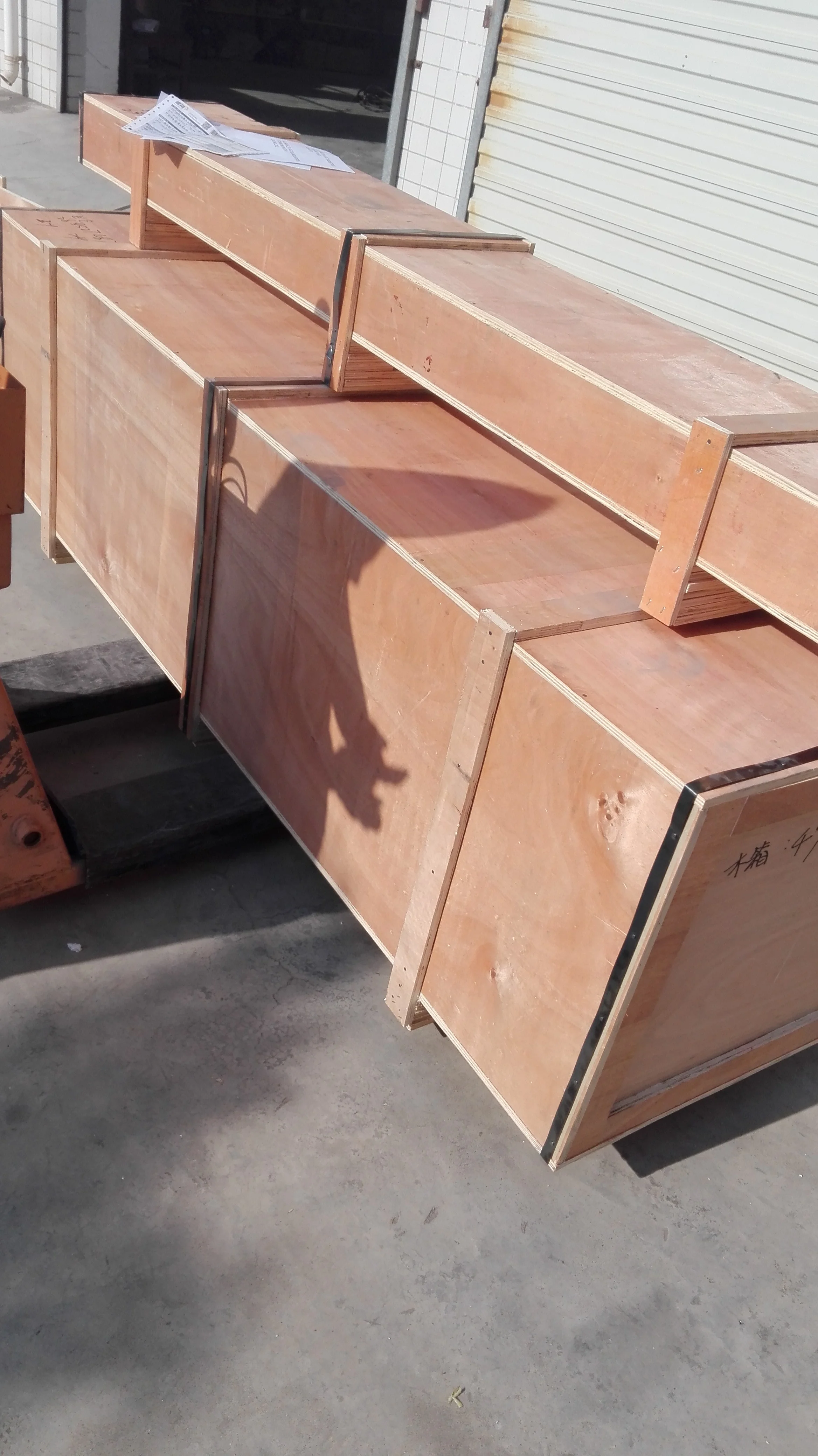

Picture Example:
package-img
Lead Time :
Quantity(Kilograms) 1 - 50 >50
Est. Time(days) 15 To be negotiated
Product Description

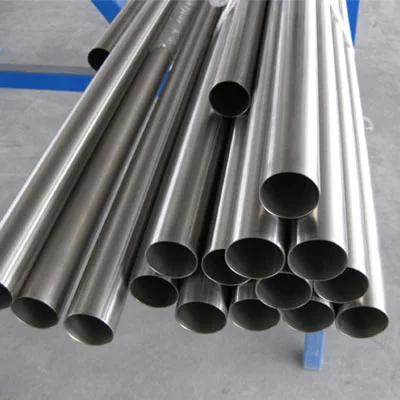

Grade 5 Titanium Tube

AVAILABLE SIZES Gr5, Gr23 titanium alloy seamless tube Outer diameter: 15~300mm Wall thickness: 3~45mm Length: ≤6000mm Manufacturing process: Drilling, Hot Rolling

--- Titanium Grade 5 ---
Titanium Grade 5 is the most commercially available of all titanium alloys. It offers an excellent combination of high strength and toughness. Grade 5 titanium has good welding and fabrication characteristics.
Chemical Analysis
Fabrication characteristics
C
.08 max

* High Strength Titanium
* Heat Treatable
* Good Ductility
* Good Fabricability
* Good Weldability
N
.05 max
O
.20 max
H
.0125 max
V
3.50- 4.50
Ti
5.50- 6.75
Fe
.25 max

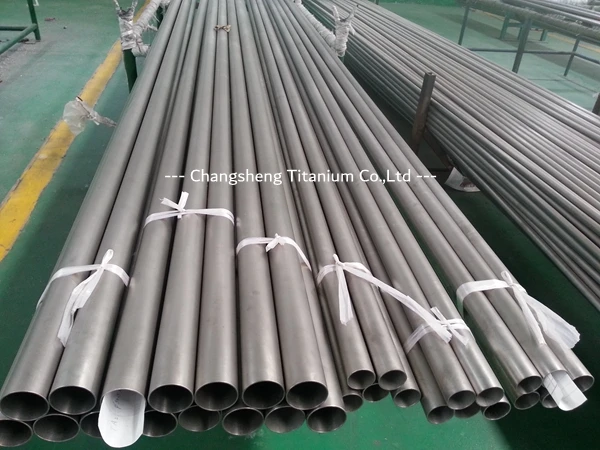

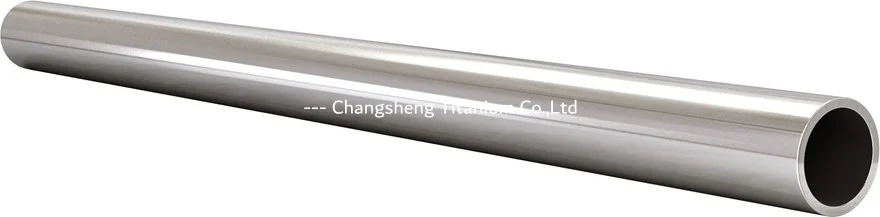

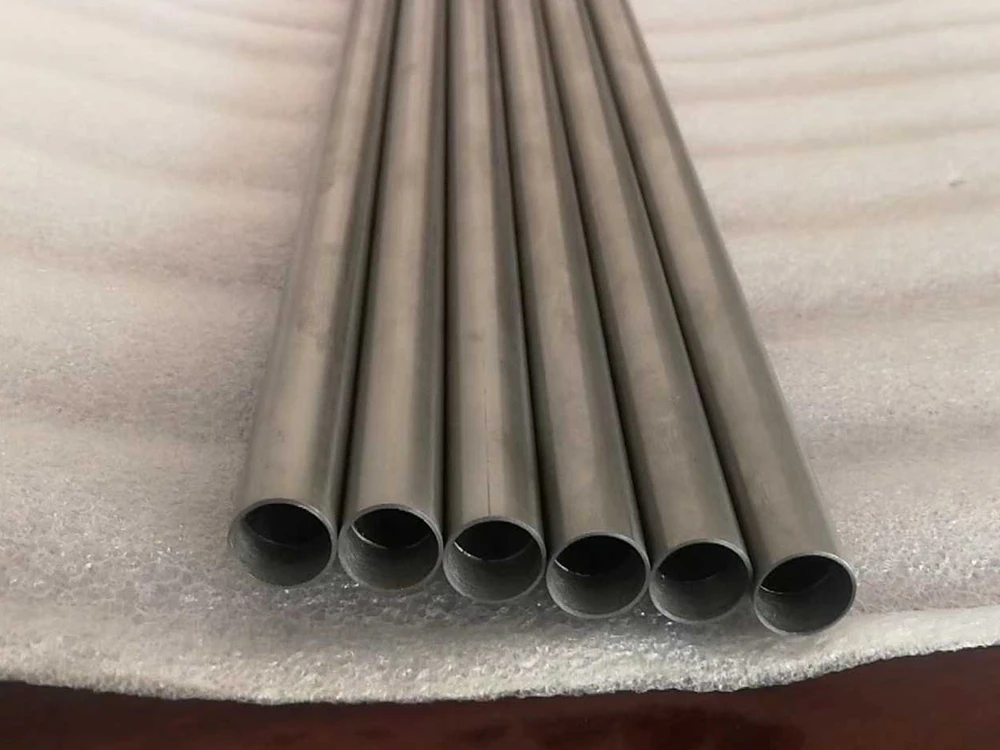

48*4mm Grade 5 titanium tube

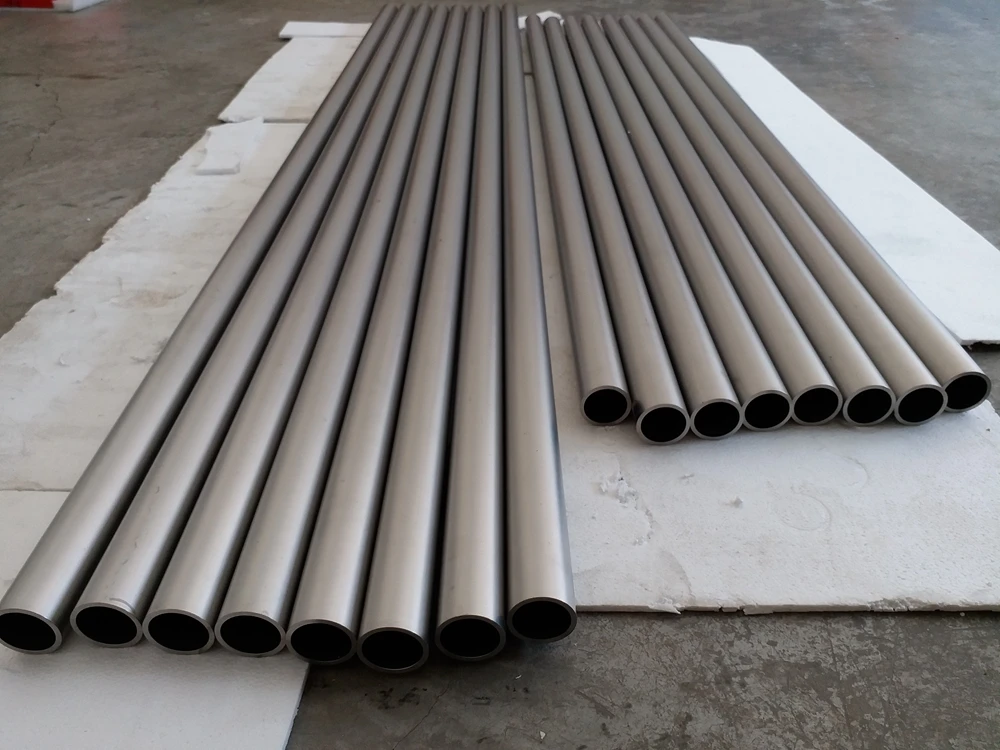

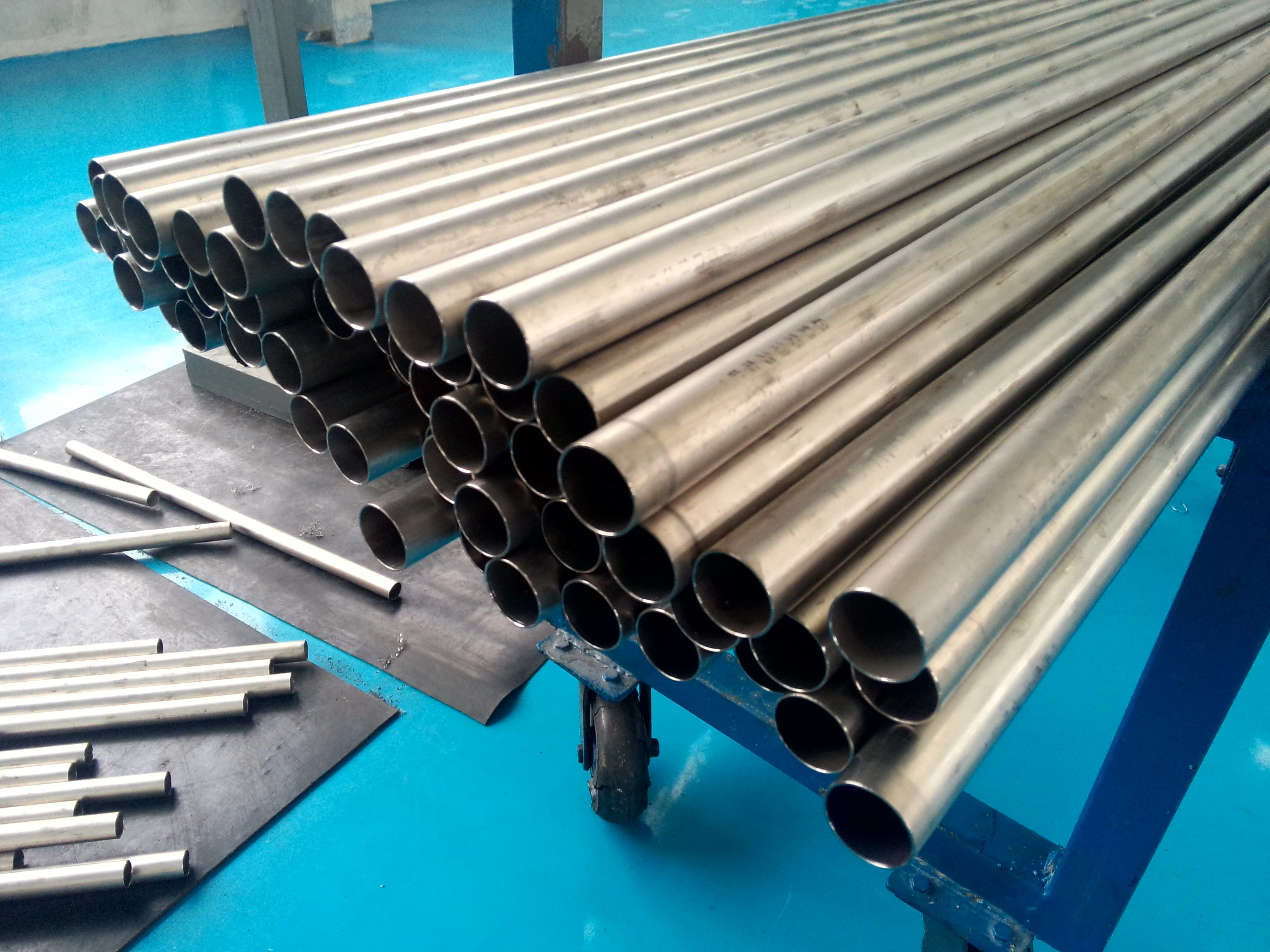

Titanium tube for oil drilling

--- Titanium Tube Parameter---

PROCESSING Cold rolling, Extruding, Welding, Hot Expanding
STANDARD ASME SB861, ASME SB338, ASME SB337, DIN 17861, AMS4943, AMS 4944, AMS 4945, etc. EXAMPLE APPLICATIONS Funny car body trees, golf clubs, heat exchangers, hydraulic lines, wheelchairs, chemical plants, oil and gas production, tennis rackets, lacrosse sticks, drive shaft tunnel supports, exhaust tubing, wheelie bars, suppressors, heat exchangers

---More Titanium Tube Supplied---

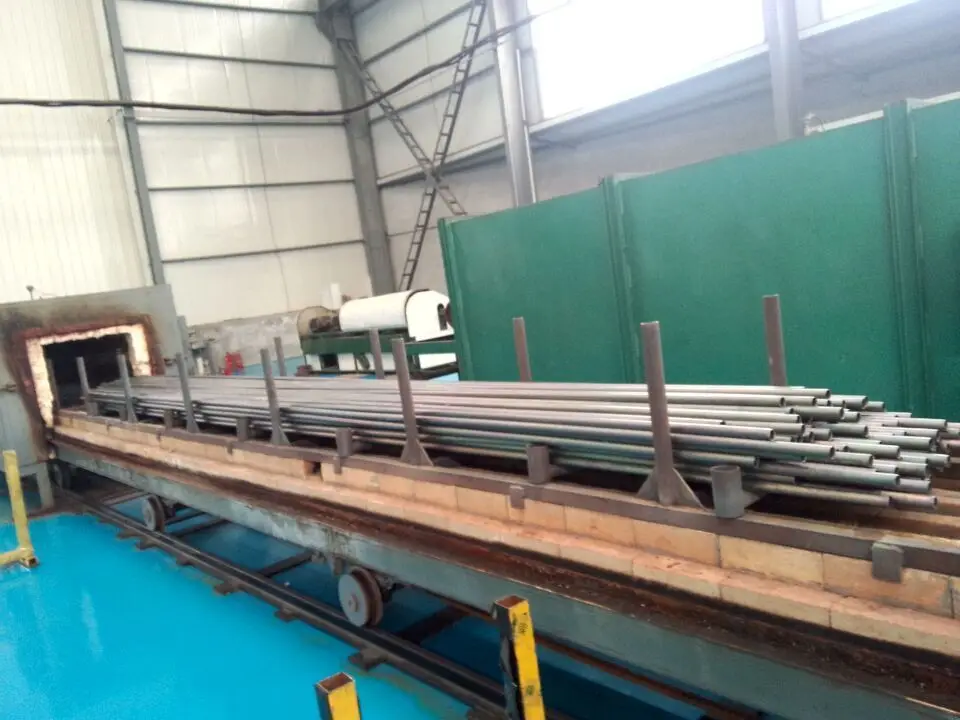

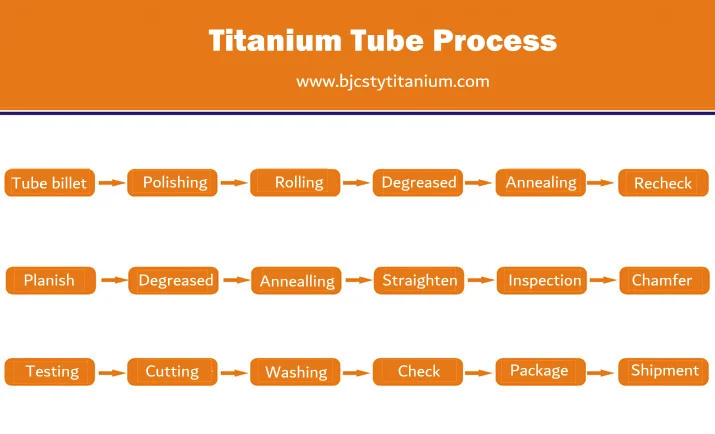

We provide seamless tube and welded tube, two kinds of titanium tube. Titanium seamless tube is processed by the breakdown of titanium ingot, extruding to titanium tube billet. Then produce titanium tubes to appropriate size with series of processes such as multiple rolling, annealing, pickling, and grinding technology. Titanium welded tube is by selecting a suitable thickness of the high quality cold rolled titanium plate, after the process of flattening, cutting and washing, then rolled up titanium plate into tubular, welding by the whole automatic welding equipment. Our advanced welding equipment guaranteed the quality of welding. Ultimately help to produce the excellent quality titanium tube. Titanium seamless tube Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16 etc Outer diameter: 3~110mm Wall thickness: 0.5~30mm Length: ≤19000mm Titanium weld tube Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16 etc Outer diameter: 10~1000mm Wall thickness: 0.5~20mm Length: ≤19000mm Application Shell and tube heat exchanger, condenser, evaporator, pipeline, etc Seawater desalination equipment Bike rack Marine pressure tube Oil drilling pressure tube Chemical composition

Compositon
CP grade1 can be used in the deep drawing parts for its good elogation and excellent corrossion-resistance. CP grade2 is widely used in the commercially pure Titanium.
CP grade3 is almost only used in the pressure vessel.  CP grade4 can be used in some fittings and fastening pieces,but for complete shape need 300 degree celsius to form  Alloy Gr5 ,Ti6AL4V, is one of the most popular Ti alloys because of itscomprehensive mechanical, physical and chemical properties.  Alloy Gr7, add little palladium in cp Titanium and it has the most excellent corrosion-resistence   Alloy Gr9, Ti3AL2.5v, is used mostly in the golf clubs and bicycle girders.  Alloy Gr11, it has the similar properties with the grade7.

Testing Chemical composition test Physical properties test Appearance defects inspection Flattening test Flaring test Hydrostatic test Air tightness test Ultrasonic flaw detection Eddy current testing
STANDARD
MECHANICAL PROPERTIES (min)
ASTM B363
Tensile
Yield
El.
Red.
Mpa
Mpa
%
%
GR 1
240
138
24
30
GR 2
345
275
20
30
GR5
895
828
10
10
GR 7
345
275
20
30
GR 12
483
345
18
25

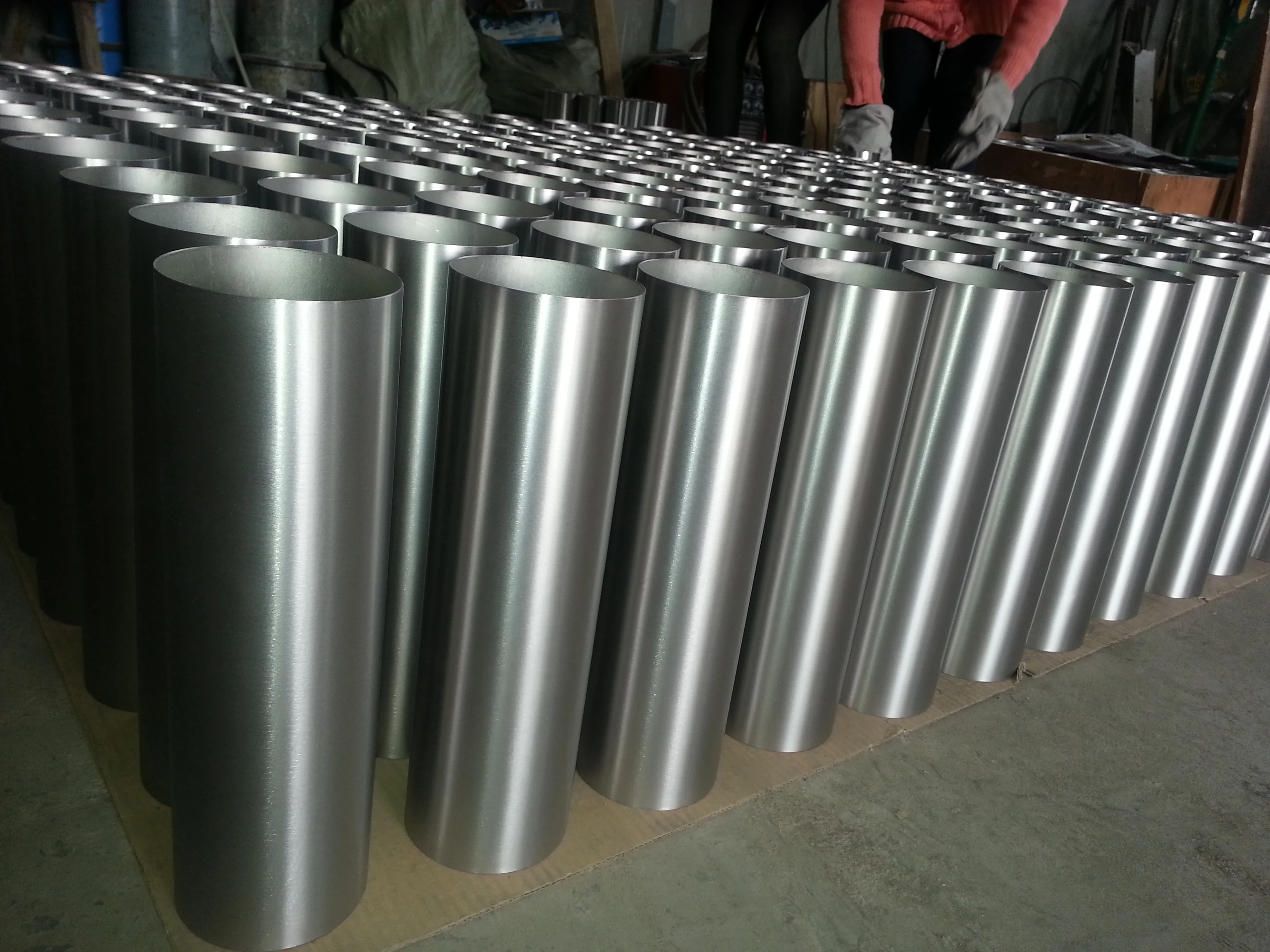

Products Show

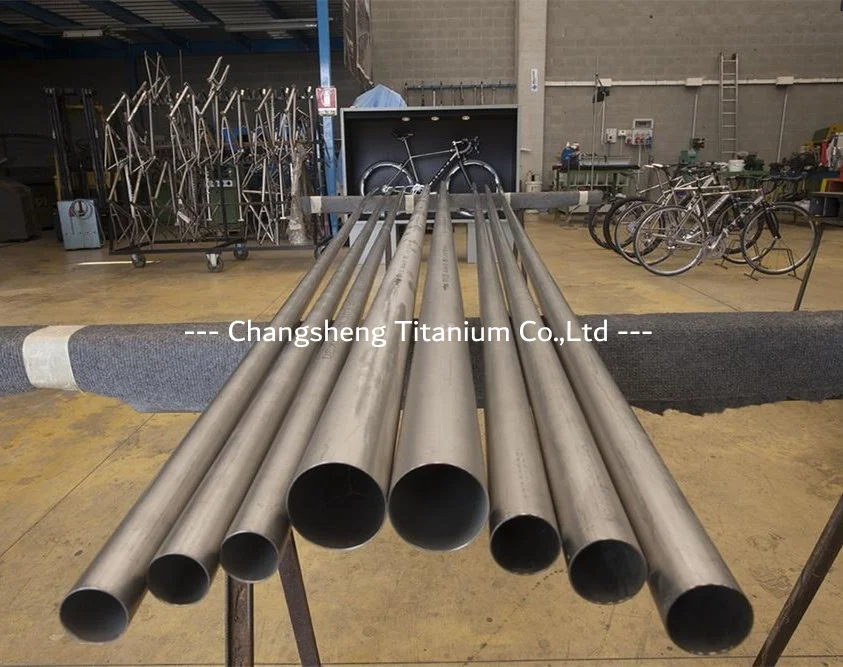

For titanium bike frame (mainly Gr5 Ti6al4v,Gr9 Ti3al2.5v tube)

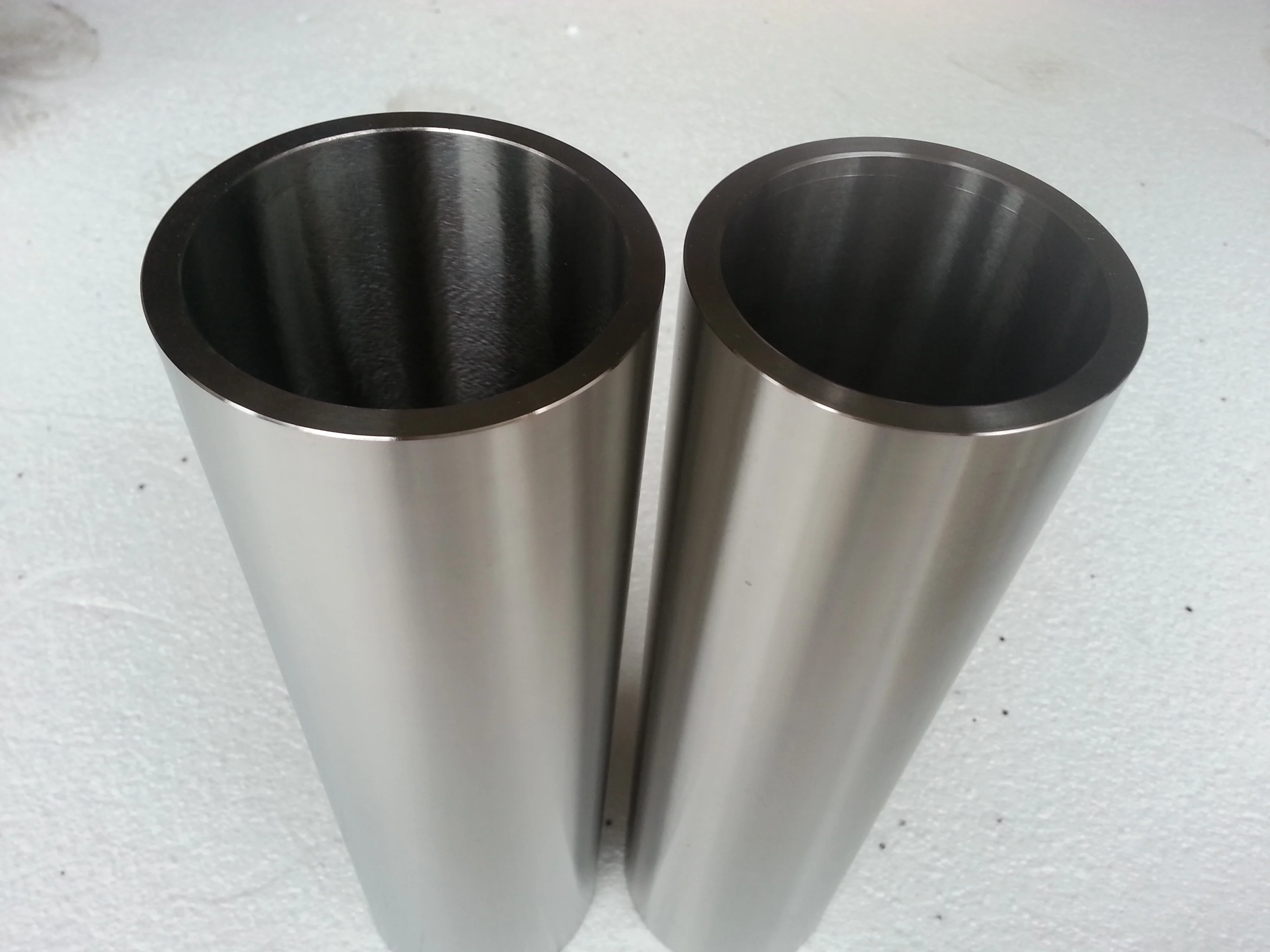

Titanium seamless tube for coil tube/heat exchanger

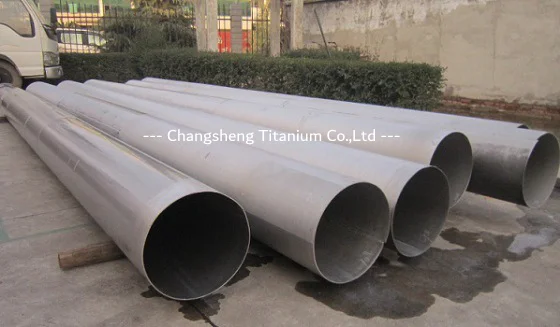

Titanium weld tube (TIG welding)

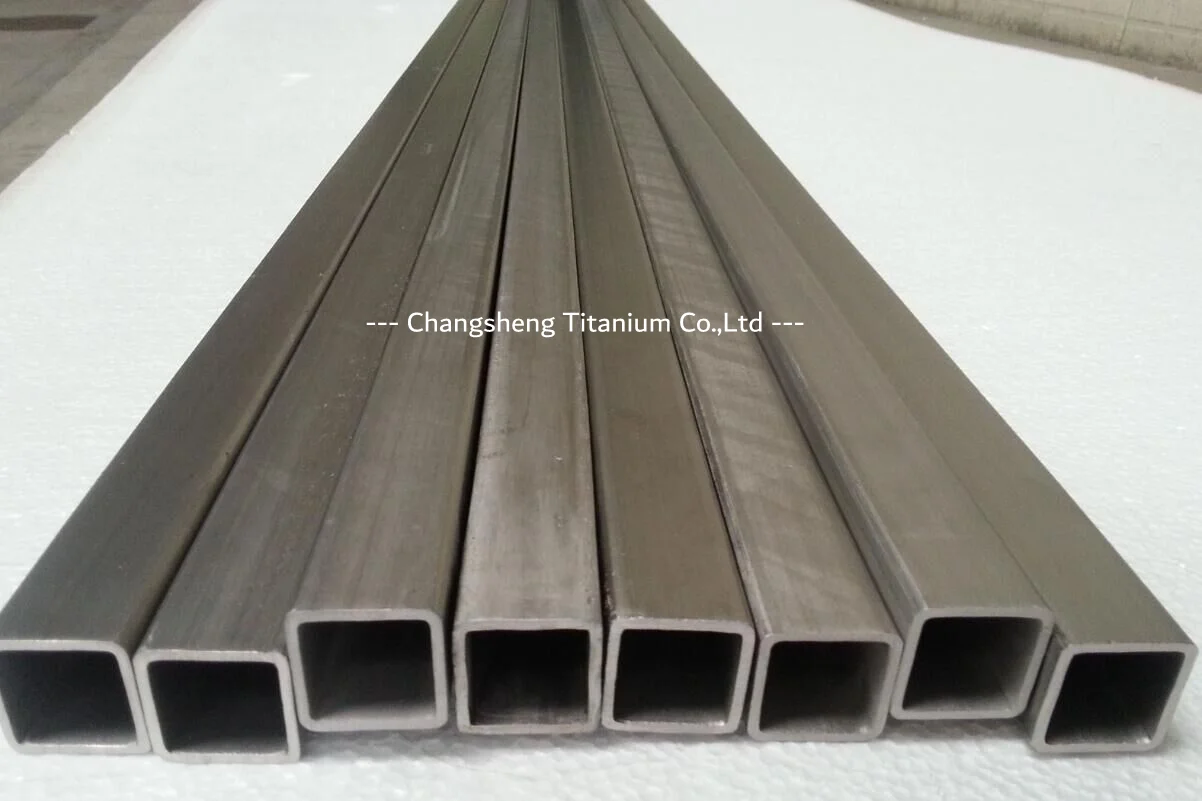

Titanium square tube (Gr1,Gr2)

Titanium tube light weight, high strength, excellent mechanical properties. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, serpentine heat exchanger, condenser, evaporator and pipeline. Many in the nuclear industry use titanium tubes as standard for their units.

Weld tube spec.
Type
Grade
British Measurement inch
Metric Measurement
Standard
Welded Tube
GR1, GR2
OD 0.315” to 4.02”; WT 0.02” to 0.047”
OD 8 to 102mm;
ASTM B338, ASME SB338
Welded Pipe
GR1, GR2, GR7, GR12, etc.
OD 4.02” to 48”; WT 0.083” to 0.5”
OD 102 to 1220mm; WT 2.1 to 12.7mm
ASTM B862, ASME SB862

Seamless tube spec.
​Type
Grade
British Measurement inch
Metric Measurement
Standard
Seamless Tubing
GR1, GR2, GR3, GR5, GR7, GR9, GR12, GR16, GR17
OD 0.06” to 3.5”; Width 0.016” to 0.315”; Length Max 709”
OD 1.53 to 89mm; WT 0.4 to 8mm; Length max 18000mm
ASTMB338, ASME SB338
Seamless Pipe
GR1, GR2, GR3, GR5, GR7, GR9, GR12, GR16, GR17
OD 3.5” to 25”; WT 0.12” to 1”; Length Max 709”
OD 89 to 620mm; WT 3 to 25.4mm; Length Max 18000mm
ASTMB338, ASME SB 338, ASTM B861

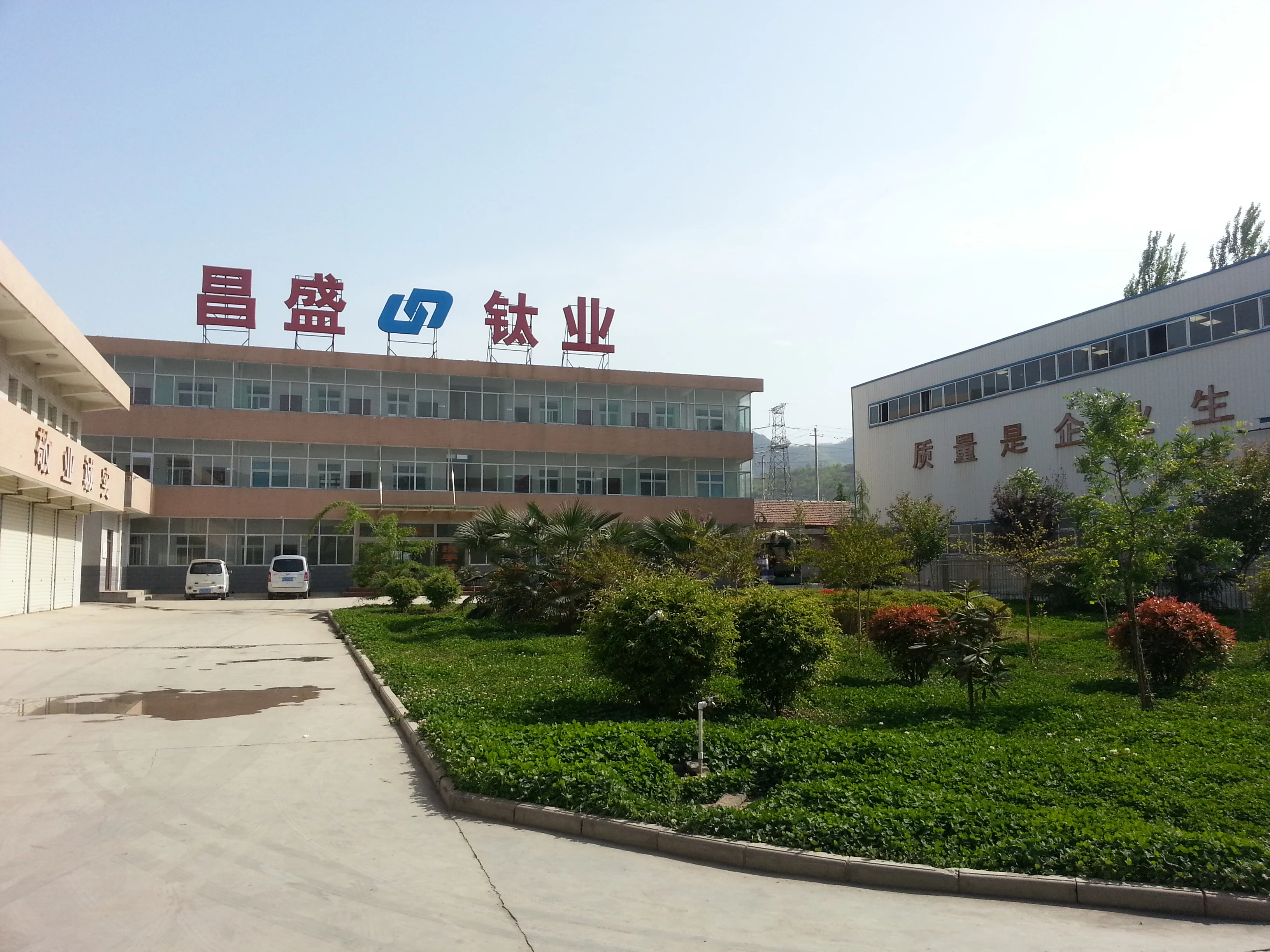

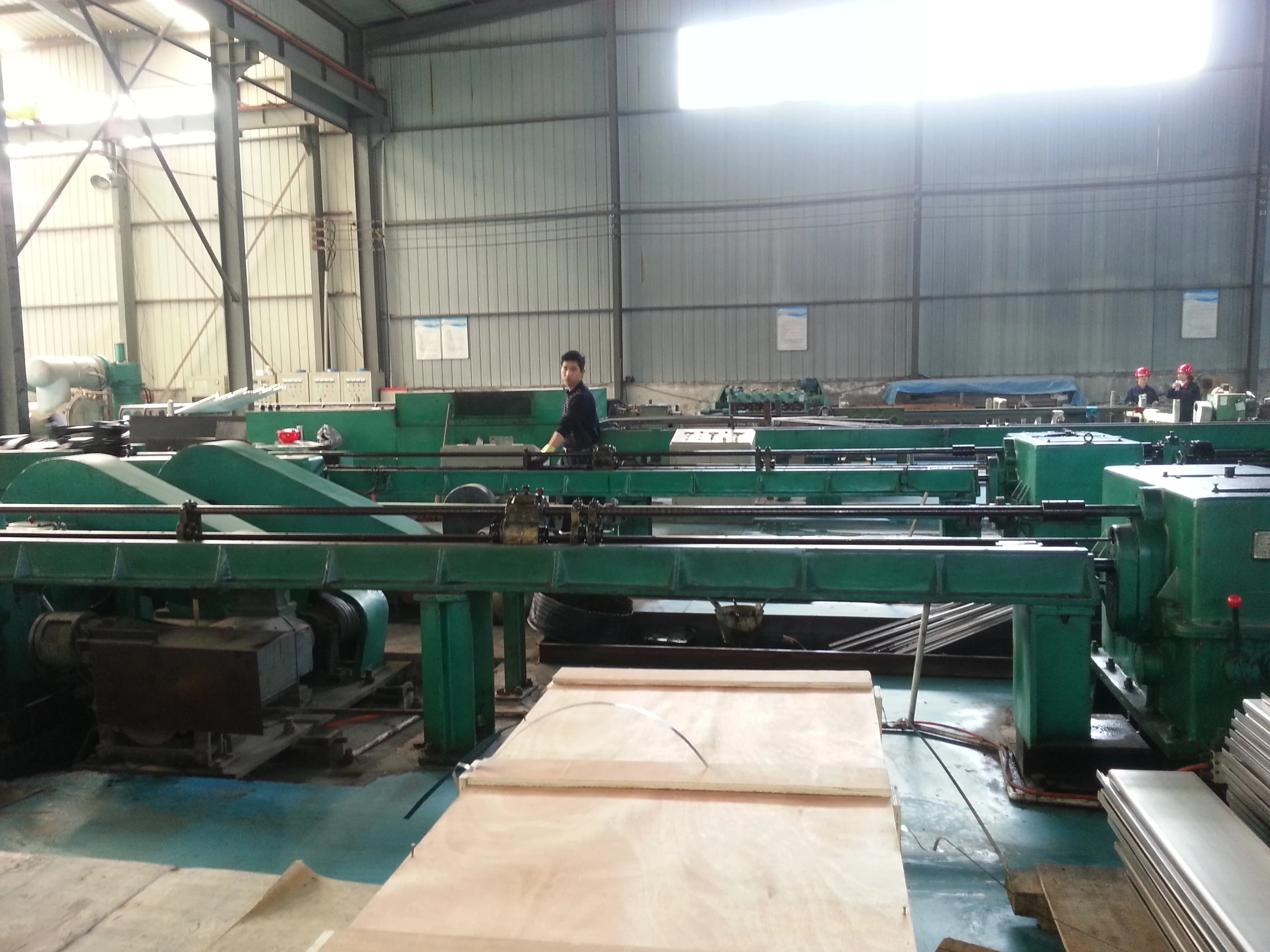

Our Company

History * In the year 2001, set up the forging workshop.
* In 2006, registered for Changsheng Titanium Co.
* In 2008, started the global business, established Changtai Metals Trading Co.
* In 2008, worked with alibaba.com, and to be the golden supplier of alibaba.
* In 2010, researched and developed the technology of big seamless titanium tube and pipe fitting production line.
* In 2012, finished the trial production of big seamless titanium tube sucessfully, and applied for the national patent.
* In 2013, made mass production of big seamless titanium tube and pipe fittings.
* In 2014, developed the technology of Grade 5 tube, introduced Germany production equipment.
* In 2014, enlarged the production line of customized parts, made titanium radiators and heat exchangers for Canada Saltswork and
American Ural Company.
* In 2015, finished the trial production of Grade 5 tubes, and started to make mass production.
* In 2016, set up foreign sales team in Xi'an City.
* In 2017, enlarged the production of tube and pipe fittings
* In 2018, enlarged the production of plate and anode.
* In 2019, we focus on India market, plan to attend two exhibitions India in September & November.
