High accuray 4-20mA RS485 digital water Electromagnetic Flow meter magnetic flowmeter with LED display used for sewage treatment

  • 2-9 Pieces
    $400.50
    $445.00
  • 10-49 Pieces
    $355.50
    $395.00
  • >=50 Pieces
    $310.50
    $345.00
10% OFF Discount ends in : : :
Material:
carbon steel
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Sinomeasure
Model Number:
LDG-SIN
Type:
Variable Area Water Flowmeters
Product Name:
Electromagnetic Flowmeter
Liner Material:
Neoprene
Electrode:
316 stainless steel
DN size:
DN 50
Accuracy:
±0.3%, ±2mm/s (flowrate less than 1m/s)
Power supply:
220VAC/ 24VDC
Application:
Measuring Liquids
Output:
4-20mA /RS485/ pulse
Conductivity:
water 20μS/cm other medium 5μS/cm
Protection class:
IP65

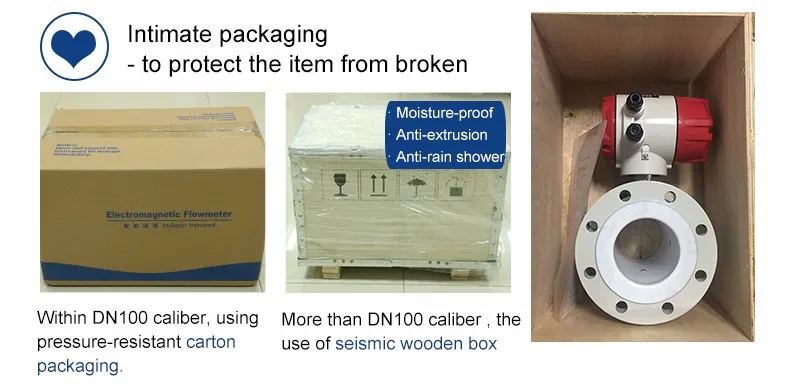

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X35X30 cm
Single gross weight:
15.0 kg
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 10 To be negotiated

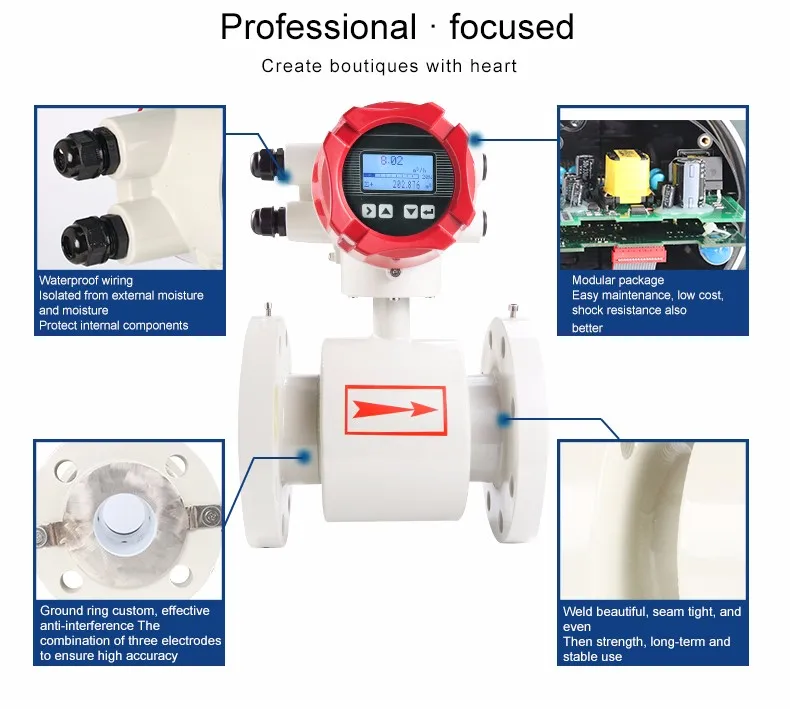

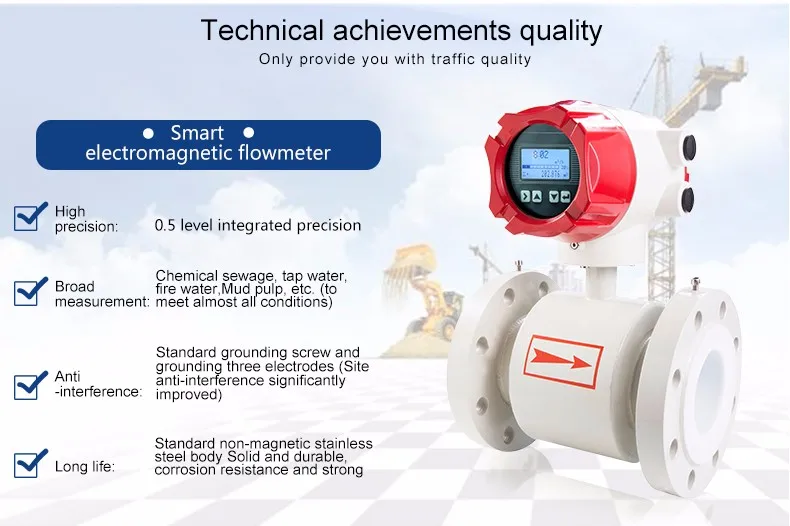

Product Show
 Name:
 Intelligent electromagnetic flowmeter
 Accuracy:
 ±0.5%R
 Pressure:
 1.6MP (DN10~DN150)          1.6MPA (DN200~DN600)
 1.0MPA (DN700~DN1200)    0.6MPA (DN1400~DN2000)
 (Others can be customized)
 Installation:
 Flange(standard)      Clamp (customized)
 Electrode:
 SS316L(standard)    HB / HC alloy (strong acid and alkali)      Titanium ; tantalum ; tungsten carbide ; platinum
 Lining:
 Neoprene;PTFE;F46;PFA
 Range Ratio:
 20:01
 Ambient:
 Sensor: -25 ~ 180 ℃ converter: -10 ~ 60 ℃
 Fluid requirements:
 Conductive medium (conductivity ≥ 5US / CM)

How to choose lining material?

Lining material
 Applications
 Teflon
 Strong corrosive mediums such as strong acid and alkali
 PFA
 Applicable in state of load pressure
 F46
 1.The same as PTFE.
 2.Applicable in mediums of low abrasion.
 Neoprene
 Water,sewage and slurry,mineral serosity of low abrasion.
 Polyurethane
 A pplicable in mineral serosity,slurry and coal slurry of high abrasion.

How to choose electrode material?

 Electrode material
 Applications
 SS316L
 Applicable in water,sewage and corrosive mediums.
 Tungsten carbide
 Applicable in mediums of no corrosive and low abrasion.
 Hastelloy B(HB)
 Having strong resistance to hydrochloric acid of any consistance
 Hastelloy C(HC)
 Be resistant to oxidable acid such as nitric acid,mixed acid etc
 Titanium
 Seawater,and kinds of chloride,hypochlorite salt,oxidable acid etc
 Da
 Hydrofluoric acid, fuming sulfuric acid, alkali remaining chemicals etc
 Platinum-iridium
 Chemical mediums except for aqua fortis,ammonium salt.
Product Description
Related Products
Our Company
FAQ

Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance

Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
