High brightness 800x480 dots 7 inch tft lcd display module support camera function

Feedback Ratings
US $58.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview

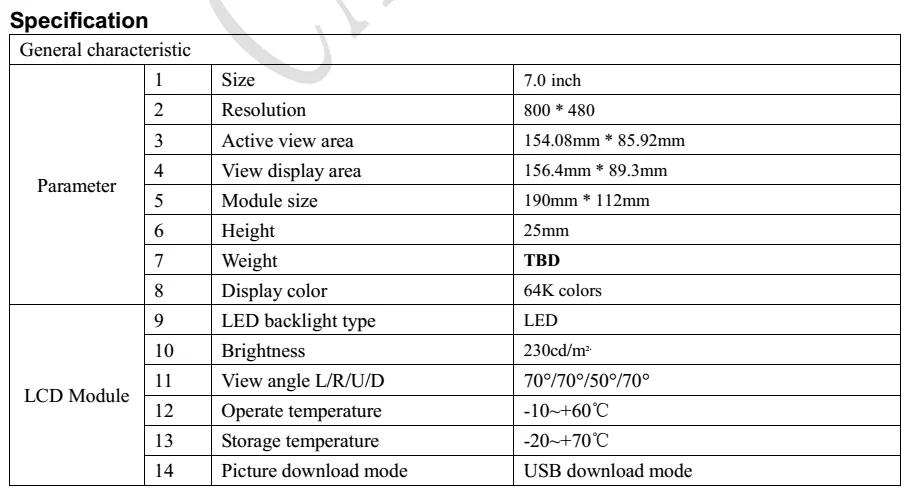

Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Caijing
Model Number:
CJS07002TDWS
Type:
TFT
Item name:
800x480 dots 7 inch tft lcd display module with touch panel
Resolution:
800x480 dots matrix
V.A:
154x93mm

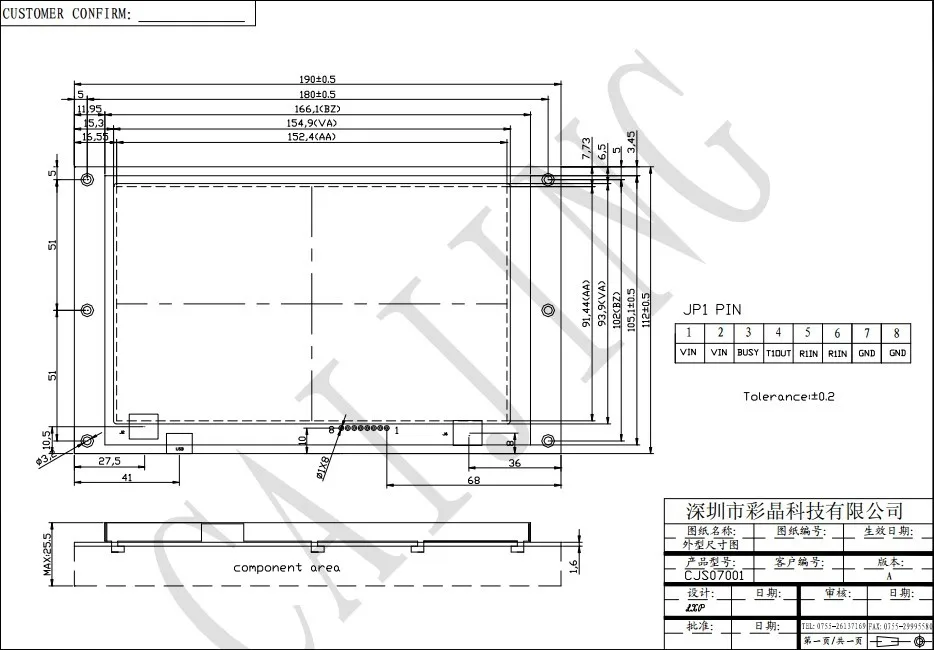

Outline size:
190X112mm
Height:
18mm
display color:
65K
backlight:
LED backlight
brightness:
300cd/m2
MOQ:
1pc
place of origin:
China

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X9X3 cm
Single gross weight:
0.5 KG
Package Type:
1pc/bubble bag
Lead Time :
7

800x480 dots 7 inch tft lcd display module with touch panel

Product Description

 800x480 dots 7 inch tft lcd display module with touch panel


7 inch.png

Functions

Sets current palette

Sets the character display spacing

Takes a color from specific location

Cursor display

Text display

Chooses the character library display

Character zoom in display

Set/cancel the limitation for textbox

Display point

Line display

Line chart display

Ellipse and ellipse area operate

Circular curve display

Rectangle and rectangular region display

Dynamic curve display

Clear full screen

Picture/icon display and more

Uart RS232 RS485 interface 7" Diagonal 800x480 pixel tft smart terminal lcd module



Selling Point

Supporting RS232, RS485, USART (3.3V TTL) interfaces, baud rate from 1,200 to 115,200bps wide input range VDD (9-26V)
RTC real-time clock
Embedded 4-wire touch panel controller
USB picture download
Multiple pages DDRAM
Color depth TFT: 65K colors
2/4GB flash
PWM for backlight
Management of datasheet file
Efficient development tool for PC, most development work can be done on the PC
Hardware acceleration, transferred image quickly



800x480 dots 7 inch tft lcd display module with touch panel




Product Certificates

800x480 dots 7 inch tft lcd display module with touch panel

8 characters 2 lines lcd module certificates.png

Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles

Our equipment.png

Product usage

TFT  color lcd module is widely used in Healthcare Biomedical Instrumentation,and clinical diagnostics,Wind Sensors for Measurement,Control, Alarm, Internet Access,metering pumps and dosing systems,water treatment ,charging pile and car beauty equipment and Industrial control equipment, instruments and meters, bank terminal and so on .




Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/

Related Product

800x480 dots 7 inch tft lcd display module with touch panel



Display contentModel No.Outline size
L x W x H (mm)
V.A
L x W(mm)
Dots Size
L x W(mm)
VOltage     Interface
480x272RGBCJS04301120.4x68.6x8.098.5x57.30.066x0.1985V/9V-26VRS232/RS485/TTL
800x480RGBCJS05001143.5x80.9x17.5109x65.80.045x0.1355V/9V-26VRS232/RS485/TTL
640x480RGBCJS05602143.5x105x17115.9x87.670.0588x0.17645V/9V-26VRS232/RS485/TTL
800x480RGBCJS07001190x112x18154.9x93.90.0635x0.19055V/9V-26VRS232/RS485/TTL
800x480RGBCJS07002190x112x18155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
1024x600RGBCJS07006190x106.6x37.5156.2x92.60.0635x0.19055V/9V-26RS232/RS485/TTL
800x480RGBCJS07008203x112x21155.9x88.30.0635x0.19055V/9V-26VRS232/RS485/TTL
800x600RGBCJS08001199.4x148.9x15163.5x123.50.0675x0.20255V/9V-26VRS232/RS485/TTL
1024x768RGBCJS08003199.4x148.9x37.5163.5x123.50.0675x0.20255V/9V-26RS232/RS485/TTL
1280x800RGBCJS10101248x150.7x37.5219.46x138.10.0635x0.19055V/9V-26RS232/RS485/TTL
800x600RGBCJS10401247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
800x600RGBCJS10402247.5x176.8x16211.2x158.40.264x0.2645V/9V-26VRS232/RS485/TTL
