High brightness Epistar apa102 0.2w 5050 RGB 3500mcd for rgb led chips

Feedback Ratings
$0.03 / Piece | 6000 Pieces (Min. Order)
Model Number:
HY-5050RGB
$0.03
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
SMD LED
Chip Material:
InGaN
Emitting Color:
Tri-Color(Red-Green-Blue)
Luminous Intensity:
3000-3500mcd
Luminous Flux(lm):
10-12lm
Optical Attenuation(%):
0.3
Power:
0.5w
Power Dissipation:
0.001
Viewing Angle(°):
120 Degree
Color Temperature:
R:620-625 G:520-525 B:460-465
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HY
Certification:
CE, RoHS
Size:
8*10mil
Chip Brand:
Epistar,Sanan
Material:
Gold Wire, Copper stand
Voltage:
3.0-3.4V
Current:
60mA
Color tolerance:
<6
Color:
W/R/G/B/Y/RGB/Purple/Amber
Package:
1000 Pcs/Anti-static vacuum Bag
Lifespan:
50000 Hours
Warranty:
3 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X2 cm
Single gross weight:
0.01 kg
Package Type:
6000pcs /reel, each reel Anti-static vacuum Bag
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 6000 6001 - 12000 >12000
Est. Time(days) 3 7 To be negotiated
Video Description
Basic information

High brightness Epistar 0.2w 5050RGB 3500mcd for rgb led strip


Dimension

Model No.
HY-5050RGBL10-1E
Power
0.2W
Lumens
3000-3500MCD (R:700-850/ G:1800-2300 /B:600-750MCD)
Wavelength
R:620-625/ G:520-525 /B:460-465NM
Voltage
R:2.0-2.4V G/B:3.0-3.4V
Current
60mA
Chip Brand
Epistar
Chip Size
R:10*10mil/G:8*10mil/B:8*10mil
Lifespan
50,000 hours
Warranty
3 years
Specification

Brand Chip

Huanyu RGB LED smd 5050 use Epistar Sanan Hualei Foriep etc brand LED diode, high lumen, strong anti-static ability, strong anti-attenuation ability, good consistency and not dead light

3

Gold wire

led 5050 smd rgb led light ys==use 99.99% Gold wire, Aolly wire can be supply depend on the customers' requirment.

We choose gold wire with high conductivity, good thermal conductivity, corrosion resistance, good toughness, good chemical stability, stable product performance and other advantages, high-end packaging technology selection.

Lead Frame

Red copper lead frame

Huanyu use Copper bracket for many years to ensure the quality. and has the technical operation personnel and the first-class equipment in the industry, the elimination of the chip fake solid tin, the adhesion poor, the residual high production problems caused the lamp life short and low brightness and so on.

Splitting

Import machines from Japan, high speed splitting,about 60K/hrs.Intelligent full-point identification and positioning system can recognize stents and control the amount of glue, high speed.stability, maneuverability, and durability, which ensures precision and density.

Sorting &Typing

0.1V 0.2V 0.5V sorting, The vibration disc is used to send the material, equipped with a large capacity storage device, and the SMD LED electrical parameters are tested. It can arrange the polarity automatically, automatically select and eliminate the unqualified products, and also cooperate with the workers to control the quality, so as to make each SMD LED color sorting.

Electrical / Optical characteristics

Item
Symbol
Absolute Maximum Rating
Unit
Forward Current
IF
20
mA
Pulse Forward Current
IFP
R:50 / G&B:100
mA
Reverse Voltage
VR
5
V
Power Dissipation
PD
R:75 /G&B: 100
mW
Operating Temperature
Topr
-40ºC To +85ºC
°C
Storage Temperature
Tstg
-40ºC To +85ºC
°C
Soldering Temperature
Tsld
Reflow Soldering: 260ºC
Hand Soldering : 300ºC
for 10sec.
for 3sec

Initial Electrical/Optical Characteristics (TA=25ºC)

Symbol
Item
Units
Color
Min.
Typ.
Max.
Test Conditions
VF


Forward Voltage
V
R
2.0
2.2
3.4


IF=20mA
G
3.0
3.2
3.4
B
3.0
3.2
3.4
IR
Reverse Current
uA
R.G.B
-
-
1
VR=5V
Viewing Angle
º
-
120º
-
IF=20mA


IV


Light intensity


MCD
R
700
850


IF=20mA
G
1800
2300
B
600
750
TC
Wavelength
NM
R 620-630NM/G520-530NM/B460-470NM
IF=20mA

Application

Other products:

Huanyu also supply SMD 5050 White&Single color, SMD 5730 LED, SMD 2835 LED, SMD 3030 LED,High efficiency SMD LED, High Voltage LEDs.

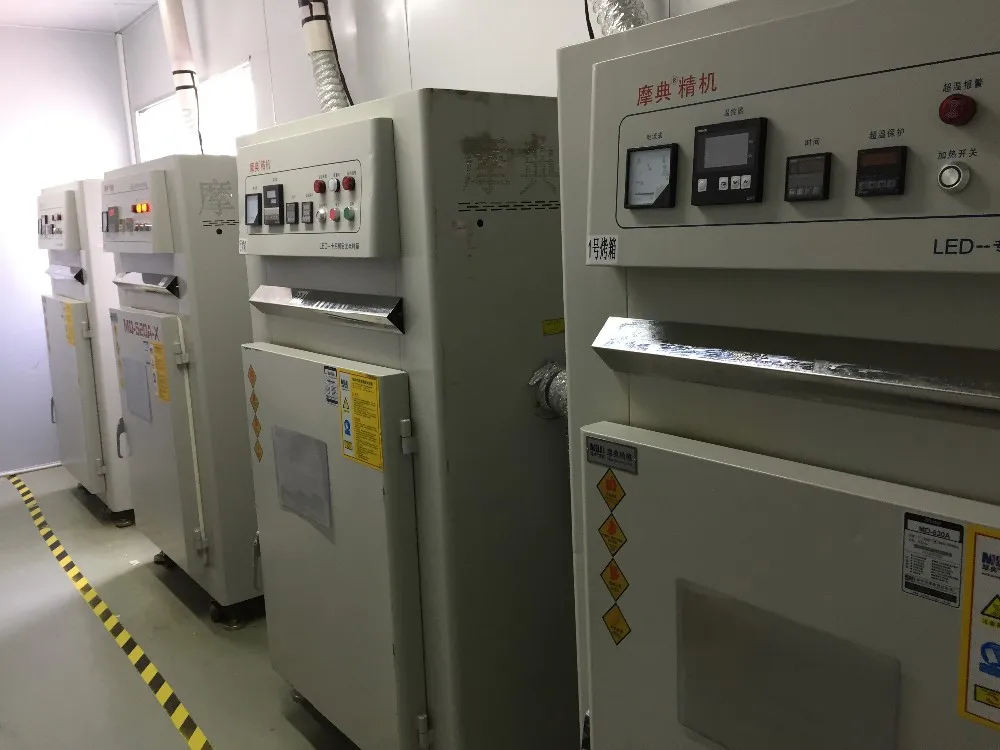

Product Line

Own the LED special dust-free, anti-static workshop. Formed a number of world-class United States ASM automatic,machine crystalline solid,ASM automatic soldering machines, H120 automatic LED light colour scanner,100% sure our quality is best.

Company Infomation

HuanyuDream  is a professional manufacturer of SMD LED Chip,

mainly products such as SMD 5730 2835 5050 3030  High power 1w 3w LED.

LOGO has been registered as a Trademake, please identified our Logo when you looking for the products,

and factory local in  Guangming Shenzhen , welcome to visit us!

FAQ

Q1. Can I have a sample order for this products?

A: Yes, we glad to support the  sample to test and check quality.

Q2. What about the lead time?

A:Delivery time for Sample 1-3 days, mass production 3-7 days.

Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

A: MOQ 1pc. We accept T/T Paypal and Western Union three ways.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.
