High cofiguration small hobby cnc milling machine / router cnc for wood acrylic aluminum

  • 1 - 1 Sets
    $2,400.00
  • >=2 Sets
    $2,100.00
Model Number:
AKG6090
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
AccTek
Voltage:
220v/380v, 50hz/60hz
Dimension(L*W*H):
1340*1040*1185mm
Certification:
CE, FDA
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service
Product name:
small hobby cnc milling machine / router cnc for wood acrylic aluminum
Working area:
600X900X200mm
Control system:
Mach3 Controller
Spindle:
1.5 Kw Water Cooling Spindle
Table:
T-slot Table with water tank
Transmission:
Taiwan TBI Ball Screw
Motor:
Leadshine Stepper Motor
Guide rail:
Taiwan Hiwin Square Guide Rail
Inverter:
Fuling Inverter
Software:
Ucancam / ArtCam/TYPE3
Weight:
260kg
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard marine export plywood case (wood cnc router)
Port
Qingdao
Video Description
Product Description
High cofiguration small hobby cnc milling machine / router cnc for wood acrylic aluminum

Main Features

1.Integral cast iron frame,more durability.
2.Inported all steel linear guide with high precision,ensure machine frame much stability and dutability.
3.High accuracy rolling ball screw from Gemany,assure machine frame of better precision.
4.Handle controlling,not occupying computer resource,one computer can control several equipments.
5.Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc.

Detailed Images

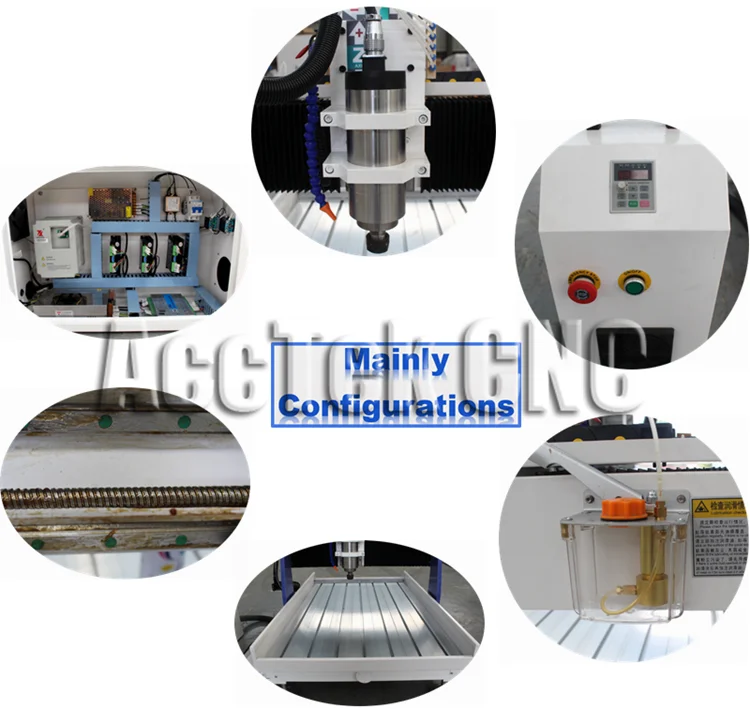

Mainly Configurations

1. Working area: 600*900*200mm
2. 1.5kw water cooling spindle
3. Mach3 controller
4. Leadshine stepper motors and drivers
5. X,Y Z by Taiwan TBI ball screw transmission
6. Taiwan Hiwin linear square rail guide 20mm
7. Type3, Artcam software
8. T-slot table with water tank
9. Fuling inverter

Optional Part

1. 2.2kw water cooling spindle
2. DSP controller
3. Rotary device
4. Leadshine easy servo motor
5. Dust collector

Technic Parameters
Model
AKG6090 advertising cnc router
XYZ axis Working size
600*900*200mm
Machine body
Cast Iron structure
Table surface
T-slot table with water tank
Transmission
Taiwan TBI Ball screw transmission
Spindle power
1.5 kw water cooling / 2.2kw / 3.0kw for optional
Spindle speed
0-24000 RPM
Drive motor
Leadshine stepper motor and driver
Max. Rapid Travel Rate
16000 mm/min
Max. Working speed
8000 mm/min
Control system
Mach3 controller
Software
Type3, Artcam, Ucancam
Inverter
Shanghai Fuling / Taiwan Delta for optional
Machine precision
0.01mm
Repositioning precision
0.03mm
Working voltage
AC 380v/220/110V,50/60HZ
Optional parts
DSP controller, Rotary device, Dust collector,
Leadshine easy servo motor etc.
Payment & Delivery

- cnc router Payment

1. T/T
*We accept T/T , you can pay 30% in advance, 70% before delivery.
*The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.
*After you agree, please finish the balance.Finally.we arrange the delivery

2. Trade Assurance
*We draft contract on Alibaba first, then you check and arrange payment.
*It support payment online, like Credit card, e-checking and T/T.
*You pay to Alibaba, after we sent the machine to you, Alibaba pay to us, it's very safe for you.

- cnc router Delivery

*Outside package: Standard marine export plywood case .
*Inner package: Stretch film and plastic film for humidity .
*We can package according to your requests.

Our Service

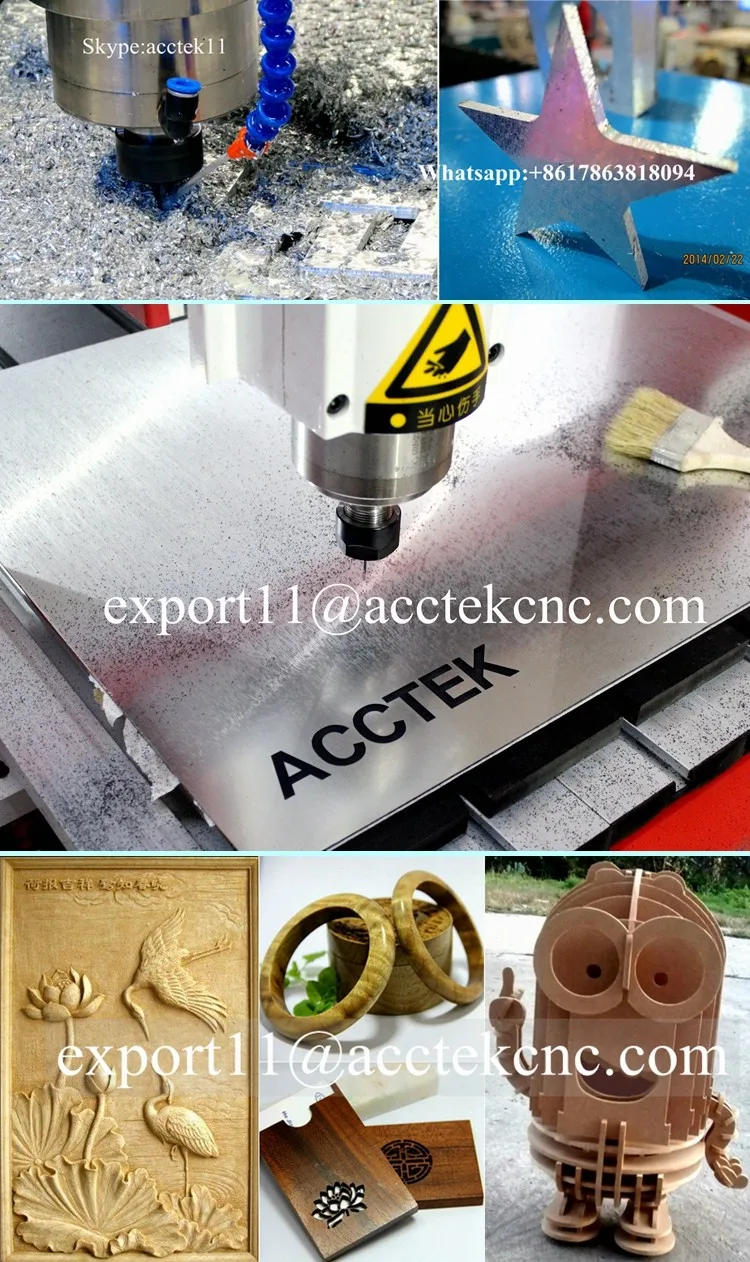

1. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
2. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
Wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.

Service & Company

- Guarantee
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

- After sales services
1.Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
2.Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
3.Our technicians could speak English, if you need any technical support in the future, they could help you online.

Contact us

I hope you can sent me email or skype,i am glad to help you choose the most suitbale machine.
And we are seeking worldwide distributors.I believe Win-win is the best way for us.

# Contact person: Abby Wang

# Skype: acctek11

# Whatsapp: +8617863818094

# E-mail: export11"at"acctekcnc.com
