High efficiency Hydro turbine Tubular Turbine

FOB Reference Price:Get Latest Price
US $10,000-100,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
vcset
Model Number:
Tubular Turbine
Type:
Turgo Turbine
Capacity:
200kw-90mw
lifespan:
30-50 years
output type:
AC three phase
Color:
Customized
Service provide:
Design,Prodcution,Maintenance
Water head:
2-25m
Arrangement type:
Horizontal
Output scope:
200Kw -16Mw
Runner diameter:
80cm -560cm
Runner material:
stainless steel
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard export plywood case
Port
Shanghai,Shenzhen,Guangzhou
Video Description

Product Description

 High efficiency  Hydro turbine Tubular Turbine

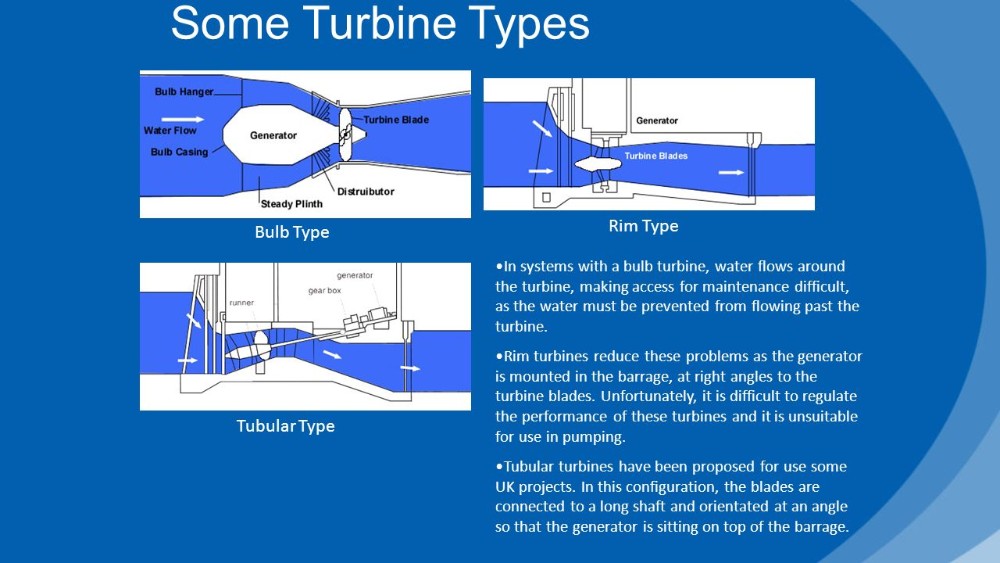

Tubular turbine has been divided into Bulb tubular and shaft extension tubular according to the arrangement. Suit to low water head 2-25 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 5.8meters, with rated output 200Kw to 16Mw.

Turbine units normally be horizontal shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size

1,Suitable water head : 2-25m

2, Output scope      : 200Kw -16Mw

3, Runner diameter   : 80cm -560cm

4,Runner material    : stainless steel

5, Arrangement type  : Horizontal
